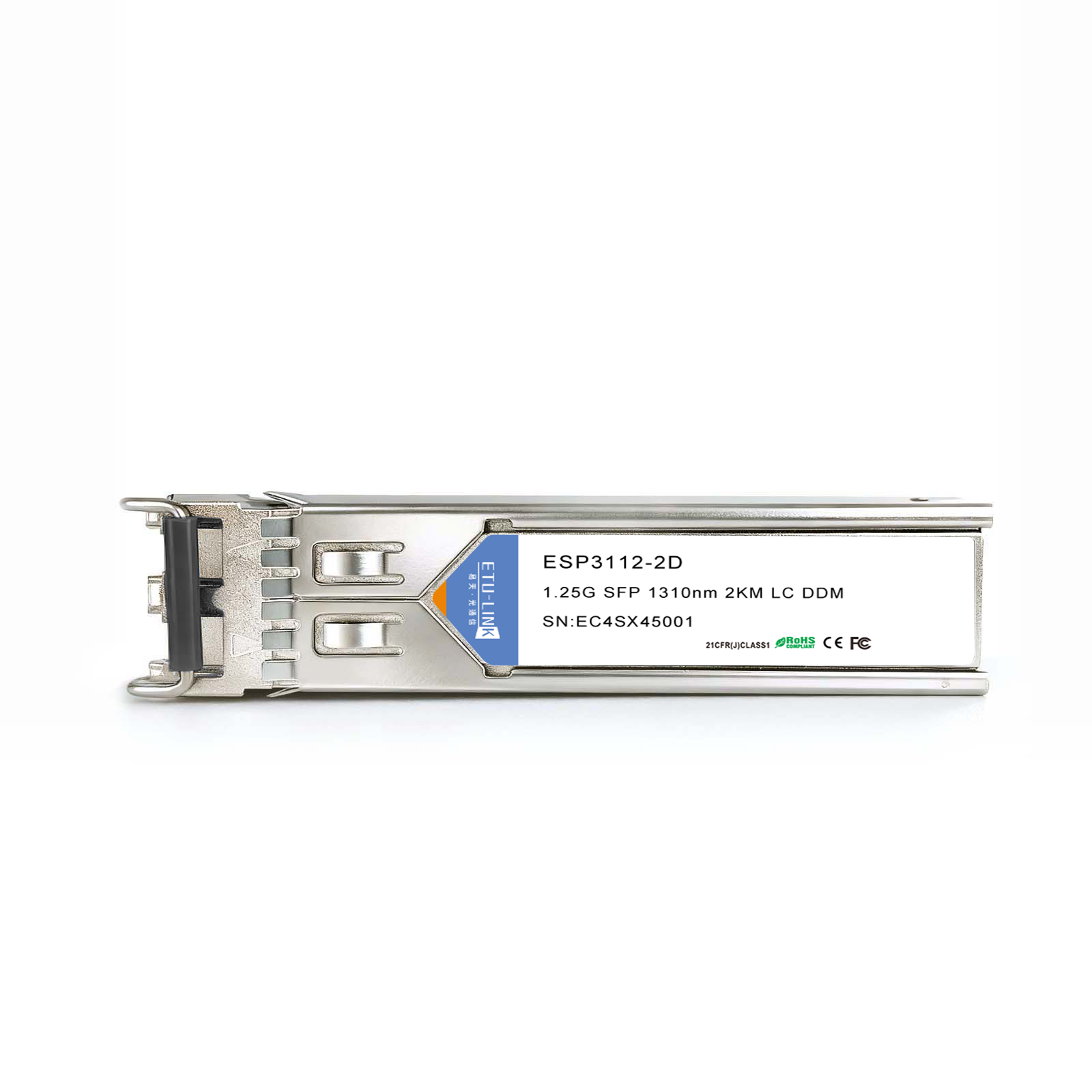

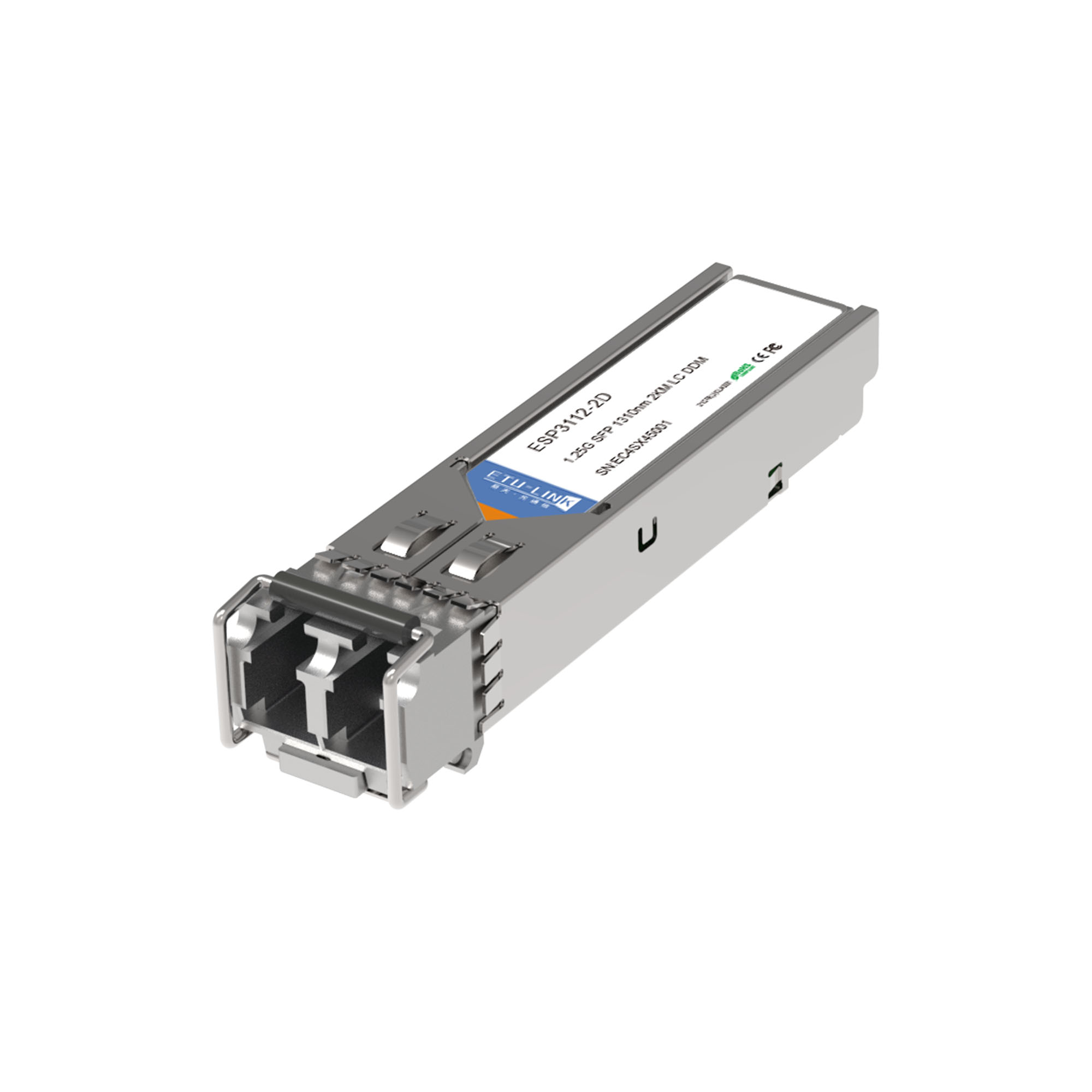

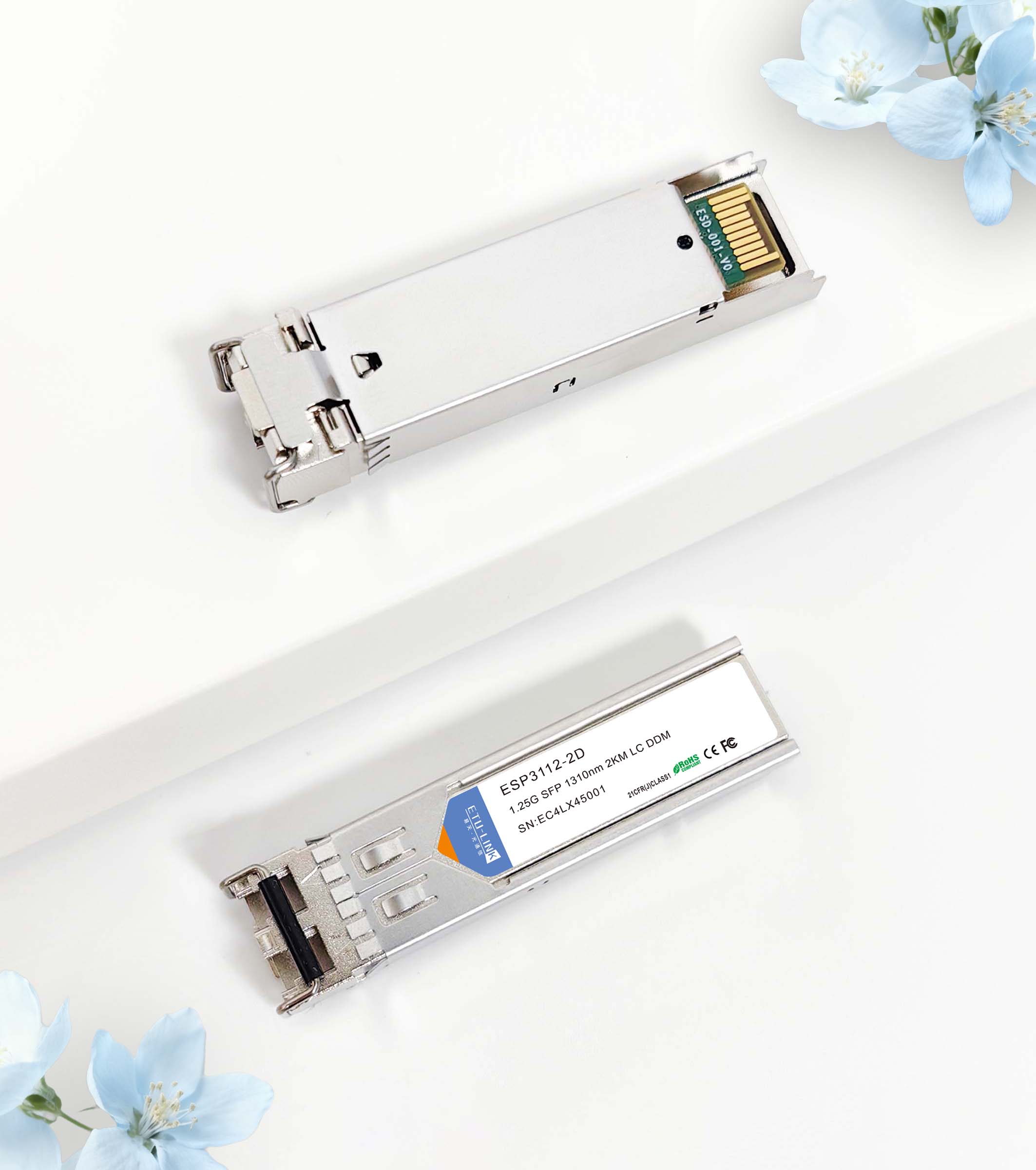

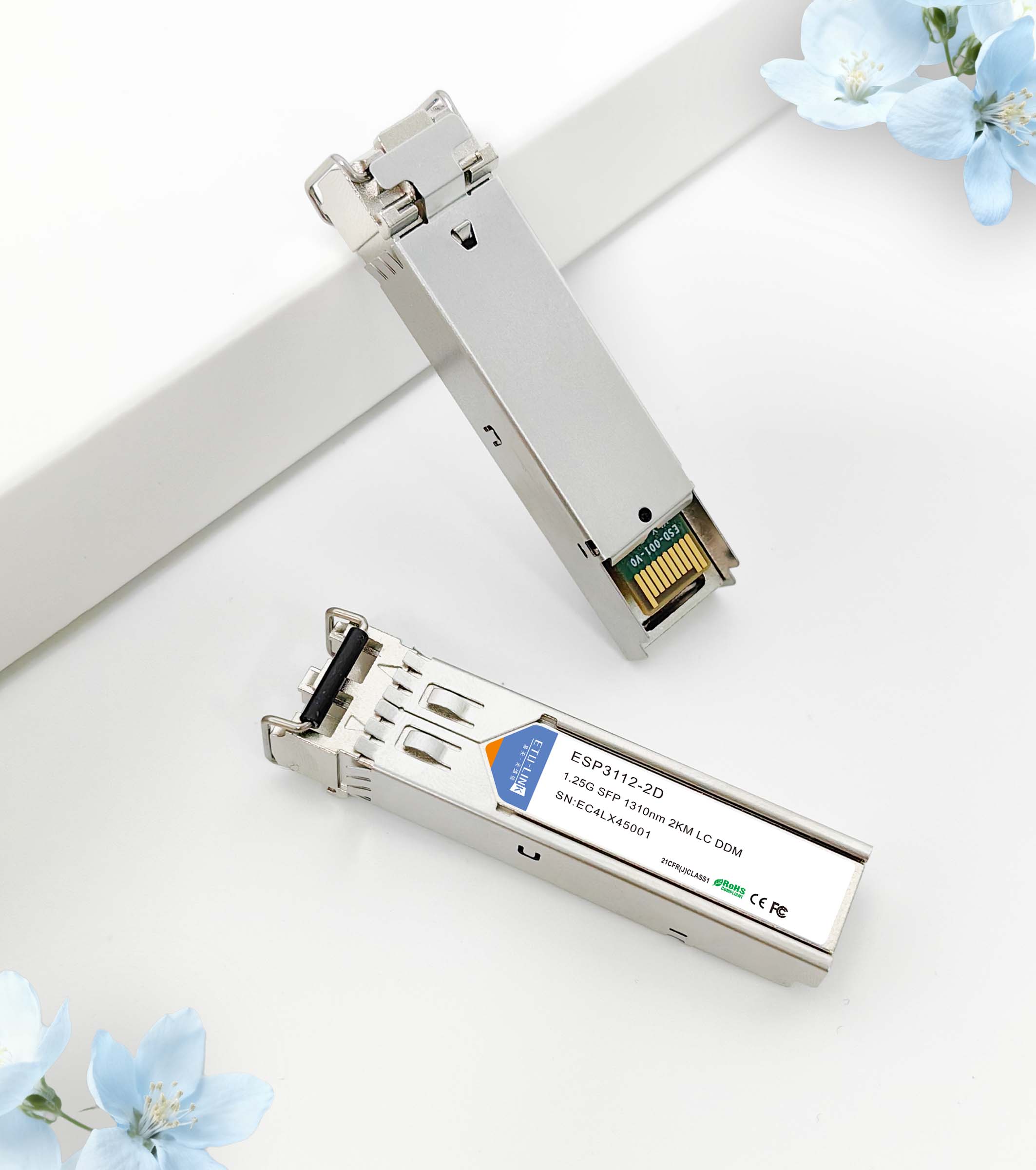

1.25G SFP 1310NM MM 2KM TRANSCEIVER
1.25G SFP 1310NM MM 2KM TRANSCEIVER
  • Item NO.:ES3112-3LCD2
  • Data Rate:1.25G
  • Wave Length:1310nm
  • Distance:2KM
  • Connector:LC
  • First:MM
  • DDM:YES
  • Product Origin:China
  • Shipping Port:ShenZhen/HK
  • Lead Time:Please contact our sales for confirmatio
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

ES3112-3LCD2

1.25Gbps SFP Optical Transceiver, 2KM Reach


Features

Ø  Data-rate of 1.25Gbps operation

Ø  1310nm FP laser and PIN photo detector for 2km transmission with MMF

Ø  Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Ø  Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Ø  Compatible with SONET OC-24-LR-1

Ø  Compatible with RoHS

Ø  +3.3V single power supply

Ø  Operating case temperature:

Standard : 0 to +70°C

Industrial : -40 to +85°


Applications

Ø  Gigabit Ethernet

Ø  Fiber Channel

Ø  Switch to Switch interface

Ø  Switched backplane applications

Ø  Router/Server interface

Ø  Other optical transmission systems


Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 2KM transmission distance with MMF.



The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
