10G XFP BIDI Transceiver

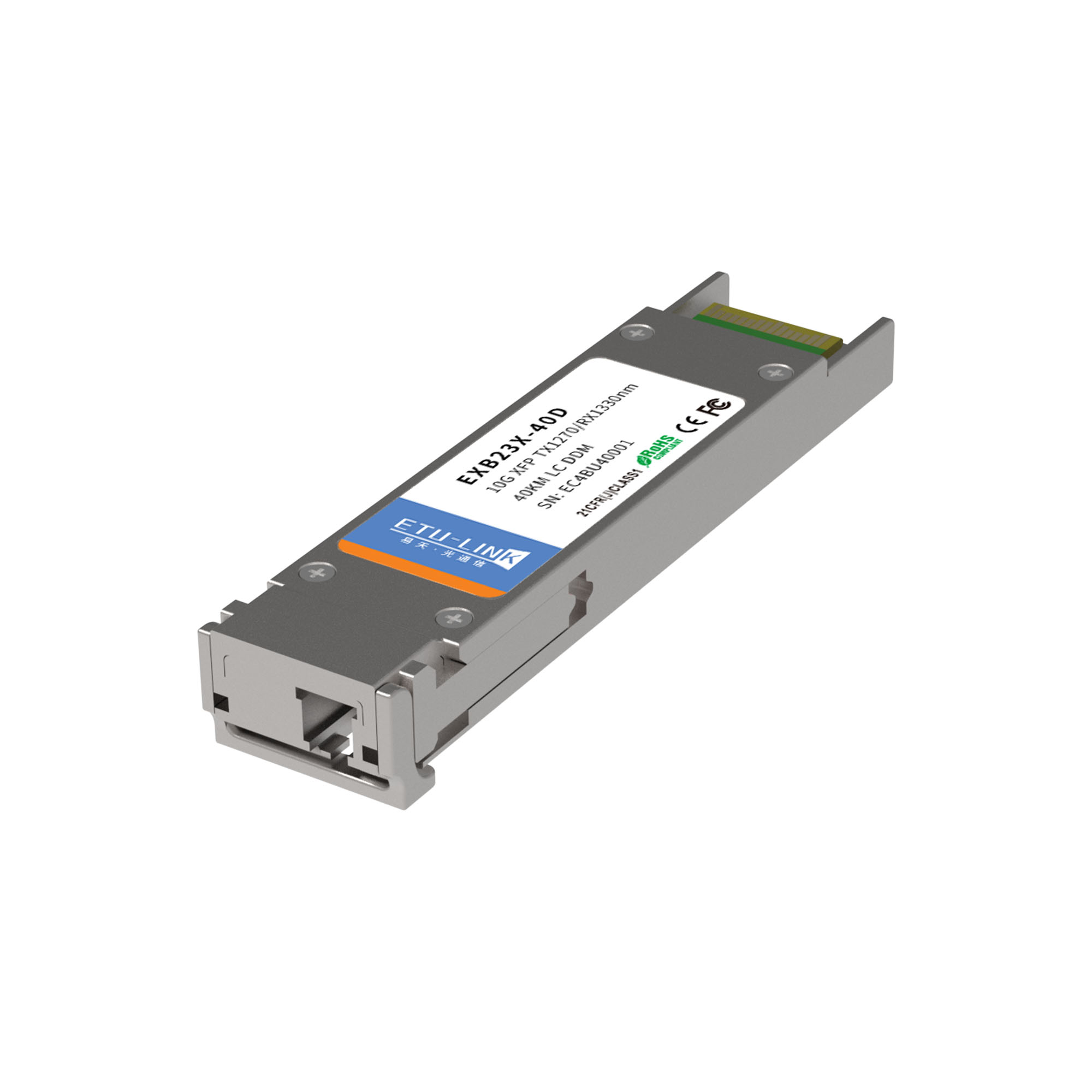

10G 40KM BIDI XFP Transceiver
  • Item NO.:EXBxx92-3LCD40
  • Data Rate:10G
  • Wave Length:1270/1330nm
  • Distance: 40KM
  • Connector: LC
  • First:SM
  • DDM:YES
  • Product Origin:Made in China
  • Shipping Port:ShenZhen
  • Lead Time:Please Contact The Sales Confirmation
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

EXBxx92-3LCD40

10Gbps XFP Bi-Directional Transceiver, 40KM Reach

Tx1270/1330nm / Rx1330/1270 nm


Features

Ø Supports 9.95Gb/s to 10.5Gb/s bit rates

Ø Hot-pluggable XFP footprint

Ø Maximum link length of 40KM with SMF

Ø 1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver

Ø XFP MSA package with LC connector

Ø No reference clock required

Ø Loop Back Support.

Ø +3.3V+1.8V power supply

Ø Power dissipation <2W

Ø Compatible with RoHS

Ø Built-in digital diagnostic functions

Ø Temperature range 0°C to 70°C


Applications

Ø 10GBASE-ER 10G Ethernet at 10.3125Gbps

Ø 10GBASE-EW 10G Ethernet at 9.953Gbps

Ø 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps


Product Description

ETU-Link EXBxx92-3LCD40 is compliant with the IEEE803.3ae 10Gbase-Bx and transmission distance up to 40KM on SMF.



The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.

Related Tags : ZTE 10G XFP BIDI Transceiver MOXA 10G XFP Bidi 40km OPTCORE 10G XFP Bidirectional 1270/1330nm

Previous:10G 20KM XFP BIDI Transceiver

Next:10G 10KM XFP BIDI Transceiver
