10G DWDM XFP 80KM LC Optical Transceiver

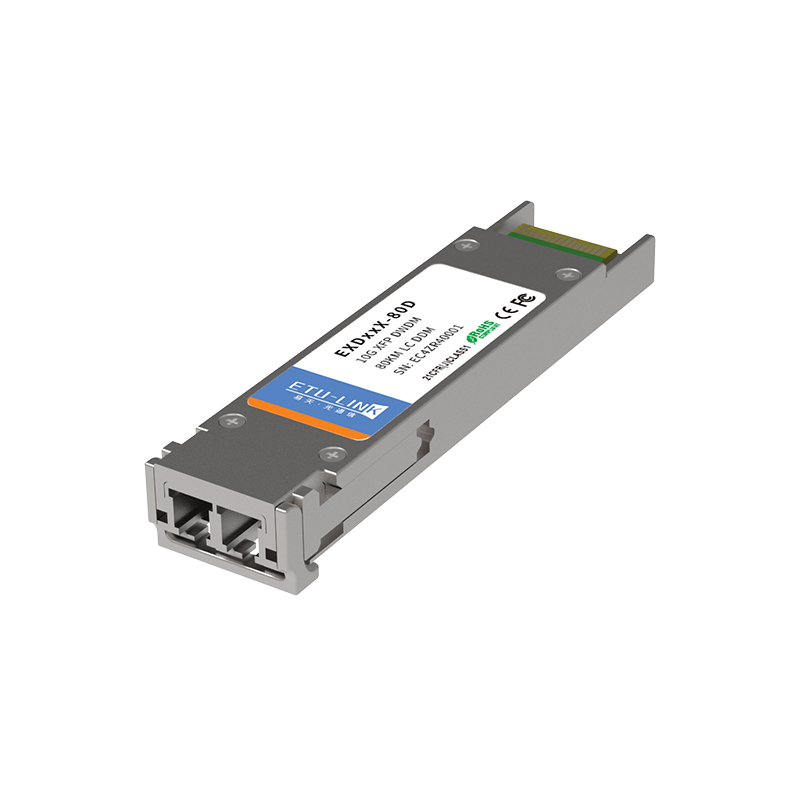

10G DWDM XFP 80KM LC Optical Transceiver

  • Product Model:

    EXDxxX-3LCD80
  • Data Rate:

    10G
  • Wavelength:

    DWDM
  • Distance:

    80KM
  • Connector:

    LC
  • Fiber Type:

    SM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    ShenZhen
  • Lead Time:

    Please contact our sales confirmation
  • Product Detail

  • Wavelength selectable to C-band ITU-T grid wavelengths
  • Suitable for use in 100GHz channel spacing DWDM systems
  • XFP MSA Rev 4.5 Compliant
  • Data rate from 9.95Gbps to 11.3Gbps
  • No Reference Clock required
  • Cooled EML and APD receiver
  • link length up to 80KM
  • Low Power Dissipation 3.5W Maximum
  • XFI and lineside loopback Mode Supported
  • -5ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature
  • Supply Voltages, laser bias current, transmit optical power, and receive optical power
  • RoHS6 compliant (lead free)
