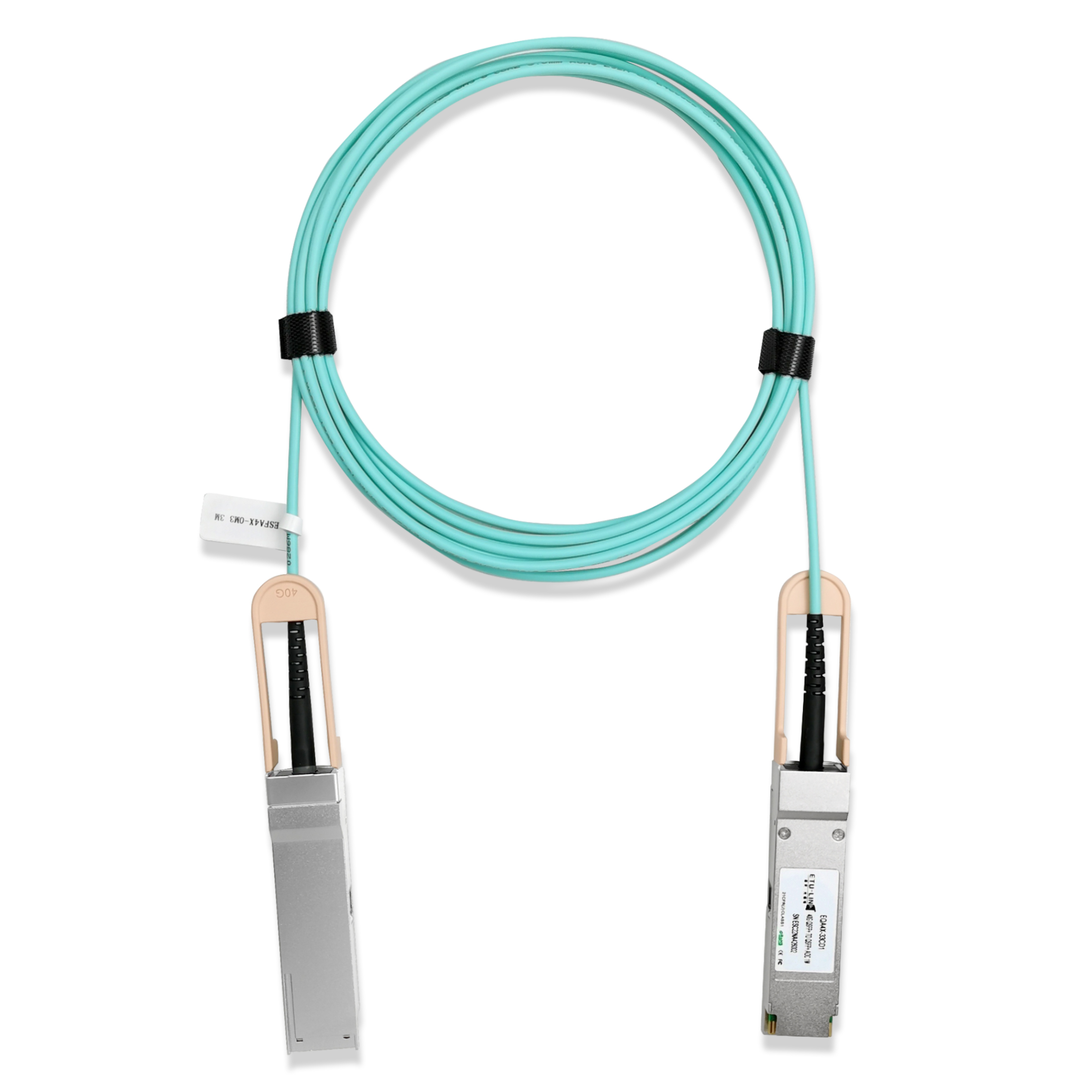

40G QSFP+ – 40G QSFP+ AOC Cable
40G QSFP+ AOC
  • Item NO.:EQSP854A-3CAOCxx
  • Data Rate:40G
  • Wave Length:1310nm
  • Distance:1~300M
  • Product Origin:China
  • Shipping Port:Shenzhen
  • Lead Time:Please conatct our sales for confirmatio
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

EQSP854A-3CAOCxx

40G QSFP+ to 40G QSFP+ Active Optical Cables


Features

Four-channel full-duplex active optical cable

Transmission data rate up to 11.3Gbit/s per channel

Reliable VCSEL array technology using multimode fiber

Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m

Low power consumption <1.5W

Operating case temperature 0°C to +70°C

3.3V power supply voltage

RoHS 6 compliant

Hot Pluggable QSFP form factor


Applications

Infiniband QDR/DDR/SDR

Datacenter

40G Ethernet

4G/8G/10G Fibre Channel


Description

The ETU-Link QSFP+ active optic cables are a high performance, low power consumption,

long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G

fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE

P802.3ba.ETU-Link QSFP AOC is an assembly of 4 full-duplex lanes, where each lane

iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of

45.2Gb/s.ETU-Link QSFP+AOC is one kind of parallel transceiver which provides increased

port density and total system cost savings.

Related Tags : HP 40G QSFP+- QSFP+ AOC Cisco 40G QSFP+ AOC Intel 40G QSFP+ – 4x10G SFP+ AOC
