Do you know about PON optical transceiver
August 23,2017 14:51:23

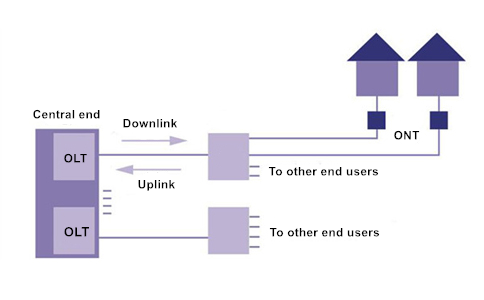

The PON optical transceiver is a high performance optical module for the PON system, also known as the PON module, conforms to the ITU-T G.984.2 standard and the MSA. It uses different wavelengths to send and receive signals between the OLT (optical line terminal) and the ONT (optical network terminal).

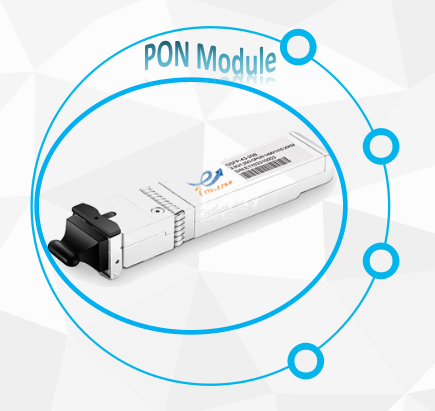

PON optical transceiver

Classification of PON optical modules:

1. According to the package type: SFF/SFP/SFP+ and XFP optical modules
2. According to plug-in devices: OLT optical module and ONU optical module
3. According to technical standards: GPON (Gigabit passive optical network) optical module and EPON (Ethernet passive optical network) optical module


The features of PON optical module
The transmission protocol of PON optical module are APON (ATM PON), BPON (broadband passive optical network), EPON and GPON, and now widely used are EPON and GPON;
The operating temperature is 0°C-70°C or -20°C-70°C;
1310/1490 burst mode transmitter and continuous mode receiver(ONU)
1490/1310 continuous mode transmitter and burst mode receiver(OLT);
Transmission distance up to 10km or 20km;
The interface type is duplex SC or SC/APC;
Can avoid the electromagnetic interference and lightning influence of the external equipment;
Reduce line and external equipment failure rate, improve system reliability, while reducing maintenance costs.

What are the differences between the PON module and the traditional module?



Traditional optical module

PON optical module

Optical signal transmission mode

Point to point(P2P), Modules should be used in pairs

Point to multi point(P2MP), Modules are not used in pairs

Fiber link loss

Including attenuation, dispersion, optical fiber connection insertion loss, etc.

Including attenuation, dispersion, optical fiber connection insertion loss, etc.

Transmission distance

The maximum length is 200km

The distance is only can reach 20km

Application

Mainly used in backbone networks

Mainly used in access network


Hope today's sharing will help you with your work! For more details on the PON optical module, please feel free to contact our sales: sales@etulinktechnology.com. They will give you a satisfactory answer within 24 hours.
