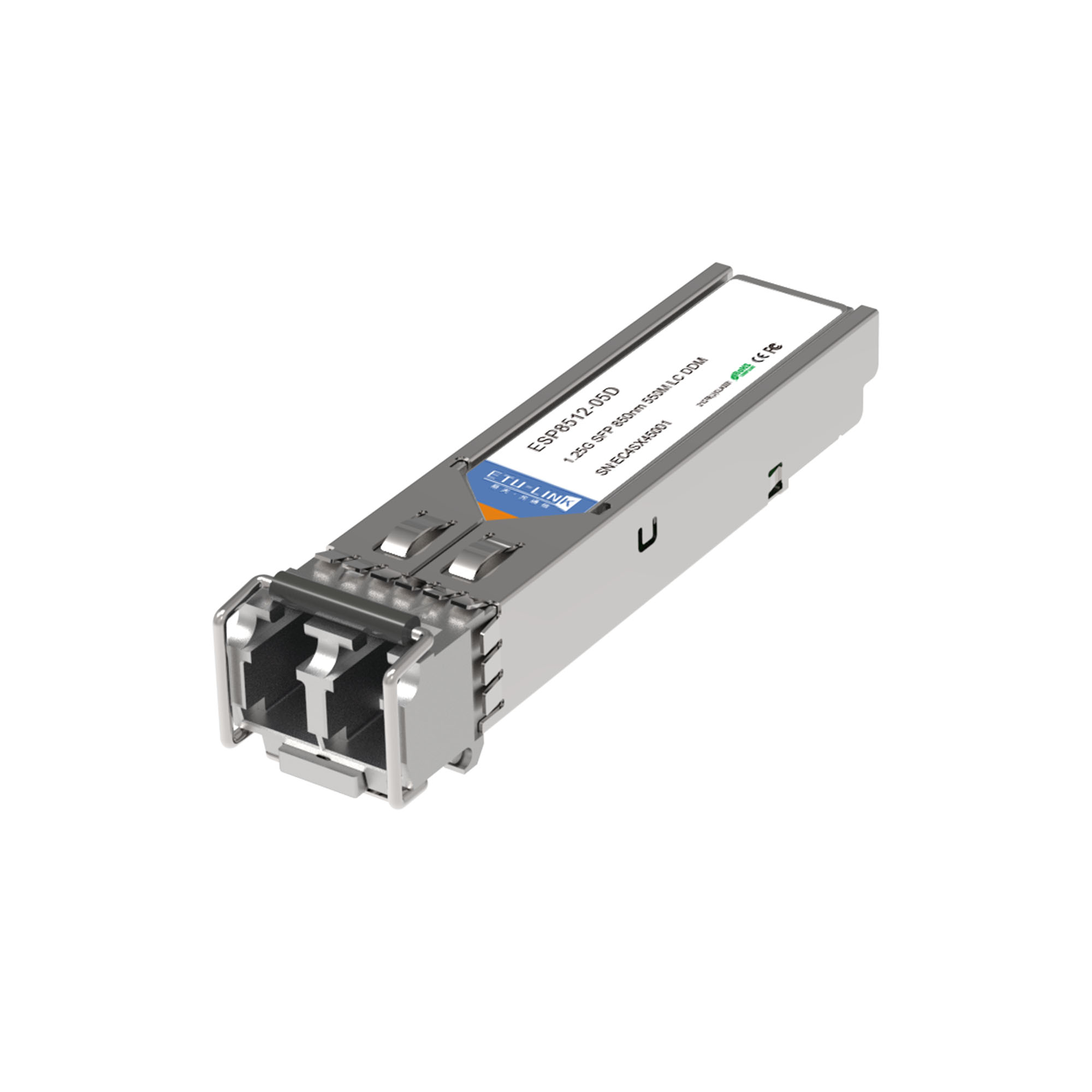

1.25G SFP SX 850nm 550M LC Optical Transceiver

Product Model:
ESP8512-05D
Data Rate:
1.25G
Wavelength:
850nm
Distance:
550M
Connector:
LC
Fiber Type:
MM
DDM:
YES
Product Origin:
China
Shipping Port:
ShenZhen/hk

With optional digital diagnostics monitoring (DDM) support, it allows real-time monitoring of optical power and temperature.

Lead Time/Contact Us Datasheets

Product Detail

The 1.25G SFP SX optical transceiver is a high-performance, compact module designed for short-range multi-mode fiber optic data communication.

It operates at a nominal wavelength of 850nm and utilizes an LC duplex connector interface for easy and reliable integration. This hot-pluggable transceiver is compliant with the SFP Multi-Source Agreement (MSA) standards, ensuring broad compatibility with various networking equipment.

It supports a maximum data rate of 1.25 Gbps and is ideally suited for high-speed links in Gigabit Ethernet and Fibre Channel applications. Providing a robust and cost-effective solution for connecting equipment within buildings or across campuses.

Key Features

Data-rate of 1.25Gbps operation
850nm VCSEL laser and PIN photo detector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
500m transmission with 50/125µm MMF
300m transmission with 62.5/125µm MMF
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard : 0 to +70°C


SFP LX 10KM	SFP EX 40KM	SFP ZX 80KM	SFP ZX 120KM	SFP ZX 200KM
1.25G	1.25G	1.25G	1.25G	1.25G
10KM	40KM	80KM	120KM	200KM
1310nm	1310nm	1550nm	1550nm	1550nm
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C

FAQ:

Q1: What is a 1.25G SFP transceiver?‌

A1: 1.25G SFP (Small Form-factor Pluggable) is a compact, hot-swappable optic module supporting 1.25Gbps speeds for fiber or copper networks, commonly used in Gigabit Ethernet and Fiber Channel applications.

Q2: What are the typical applications of 1.25G SFP?‌
A2: Gigabit Ethernet (1000BASE-SX/LX/ZX)‌
Fiber Channel (1G/2G/4G)‌
SDH/SONET networks‌

Q3: What is the maximum distance for 1.25G SFP LX?‌
A3: The ‌1000BASE-LX‌ variant supports up to ‌10km‌ over single-mode fiber (SMF), while ‌1000BASE-SX‌ reaches ‌550m‌ over multimode fiber (MMF).

Q4: What wavelengths do 1.25G SFP modules use?‌
A4: SX‌: 850nm (MMF); LX/ZX‌: 1310nm/1550nm (SMF)

Q5: How does a BIDI SFP differ from a standard SFP?‌
A5: Standard SFPs require ‌two fibers‌ (one for TX, one for RX), while BIDI SFPs use ‌one fiber‌ with wavelength-division duplexing (WDM).

Q6: How far can a 1.25G SFP ZX module transmit data?‌
A6: The ‌ZX variant‌ supports extended distances up to ‌80km over single-mode fiber‌, ideal for long-haul applications like telecom backbones.

Q7: Are 1.25G SFP modules compatible with industrial temperature ranges?‌
A7: Yes, many industrial-grade modules operate in ‌extreme temperatures from -40°C to 85°C‌, ensuring reliability in harsh environments like outdoor networks.

Q8: What is the role of Digital Diagnostics Monitoring (DDM/DOM) in 1.25G SFP?‌
A8: DDM/DOM provides real-time tracking of parameters like temperature and optical power, enabling proactive maintenance and fault detection for network stability.

Q9: Can 1.25G SFP modules connect to CWDM or DWDM systems?‌
A9: Yes, specialized ‌CWDM and DWDM variants‌ exist for wavelength division multiplexing, allowing efficient bandwidth usage in metro or data center networks.

Q10: Why choose BIDI over standard SFP for FTTH?‌
A10: BIDI SFPs ‌halve fiber usage‌, reducing infrastructure costs in passive optical networks (PON).
