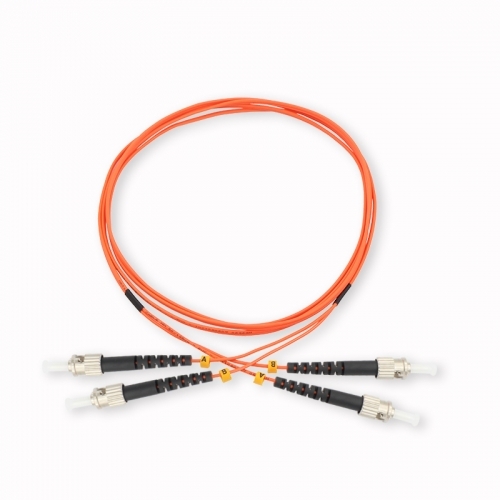

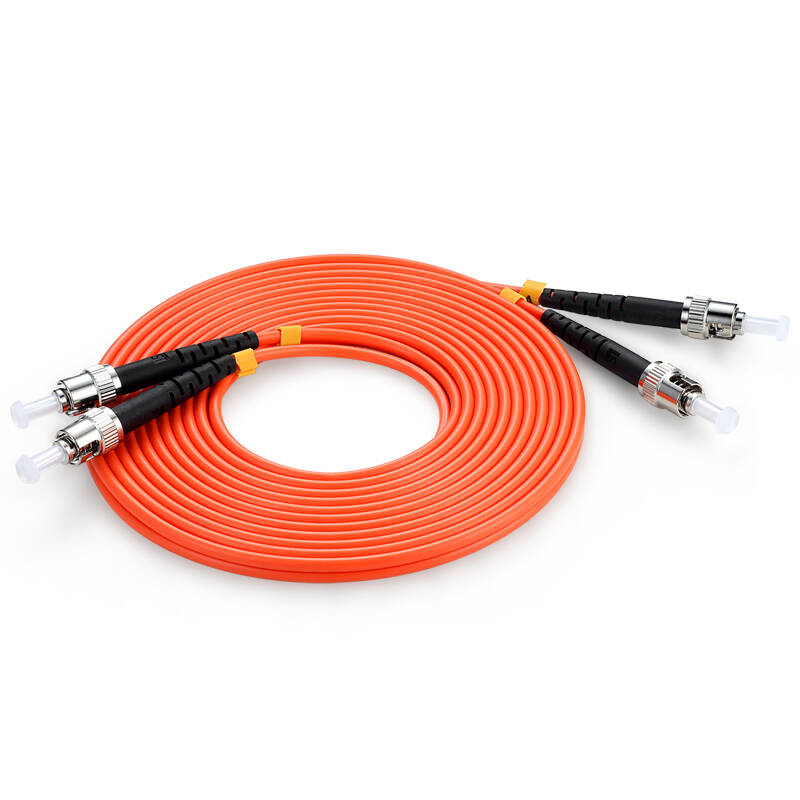

ST/PC-ST/PC MM DX OM2 50/125um PATCH CORD

ST/PC-ST/PC MM DX OM2 50/125um PATCH CORD

  • Connector:

    ST/PC-ST/PC
  • Fiber Type:

    MM
  • Product Origin:

    Made in China
  • Shipping Port:

    ShenZhen
  • Lead Time:

    Pls contact sales for confirmation
  • Product Detail

Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃

Patch cord Order Information

Patch cord Order Information

Connector-1

Polishing

Connector-2

Polishing

Cable Type

Length

Cable Diameter

Fiber Count

Remark

SC

APC

LC

PC

OS2

5M

2.0MM

Duplex

LSZH

FC,SC

PC,UPC

FC,SC

PC,UPC

OM1 62.5/125

0.5M

0.9MM

Simplex

Colors

LC,ST

APC

LC,ST

APC

OM2 50/125

1M,2M

1.8MM

Duplex

Armored

MU,MTRJ

MU,MTRJ

OM3 10G

3M,4M

2.0MM

4,6,8 counts

Waterproof

E2000,MPO

E2000,MPO

OS1

5M,10M

3.0MM

12counts...

LSZH

SMA,DIN

SMA,DIN

OS2 9/125

100M...

Others

48Counts...

PVC

G657A/B/D

500M...

OFNR

G655

1000M...

OFNP
