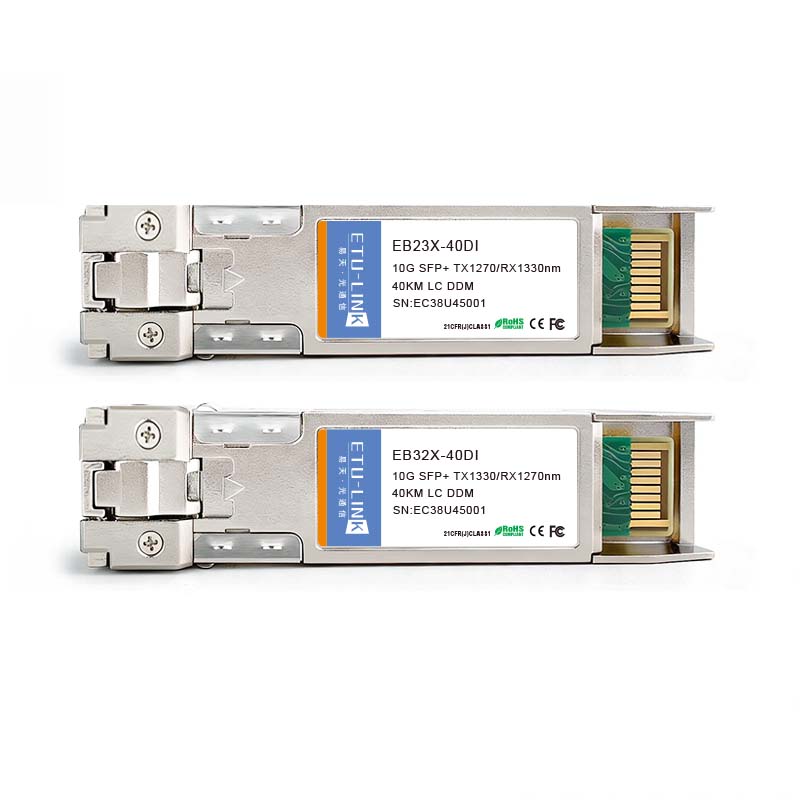

10G BIDI 40KM SFP+ Transceiver
10G BIDI 40KM SFP+ Transceiver
  • Item NO.:ESBxxX-3LCD40
  • Data Rate:10G
  • Wave Length:1270/1330nm
  • Distance:40KM
  • Connector:LC
  • First:SM
  • DDM:YES
  • Product Origin:Made in China
  • Shipping Port:ShenZhen
  • Lead Time:Please Contact The Sales Confirmation
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

ESBxxX-3LCD40

10Gbps 40KM SFP+ Bi-Directional Transceiver


Features

Supports 9.95Gb/s to 10.3Gb/s data rates

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Up to 40KM on 9/125um SMF

A:1270nm DFB Laser transmitter,1330nm receiver

B:1330nm DFB Laser transmitter,1270nm receiver

Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

RoHS compliant and Lead Free

Operating case temperature:

Standard: 0 ~ 70 °C

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links

Standard

SFP+ MSA Compliant

SFF-8472 reversion 9.5 compliant

IEEE802.3-2005 compliant

Telcordia GR-468-CORE compliant

FCC 47 CFR Part 15,Class B compliant

FDA 21 CFR 1040.10 and 1040.11,class1 compliant

RoHS compliant


Product Description

The ESBxxX-3LCD40 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.



The ESBxxX-3LCD40 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.



The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Related Tags : Sanspot SFP+ Single Fiber 40 km transceiver Cisco SFP-10G-BX-U-40 Optical Transceiver Cisco SFP-10G-BXD-40KM 1270/1330nm Compatible 40G QSFP+ LR4

Previous:10G BIDI 60KM SFP+ Transceiver

Next:10G BIDI 20KM SFP+ Transceiver
