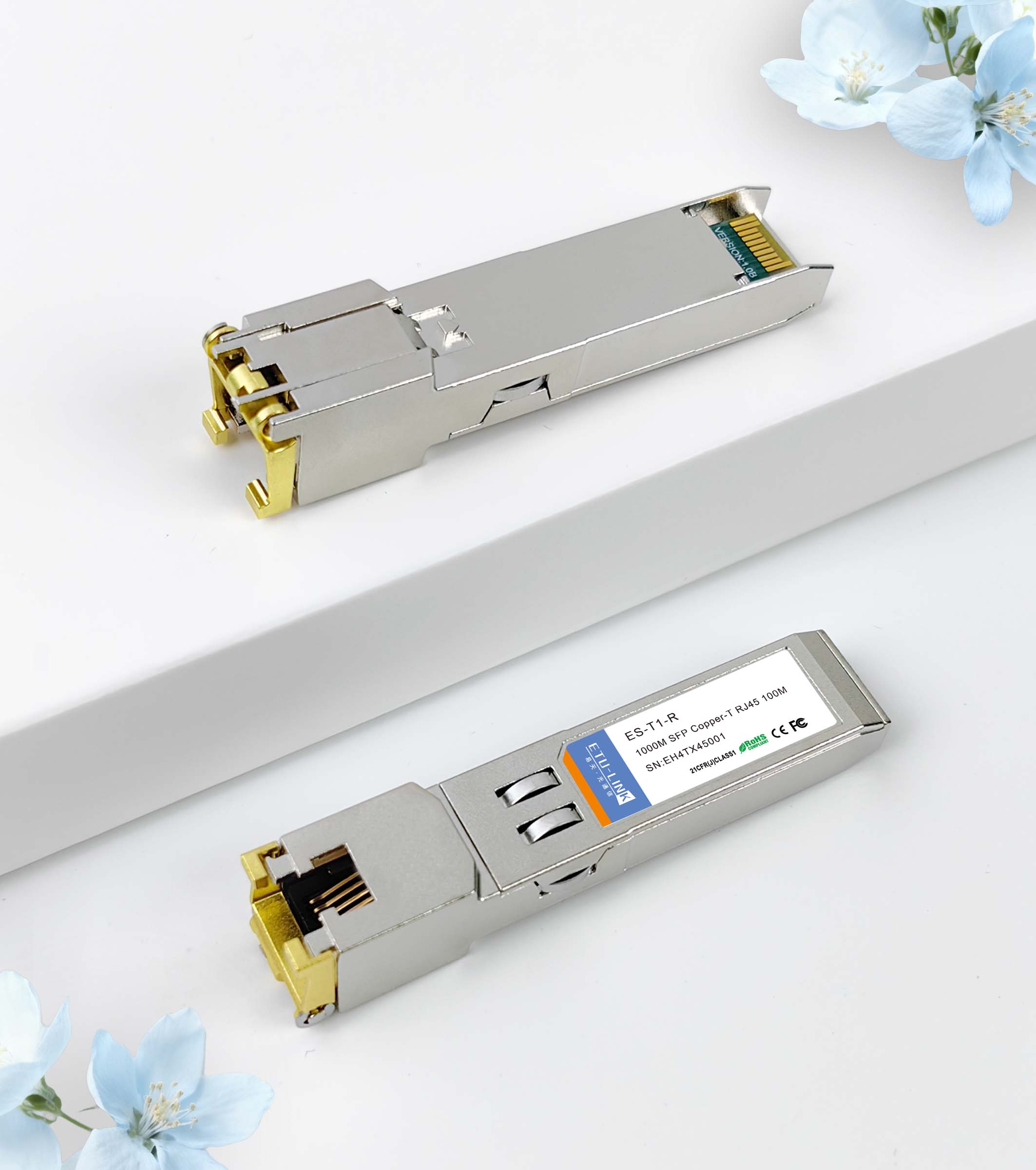

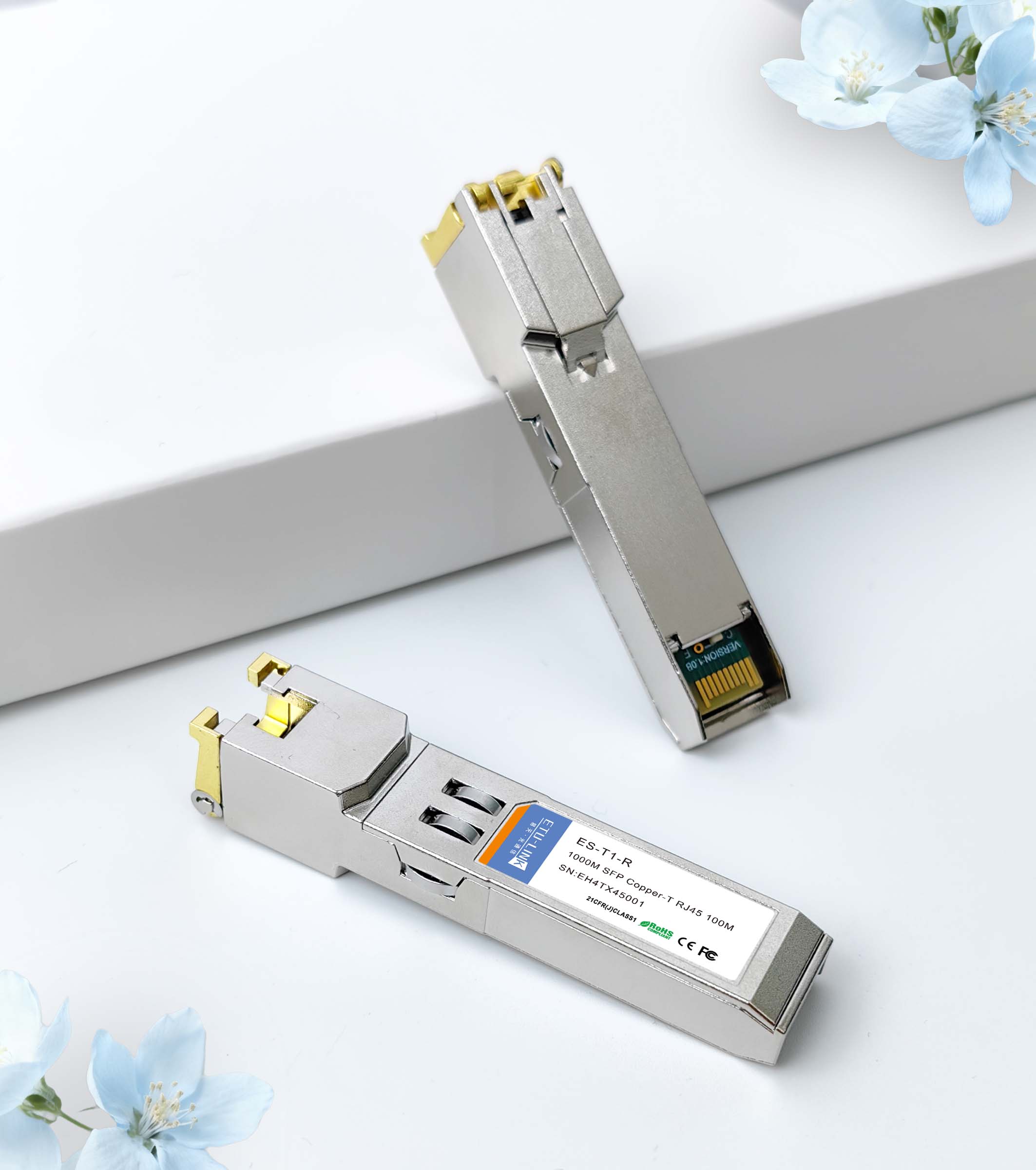

1000BASE-T Copper SFP Transceiver 100M
1000BASE-T Copper SFP Transceiver
  • Item NO.:ES-T1-RJ45
  • Data Rate:1000M
  • Distance:100M
  • Connector:RJ45
  • DDM:No
  • Product Origin:Made in China
  • Shipping Port:ShenZhen
  • Lead Time:Please contact our sales for confirmatio
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

ES-T1-RJ45



1000BASE-T Copper SFP Transceiver


Features

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

TX Disable and RX Los/without Los function

Fully metallic enclosure for low EMI

Low power dissipation (1.05 W typical)

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

1000 BASE-T operation in host systems with SERDES interface

Operating case temperature range of

0°C to +70°C (Commercial)

-20°C to +85°C (Extend)


Product Description

ETU-LINK`s ES-T1-RJ45 Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
