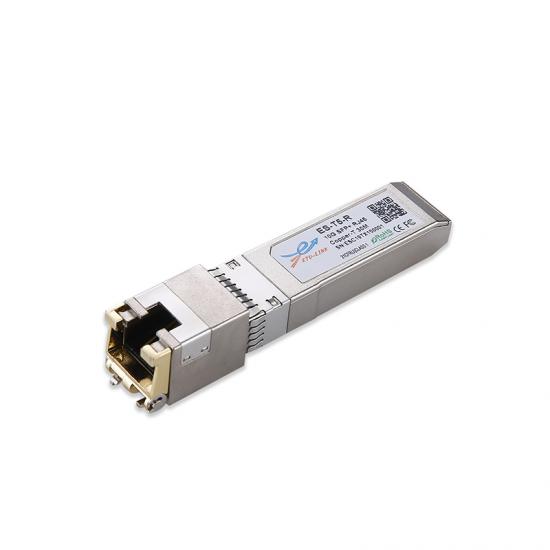

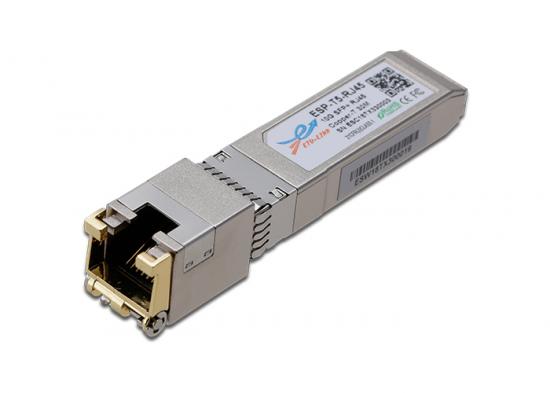

10G SFP+ Copper-T RJ45 Multi-rate Transceiver

Product Model:
ES-T5-R
Data Rate:
10G
Distance:
30M
Connector:
RJ45
Product Origin:
Made in China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

Lead Time/Contact Us Datasheets

Product Detail

Product Overview

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Product Features

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
10 Gigabit Ethernet over Cat 6a cable
Hot-pluggable SFP footprint
RJ45 connector
Compliant with SFP MSA
Single +3.3V power supply
RoHS compliant and lead-free
Operating case temperature: Commercial：0°C to +70°C


2.5GBASE-T Copper SFP	1000BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10/100BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10GBase-T Copper SFP+	10GBASE Copper SFP	10GBase-T Copper SFP
ES-T0-R	ES-T1-R	ES-T2-R	ES-T3-R	ES-T4-R	ES-T5-R	ES-T6-R	ES-T7-R
100M	100M	100M	100M	100M	30M	80M	100M
2.5Gbase	1000Mbps	10/100/1000Mbps	10/100Mbps	10/100/1000Mbps	10Gbps	10Gbps	10Gbps
RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
CAT5E	Cat 5	Cat 5	Cat 5	Cat 5	Cat 6a/7	Cat 6a/7	Cat 6a/7 C
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What is a Copper RJ45 SFP Transceiver?‌

A1: A Copper-T RJ45 SFP Transceiver is a compact, hot-swappable module that enables 10GBase-T (10Gbps) or 1GBase-T (1Gbps) Ethernet connectivity over copper cables (Cat6a/Cat7) via an RJ45 interface, compliant with SFP+ MSA and IEEE 802.3 standards.

Q2: What are the key advantages of Copper-T RJ45 SFP Transceivers?‌

A2: Cost-efficient‌: Reuses existing copper cabling infrastructure.

Low latency‌: Ideal for data centers and enterprise networks.

Energy-saving‌: Typically consumes <5W, reducing operational costs.

Q3: How does auto-negotiation work in Copper-T RJ45 SFP Transceivers?‌

A3: The module automatically detects and adjusts to the highest supported speed (10G/5G/2.5G/1G/100M) based on the connected switch port and cable quality.

Q4: What is the maximum transmission distance for 10GBase-T?‌

A4: Up to ‌100 meters‌ with Cat6a/Cat7 cables. For longer distances, optical SFP+ modules are required.

Q5: How do I install a Copper-T RJ45 SFP Transceiver?‌

A5: Insert the module into an SFP+ port until it locks.

Connect an RJ45 cable to the module.

Verify link status via switch management software.

Q6: How can I extend the lifespan of my Copper-T RJ45 SFP Transceiver?‌

A6: Avoid bending cables beyond their minimum bend radius.

Clean RJ45 connectors regularly to prevent oxidation.

Store in a dry, dust-free environment when not in use.

Q7: What is the difference between Copper RJ45 SFP Transceivers and optical SFP modules?‌

A7: Copper RJ45‌: Uses Cat6a/Cat7 cables for short-distance (≤100m) 10GBase-T/1GBase-T, with lower power consumption.

Optical SFP‌: Uses fiber for long-distance but requires higher power and costlier infrastructure.

Q8: Can Copper RJ45 SFP Transceivers support 2.5G/5G speeds?‌

A8: Yes, if the host switch supports ‌IEEE 802.3bz‌ (Multi-Gigabit Ethernet), enabling auto-negotiation of 2.5G/5G speeds.
