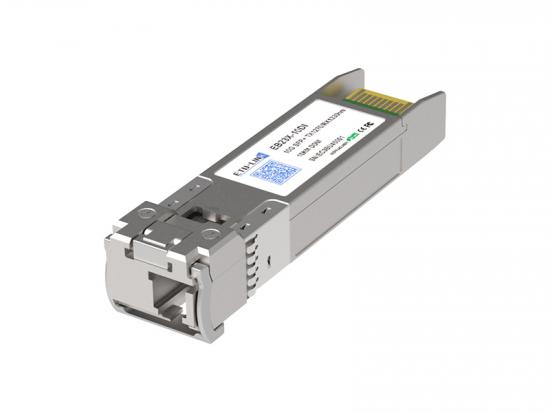

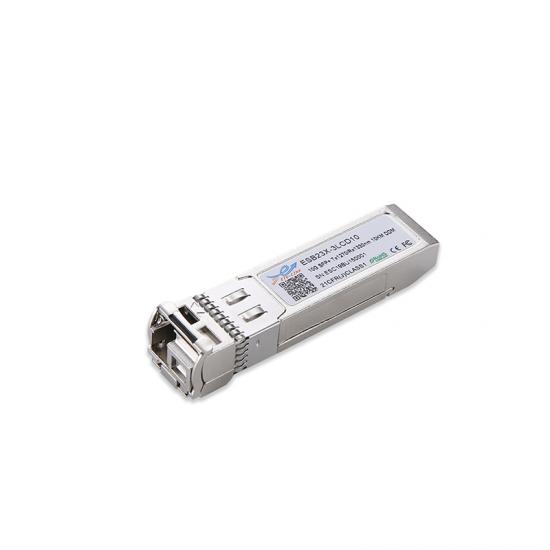

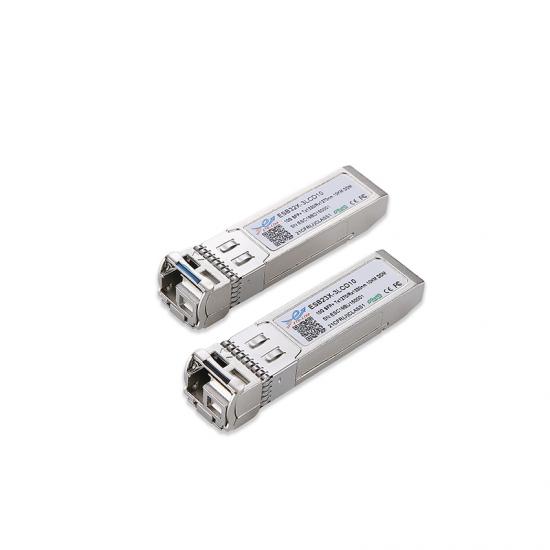

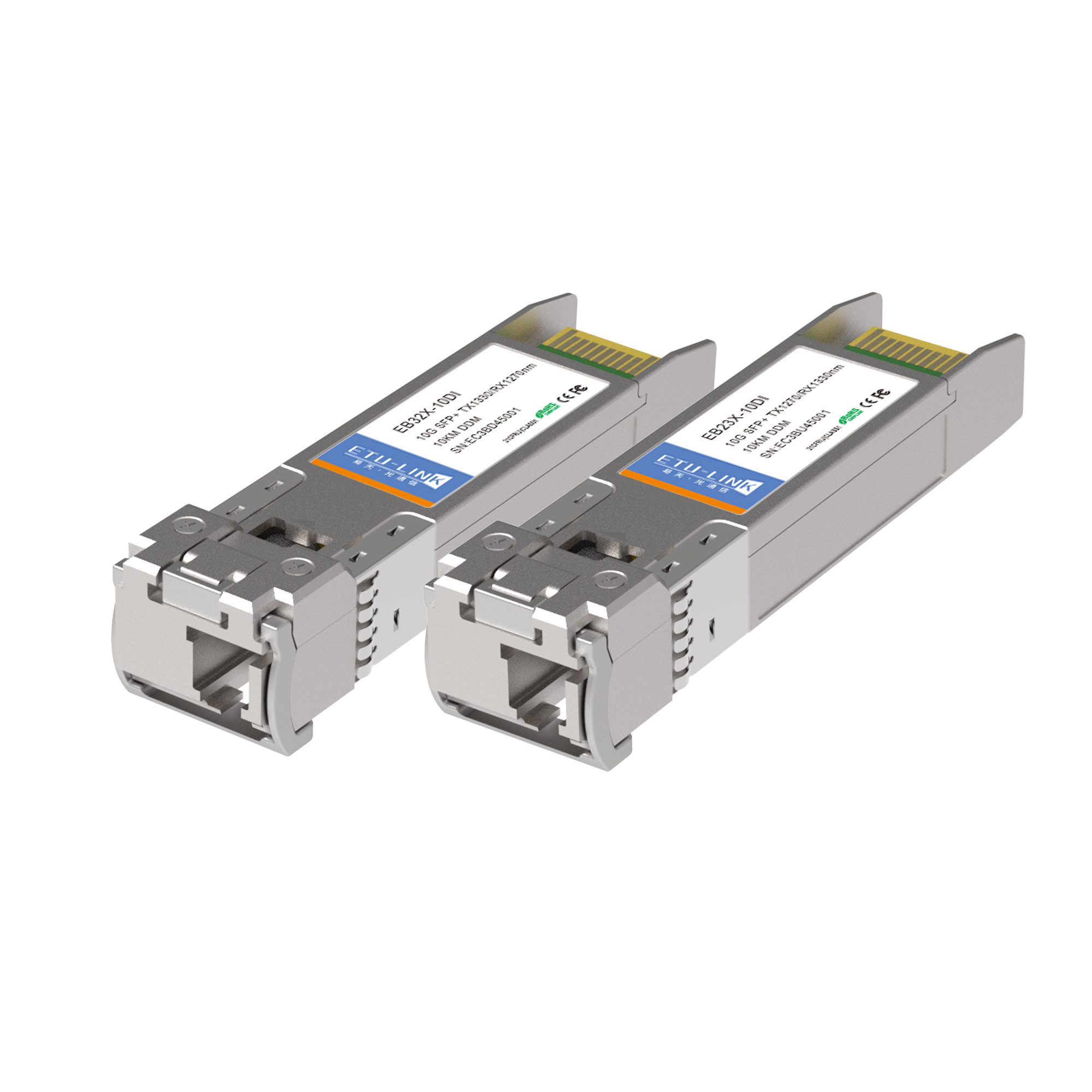

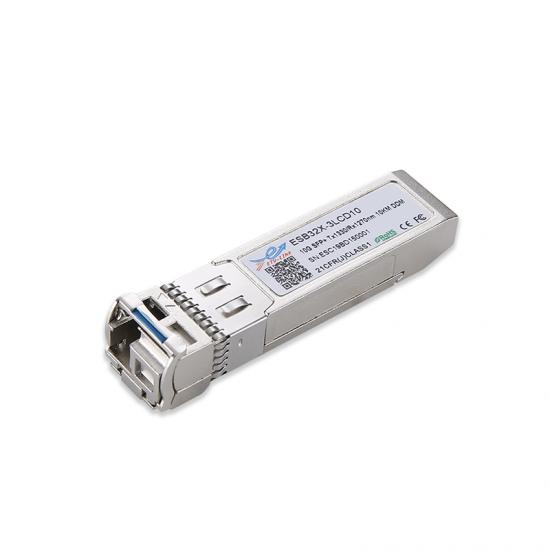

10G BiDi SFP+ 1270nm/1330nm 10KM LC Optical Transceiver

Product Description：10G BiDi SFP+ 1270nm/1330nm 10KM LC Optical Transceiver‌

Product Parameters

• Supports 9.95Gb/s to 10.3Gb/s data rates

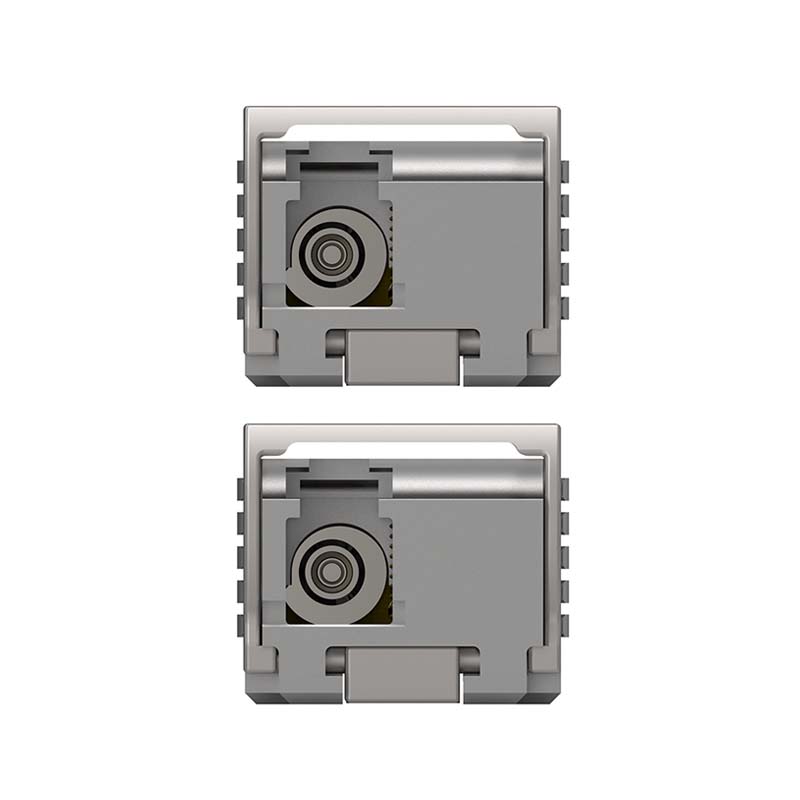

• Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
• Single 3.3V Supply
• Up to 20KM on 9/125um SMF

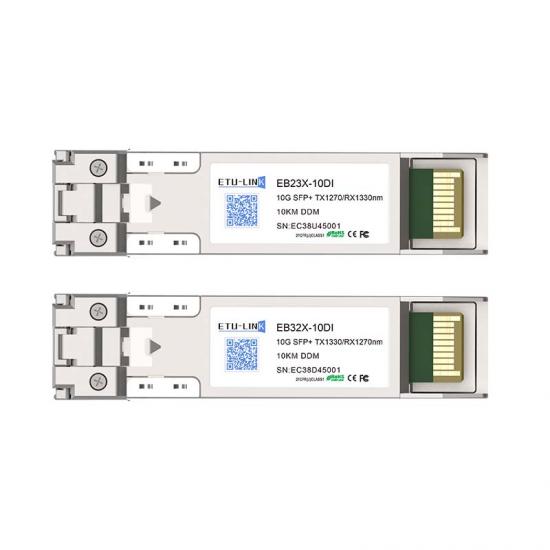

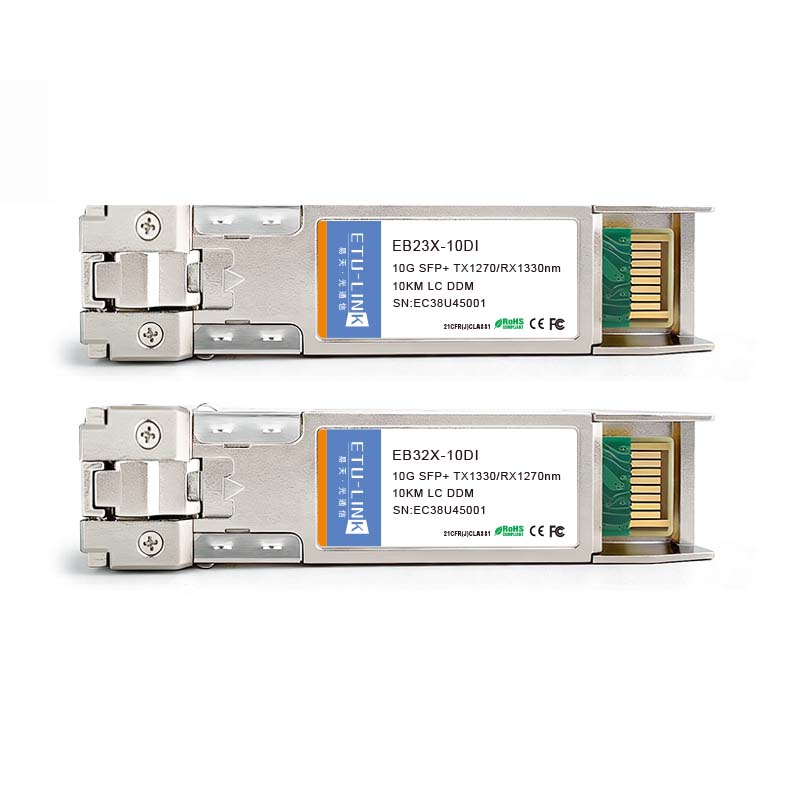

• A:1270nm DFB Laser transmitter,1330nm receiver
• B:1330nm DFB Laser transmitter,1270nm receiver
• Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
• SFP+ MSA SFF-8431 Compliant
• Digital Diagnostic SFF-8472 Compliant
• RoHS compliant and Lead Free
• Operating case temperature: Standard: 0 ~ 70 °C

SFP+ BIDI 10KM	SFP+ BIDI 40KM	SFP+ BIDI 60KM	SFP+ BIDI 80KM	SFP+ BIDI 100KM
10G	10G	10G	10G	10G
1270nm/1330nm	1270nm/1330nm	1270nm/1330nm	1490nm/1550nm	1490nm/1550nm
10KM	40KM	60KM	80KM	100KM
LC	LC	LC	LC	LC
SMF	SMF	SMF	SMF	SMF
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C

Q1: Can 10G SFP+ LR modules work with single-mode fibers?‌
A1: Yes, standard 10G-LR modules require OS2 single-mode fiber (1310nm wavelength) with 10km reach.

Q2: Can I use 10G BiDi SFP+ for duplex fiber conversion?‌
A2: Yes, BiDi modules (1270nm/1330nm) enable single-fiber bidirectional transmission on existing duplex fiber plants.

Q3: Why do some 10G SFP+ modules require external clock circuits?‌
A3: High-speed modules (e.g., 10G-LR) use ‌CDR (Clock Data Recovery)‌ chips to reduce jitter, requiring precise clock synchronization circuits on host PCB designs.

Q4: Can I plug a 10G SFP+ module into an SFP port?‌
A4: Physically compatible, but ‌electrically incompatible‌ – SFP ports lack 10G SerDes lanes, causing link failure unless switch supports rate adaptation.

Q5: What is difference between SFP and SFP+?
A5: The main difference between SFP and SFP+ is that the SFP+ is used in Gigabit Ethernet applications while SFP is for 100Bse or 1000Base applications. SFP doesn't support 10G transmission data rate, which means they can't be used in the same network.

Q6: What is SFP+ port used for?
A6: SFP + modules are commonly used for Gigabit Ethernet and 10 Gigabit Ethernet connections and can adapt to various application scenarios, including high-speed network connections and fiber optic links.

Q7: How to choose between SR, LR and ER optical modules?‌

A7: SR (Short Reach) for ≤300m multimode, LR (Long Reach) for 10km single-mode, ER (Extended Reach) for 40km+ single-mode applications.

Q8: What are the advantages of 10G SFP+ BIDI?
A8: Key Benefits:‌
Single-Fiber Solution‌ - Uses WDM to transmit/receive on one fiber (e.g., 1270nm/1330nm pairing)
Cost Savings‌ - 50% less fiber usage, 30-40% lower installation costs
Space Efficiency‌ - Doubles port density without new cabling
Applications: areas with limited fiber resources, 5G fronthaul networks, metropolitan area network expansion, and high-density data center interconnection.

Q9: Do 10G modules support DDM/DOM monitoring?‌
A9: A: Yes, compliant modules follow ‌SFF-8472‌ for real-time monitoring of temperature, TX power, and RX sensitivity.

Q10: What is the maximum transmission distance of ETU-Link optical modules?‌
A10: Our modules support from 100m (SR multimode) up to 120km (ZR single-mode), with specific models optimized for 300m, 10km, 40km, 80km and 120km applications.
