400G QSFP-DD SR8 MPO Optical Transceiver‌ The ‌400G QSFP-DD SR8‌ transceiver is a high-speed optical module designed for 400 Gigabit Ethernet applications over multi-mode fiber (MMF).  Applications:‌ 400G Ethernet switches/routers‌ .High-density data center interconnects‌ requiring low-latency, high-bandwidth links. RoHS compliant‌ and engineered for demanding networking scenarios, this transceiver delivers future-proof scalability for next-generation infrastructure.  Up to 53.125Gbps data rate per channel by PAM4 modulation  Support 400GAUI-8 electrical interface  Integrated 850nm VCSEL array and PD array  Single MPO16 connector receptacle optical interface compliant  DDM function implemented  Hot-pluggable QSFP-DD form factor  Maximum power consumption 8W  Single +3.3V power supply  Reach up to 70m on MMF(OM3)  Reach up to 100m on MMF(OM4)  Compliant with ROHS2.0 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

400G QSFP-DD DR4 500m MPO Optical Transceiver‌ The ‌400G QSFP-DD DR4‌ transceiver is a high-performance optical module designed for 400 Gigabit Ethernet data center interconnects. It adheres to ‌QSFP-DD MSA‌ standards, delivering reliable 400Gbps transmission over ‌single-mode fiber (SMF)‌ with a ‌500m‌ reach. Compliant with IEEE802.3bs standard: 400GAUI-8 electrical interface  Compliant with IEEE 802.3bs standard: 400GBASE-DR4 optical interface  Compliant with QSFP-DD MSA HW Rev 5.0 Type 2 housing with MPO-12 connector  Compliant with QSFP-DD CMIS Rev 4.0  Supports 3dB channel insertion loss  Maximum power consumption 12W  Case operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring   RoHS compliant  Class 1 Laser 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

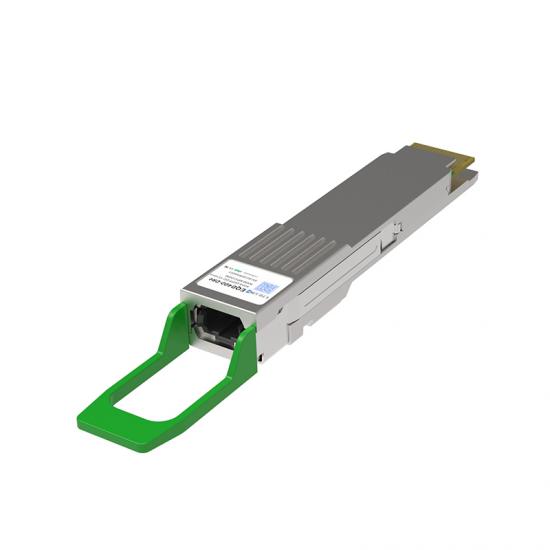

400G QSFP-DD DR4 2km MPO Optical Transceiver‌ The ‌400G QSFP-DD DR4 2km‌ transceiver is a high-performance optical module designed for long-distance 400 Gigabit Ethernet applications. It leverages ‌PAM4 modulation‌ and ‌1310nm EML lasers‌ to achieve ‌2km transmission‌ over single-mode fiber (SMF), complying with ‌IEEE 802.3bs‌ and ‌QSFP-DD MSA‌ standards. Featuring ‌MPO-12 APC connectors‌, it supports ‌4×100G channels‌ with a ‌9.5W max power‌ consumption, ensuring energy-efficient operation in data center interconnects and metro networks. Applications:‌ Data center interconnects‌ between remote sites. 5G fronthaul/midhaul‌ networks requiring high-bandwidth, low-latency links. Enterprise and cloud service provider‌ infrastructures scaling to 400G. RoHS compliant‌ and engineered for future-proof networking, this transceiver enables seamless migration to next-generation 400G architectures. Compliantwith IEEE802.3bsstandard: 400GAUI-8 electrical interface  Compliantwith IEEE802.3custandards: 4x100GBASE-FR1 optical interface Compliantwith QSFP-DD MSA HW Rev5.1 Type2 housing with MPO-12 connector Compliantwith QSFP-DD CMIS Rev4.0  Maximum power consumption 10W  Case  operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU (RoHScompliant) Class1Laser 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

400G QSFP-DD FR4 2km LC Optical Transceiver‌ The ‌400G QSFP-DD FR4 2km‌ transceiver is a high-performance optical module designed for long-distance 400 Gigabit Ethernet applications. It leverages ‌PAM4 modulation‌ and ‌CWDM EML lasers‌ to achieve ‌2km transmission‌ over single-mode fiber (SMF), complying with IEEE 802.3bs & QSFP-DD MSA standards. Applications:‌ Data center interconnects‌ between remote sites. 5G fronthaul/midhaul‌ networks requiring high-bandwidth, low-latency links. Enterprise and cloud service provider‌ infrastructures scaling to 400G. RoHS compliant‌ and engineered for future-proof networking, this transceiver enables seamless migration to next-generation 400G architectures. QSFP-DD MSA compliant  Compliant to 100G Lambda MSA  400G FR4 Specification compliant  4 CWDM lanes MUX/DEMUX design  8x53.125Gb/s PAM4 electrical inter- face (400GAUI-8)  Maximum power consumption 12W  LC duplex connector  Supports 425Gb/s aggregate bit rate  Up to 2km transmission on single mode fiber with FEC  Single 3.3V power supply  RoHS compliant 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

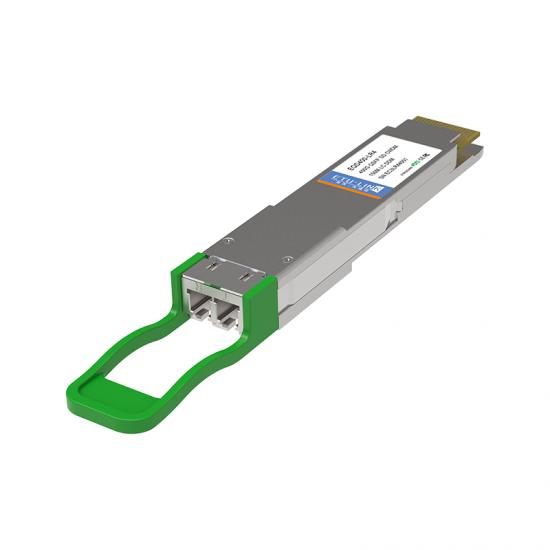

400G QSFP-DD LR4 10km LC Optical Transceiver‌ The ‌400G QSFP-DD LR4‌ transceiver is a high-performance optical module designed for long-distance 400 Gigabit Ethernet applications. It leverages ‌PAM4 modulation‌ and ‌CWDM lasers‌ to achieve ‌10km transmission‌ over single-mode fiber (SMF), complying with ‌IEEE 802.3bs‌ and ‌QSFP-DD MSA‌ standards. Featuring ‌dual LC connectors‌ with a ‌12W max power‌ consumption, ensuring energy-efficient operation in data center interconnects and metro networks. Applications:‌ Data center interconnects‌ between remote sites. 5G fronthaul/midhaul‌ networks requiring high-bandwidth, low-latency links. Enterprise and cloud service provider‌ infrastructures scaling to 400G. RoHS compliant‌ and engineered for future-proof networking, this transceiver enables seamless migration to next-generation 400G architectures. Compliant with 100G Lambda MSA: 400GBASE-LR4-10 optical interface Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface Compliant with QSFP-DD MSA HW Rev 5.1 type 2 housing with duplex LC connector Compliant with QSFP-DD CMIS Rev 4.0 Operating distance at engineering link of up to 10km Maximum power consumption 10 W Case operating temperature 0°C to 70°C Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU(RoHS compliant) Class 1 Laser 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

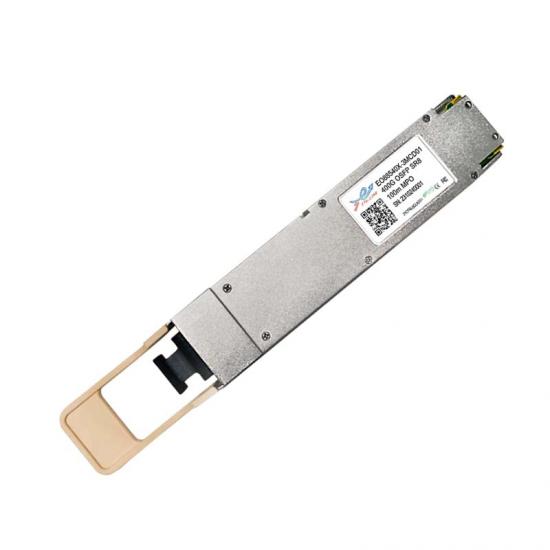

Product Introduction The ‌400G OSFP SR8 100m MPO Optical Transceiver‌ is a high-density, parallel 400Gbps optical module designed for ultra-short-range data center interconnects. Featuring an OSFP form factor with 8×50G PAM4 modulation, it delivers 425Gbps aggregate bandwidth over OM4 multimode fiber (MMF) up to 100 meters. Applications:‌ Ideal for hyperscale data centers, HPC clusters, and 400G Ethernet backbones, this transceiver bridges rack-to-rack and leaf-spine topologies with low power consumption (<10W). Its plug-and-play design ensures rapid deployment in bandwidth-intensive environments. Key Features   OSFP MSA compliant   8 parallel laneson 850nm center wavelength   Compliant to IEEE802.3bs Specification   Up to 100m transmission on multi-mode fiber(MMF)OM3 with FEC   Operating case temperature:0 to 70℃   8x53.125Gb/s electrical interface(400GAUI-8)   DataRate 53.125Gbps(PAM4)per channel.   Maximum power consumption 12W   MPO-16 connector   RoHS compliant 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C

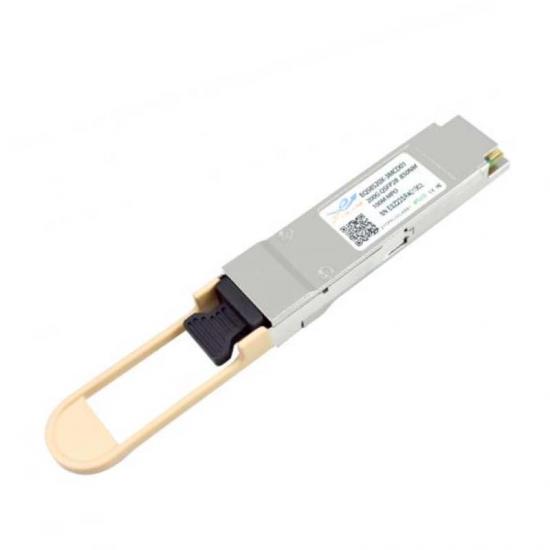

200G QSFP56 SR4 Optical Transceiver The 200G QSFP56 SR4 100m MPO optical transceiver is a high-performance, energy-efficient solution designed for next-generation data center networks.  Featuring a compact QSFP56 form factor and MPO-12 duplex connector, it maximizes port density while consuming under 4W of power.  This transceiver is ideal for AI/ML clusters, hyperscale spine-leaf architectures, and 200G Ethernet uplinks. Its plug-and-play design simplifies deployment, offering a cost-effective migration path from 100G infrastructure.  Compliant with 200G-SR4 optical specifications  4x53.125Gb/s electrical interface (200GAUI-4)  Reach up to 70m on MMF(OM3)  Reach up to 100m on MMF(OM4)  Single +3.3V power supply  Case temperature range: 0 ~ +70℃  Maximum power consumption 4W  Single MPO12 connector  RoHS complaint 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C
