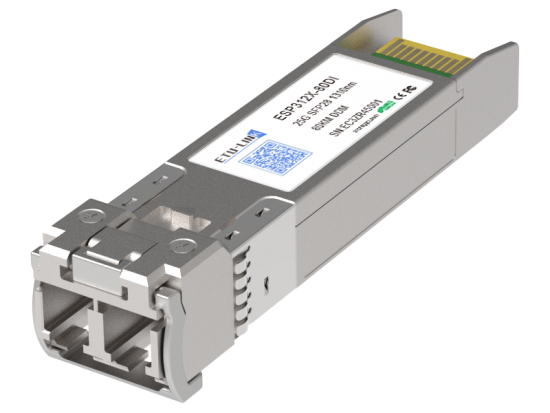

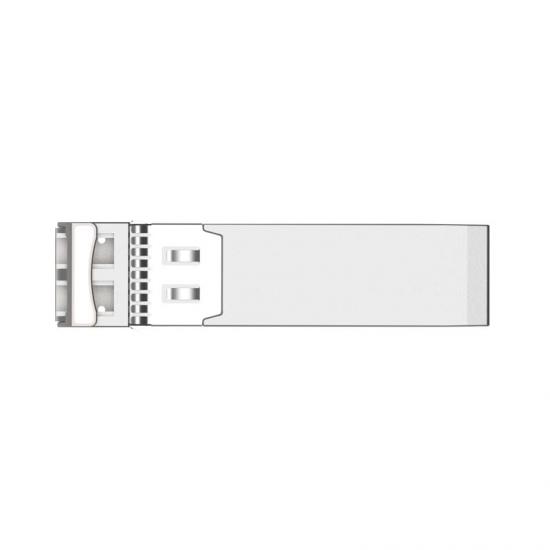

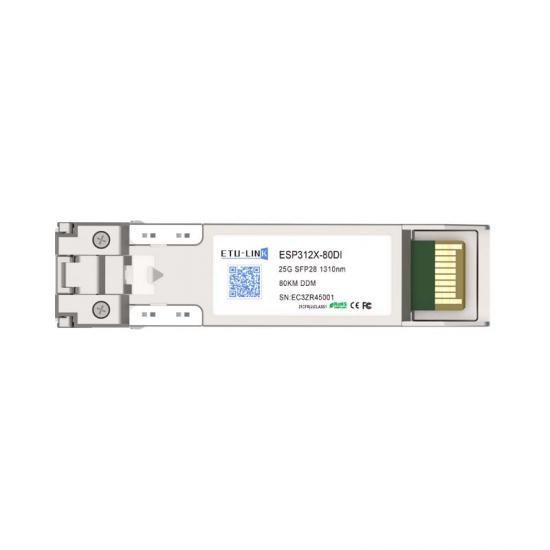

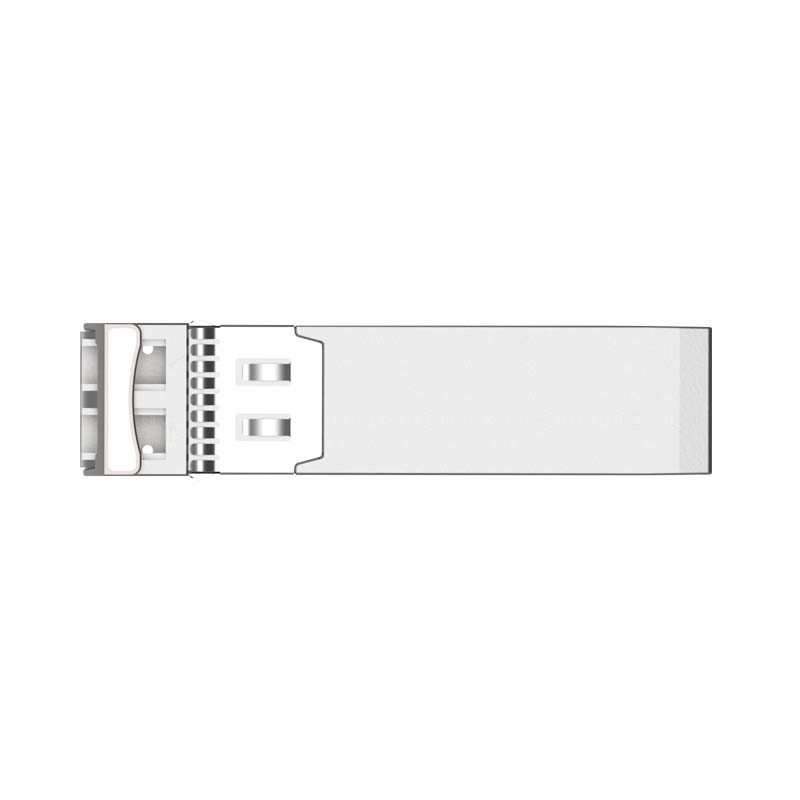

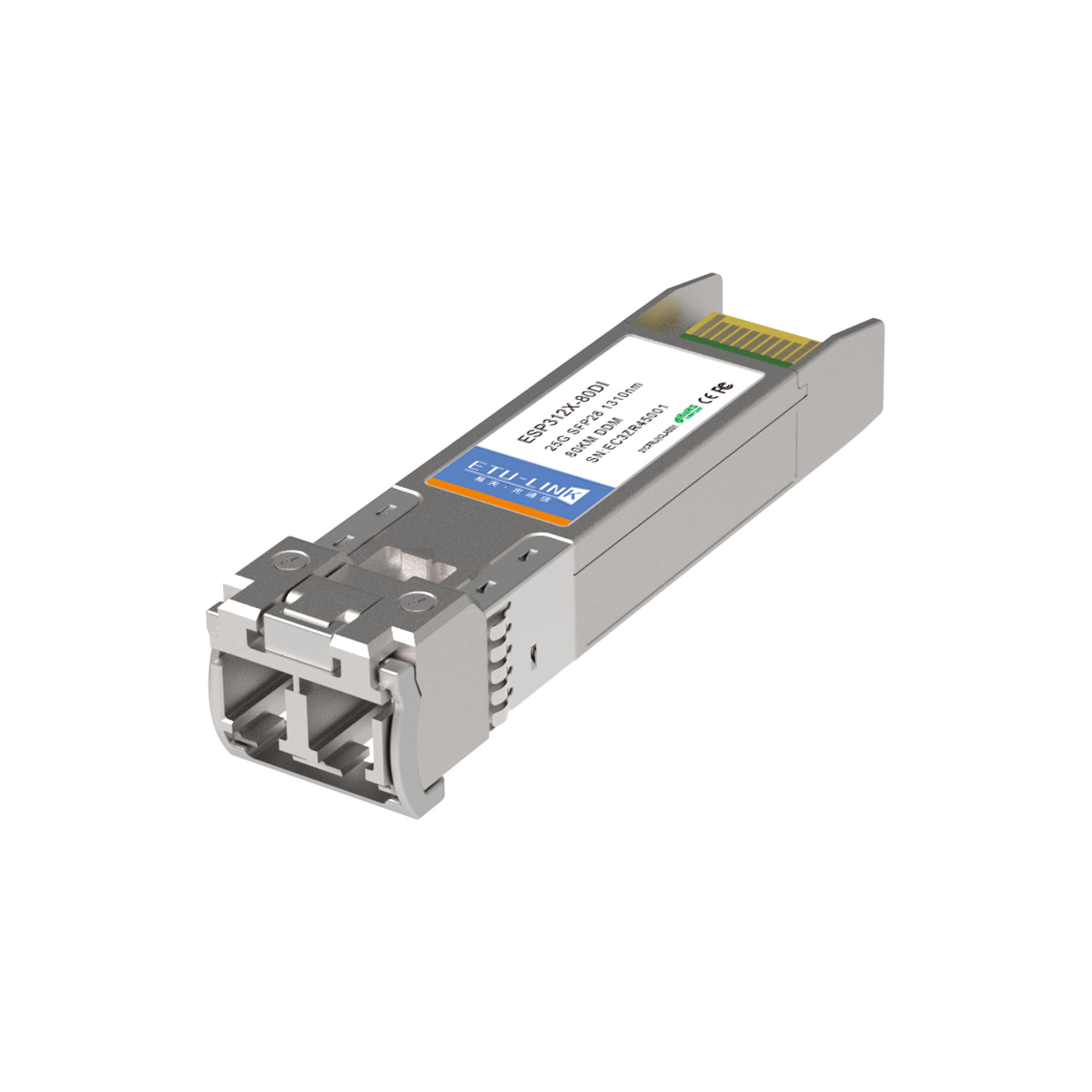

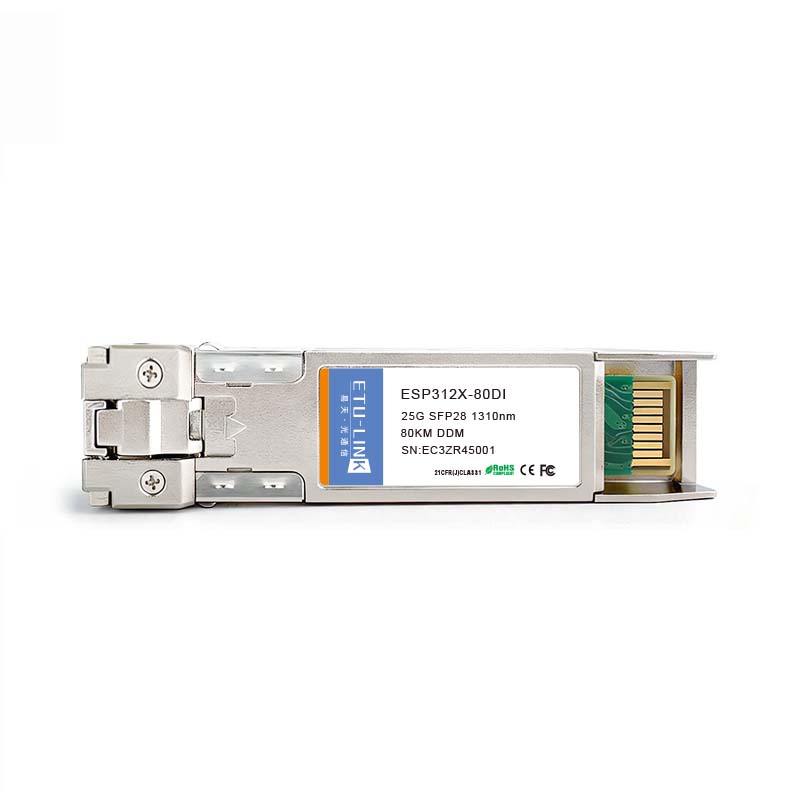

25G SFP28 ZR 1310nm/1300nm 80KM LC Optical Transceiver

Product Model:
ESP3x2X-80D(I)
Data Rate:
25G
Wavelength:
1310nm/1300nm
Distance:
80KM
Connector:
LC
Fiber Type:
SM
DDM:
Yes
Product Origin:
China
Shipping Port:
Shenzhen
Brand:
ETU-LINK

1310nm/1300nm wavelength window, it supports data rates up to 25.78 Gbps for 25 Gigabit Ethernet and achieves transmission reach of up to 80 kilometers over standard single-mode fiber.

Lead Time/Contact Us Datasheets

Product Detail

Product Overview:‌

The 25G SFP28 ZR 1310nm/1300nm 80KM LC Optical Transceiver is a high-performance, industrial-grade fiber optic module designed for long-haul communication applications.
Compliant with SFF-8472, IEEE 802.3cc, and SFF-8419 standards, this optical module features advanced DSP technology for dispersion compensation and error correction, ensuring reliable performance in challenging environments.

Key Features:

Support data rate up to 25.78125Gb/s

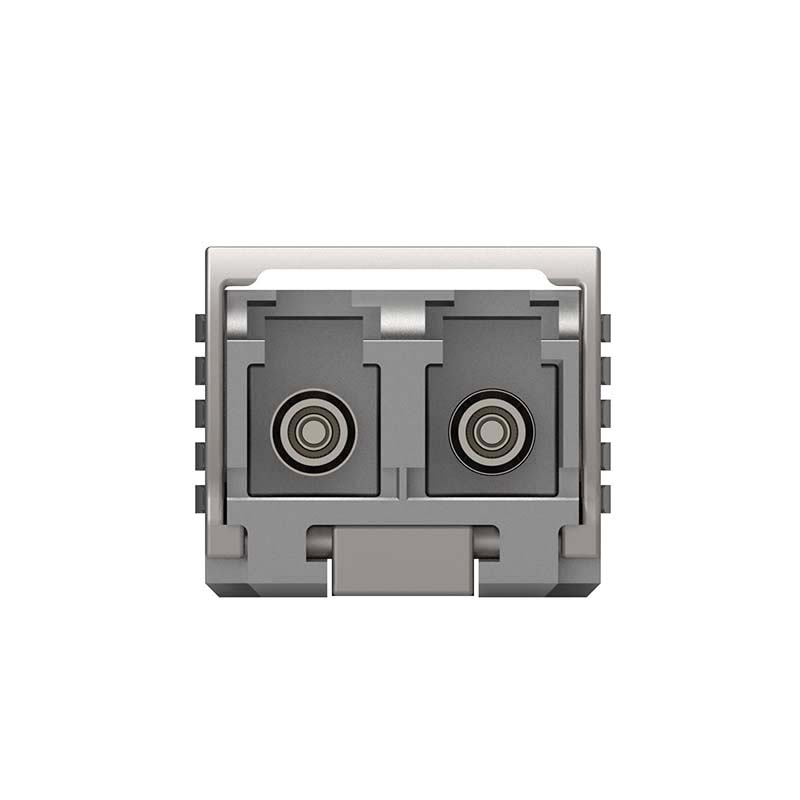

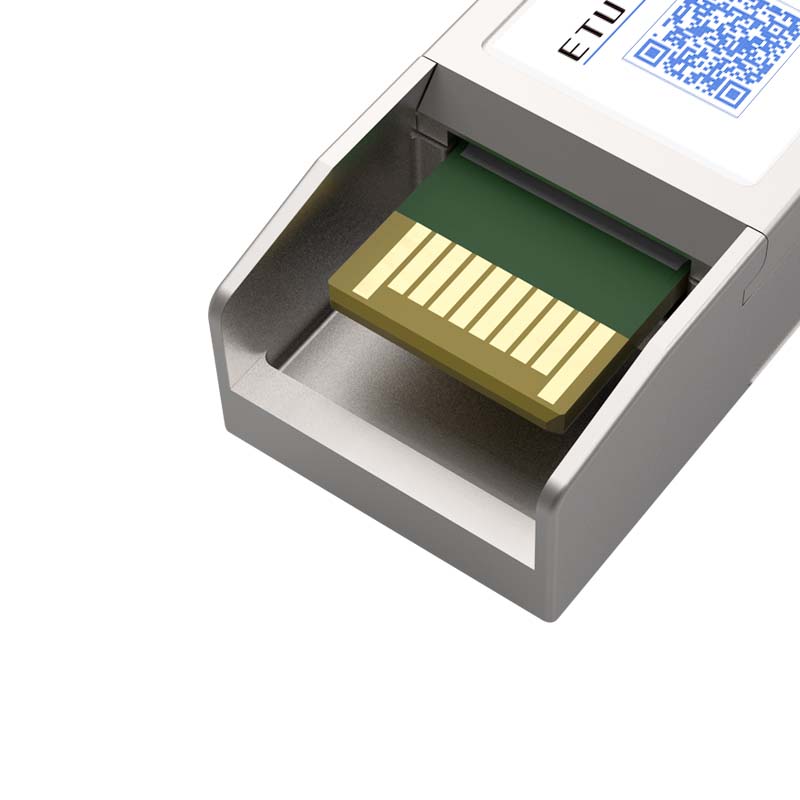

Hot-Pluggable SFP Footprint and LC Connector
Up to 80km reach for G.652 SMF
1310nm/1300nm EML laser and Integrated SOA & PIN TIA ROSA
Temperature Range:
Commercial:0°C ~70°C
Industrial: -40°C ~85°C
Power consumption
Commercial:2.2W
Industrial:2.8W
RoHS 6 compliance
Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
Complies with EU Directive 2015/863/EU

FAQ:

Q1: What is a 25G SFP28 transceiver?
A1: 25G SFP28 transceiver is a compact, hot-pluggable optical module that supports 25Gbps data transmission over fiber or copper cables. It is widely used in data centers, telecom networks, and enterprise networks.

Q2: What are the key differences between SFP28 and SFP+?
A2: SFP28 supports 25Gbps speeds, while SFP+ supports 10Gbps. SFP28 is backward-compatible with SFP+ ports but requires appropriate configuration for optimal performance.

Q3: What distance can a 25G SFP28 SR transceiver cover?
A3: The 25G SFP28 SR (Short Reach) module typically supports up to 100 meters over OM4 multimode fiber (MMF).

Q4: Can 25G SFP28 modules work in 10G switches?
A4: Yes, most 25G SFP28 modules are backward-compatible with 10G SFP+ ports, but they will operate at 10Gbps speeds.

Q5: What are the common types of 25G SFP28 transceivers?
A5: SR (Short Reach) – Up to 100m over MMF
LR (Long Reach) – Up to 10km over SMF
ER (Extended Reach) – Up to 40km over SMF

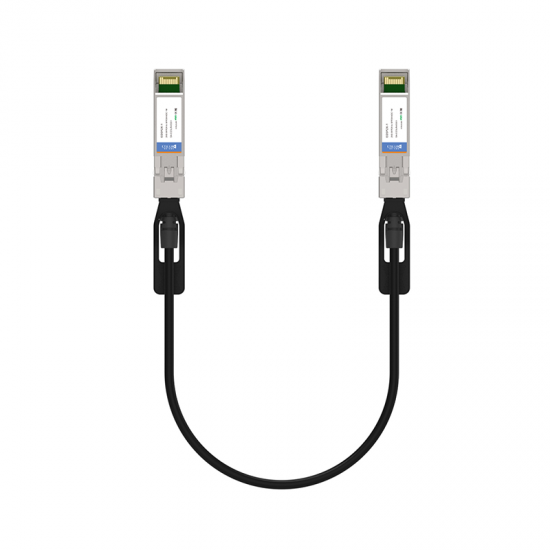

Copper (DAC/AOC) – Short-distance direct attach solutions

Q6: What are the typical applications of 25G SFP28 transceivers?
A6: Data center spine-leaf architecture
5G fronthaul/midhaul networks
High-performance computing (HPC) clusters
Enterprise network upgrades from 10G to 25G

Q7: What is the wavelength of a 25G SFP28 LR transceiver?‌
A7: The 25G SFP28 LR module typically operates at ‌1310nm‌ wavelength, optimized for single-mode fiber (SMF) transmissions up to 10km.

Q8: How does 25G SFP28 compare to 100G QSFP28 in cost and performance?‌
A8: 25G SFP28 is more cost-effective for short-to-medium distances (≤10km), while 100G QSFP28 suits high-density 100G deployments.

Q9: Do 25G SFP28 modules support DDM/DOM monitoring?‌
A9: Yes, most MSA-compliant modules include ‌Digital Diagnostics Monitoring (DDM/DOM)‌ for real-time performance tracking.

Q10: What’s the future of 25G SFP28 with 50G/100G adoption?‌
A10: 25G remains relevant for cost-sensitive upgrades, especially in ‌5G fronthaul‌ and enterprise edge networks, despite higher-speed alternatives.
