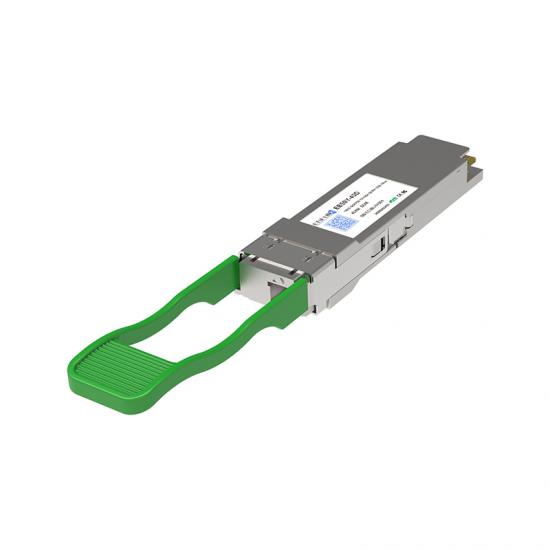

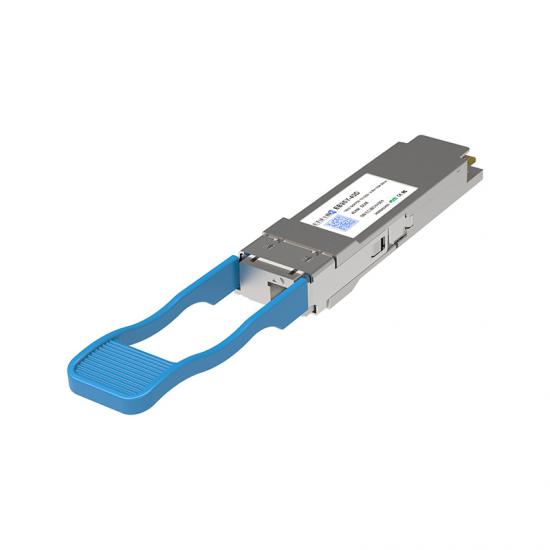

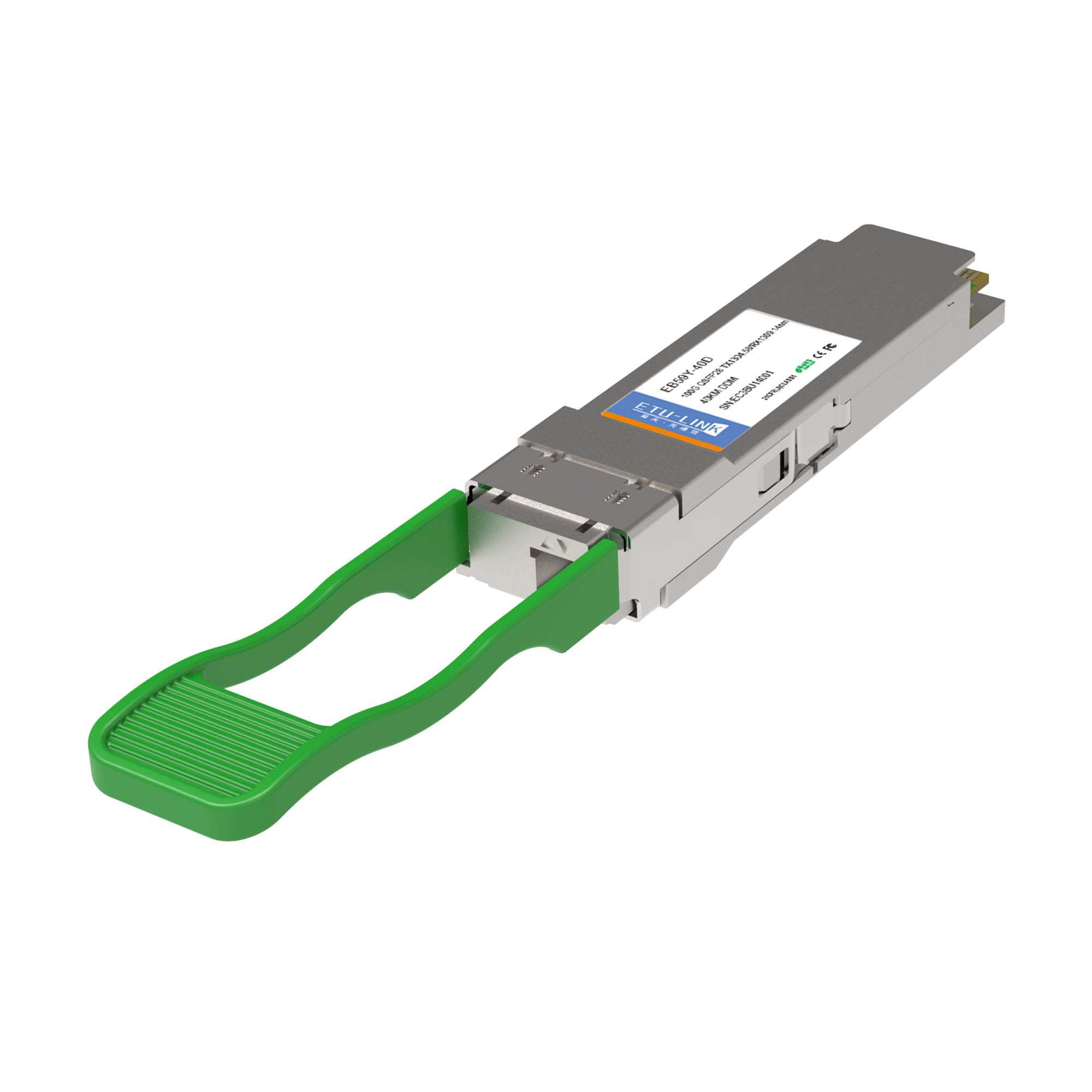

100G QSFP28 ER1 BIDI 40KM LC Optical Transceiver

Product Model:
EB59(95)Y-40D
Data Rate:
100G
Wavelength:
1304nm/1309nm
Distance:
40KM
Connector:
LC
Fiber Type:
SM
DDM:
YES
Product Origin:
China
Shipping Port:
Shenzhen
Brand:
ETU-LINK
In Stock:
Need to check with PMC

Supporting exceptional distances up to 40 kilometers, this transceiver complies with 100GBASE-ER1 standards and incorporates high-power EML lasers and high-sensitivity APD receivers to overcome extended fiber attenuation.

Lead Time/Contact Us Datasheets

Product Detail

Product Description

ETU-Link 100G QSFP28 ER1 BIDI optical transceiver is designed for high-performance, long-distance data transmission up to 40 kilometers. This cutting-edge fiber optic module supports 100 Gigabit Ethernet (100GbE) and complies with industry-standard QSFP28 MSA specifications.

Key Features

Hot-pluggable QSFP28 form factor
Support Ethernet CAUI-4
Support OTU4
High Sensitivity PD Receiver
Operation case temperature C/E/I-Temp
Single 3.3V power supply
Aligned with IEEE 802.3bs and 100G Lambda MSA
Simplex LC receptacles
I2C management interface
RoHS-6 compliant
4X28G serial Interface(CEI-28G-VSR)


100G BIDI LR1 10KM	100G BIDI LR1 20KM	100G BIDI ER1 30KM	100G BIDI ER1 40KM	100G BIDI ZR4 80KM
100G	100G	100G	100G	100G
1271nm/1331nm	1291nm/1311nm	1305nm/1309nm	1305nm/1309nm	LWDM
10KM	20KM	30KM	40KM	80KM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What are the key applications of 100G QSFP28?‌

A1: Our 100G QSFP28 modules are widely used in data centers, high-performance computing (HPC), and telecom networks for high-speed interconnects.

Q2: What types of 100G QSFP28 does ETU-Link offer?‌

A2: We provide SR4, LR4, ER4, ZR4, and CWDM4 variants, supporting multi-mode and single-mode fiber connections to 100m-100km.

Q3: Are ETU-Link 100G QSFP28 modules compatible with major brands?‌

A3: Yes, our 100G QSFP28 transceivers are fully MSA-compliant and interoperable with Cisco, Juniper, Arista, and other OEM switches.

Q4: Does you provide customization for 100G QSFP28?‌

A4: Yes, we offer OEM/ODM services including custom labeling, firmware, and compatibility testing.

Q5: How does 100G QSFP28 BiDi reduce fiber costs?‌

A5: BiDi modules enable bidirectional 100G transmission over a single fiber strand, doubling fiber utilization compared to conventional dual-fiber solutions.

Q6: What fiber connectors are used in 100G QSFP28?‌

A6: MPO-12 for SR4/PSM4, LC duplex for LR4/CWDM4, and LC simplex for BiDi models.

Q7: What is the warranty period for 100G QSFP28?‌

A7: Standard 3-year warranty with lifetime technical support.

ETU-Link 100G QSFP28 solves key points‌

Problem: Fiber congestion? BiDi models halve your fiber count

Problem: Compatibility fears? We guarantee MSA compliance + OEM testing

Hot Tags :

100G QSFP28 BIDI Transceiver Single Fiber Module QSFP28 BIDI 40km Module for AI Cluster Interconnect 100G QSFP28 BIDI 40KM Compatible Arista Huawei Juniper HPE QSFP28 Module 40KM 100G QSFP28 BIDI 40km Single Fiber Bidirectional QSFP-BX40-100G 40km

Previous:
100G QSFP28 ER1 BIDI 30KM LC Optical Transceiver
Next:
100G QSFP28 ZR4 BIDI 80KM LC Optical Transceiver

Get a Quote/Datasheet

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 100G QSFP28 ER1 BIDI 40KM LC Optical Transceiver

Categories

New Products

Related Products

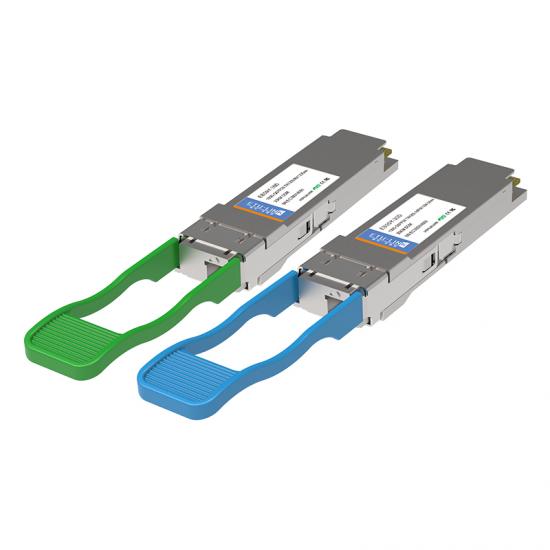

100G QSFP28 ER1 BIDI 30KM LC Optical Transceiver

Supporting transmission distances up to 30 kilometers, this transceiver complies with 100GBASE-ER1 standards and integrates high-sensitivity optics.

100G QSFP28 LR1 BIDI 10KM LC Optical Transceiver

It employs two different wavelengths on the same fiber strand with PAM4 modulation, achieving full-duplex 106.25Gbps data rates over distances up to 10 kilometers.

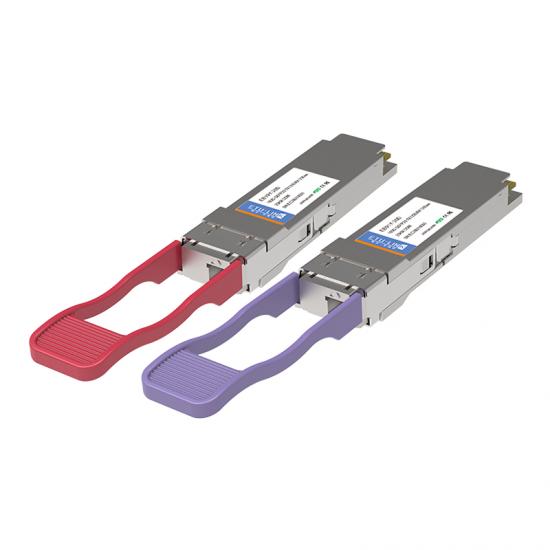

100G QSFP28 LR1 BIDI 20KM LC Optical Transceiver

Leveraging BIDI (Bidirectional) technology and PAM4 modulation, it transmits and receives 106.25Gbps data over a single strand of single-mode fiber using two distinct wavelengths through standard LC connectors.

100G QSFP28 SR BiDi 100m LC Optical Transceiver

By employing two different wavelengths (850nm and 900nm) on the same fiber strand, it achieves 100mbps full-duplex communication over distances up to 100 meters on OM4 fiber.

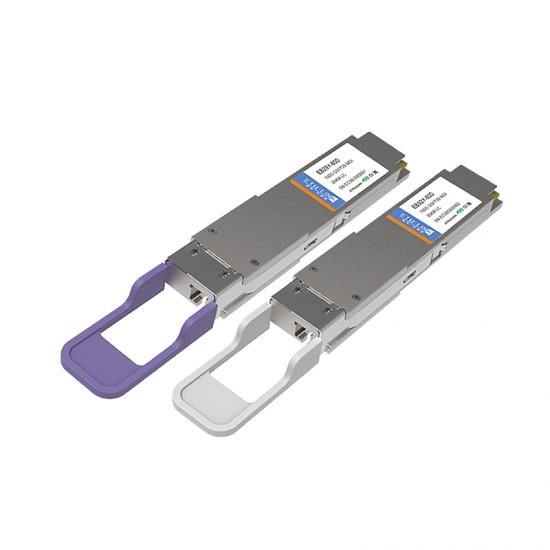

100G QSFP28 ZR4 BIDI 80KM LC Optical Transceiver
