Data Rate:
25GProduct Origin:
ChinaShipping Port:
ShenzhenBrand:
ETU-LINK
FAQ:
Q1: What is an Active Optical Cable (AOC) and How Does It Work?

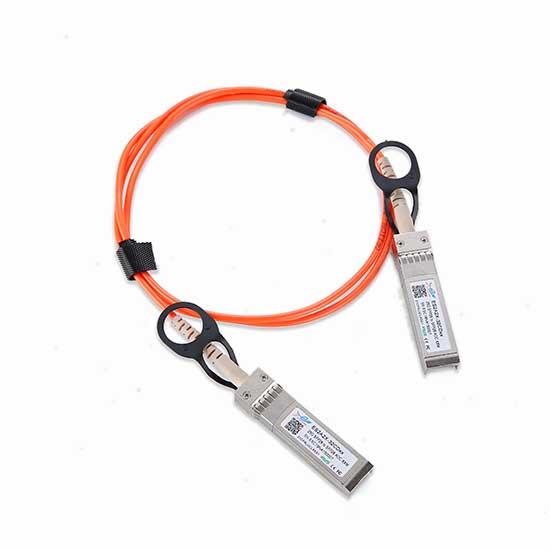

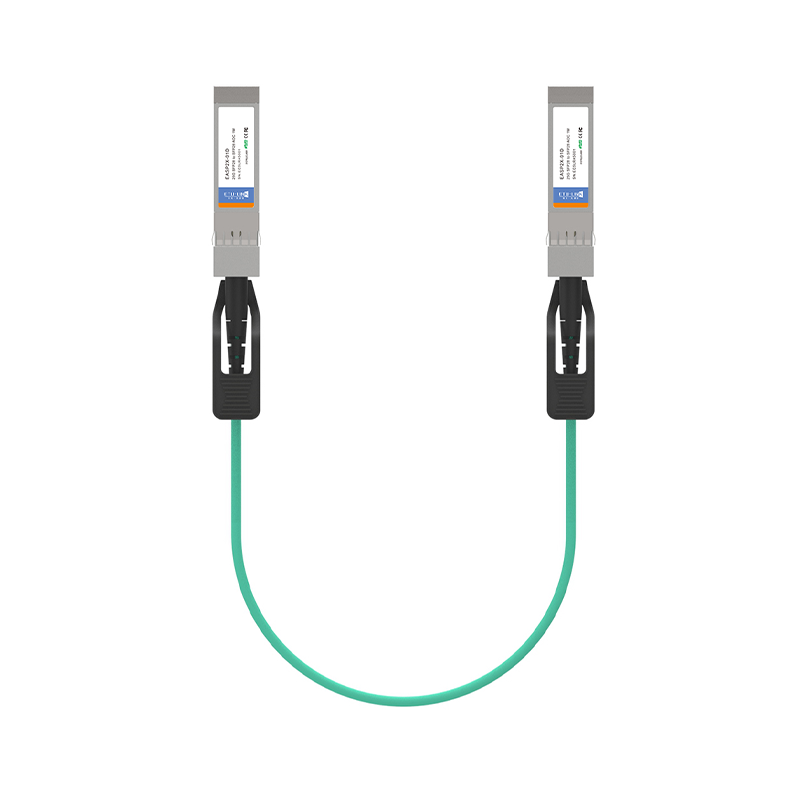

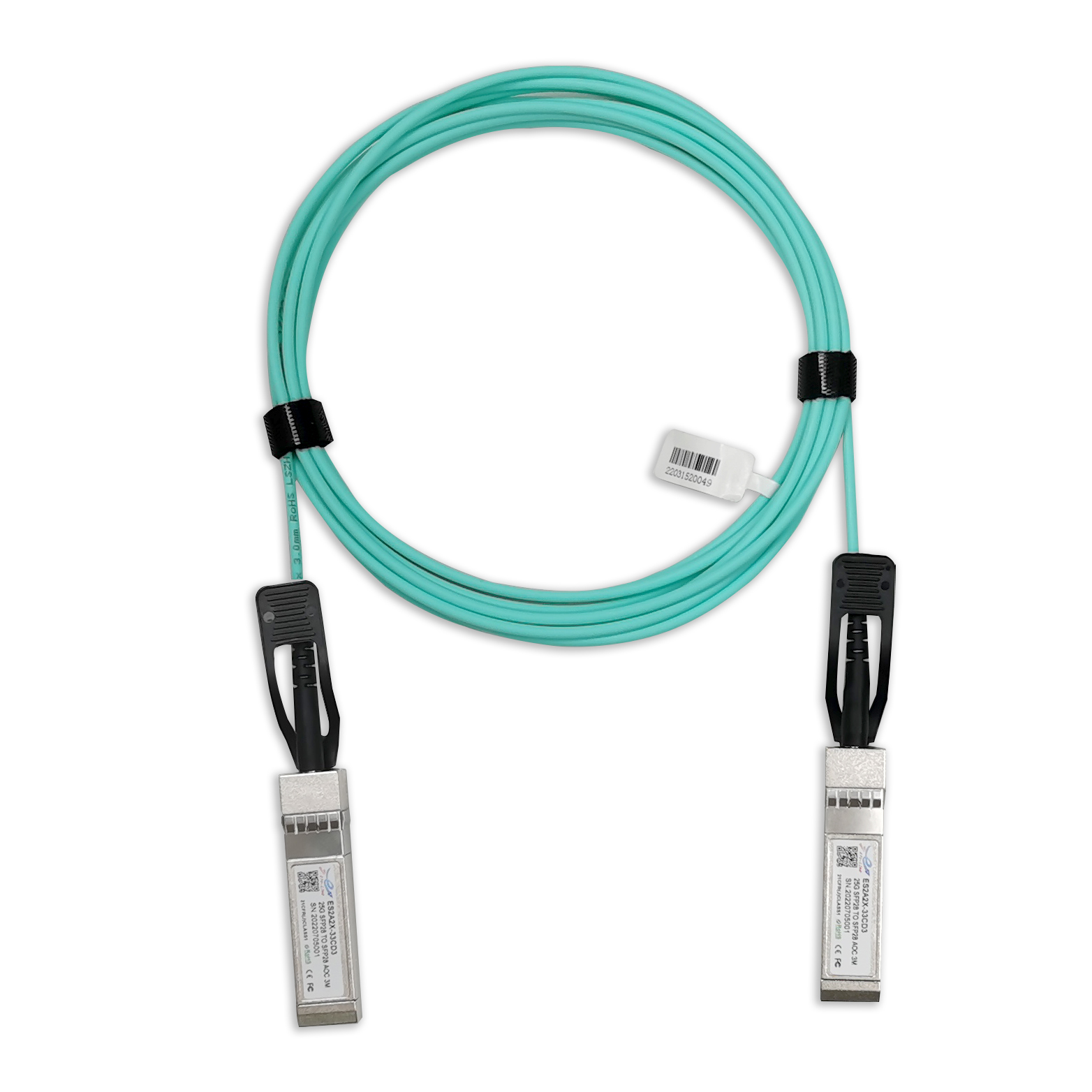

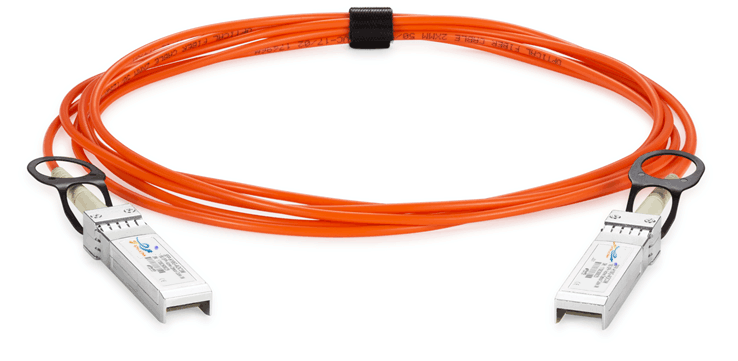

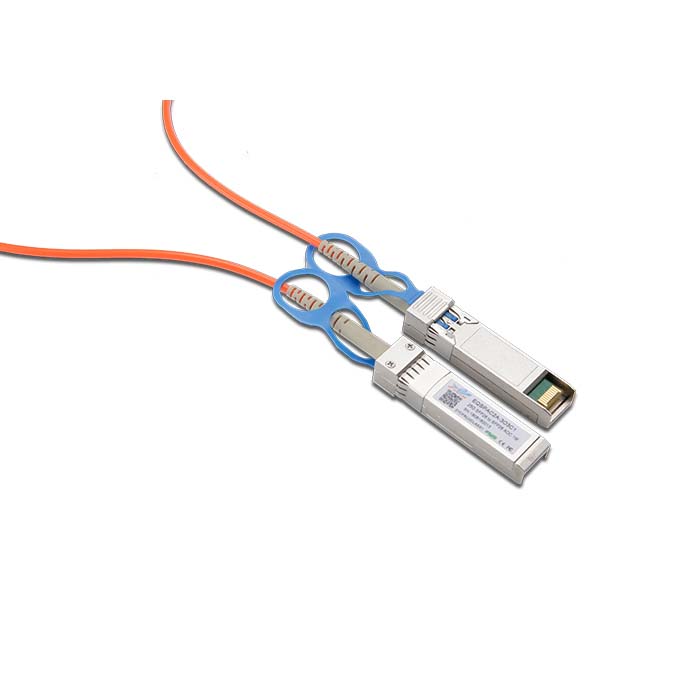

A1: An Active Optical Cable (AOC) integrates fiber optic technology with built-in transceivers to deliver high-speed data transmission (10G-400G) without separate optical modules. Unlike traditional fiber patch cables, AOCs offer plug-and-play simplicity for data center interconnects.
Q2: Why Choose AOC Over DAC for Data Center Networking?
A2: AOC cables outperform Direct Attach Copper (DAC) in four key ways: longer reach (up to 100m vs 7m), EMI immunity, lower power consumption (30% less than active DAC), and lighter weight - critical for high-density 100G/400G deployments.
Q3: What Are the Maximum Speeds Supported by Modern AOC Cables?
A3: Today's AOC solutions support:
10G/25G (SFP+/SFP28)
40G/56G (QSFP+)
100G (QSFP28)
200G/400G (QSFP-DD/OSFP)
Perfect for hyperscale data centers upgrading to 400G Ethernet.
Q4: What's the Maximum Reliable Distance for QSFP28 AOC Cables?
A4: Standard 100G QSFP28 AOCs reliably transmit up to 100m (OM4 fiber), with premium models reaching 300m - ideal for campus data center interconnects and HPC clusters.
Q5: How Do AOC Cables Reduce Data Center OPEX?
A5: Three OPEX advantages:
40% lower power than copper alternatives
Zero maintenance (no signal degradation)
60% lighter weight reduces cooling costs
Q6: Can I Use QSFP+ AOC for Breakout to SFP+ Connections?
A6: Absolutely! Our QSFP+ to 4x SFP+ breakout AOCs enable:
Cost-effective 40G migration
Flexible spine-leaf architectures
Simplified cable management
Q7: Do AOC cables require special maintenance?
A7: No, AOC cables are durable, require no signal conditioning, and are more resistant to environmental factors than copper cables, reducing maintenance needs in data center environments.
Q8: Can AOC cables be used for breakout configurations?
A8: Yes, our QSFP+ to 4x SFP+ AOC breakout cables enable flexible 40G to 10G migration paths for cost-effective network upgrades.
Q9: How do AOC cables compare to traditional optical transceivers?
A9: AOC offer plug-and-play simplicity by eliminating separate transceivers, reducing points of failure while maintaining the benefits of optical transmission.
Q10: Are AOC cables compatible with major switch brands?
A10: Yes, our AOC cables are MSA-compliant and work with major networking equipment brands for seamless 40G/100G connectivity.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Product Introduction The 400G OSFP SR8 100m MPO Optical Transceiver is a high-density, parallel 400Gbps optical module designed for ultra-short-range data center interconnects. Featuring an OSFP form factor with 8×50G PAM4 modulation, it delivers 425Gbps aggregate bandwidth over OM4 multimode fiber (MMF) up to 100 meters. Applications: Ideal for hyperscale data centers, HPC clusters, and 400G Ethernet backbones, this transceiver bridges rack-to-rack and leaf-spine topologies with low power consumption (<10W). Its plug-and-play design ensures rapid deployment in bandwidth-intensive environments. Key Features OSFP MSA compliant 8 parallel laneson 850nm center wavelength Compliant to IEEE802.3bs Specification Up to 100m transmission on multi-mode fiber(MMF)OM3 with FEC Operating case temperature:0 to 70℃ 8x53.125Gb/s electrical interface(400GAUI-8) DataRate 53.125Gbps(PAM4)per channel. Maximum power consumption 12W MPO-16 connector RoHS compliant 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 400G OSFP? A1: The OSFP (Octal Small Form-factor Pluggable) is a 400G optical module standard with 8 electrical channels, designed for high-speed data transmission in data centers and telecom networks. Q2: What are the advantages of OSFP over QSFP-DD? A2: Better heat dissipation (integrated heatsink) and higher power efficiency, suited for high-performance computing. Q3: How does OSFP differ from QSFP-DD? A3: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules. Q4:What encoding scheme does 400G OSFP use? A4: Data Rate 53.125Gbps (PAM4) per channel(Maximum power consumption 12W), balancing speed and complexity. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects. (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling.
For inquiries about our products or pricelist, please leave your information with us and we will be in touch with in 24 hours.
