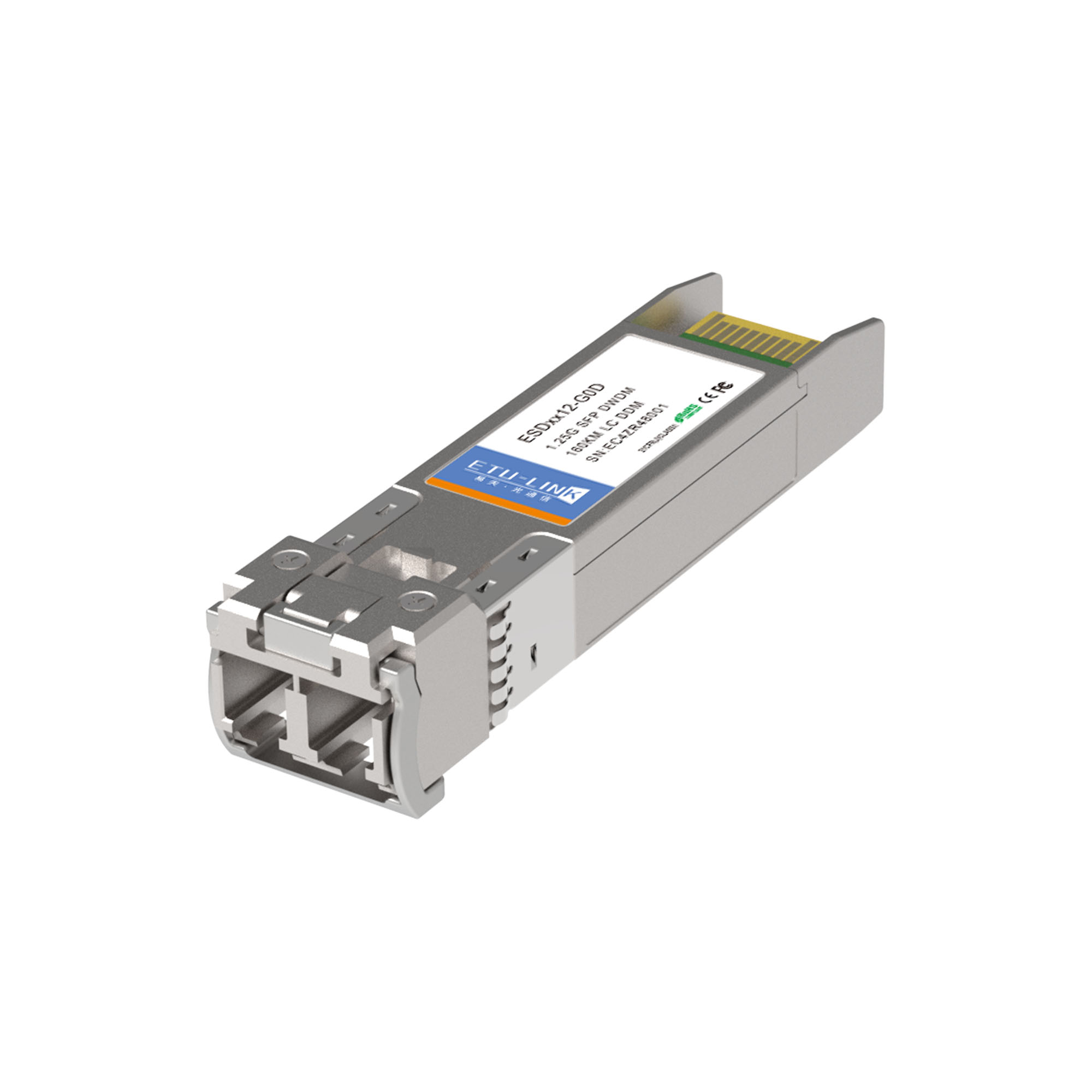

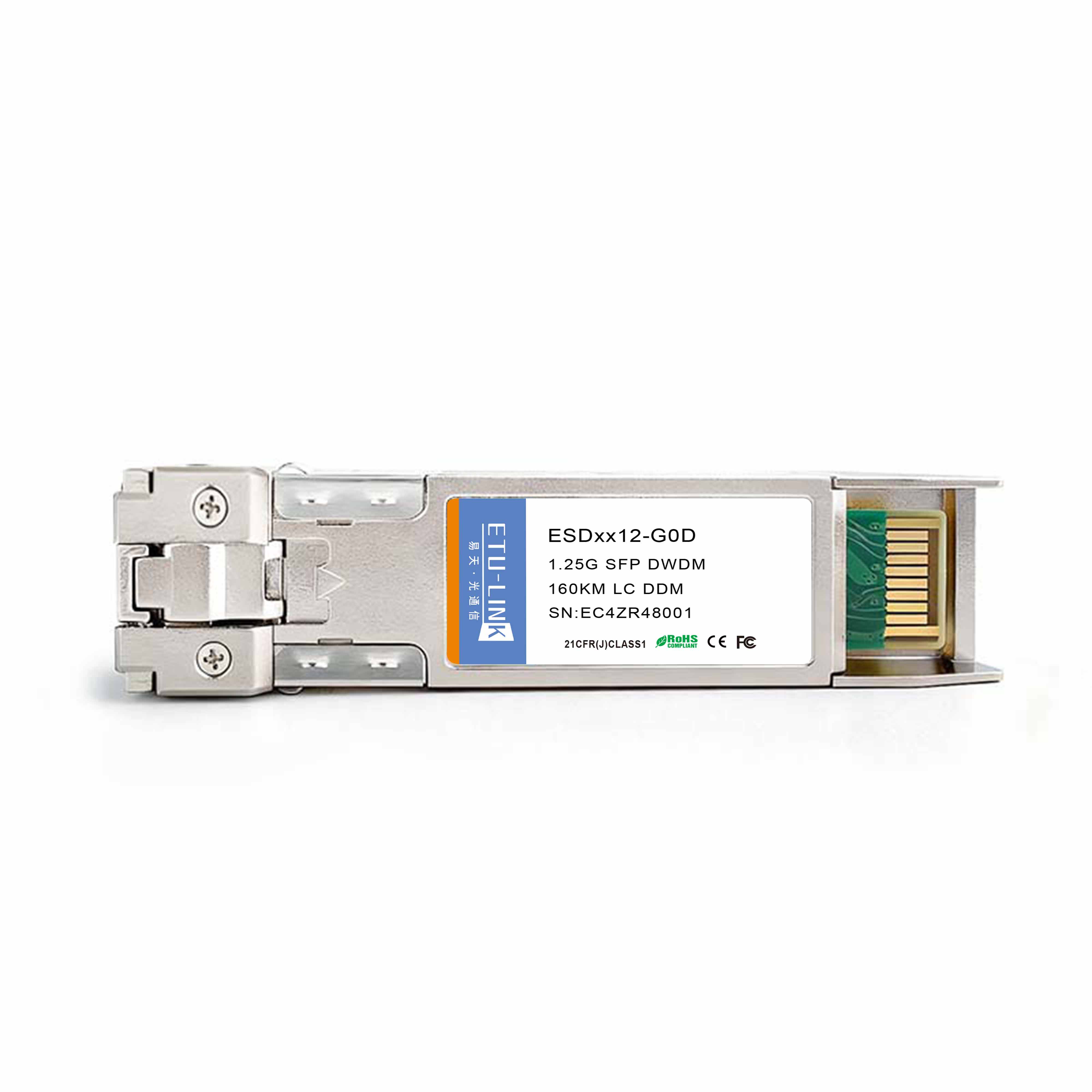

1.25G DWDM SFP 160KM LC Optical Transceiver

Product Model:
ESDxx12-G0D
Data Rate:
1.25G
Wavelength:
DWDM
Distance:
160KM
Connector:
LC
Fiber Type:
SM
DDM:
YES
Product Origin:
China
Shipping Port:
ShenZhen/HK
Brand:
ETU-LINK

Product Detail

1.25G DWDM SFP 160KM LC Optical Transceiver is an ultra-long-haul, high-performance optical module engineered for extreme-distance communication in Dense Wavelength Division Multiplexing (DWDM) systems. Operating on precise ITU-T grid wavelengths with narrow channel spacing, it enables the transmission of multiple high-speed data streams over a single fiber strand, maximizing bandwidth capacity while optimizing fiber infrastructure utilization.

Supporting data rates of 1.25Gbps, this transceiver achieves an exceptional transmission distance of up to 160 kilometers over standard single-mode fiber, making it ideally suited for inter-city networks, cross-regional backbone links, and nationwide telecommunications infrastructure requiring maximum channel density and ultra-long reach.

Featuring enhanced transmitter power and superior receiver sensitivity with integrated dispersion tolerance, the module maintains excellent signal integrity across extended distances while operating reliably under varying environmental conditions.

The hot-pluggable SFP form factor with duplex LC interface ensures seamless integration with existing network equipment, providing carriers and enterprises with a scalable, future-proof solution for building robust, high-capacity optical transport networks with minimized operational costs.

Key Features

Up to 1.25Gb/s data links
DWDM DML laser transmitter and APD photo-detector
100 GHz ITU channel spacing with integrated wavelength locker
Up to 160km on 9/125um SMF
Hot-pluggable SFP footprint
Duplex LC/UPC type pluggable optical interface
Low power dissipation
RoHS-10 compliant and lead-free
Support Digital Monitoring interface
Single +3.3V power supply
Compliant with SFF-8472
Metal enclosure, for lower EMI
Meet ESD requirements, resist 8KV direct contact voltage
Case operating temperature
Commercial:0~ +70°C Extended:-10 ~ +80°C Industrial:-40~ +85°C


SFP CWDM 20KM	SFP CWDM 60KM	SFP DWDM 80KM	SFP DWDM 120KM	SFP DWDM 160KM
1.25G	1.25G	1.25G	1.25G	1.25G
20KM	60KM	80KM	120KM	160KM
CWDM	CWDM	DWDM	DWDM	DWDM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C

FAQ:

Q1: What is a 1.25G SFP transceiver?‌

A1: 1.25G SFP (Small Form-factor Pluggable) is a compact, hot-swappable optic module supporting 1.25Gbps speeds for fiber or copper networks, commonly used in Gigabit Ethernet and Fiber Channel applications.

Q2: What are the typical applications of 1.25G SFP?‌
A2: Gigabit Ethernet (1000BASE-SX/LX/ZX)‌
Fiber Channel (1G/2G/4G)‌
SDH/SONET networks‌

Q3: What is the maximum distance for 1.25G SFP LX?‌
A3: The ‌1000BASE-LX‌ variant supports up to ‌10km‌ over single-mode fiber (SMF), while ‌1000BASE-SX‌ reaches ‌550m‌ over multimode fiber (MMF).

Q4: What wavelengths do 1.25G SFP modules use?‌
A4: SX‌: 850nm (MMF); LX/ZX‌: 1310nm/1550nm (SMF)

Q5: How does a BIDI SFP differ from a standard SFP?‌
A5: Standard SFPs require ‌two fibers‌ (one for TX, one for RX), while BIDI SFPs use ‌one fiber‌ with wavelength-division duplexing (WDM).

Q6: How far can a 1.25G SFP ZX module transmit data?‌
A6: The ‌ZX variant‌ supports extended distances up to ‌80km over single-mode fiber‌, ideal for long-haul applications like telecom backbones.

Q7: Are 1.25G SFP modules compatible with industrial temperature ranges?‌
A7: Yes, many industrial-grade modules operate in ‌extreme temperatures from -40°C to 85°C‌, ensuring reliability in harsh environments like outdoor networks.

Q8: What is the role of Digital Diagnostics Monitoring (DDM/DOM) in 1.25G SFP?‌
A8: DDM/DOM provides real-time tracking of parameters like temperature and optical power, enabling proactive maintenance and fault detection for network stability.

Q9: Can 1.25G SFP modules connect to CWDM or DWDM systems?‌
A9: Yes, specialized ‌CWDM and DWDM variants‌ exist for wavelength division multiplexing, allowing efficient bandwidth usage in metro or data center networks.

Q10: Why choose BIDI over standard SFP for FTTH?‌
A10: BIDI SFPs ‌halve fiber usage‌, reducing infrastructure costs in passive optical networks (PON).
