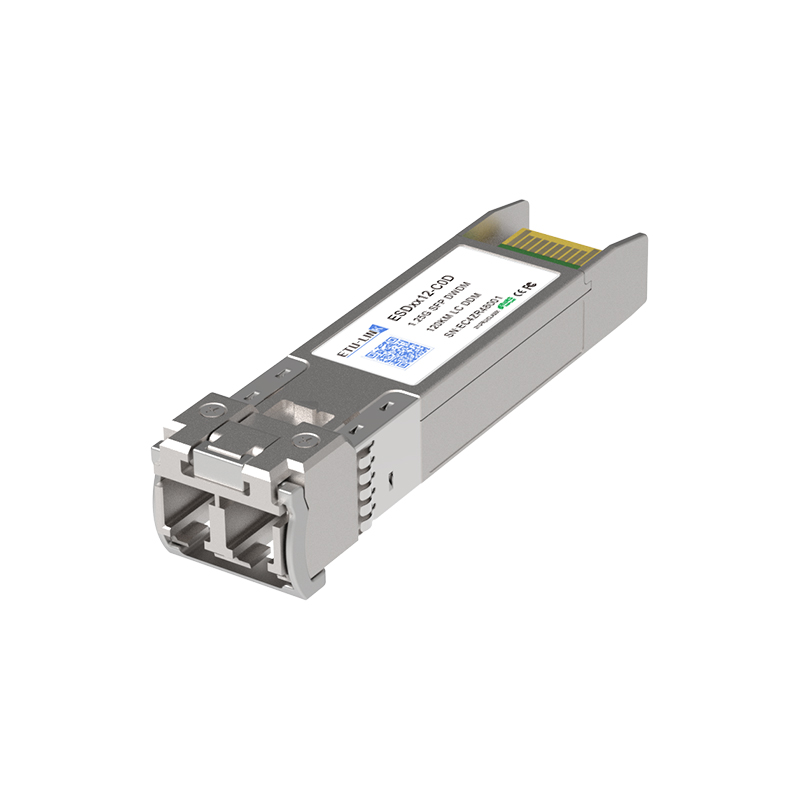

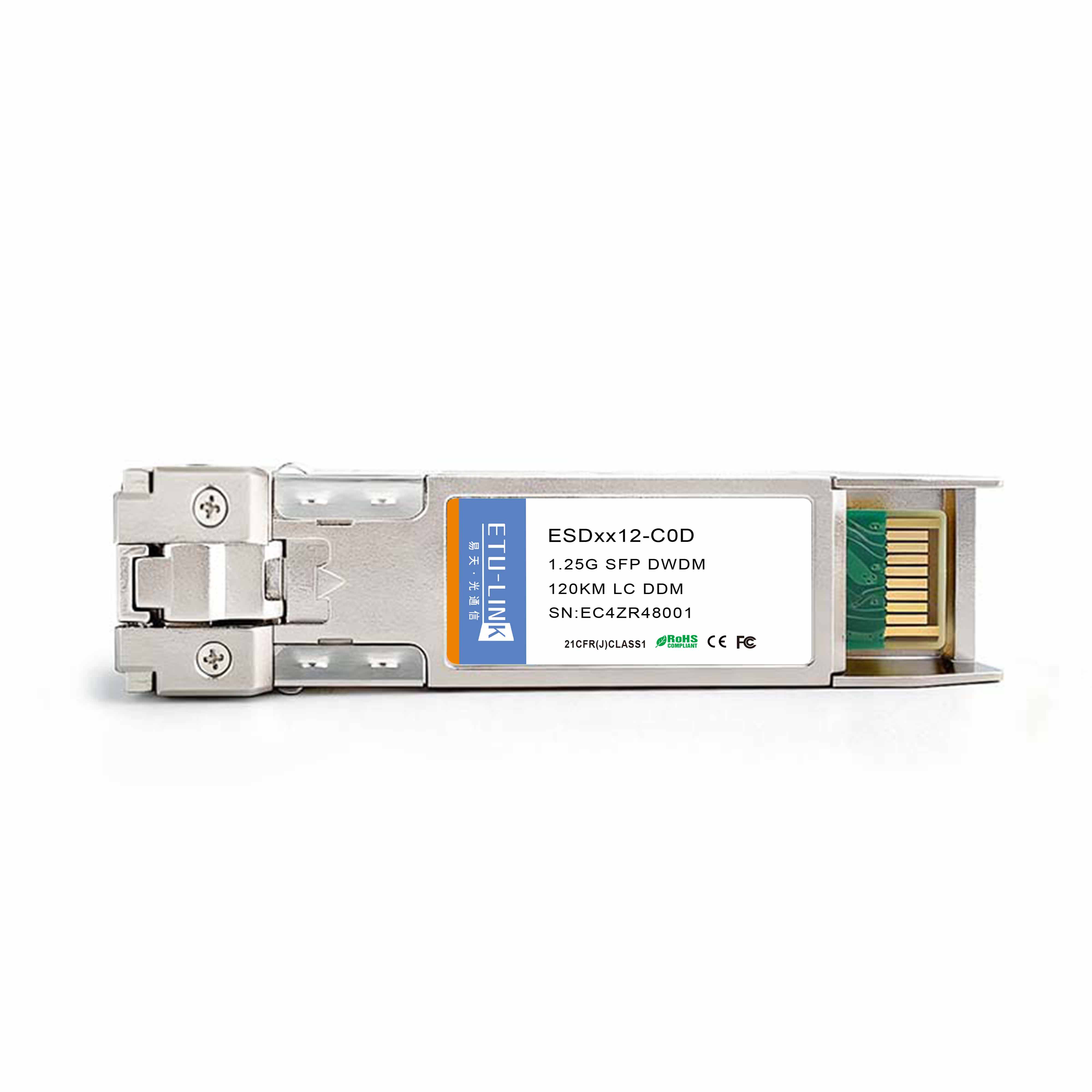

1.25G DWDM SFP 120KM LC Optical Transceiver

400G QSFP-DD LR4 10km LC Optical Transceiver‌ The ‌400G QSFP-DD LR4‌ transceiver is a high-performance optical module designed for long-distance 400 Gigabit Ethernet applications. It leverages ‌PAM4 modulation‌ and ‌CWDM lasers‌ to achieve ‌10km transmission‌ over single-mode fiber (SMF), complying with ‌IEEE 802.3bs‌ and ‌QSFP-DD MSA‌ standards. Featuring ‌dual LC connectors‌ with a ‌12W max power‌ consumption, ensuring energy-efficient operation in data center interconnects and metro networks. Applications:‌ Data center interconnects‌ between remote sites. 5G fronthaul/midhaul‌ networks requiring high-bandwidth, low-latency links. Enterprise and cloud service provider‌ infrastructures scaling to 400G. RoHS compliant‌ and engineered for future-proof networking, this transceiver enables seamless migration to next-generation 400G architectures. Compliant with 100G Lambda MSA: 400GBASE-LR4-10 optical interface Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface Compliant with QSFP-DD MSA HW Rev 5.1 type 2 housing with duplex LC connector Compliant with QSFP-DD CMIS Rev 4.0 Operating distance at engineering link of up to 10km Maximum power consumption 10 W Case operating temperature 0°C to 70°C Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU(RoHS compliant) Class 1 Laser 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 400G QSFP-DD? A1: It is a high-density, hot-pluggable optical module interface supporting 400Gbps data rates, featuring 8 electrical channels for enhanced bandwidth. Q2: What are the main types of 400G QSFP-DD modules? A2: Common variants include SR8 (short-range), DR4/FR4 (intermediate), LR4/LR8 (long-range), and ER4/ER8 (extended-reach), with transmission distances ranging from 100m to 40km. Q3: How does OSFP differ from QSFP-DD?‌ A3: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules. Q4:What encoding scheme does 400G OSFP use?‌ A4: Data Rate 53.125Gbps (PAM4) per channel(Maximum power consumption 12W), balancing speed and complexity. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects.  (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling. Q9: How does OSFP differ from QSFP-DD?‌ A9: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules.

Simplex LC interface, hot-pluggable design, and integrated Digital Diagnostics Monitoring (DDM/DOM), it provides real-time performance tracking for critical infrastructure.

It supports data rates up to 1.25 Gbps for Gigabit Ethernet and 1.0625/2.125 Gbps for Fibre Channel, achieving exceptional transmission distances of up to 110 kilometers.
