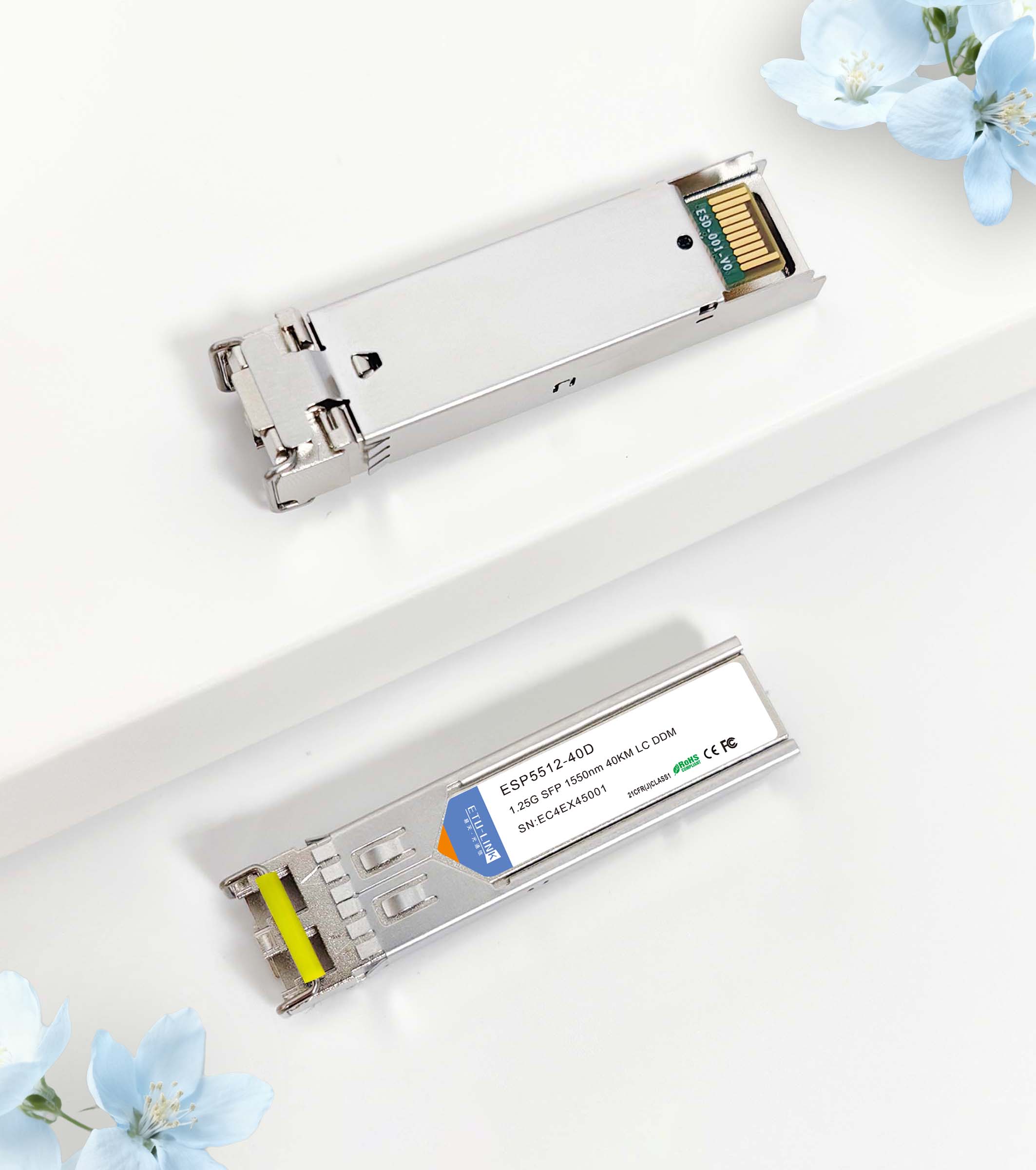

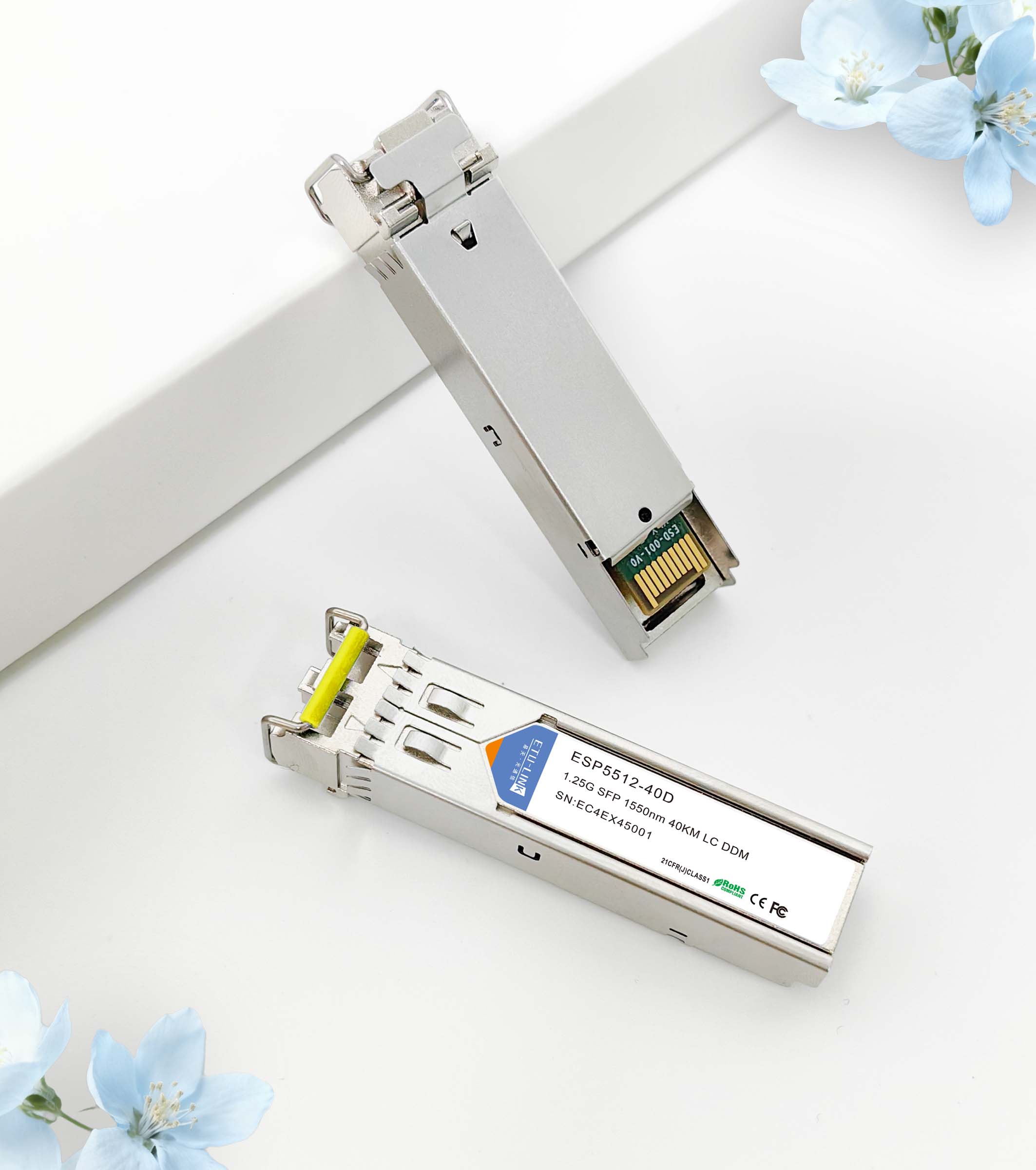

1.25G SFP EX 1550nm 40KM LC Optical Transceiver

• Data-rate of 1.25Gbps operation
• 1310nm DFB laser and PIN photo detector for 40KM transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature: Standard : 0 to +70°C Extended : -20 to +85°C Industrial : -40 to +85℃

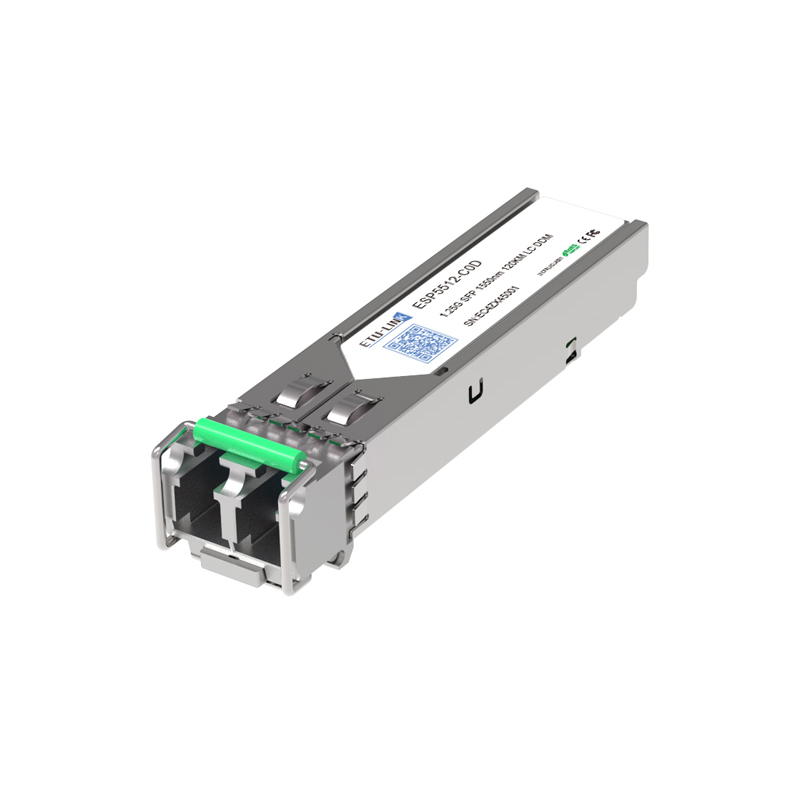

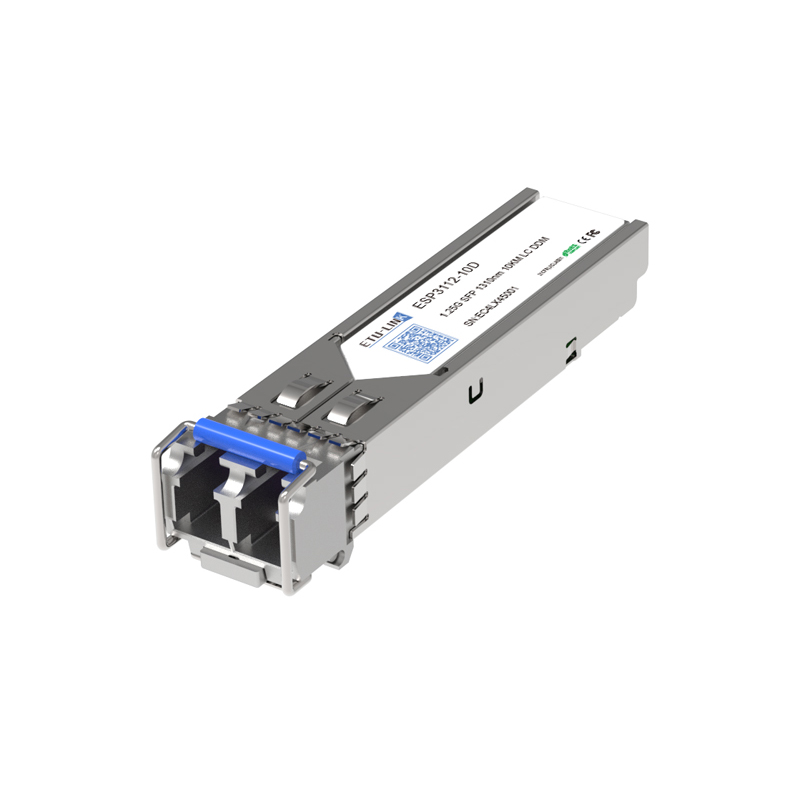

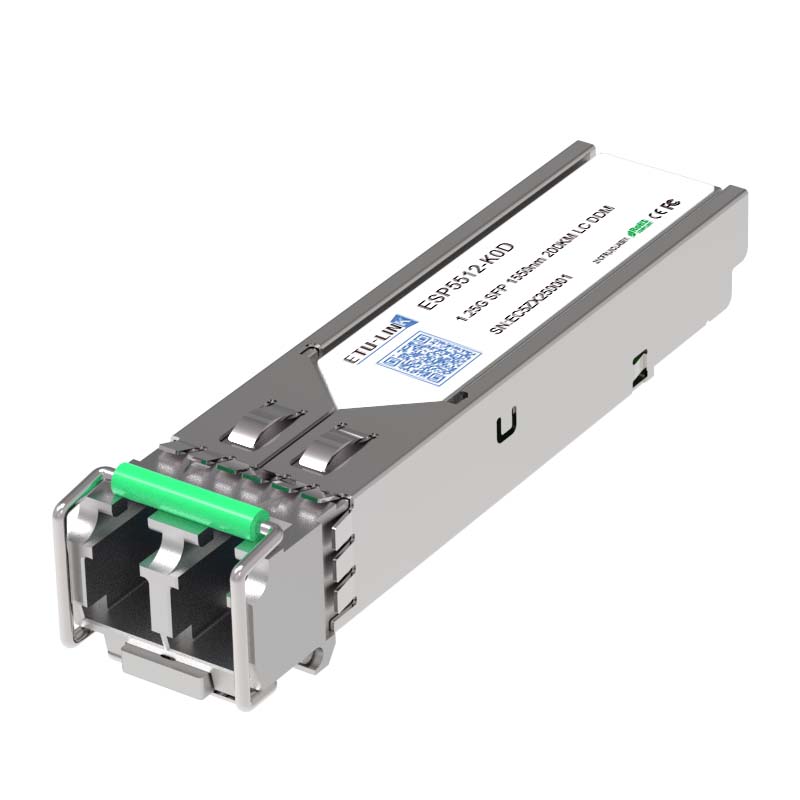

SFP LX 10KM	SFP EX 40KM	SFP ZX 80KM	SFP ZX 120KM	SFP ZX 200KM
1.25G	1.25G	1.25G	1.25G	1.25G
10KM	40KM	80KM	120KM	200KM
1310nm	1310nm	1550nm	1550nm	1550nm
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C

Q1: What is a 1.25G SFP transceiver?‌

A1: 1.25G SFP (Small Form-factor Pluggable) is a compact, hot-swappable optic module supporting 1.25Gbps speeds for fiber or copper networks, commonly used in Gigabit Ethernet and Fiber Channel applications.

Q2: What are the typical applications of 1.25G SFP?‌
A2: Gigabit Ethernet (1000BASE-SX/LX/ZX)‌
Fiber Channel (1G/2G/4G)‌
SDH/SONET networks‌

Q3: What is the maximum distance for 1.25G SFP LX?‌
A3: The ‌1000BASE-LX‌ variant supports up to ‌10km‌ over single-mode fiber (SMF), while ‌1000BASE-SX‌ reaches ‌550m‌ over multimode fiber (MMF).

Q4: What wavelengths do 1.25G SFP modules use?‌
A4: SX‌: 850nm (MMF); LX/ZX‌: 1310nm/1550nm (SMF)

Q5: How does a BIDI SFP differ from a standard SFP?‌
A5: Standard SFPs require ‌two fibers‌ (one for TX, one for RX), while BIDI SFPs use ‌one fiber‌ with wavelength-division duplexing (WDM).

Q6: How far can a 1.25G SFP ZX module transmit data?‌
A6: The ‌ZX variant‌ supports extended distances up to ‌80km over single-mode fiber‌, ideal for long-haul applications like telecom backbones.

Q7: Are 1.25G SFP modules compatible with industrial temperature ranges?‌
A7: Yes, many industrial-grade modules operate in ‌extreme temperatures from -40°C to 85°C‌, ensuring reliability in harsh environments like outdoor networks.

Q8: What is the role of Digital Diagnostics Monitoring (DDM/DOM) in 1.25G SFP?‌
A8: DDM/DOM provides real-time tracking of parameters like temperature and optical power, enabling proactive maintenance and fault detection for network stability.

Q9: Can 1.25G SFP modules connect to CWDM or DWDM systems?‌
A9: Yes, specialized ‌CWDM and DWDM variants‌ exist for wavelength division multiplexing, allowing efficient bandwidth usage in metro or data center networks.

Q10: Why choose BIDI over standard SFP for FTTH?‌
A10: BIDI SFPs ‌halve fiber usage‌, reducing infrastructure costs in passive optical networks (PON).
