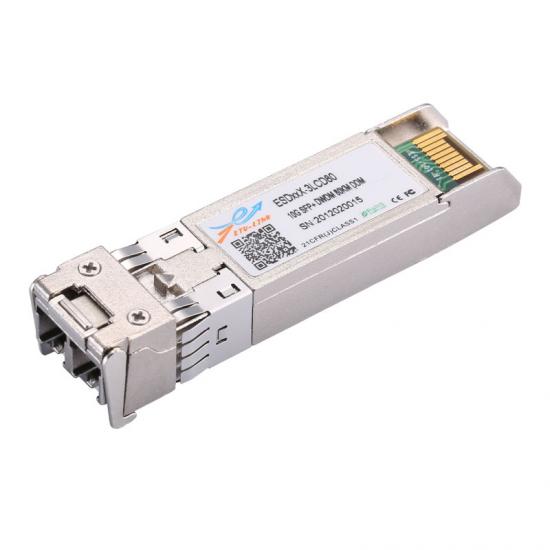

10G SFP+ DWDM 80KM LC Optical Transceiver 50GHZ

10G SFP+ DWDM 80KM LC Optical Transceiver 50GHZ



  • Product Model:

    ESDxxX-3LCD80
  • Data Rate:

    10G
  • Wavelength:

    1528.77~1567.13nm
  • Distance:

    80KM
  • Connector:

    LC
  • Fiber Type:

    SM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    ShenZhen/HK
  • Lead Time:

    Please contact our sales confirmation
  • Product Detail

  • Up to 11.1Gbps Data Links
  • Up to 80km transmission on SMF
  • DWDM EML Laser and APD receiver
  • Metal enclosure, for lower EMI
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Hot-pluggable SFP+ footprint
  • Specifications compliant with SFF 8472
  • Compliant with SFP+ MSA with LC connector
  • Single 3.3V power supply
  • Case operating temperature range:0°C to 70°C
  •  Power dissipation < 1.5W
