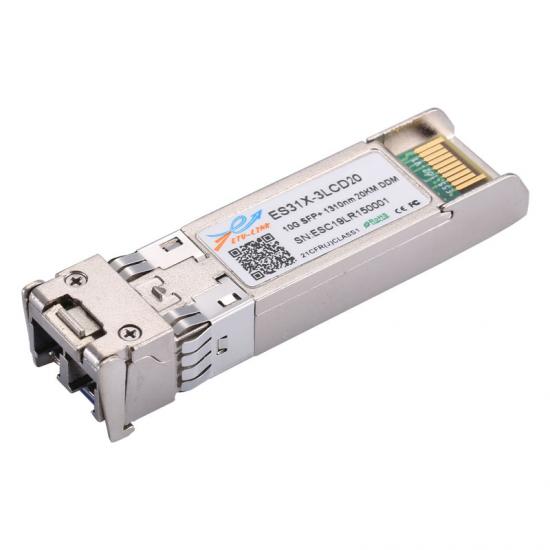

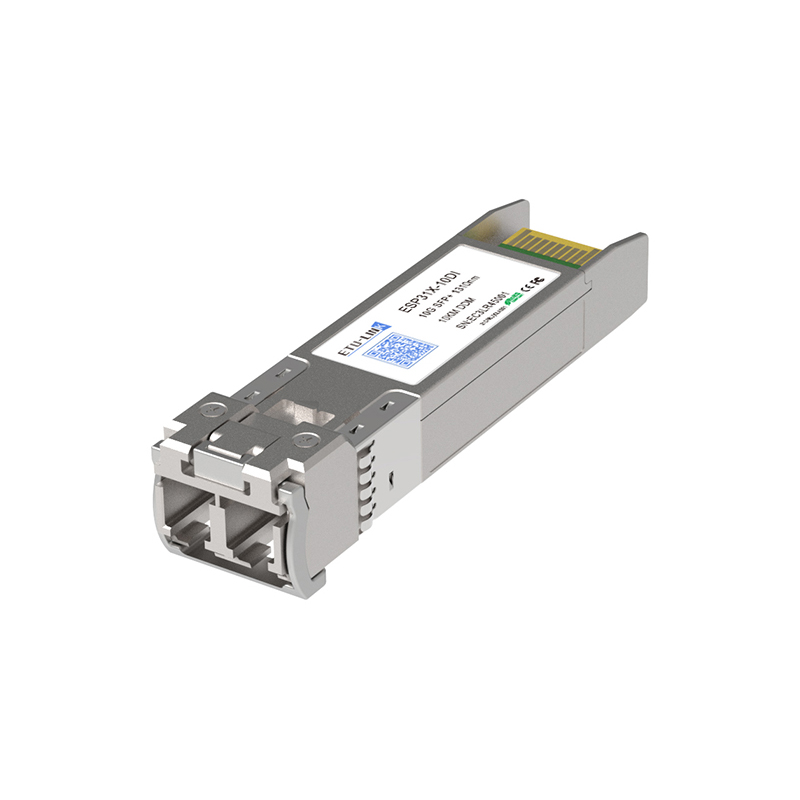

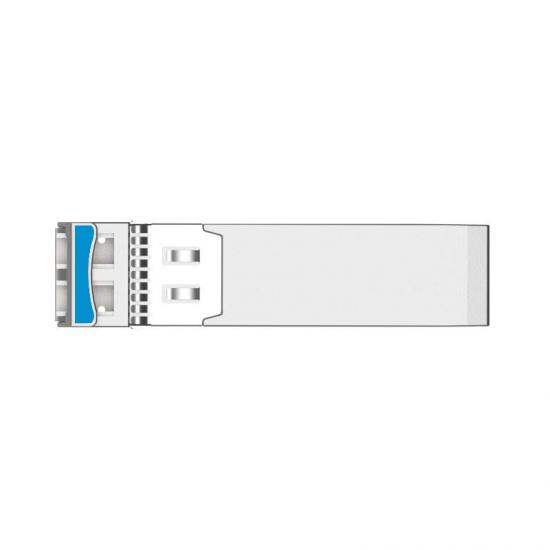

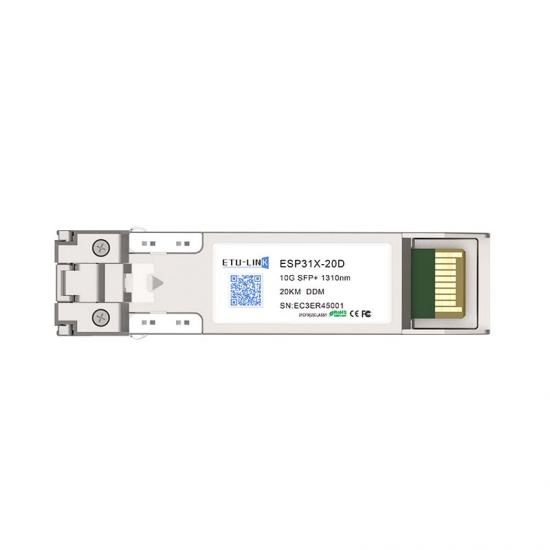

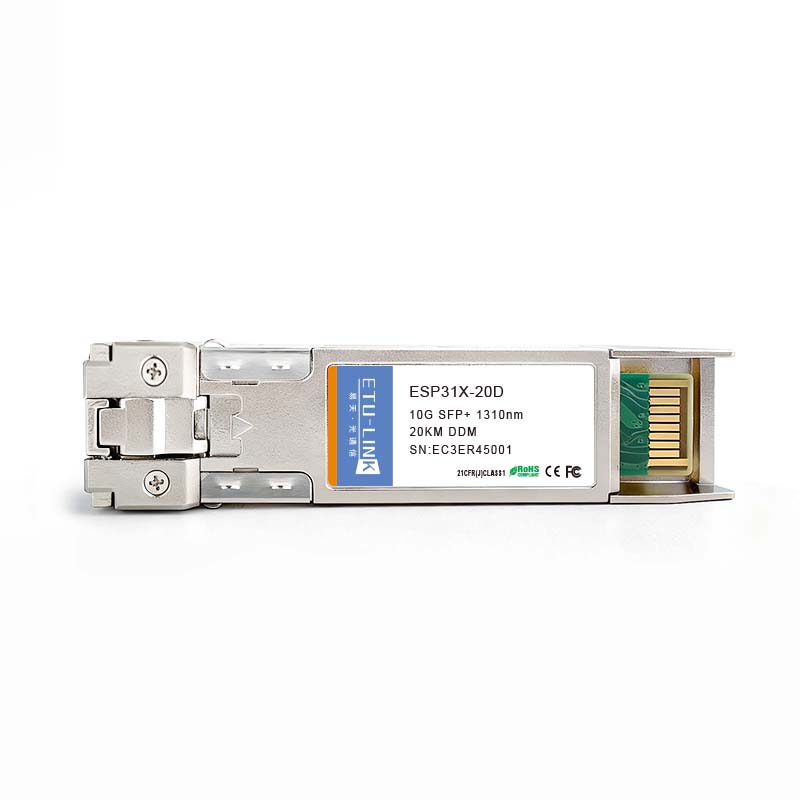

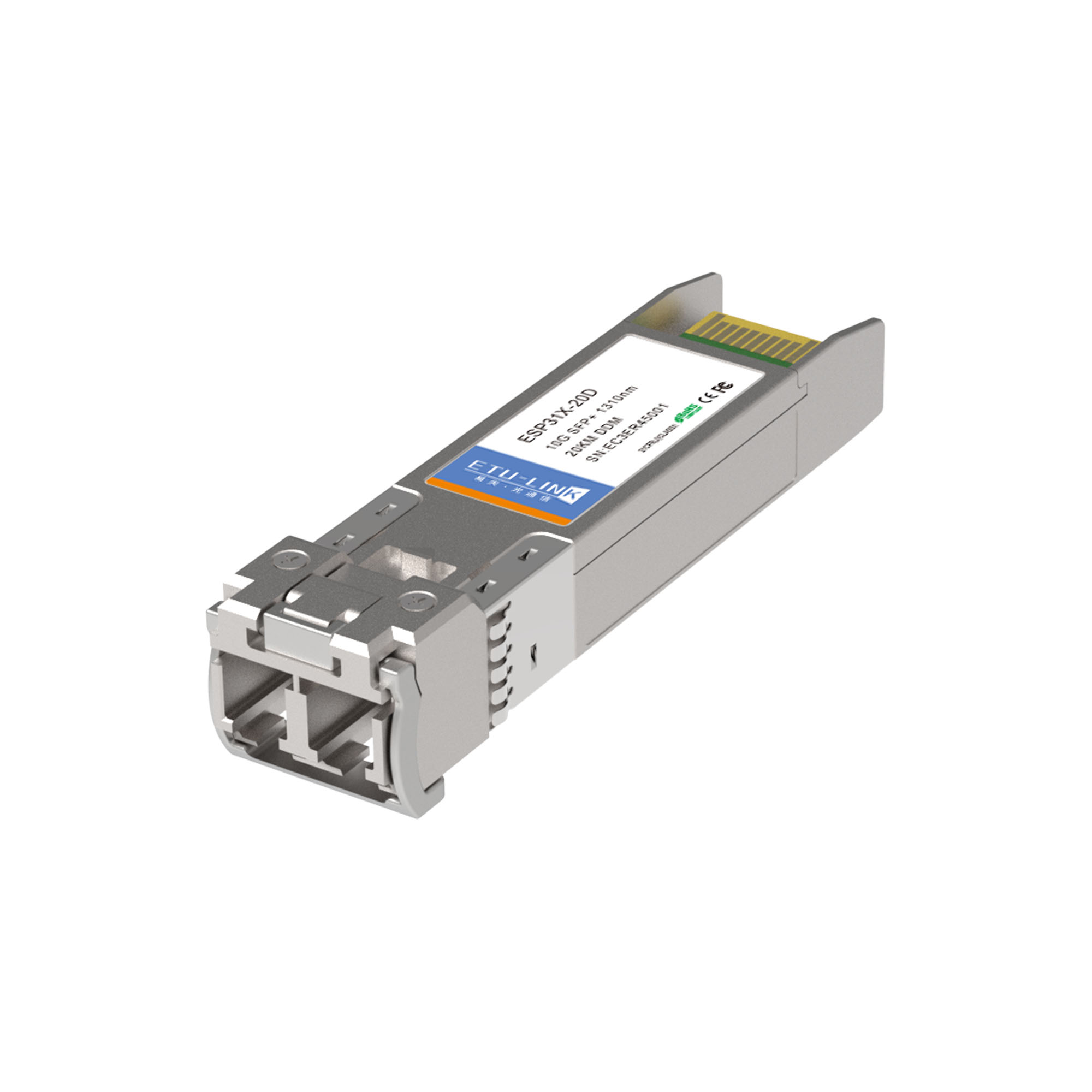

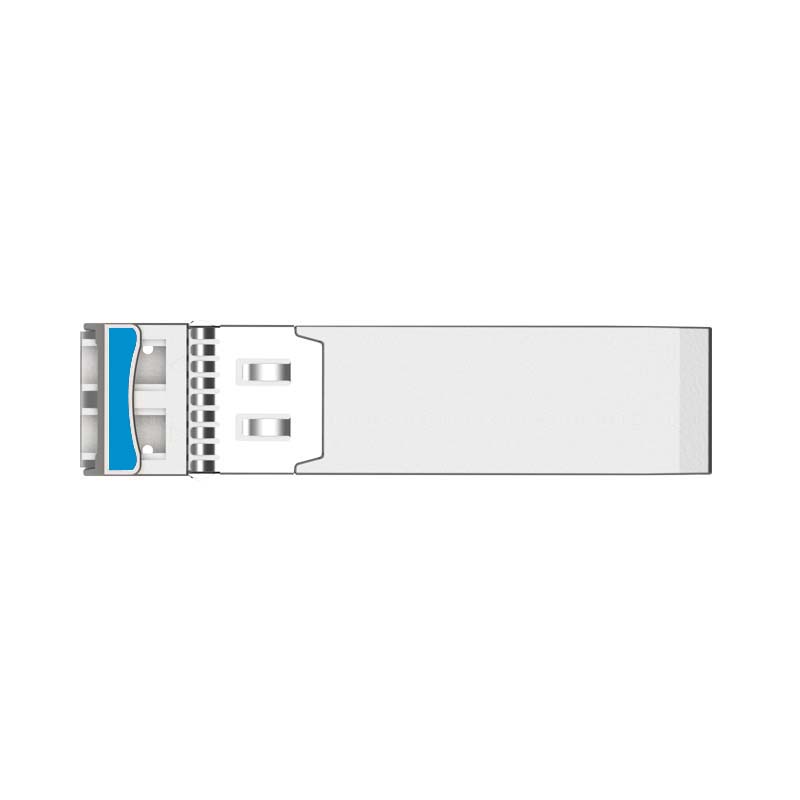

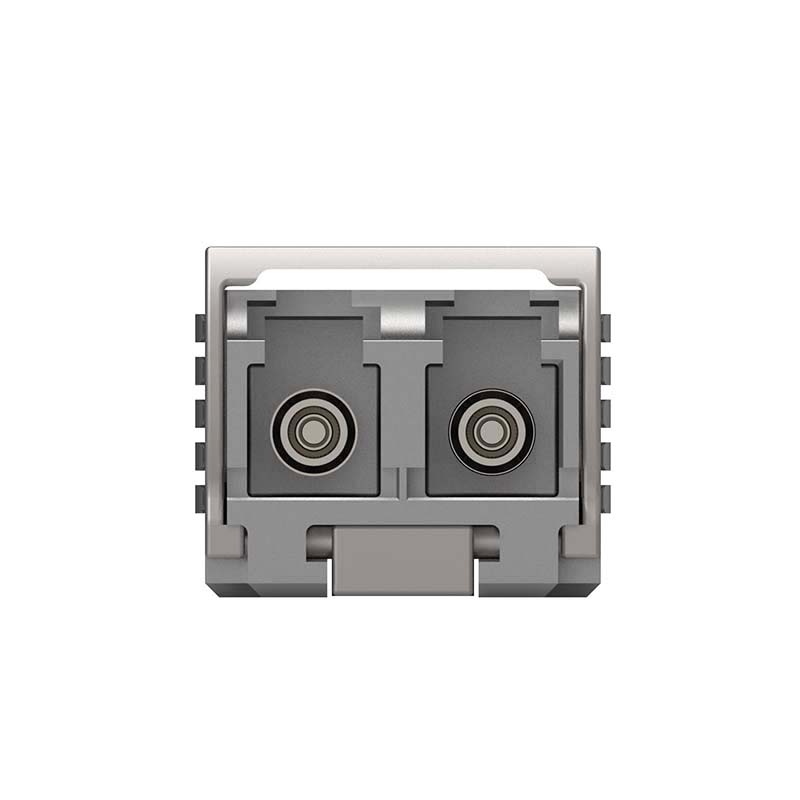

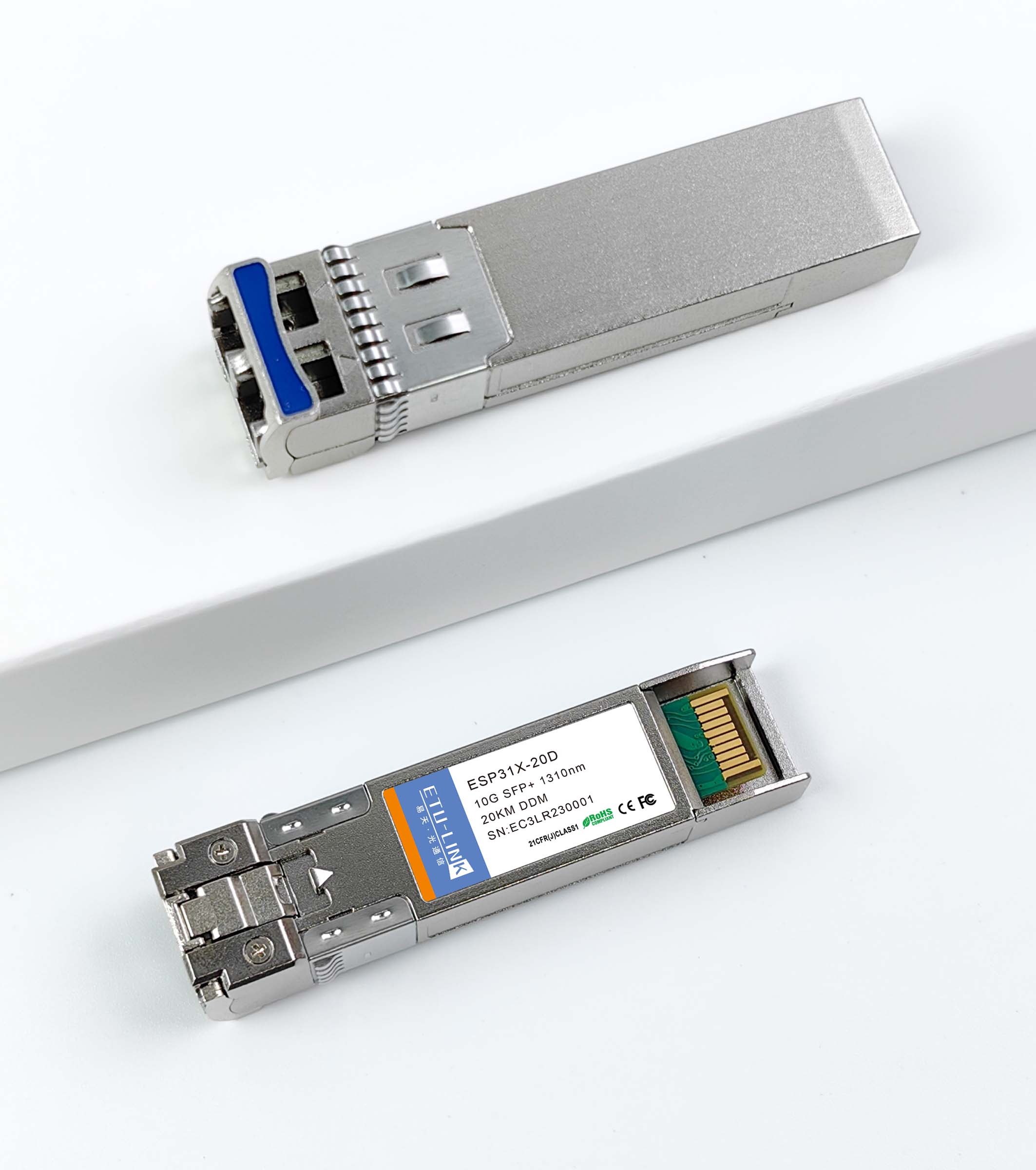

10G SFP+ LR 1310nm 20KM LC Optical Transceiver

10G SFP+ LR 1310nm 20KM LC Optical Transceiver


  • Product Model:

    ES31X-3LCD20
  • Data Rate:

    10G
  • Wavelength:

    1310nm
  • Distance:

    20KM
  • Connector:

    LC
  • Fiber Type:

    SM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    Please contact sales for confirmation
  • Brand:

    ETU-LINK
  • Product Detail

  • Optical interface compliant to IEEE 802.3ae 10GBASE-LR

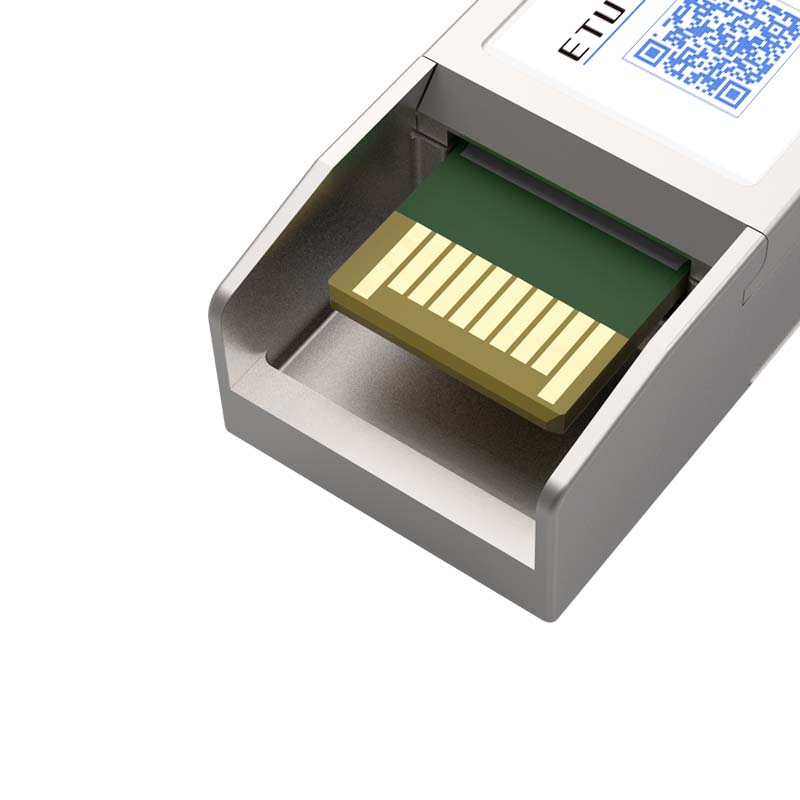

  • Electrical interface compliant to SFF-8431
  • Hot Pluggable
  • 1310nm DFB transmitter, PIN photo-detector
  •  Low power consumption
  • Applicable for 20KM SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  •  RoHS6 compliant (lead free) Case
  •  Operating temperature range:Standard:-5 to+70℃、Industrial:-40 to +85℃
