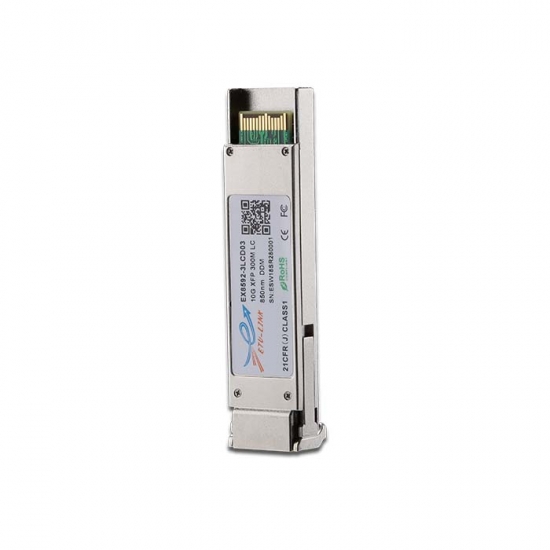

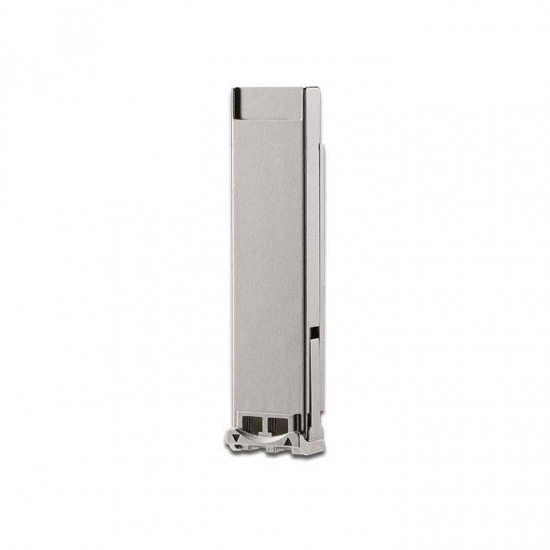

 10G XFP SR 850nm 300M LC Optical Transceiver
10G XFP 850nm 300m LC DDM

10G XFP SR 850nm 300M LC Optical Transceiver

  • Product Model:

    EX85X-03D

  • Data Rate:

    10G

  • Wavelength:

    850nm

  • Distance:

    300M

  • Connector:

    LC

  • Fiber Type:

    MM

  • DDM:

    YES

  • Product Origin:

    China

  • Shipping Port:

    ShenZhen



Lead Time/Contact Us Datasheets

  • Product Detail

  • Supports 9.95Gbps to 11.1Gbps bit rates
  • Maximum link length of 300m (50um,MMF,2000MHz.Km)
  • 850nm VCSEL laser and PIN receiver
  • XFP MSA Rev 4.5 Compliant
  • No reference clock required  +1.8V,+3.3V Supply Voltage
  • Low Power Dissipation 1.5W Maximum
  • XFI and lineside loopback Mode Supported
  • 0ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
  • RoHS6 compliant (lead free)




Hot Tags :

Compatible Juniper 10GBASE-SR XFP Module Compatible CISCO XFP-10G-MM-SR 850NM 300M LC Compatible XFP-10GLR-OC192SR MM XFP-10G-S 300m EX-XFP-10GE-SR 300m XFP-10GE-SR 300m
