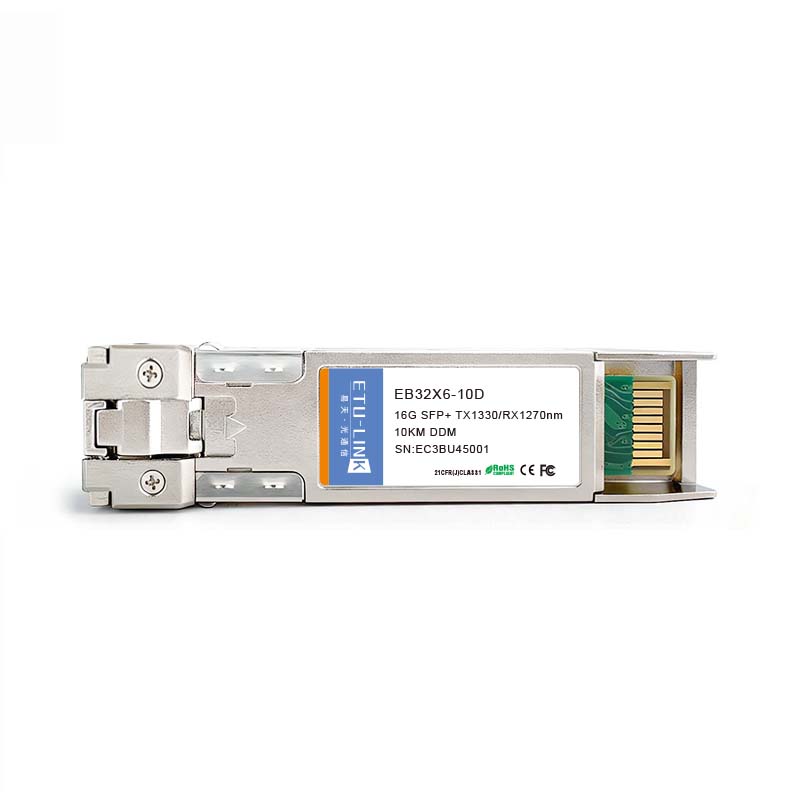

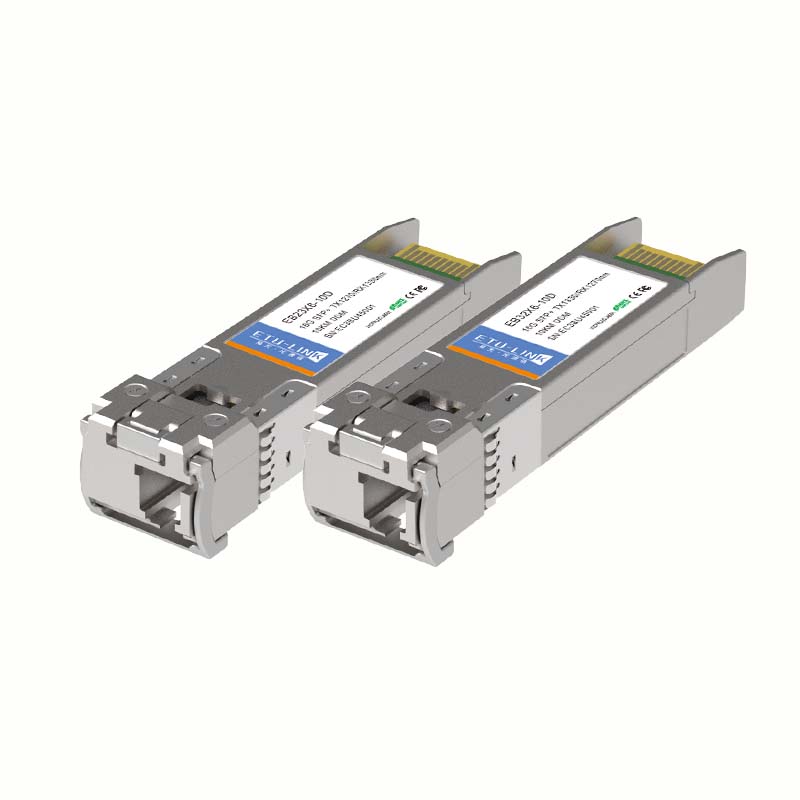

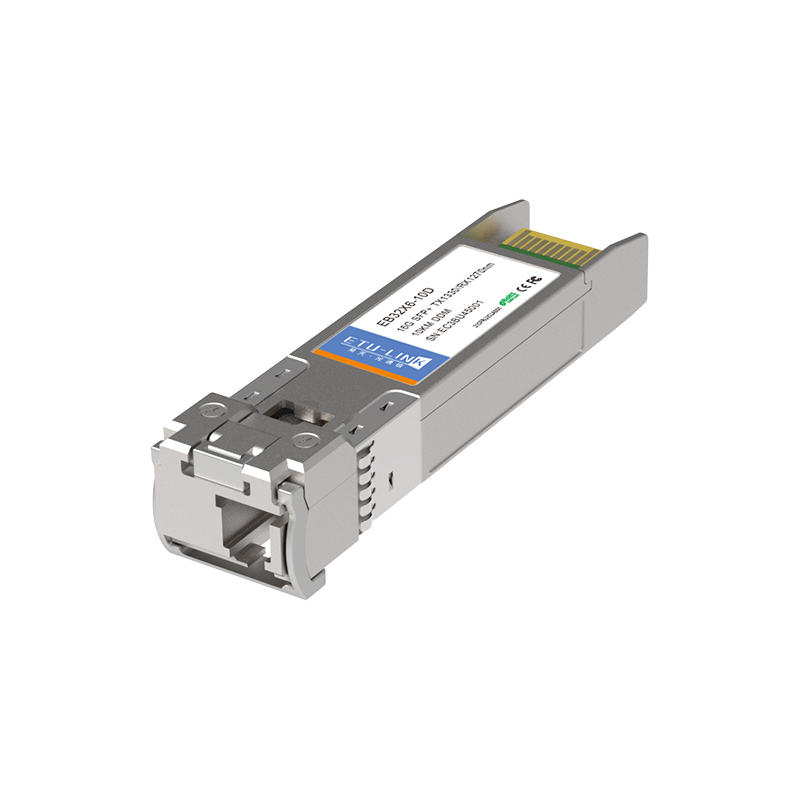

16G BiDi SFP+ TX1330/RX1270nm 10km LC Optical Transceiver

Transmits at 1270nm and receives at 1330nm over a single single-mode fiber (SMF) strand. Supporting data rates of 14.025 Gbps for Fibre Channel, it achieves 10-kilometer transmission distances.

Featuring a simplex LC interface and hot-pluggable design, it incorporates a DFB laser and high-sensitivity PIN photodetector to ensure robust performance in long-haul bidirectional transmission.

Fully compliant with SFP+ MSA, SFF-8472 with single LC receptacle standards, compatible with RoHS.

Transmit 100Gbps data over a single pair of multimode fibers with LC connectors for distances up to 150 meters.

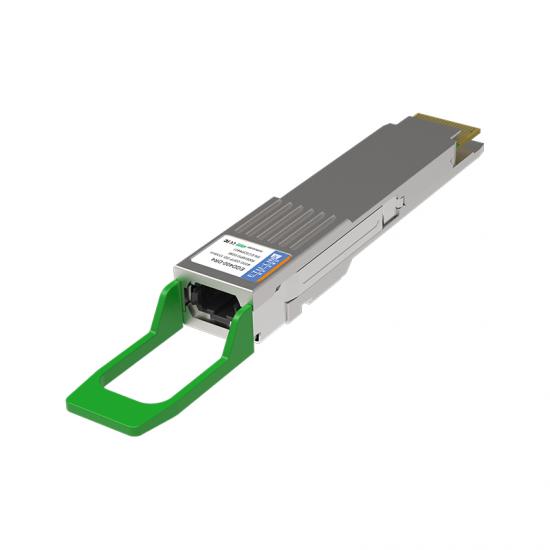

400G QSFP-DD DR4 500m MPO Optical Transceiver‌ The ‌400G QSFP-DD DR4‌ transceiver is a high-performance optical module designed for 400 Gigabit Ethernet data center interconnects. It adheres to ‌QSFP-DD MSA‌ standards, delivering reliable 400Gbps transmission over ‌single-mode fiber (SMF)‌ with a ‌500m‌ reach. Compliant with IEEE802.3bs standard: 400GAUI-8 electrical interface  Compliant with IEEE 802.3bs standard: 400GBASE-DR4 optical interface  Compliant with QSFP-DD MSA HW Rev 5.0 Type 2 housing with MPO-12 connector  Compliant with QSFP-DD CMIS Rev 4.0  Supports 3dB channel insertion loss  Maximum power consumption 12W  Case operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring   RoHS compliant  Class 1 Laser 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 400G QSFP-DD? A1: It is a high-density, hot-pluggable optical module interface supporting 400Gbps data rates, featuring 8 electrical channels for enhanced bandwidth. Q2: What are the main types of 400G QSFP-DD modules? A2: Common variants include SR8 (short-range), DR4/FR4 (intermediate), LR4/LR8 (long-range), and ER4/ER8 (extended-reach), with transmission distances ranging from 100m to 40km. Q3: How does OSFP differ from QSFP-DD?‌ A3: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules. Q4:What encoding scheme does 400G OSFP use?‌ A4: Data Rate 53.125Gbps (PAM4) per channel(Maximum power consumption 12W), balancing speed and complexity. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects.  (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling. Q9: How does OSFP differ from QSFP-DD?‌ A9: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules.

It employs two different wavelengths on the same fiber strand with PAM4 modulation, achieving full-duplex 106.25Gbps data rates over distances up to 10 kilometers.
