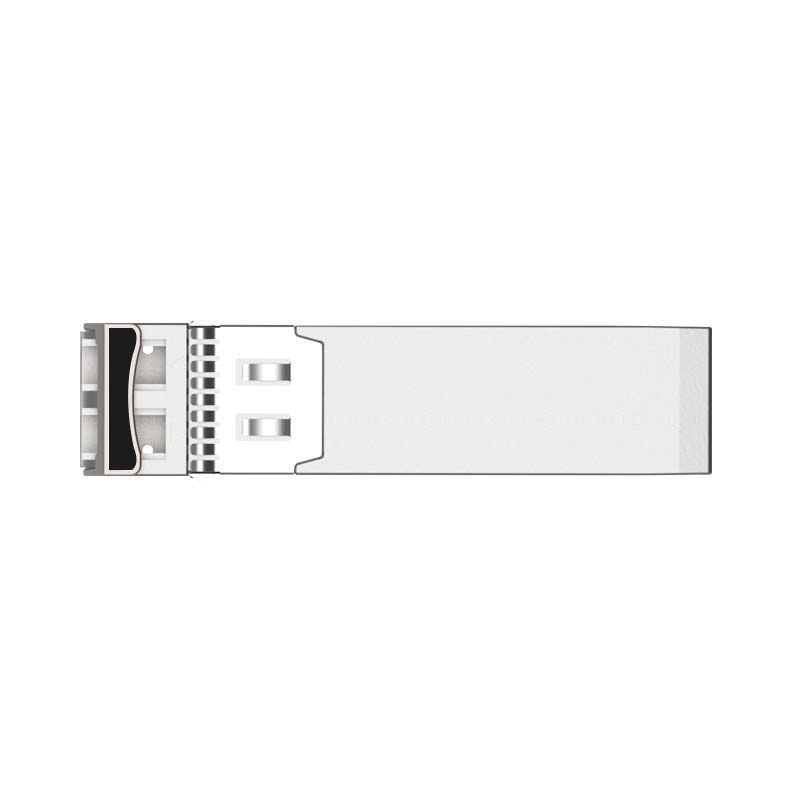

25G SFP28 SR 850nm 100M LC Optical Transceiver

25Gbps 850nm SFP28 Transceiver

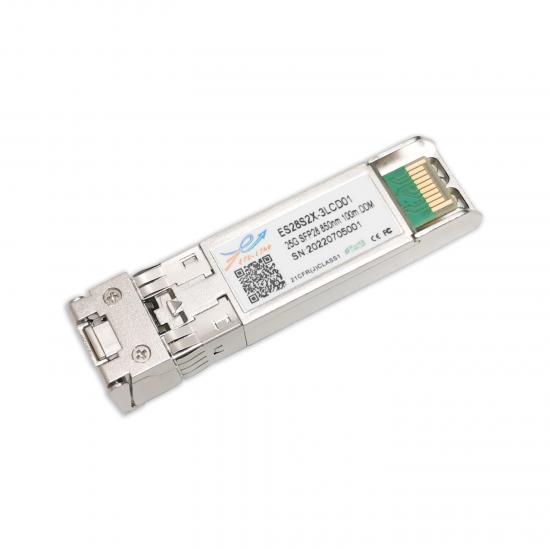

25G SFP28 SR 850nm 100M LC Optical Transceiver



  • Product Model:

    ES2852X-3LCD01
  • Data Rate:

    25G
  • Wavelength:

    850nm
  • Distance:

    100M
  • Connector:

    LC
  • Fiber Type:

    MM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    ShenZhen
  • Lead Time:

    Please contact our sales confirmation
  • Product Detail

ES2852X-3LCD01

25G 850nm Multi-mode SFP28 TTL Duplex Transceiver (100m)


Features

Ø Supports 25Gbps data rate

Ø 70m on OM3 MMF and 100m on OM4 MMF

Ø 850nm VCSEL laser and PIN photo-detector

Ø Inter CDR on both Transmitter and Receiver channel

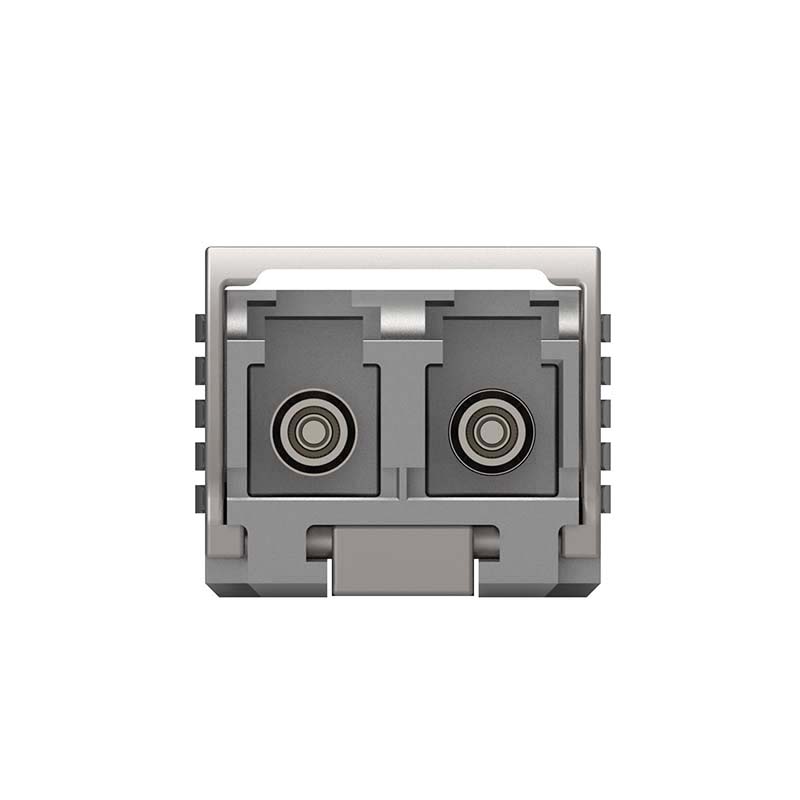

Ø Duplex LC receptacle

Ø Single 3.3V power supply

Ø Power dissipation < 1W

Ø DDM functions are available via the I2C interface

Ø RoHS-6 compliant

Ø Commercial case temperature range: 0°C to 70°C

Applications

Ø 25GBASE-SR Ethernet

Product description

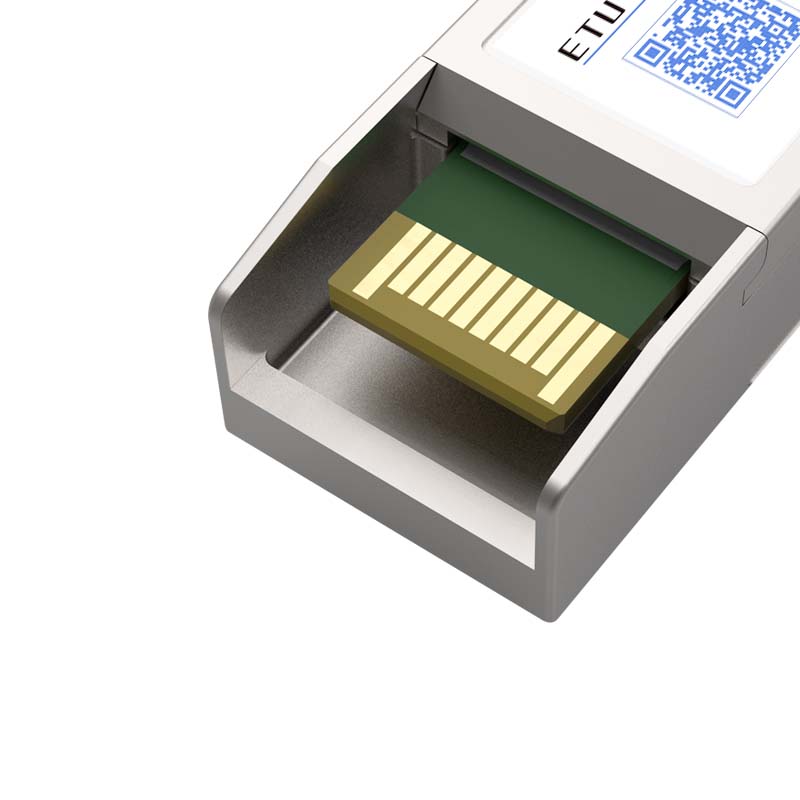

The SFP28 SR is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnects applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.


Quality control



Compatible list

Cisco module

HUAWEI module

ZTE module

Juniper module

TP-LINK module

Allied Telesis module

GLC-T (10/100/1000)

SFP-FE-SX-MM1310-A

SFP-FX/OC3-M2K

ES8512-3LCD05

TL-SM311LM

AT-SPTX

GLC-LH-SMD

SFP-FE-LH40-SM1310

SFP-GE-S10K

ES3112-3LCD10

TL-SM321A

AT-SPSX

GLC-SX-MMD

ESFP-GE-SX-MM850

SFP-GE-S40K

ESP8592-3LCD03

TL-SM321B

AT-SPEX

GLC-EX-SMD1

SFP-GE-LH40-SM1310

SFP-GE-S80K

ESP3192-3LCD10

TXM431-LR

AT-SPLX40

GLC-ZX-SMD

SFP-GE-LH40-SM1550

SFP-GE-S120K



TXM431-SR

AT-SPZX80

GLC-BX-D

SFP-FE-LH80-SM1550

XFP-10G-S40K





AT-SPFX/2

GLC-BX-U

XFP-SX-MM850

XFP-10G-S10K





AT-SPFXBD-LC-13

CWDM SFP

XFP-LX-SM1310

XFP-10GE-M





AT-SPFXBD-LC-15

DWDM SFP

XFP-LH40-SM1550-F1







AT-SP10SR***











AT-SP10LR***











AT-SP10LR20/I











AT-SP10ER40/I***











AT-SP10ZR80/I***
