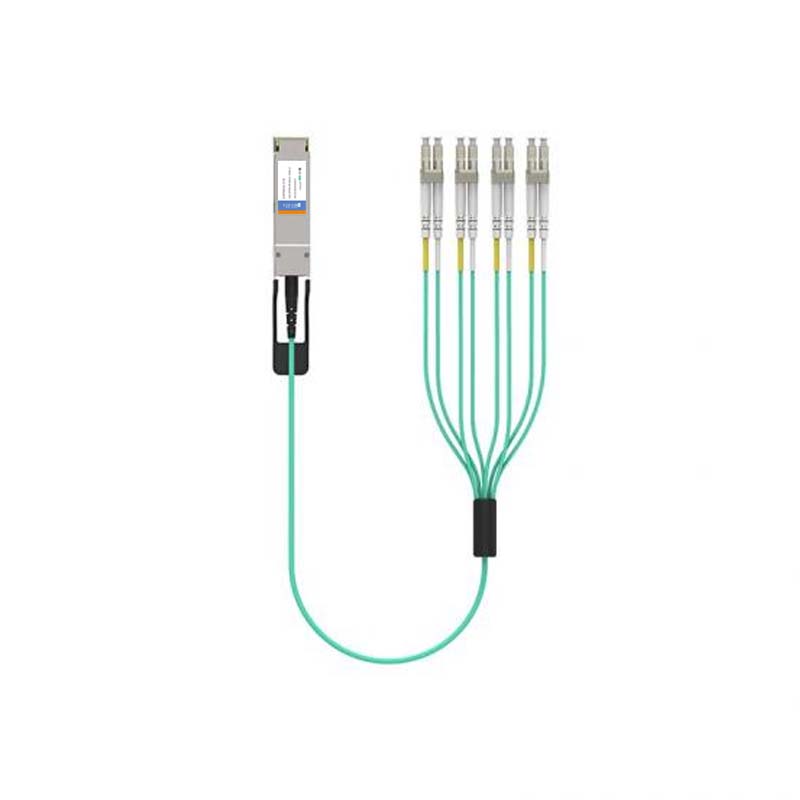

40G QSFP+ TO 4*LC Active Optical Cable

QSFP+ AOC end:

• Compliant to the 40GBASE-SR4 and XLPPI
• Specification per IEEE 802.3ba-2010 and supporting
• 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436
• QSFP+ Specification
• Power Level 1: Max Power < 1.5 W
• Operate at 10.3125 Gbps per channel with 64b/66b
• encoded data for 40GbE application and at 10 Gbps
• with 8b/10b compatible encoded data for 40G-IB-QDR application

Each 4× Double LC Connect end:

• With double LC Single Mode connect, or double LC Muti-mode connect

Active Optical Cable Assembly:

• 0 to 70 C degree case temperature operating range
• Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and
• Rayoptek PIN receiver
• Hot pluggable for ease of servicing and installation
• Two Wire Serial interface
• Utilizes optical fiber for high density and thin, lightweight cable management

FAQ:

Q1: What is an Active Optical Cable (AOC) and How Does It Work?
A1: An Active Optical Cable (AOC) integrates fiber optic technology with built-in transceivers to deliver high-speed data transmission (10G-400G) without separate optical modules. Unlike traditional fiber patch cables, AOCs offer plug-and-play simplicity for data center interconnects.

Q2: Why Choose AOC Over DAC for Data Center Networking?
A2: AOC cables outperform Direct Attach Copper (DAC) in four key ways: longer reach (up to 100m vs 7m), EMI immunity, lower power consumption (30% less than active DAC), and lighter weight - critical for high-density 100G/400G deployments.

Q3: What Are the Maximum Speeds Supported by Modern AOC Cables?
A3: Today's AOC solutions support:
10G/25G (SFP+/SFP28)
40G/56G (QSFP+)
100G (QSFP28)
200G/400G (QSFP-DD/OSFP)
Perfect for hyperscale data centers upgrading to 400G Ethernet.

Q4: What's the Maximum Reliable Distance for QSFP28 AOC Cables?
A4: Standard 100G QSFP28 AOCs reliably transmit up to 100m (OM4 fiber), with premium models reaching 300m - ideal for campus data center interconnects and HPC clusters.

Q5: How Do AOC Cables Reduce Data Center OPEX?
A5: Three OPEX advantages:
40% lower power than copper alternatives
Zero maintenance (no signal degradation)
60% lighter weight reduces cooling costs

Q6: Can I Use QSFP+ AOC for Breakout to SFP+ Connections?
A6: Absolutely! Our QSFP+ to 4x SFP+ breakout AOCs enable:
Cost-effective 40G migration
Flexible spine-leaf architectures
Simplified cable management

Q7: Do AOC cables require special maintenance?‌
A7: No, AOC cables are durable, require no signal conditioning, and are more resistant to environmental factors than copper cables, reducing maintenance needs in data center environments.

Q8: Can AOC cables be used for breakout configurations?‌
A8: Yes, our QSFP+ to 4x SFP+ AOC breakout cables enable flexible 40G to 10G migration paths for cost-effective network upgrades.

Q9: How do AOC cables compare to traditional optical transceivers?‌
A9: AOC offer plug-and-play simplicity by eliminating separate transceivers, reducing points of failure while maintaining the benefits of optical transmission.

Q10: Are AOC cables compatible with major switch brands?‌
A10: Yes, our AOC cables are MSA-compliant and work with major networking equipment brands for seamless 40G/100G connectivity.
