QSFP+/QSFP28/QSFP-DD/OSFP Module Coding BOX Operation Guide Transceiver Programming

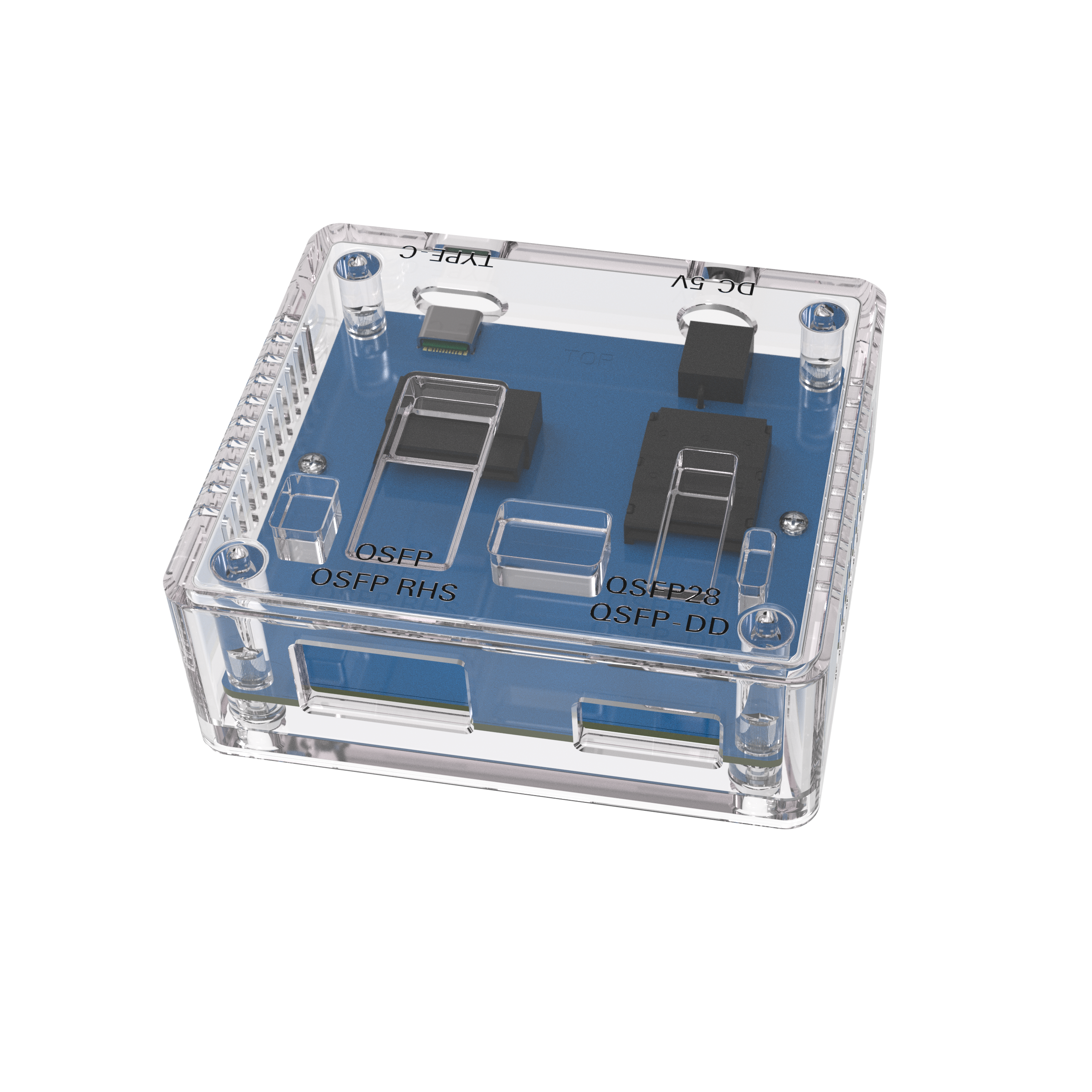

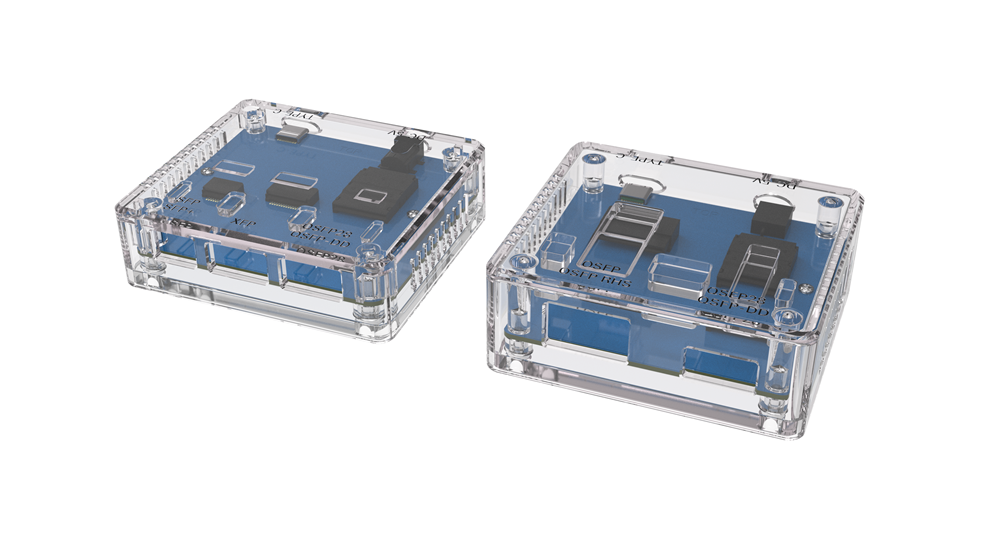

Software: 1 Software Name: Coding Box Software 2 Operating Environment: Windows XP\7\8\8.1\10 32\64bit 3 Software Description: Write EEPROM code to Module, view and export the EEPROM code file, and read DDM Hardware: 1 Name: Coding Box 2 Size: 90mm*80mm*25mm 3 Weight: 135g 4 nterface Type: USB Type C (USB power supply) 5 Work Voltage: +5V 6 Maximum Power: 3.5W 7 Support Module Type: SFP, SFP+, SFP28, SFP56, XFP, QSFP+, QSFP28, QSFP DD The CodingBox connects to a PC through a USB port to implement functions such as write code and DDM for SFP type, XFP type, QSFP type, and QSFP-DD type optical modules.
