100G QSFP28 ER4
100G QSFP28 ER4 40KM WITH DDM TRANSCEIVE
  • Item NO.:EQ2xx10X-3LCD40
  • Data Rate:100G
  • Wave Length:1295.56, 1300.05, 1304.58, 1309.14nm
  • Distance:40KM
  • Connector:LC
  • First:SM
  • DDM:Yes
  • Product Origin:China
  • Shipping Port:Shenzhen
  • Lead Time:Please contact sales for confirmation
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

EQ2xx10X-3LCD40

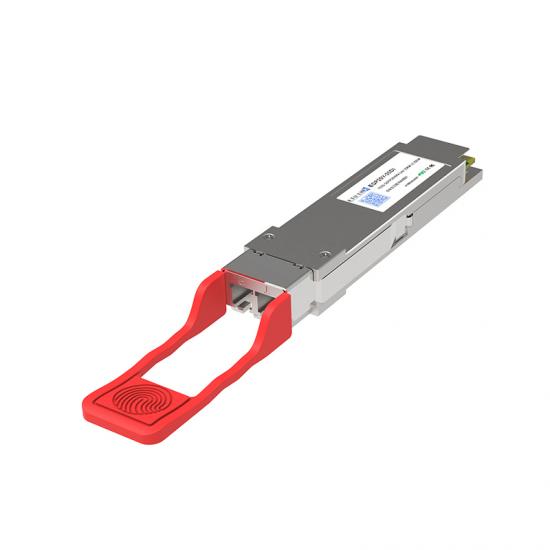

100Gb/s QSFP28 ER4 Lite Optical Transceiver



Ø Hot pluggable QSFP28 MSA form factor

Ø Compliant to Ethernet 100GBASE-ER4 Lite

Ø Supports 103.1Gb/s aggregate bit rate

Ø Up to 30km reach for G.652 SMF without FEC

Ø Up to 40km reach for G.652 SMF with  FEC

Ø Single +3.3V power supply

Ø Operating case temperature: 0~70oC

Ø Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

Ø Receiver: 4x25Gb/s APD ROSA

Ø 4x25G electrical interface (OIF CEI-28G-VSR)

Ø Maximum power consumption 4.5W

Ø Duplex LC receptacle

Ø RoHS-6 compliant


Applications



Ø 100GBASE-ER4 Ethernet Links

Ø Infiniband QDR and DDR interconnects

Ø Client-side 100G Telecom connections

Related Tags : 100G QSFP28 ER4 QSFP28 ER4 100G QSFP28 QSFP28 TRANSCEIVE QSFP28-100G-ER4

Previous:100GbpS QSFP28 PSM4 2km Optical Transceiver

Next:100G CFP2 SR10 Optical Transceiver
