100G QSFP28 SR4 100M MPO Optical Transceiver

100G QSFP28 SR4 100M MPO Optical Transceiver

  • Product Model:

    EQP85Y-01D
  • Data Rate:

    100G
  • Wavelength:

    850nm
  • Distance:

    100M
  • Connector:

    MPO
  • Fiber Type:

    MM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Brand:

    ETU-LINK
  • In Stock:

    Need to check with PMC



  • Product Detail

Product Overview:‌

The ‌100G OSFP28 SR4 MPO Optical Transceiver‌ delivers high-speed, low-latency 100G Ethernet connectivity for data centers, cloud networks, and enterprise applications. Designed for 100m multimode fiber (OM4) links, it ensures reliable performance with ‌hot-pluggable OSFP28 form factor‌, ‌DDM/DOM support‌, and ‌full compliance with IEEE 802.3bm and QSFP28 MSA standards‌.
Reliability:‌ High-quality components‌ ensure stable transmission under heavy loads.
Ideal for ‌hyperscale data centers‌, ‌HPC‌, and ‌5G infrastructure‌, this transceiver combines ‌plug-and-play simplicity‌ with ‌enterprise-grade durability‌.



Key Features:

  • Hot-pluggable QSFP28 form factor
  • Full-duplex transceiver modules
  • 4-channel 850nm VCSEL array and PIN photo-detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Support CDR bypass
  • Data rate up to 25.78125Gbps or 28.05Gbps per channel
  • Compliant with 100GBASE-SR4 Ethernet
  • Compliant with 40GBASE-SR4 Ethernet, InfiniBand 4x FDR/EDR, OTN OTU4 and 128GFC/4x32GFC
  • Power consumption < 2W
  • Maximum link length of 100m on MMF
  • MPO12 receptacle
  • Operating case temperature range: 0°C to 70°C or -40°C to +85°C
  • 3.3V power supply voltage
  • RoHS 6 compliant(lead free)







100G SR4 100M 100G CWDM4 2KM 100G PSM4 2KM 100G CWDM4 10KM 100G DWDM 10KM
100G
100G
100G
100G 100G
100M
2KM
2KM
10KM
10KM
850nm
1271nm, 1291nm, 1311nm, 1331nm
1310nm
1271nm, 1291nm, 1311nm, 1331nm
1295.56~1312.58nm
MPO
LC
MPO LC
LC
MM
SM
SM
SM
SM
DDM
DDM
DDM
DDM
DDM
COM: 0°C ~70°C

COM: 0°C ~70°C

COM: 0°C ~70°C

COM: 0°C ~70°C

COM: 0°C ~70°C






FAQ:

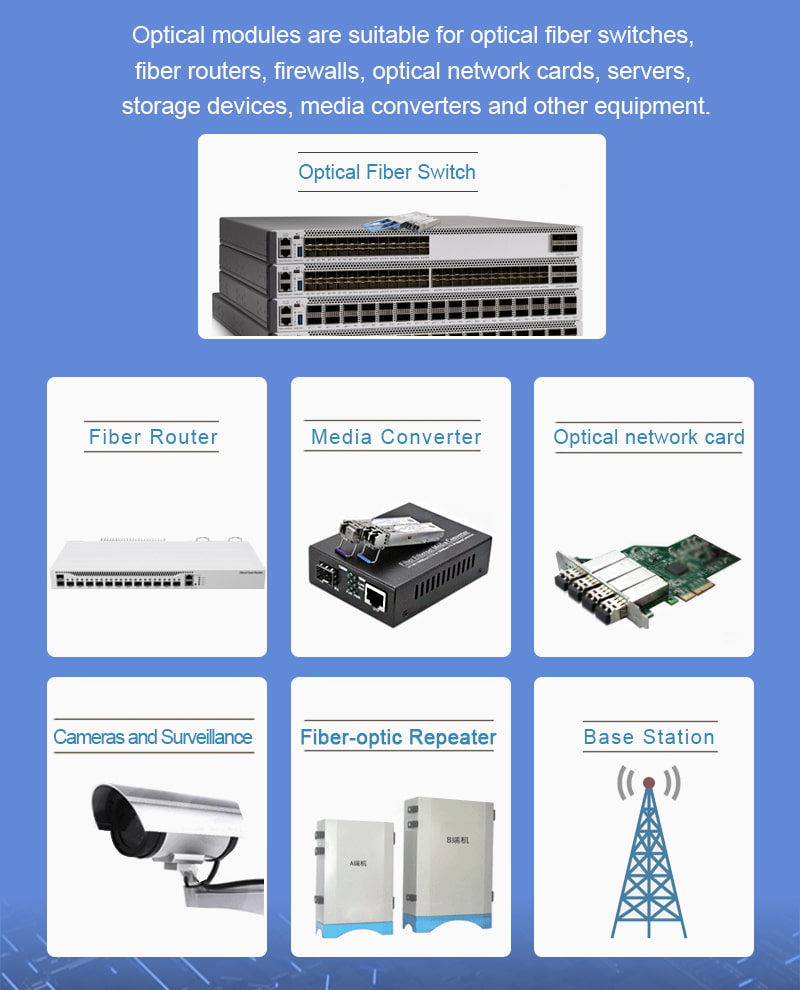

Q1: What are the key applications of 100G QSFP28?‌

A1: Our 100G QSFP28 modules are widely used in data centers, high-performance computing (HPC), and telecom networks for high-speed interconnects.


Q2: What types of 100G QSFP28 does ETU-Link offer?‌

A2: We provide SR4, LR4, ER4, ZR4, and CWDM4 variants, supporting multi-mode and single-mode fiber connections to 100m-100km.


Q3: Are ETU-Link 100G QSFP28 modules compatible with major brands?‌

A3: Yes, our 100G QSFP28 transceivers are fully MSA-compliant and interoperable with Cisco, Juniper, Arista, and other OEM switches.


Q4: Does you provide customization for 100G QSFP28?‌

A4: Yes, we offer OEM/ODM services including custom labeling, firmware, and compatibility testing.


Q5: How does 100G QSFP28 BiDi reduce fiber costs?‌

A5: BiDi modules enable bidirectional 100G transmission over a single fiber strand, doubling fiber utilization compared to conventional dual-fiber solutions.


Q6: What fiber connectors are used in 100G QSFP28?‌

A6: MPO-12 for SR4/PSM4, LC duplex for LR4/CWDM4, and LC simplex for BiDi models.


Q7: What is the warranty period for 100G QSFP28?‌

A7: Standard 3-year warranty with lifetime technical support.


ETU-Link 100G QSFP28 solves key points‌

Problem: Fiber congestion? BiDi models halve your fiber count

Problem: Compatibility fears? We guarantee MSA compliance + OEM testing
