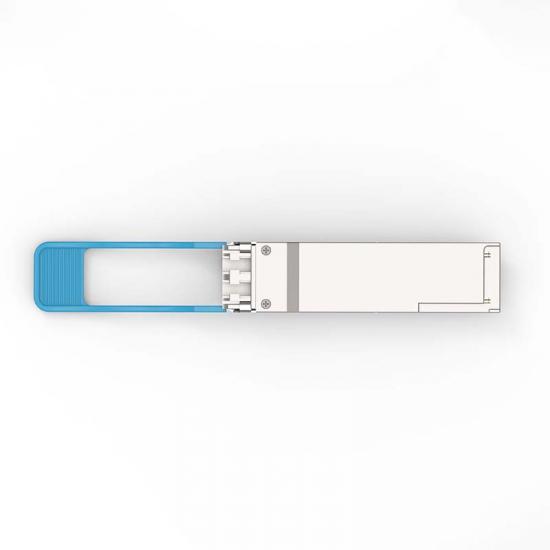

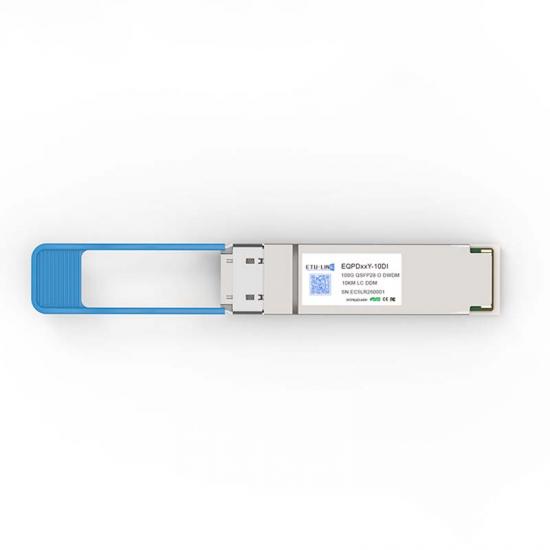

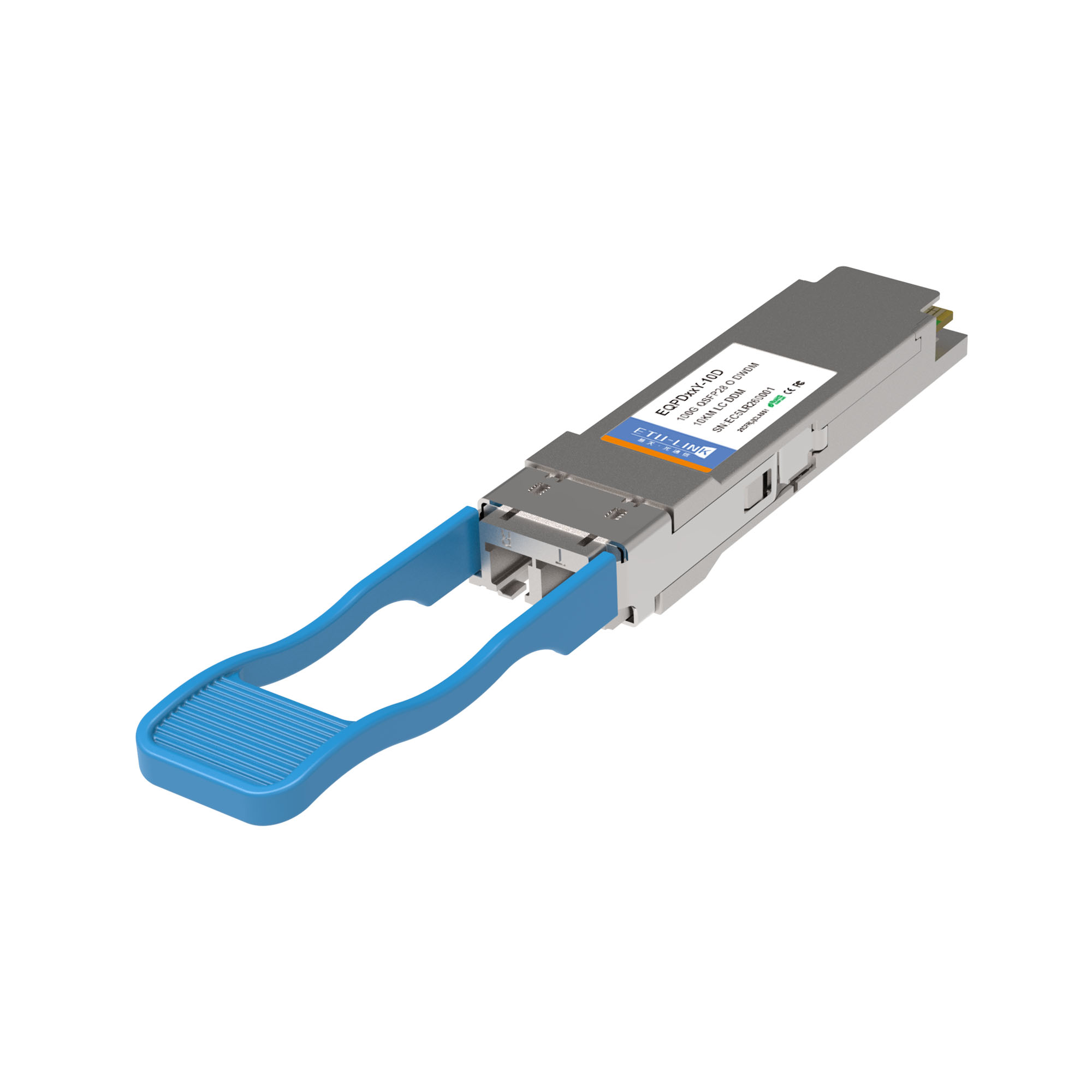

100G QSFP28 LR1 O Band DWDM 10km LC Optical Transceiver

Product Overview

‌Key Features

• Lane signaling rate 106.25Gb/s with PAM4
• Up to 10km transmission on SMF
• DWDM EML Laser and PIN receiver
• 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
• Support KP4 FEC inside the module

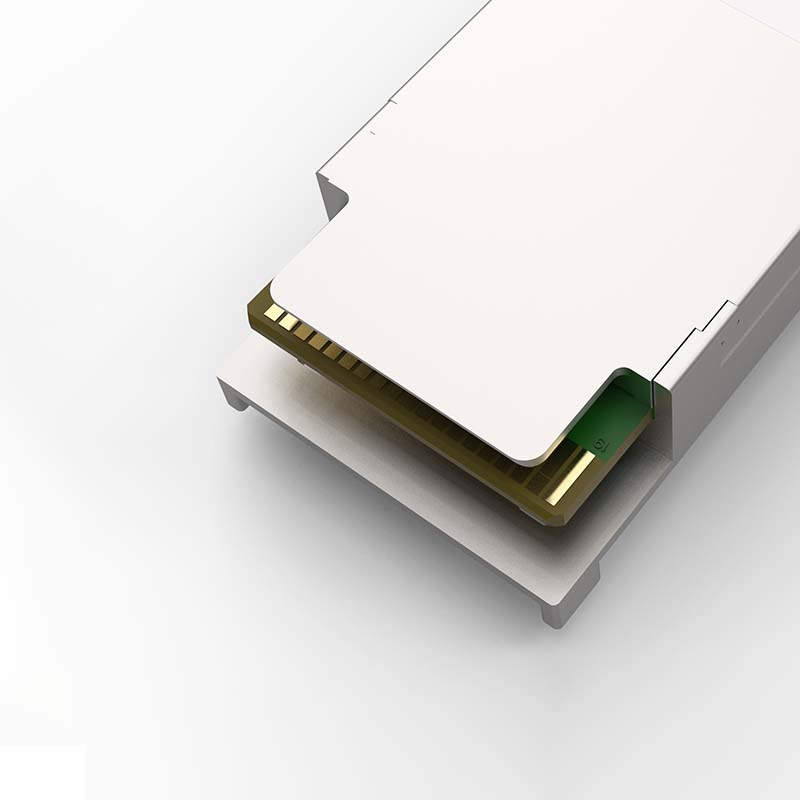

• High speed I/O electrical interface
• I2C interface with integrated Digital Diagnostic monitoring

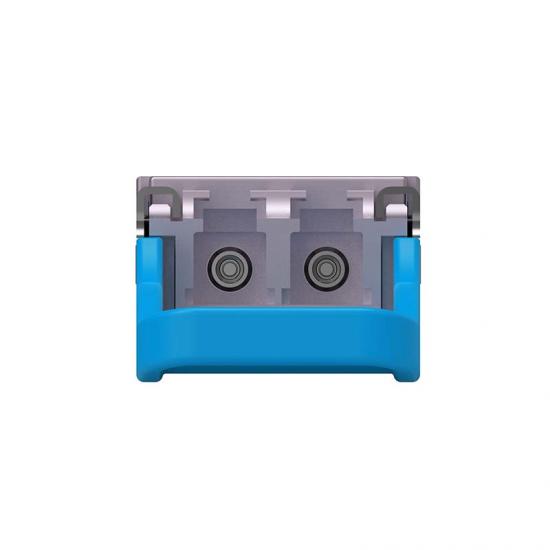

• QSFP28 MSA package with duplex LC connector
• Single +3.3V power supply
• Power consumption <3.5 W
• Operating case temperature: 0 to +70 °C
• Compliant to 802.3cu, SFF-8636&SFF-8679 standard
• Compliant to 100G Lambda MSA 100G-LR1 Optical Specifications
• Complies with EU Directive 2015/863/EU

100G SR4 100M	100G CWDM4 2KM	100G PSM4 2KM	100G CWDM4 10KM	100G DWDM 10KM
100G	100G	100G	100G	100G
100M	2KM	2KM	10KM	10KM
850nm	1271nm, 1291nm, 1311nm, 1331nm	1310nm	1271nm, 1291nm, 1311nm, 1331nm	1295.56~1312.58nm
MPO	LC	MPO	LC	LC
MM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What are the key applications of 100G QSFP28?‌

A1: Our 100G QSFP28 modules are widely used in data centers, high-performance computing (HPC), and telecom networks for high-speed interconnects.

Q2: What types of 100G QSFP28 does ETU-Link offer?‌

A2: We provide SR4, LR4, ER4, ZR4, and CWDM4 variants, supporting multi-mode and single-mode fiber connections to 100m-100km.

Q3: Are ETU-Link 100G QSFP28 modules compatible with major brands?‌

A3: Yes, our 100G QSFP28 transceivers are fully MSA-compliant and interoperable with Cisco, Juniper, Arista, and other OEM switches.

Q4: Does you provide customization for 100G QSFP28?‌

A4: Yes, we offer OEM/ODM services including custom labeling, firmware, and compatibility testing.

Q5: How does 100G QSFP28 BiDi reduce fiber costs?‌

A5: BiDi modules enable bidirectional 100G transmission over a single fiber strand, doubling fiber utilization compared to conventional dual-fiber solutions.

Q6: What fiber connectors are used in 100G QSFP28?‌

A6: MPO-12 for SR4/PSM4, LC duplex for LR4/CWDM4, and LC simplex for BiDi models.

Q7: What is the warranty period for 100G QSFP28?‌

A7: Standard 3-year warranty with lifetime technical support.

ETU-Link 100G QSFP28 solves key points‌

Problem: Fiber congestion? BiDi models halve your fiber count

Problem: Compatibility fears? We guarantee MSA compliance + OEM testing
