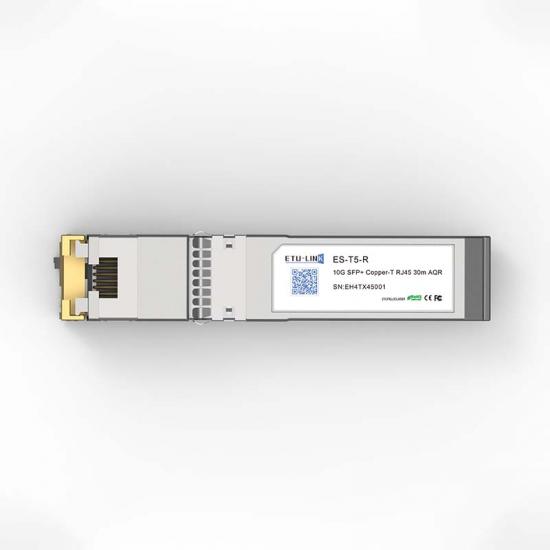

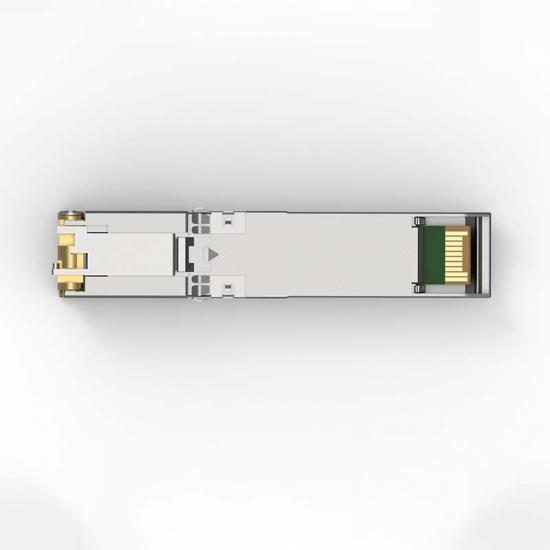

10G SFP+ Copper-T RJ45 Multi-rate Transceiver

Product Model:
ES-T5-R
Data Rate:
10G
Distance:
30M
Connector:
RJ45
Product Origin:
Made in China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

Lead Time/Contact Us Datasheets

Product Detail

Product Overview

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Product Features

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
10 Gigabit Ethernet over Cat 6a cable
Hot-pluggable SFP footprint

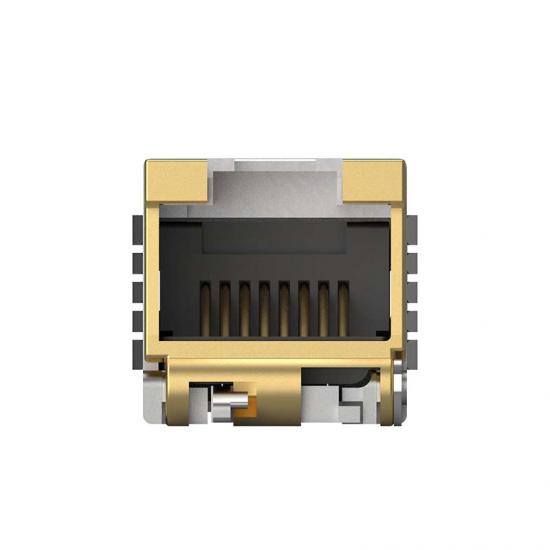

RJ45 connector
Compliant with SFP MSA
Single +3.3V power supply
RoHS compliant and lead-free
Operating case temperature: Commercial：0°C to +70°C


2.5GBASE-T Copper SFP	1000BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10/100BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10GBase-T Copper SFP+	10GBASE Copper SFP	10GBase-T Copper SFP
ES-T0-R	ES-T1-R	ES-T2-R	ES-T3-R	ES-T4-R	ES-T5-R	ES-T6-R	ES-T7-R
100M	100M	100M	100M	100M	30M	80M	100M
2.5Gbase	1000Mbps	10/100/1000Mbps	10/100Mbps	10/100/1000Mbps	10Gbps	10Gbps	10Gbps
RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
CAT5E	Cat 5	Cat 5	Cat 5	Cat 5	Cat 6a/7	Cat 6a/7	Cat 6a/7 C
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What is a Copper SFP module?

A1: Copper SFP (Small Form-factor Pluggable) is a hot-swappable transceiver that connects networking devices via RJ45 copper cables, supporting 10/100/1000Mbps Ethernet. It's widely used for short-distance data transmission in enterprise networks.

Q2: What's the maximum transmission distance of Copper SFP?

A2: Standard Copper SFP modules support up to 100 meters over Cat5e/Cat6 cables. For optimal performance, ensure proper cable quality and avoid electromagnetic interference.

Q3: Are Copper SFPs compatible with all switches?

A3: Most Copper SFPs follow MSA standards, but always verify compatibility with your switch brand. Some vendors require coded modules for full functionality.

Q4: How does Copper SFP differ from fiber SFP?

A4: Copper SFPs use RJ45 ports for electrical signals over copper cables, while fiber SFPs use optical connectors. Copper is cost-effective for short runs (<100m), whereas fiber excels in long-distance/high-noise environments.

Q5: How to troubleshoot high latency with Copper SFP?

A5: Check for cable damage/kinks

Test with shorter cable lengths

Verify duplex settings (auto-negotiation recommended)

Update switch firmware

Q6: What cable types are compatible with 1000BASE-T Copper SFP?‌

A6: Requires Category 5e/6/6a twisted-pair copper cables with RJ45 connectors. Maximum reach: 100 meters at 1Gbps.

Q7: Are 10G Copper SFP+ modules backward compatible with 1G switches?‌

A7: Yes, but requires:

Switch support for SFP+ form factor

Enable speed auto-negotiation in switch configuration.
