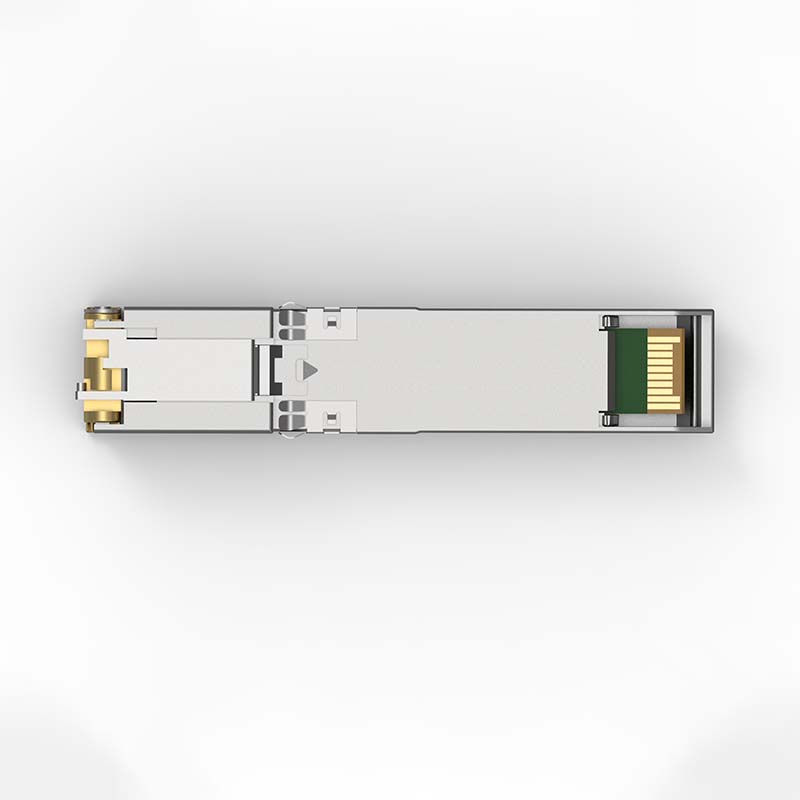

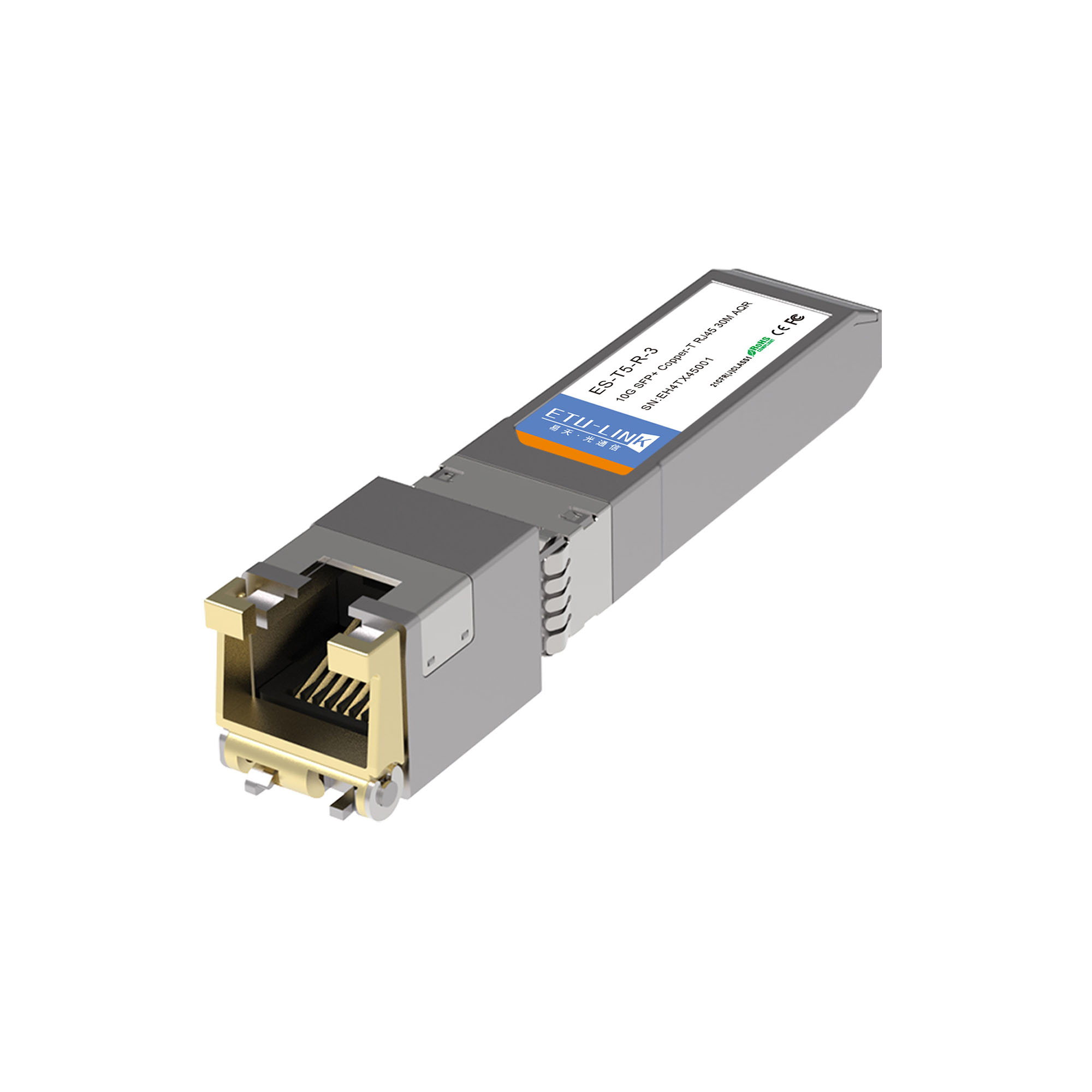

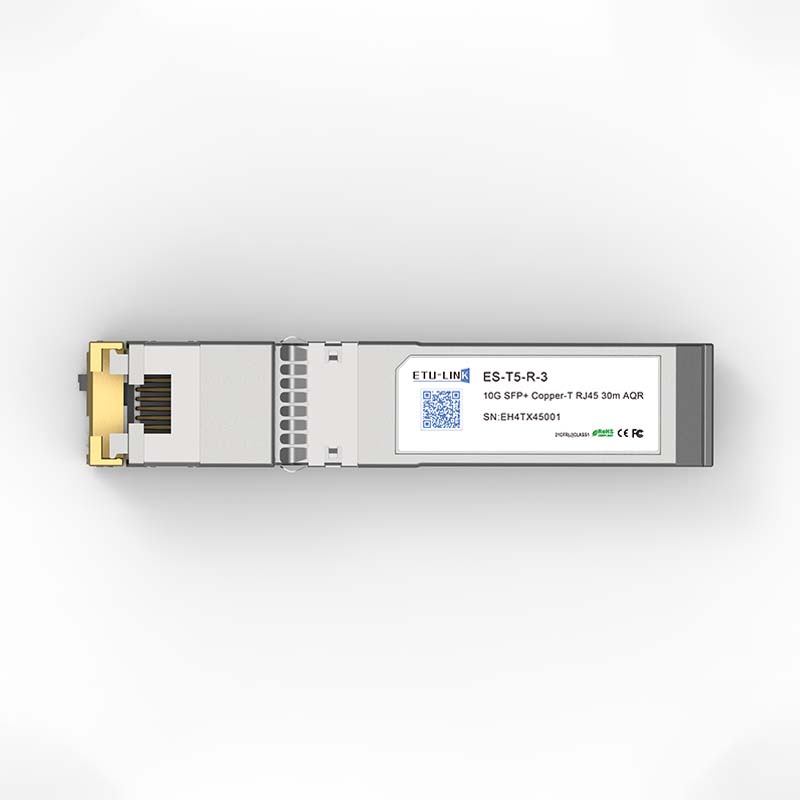

10G SFP+ Copper-T RJ45 Transceiver (Realtek)

Product Model:
ES-T5-R-3
Data Rate:
10G
Distance:
30M
Connector:
RJ45
Product Origin:
Made in China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

Lead Time/Contact Us Datasheets

Product Detail

DESCRIPTIONS

The SFP-10GBASE-T is a module that supports Hot-pluggable SFP+ footprint SFP type 10G-SR SFI interface to 1G/2.5G/5G/10G RJ45 interface. The SFP-10GBASE-T supports TX-DISABLED control signal and provides RX-LOS signal. In 2.5G / 5G / 10G and 1G applications, the automatic identification and base in 1000 -X module and 10 gr type automatic rearrangement of between modules, and inform the SFP master the current module type, greatly improve the applicability of the module and application performance.

SFP–10Gbase-T support working mode of special code control module, easy to use more application scenarios, such as passive support USXGMII, SFI rate with RJ45 interface, passive follow SFI interface RJ45 rate, etc.

PRODUCT FEATURES

Supports 10G/5G/2.5G RJ45 interfaces and 10G-R SFI interface adaptation
Supports automatic switching between 1G RJ45 interface and 1000BASE-X SFI interface

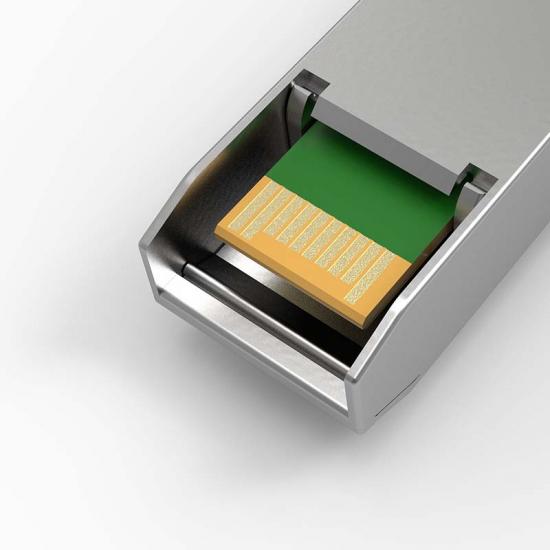

Hot-pluggable SFP+ footprint
Fully metallic enclosure for low EMI
Low power dissipation
Support RX_LOS alerts and TX_DISABLE control

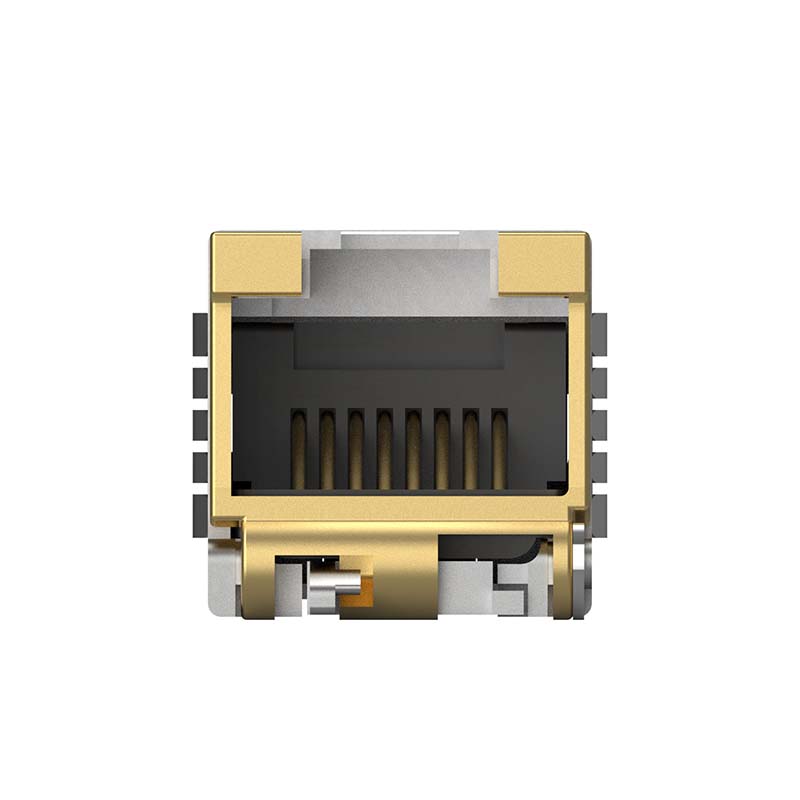

Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
Supports Links up to 60m using Cat-6A Cable
RoHS Compliant
Operating case temperature: 0℃ to 70℃


2.5GBASE-T Copper SFP	1000BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10/100BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10GBase-T Copper SFP+	10GBASE Copper SFP	10GBase-T Copper SFP
ES-T0-R	ES-T1-R	ES-T2-R	ES-T3-R	ES-T4-R	ES-T5-R	ES-T6-R	ES-T7-R
100M	100M	100M	100M	100M	30M	80M	100M
2.5Gbase	1000Mbps	10/100/1000Mbps	10/100Mbps	10/100/1000Mbps	10Gbps	10Gbps	10Gbps
RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
CAT5E	Cat 5	Cat 5	Cat 5	Cat 5	Cat 6a/7	Cat 6a/7	Cat 6a/7 C
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What is a Copper RJ45 SFP Transceiver?‌

A1: A Copper-T RJ45 SFP Transceiver is a compact, hot-swappable module that enables 10GBase-T (10Gbps) or 1GBase-T (1Gbps) Ethernet connectivity over copper cables (Cat6a/Cat7) via an RJ45 interface, compliant with SFP+ MSA and IEEE 802.3 standards.

Q2: What are the key advantages of Copper-T RJ45 SFP Transceivers?‌

A2: Cost-efficient‌: Reuses existing copper cabling infrastructure.

Low latency‌: Ideal for data centers and enterprise networks.

Energy-saving‌: Typically consumes <5W, reducing operational costs.

Q3: How does auto-negotiation work in Copper-T RJ45 SFP Transceivers?‌

A3: The module automatically detects and adjusts to the highest supported speed (10G/5G/2.5G/1G/100M) based on the connected switch port and cable quality.

Q4: What is the maximum transmission distance for 10GBase-T?‌

A4: Up to ‌100 meters‌ with Cat6a/Cat7 cables. For longer distances, optical SFP+ modules are required.

Q5: How do I install a Copper-T RJ45 SFP Transceiver?‌

A5: Insert the module into an SFP+ port until it locks.

Connect an RJ45 cable to the module.

Verify link status via switch management software.

Q6: How can I extend the lifespan of my Copper-T RJ45 SFP Transceiver?‌

A6: Avoid bending cables beyond their minimum bend radius.

Clean RJ45 connectors regularly to prevent oxidation.

Store in a dry, dust-free environment when not in use.

Q7: What is the difference between Copper RJ45 SFP Transceivers and optical SFP modules?‌

A7: Copper RJ45‌: Uses Cat6a/Cat7 cables for short-distance (≤100m) 10GBase-T/1GBase-T, with lower power consumption.

Optical SFP‌: Uses fiber for long-distance but requires higher power and costlier infrastructure.

Q8: Can Copper RJ45 SFP Transceivers support 2.5G/5G speeds?‌

A8: Yes, if the host switch supports ‌IEEE 802.3bz‌ (Multi-Gigabit Ethernet), enabling auto-negotiation of 2.5G/5G speeds.
