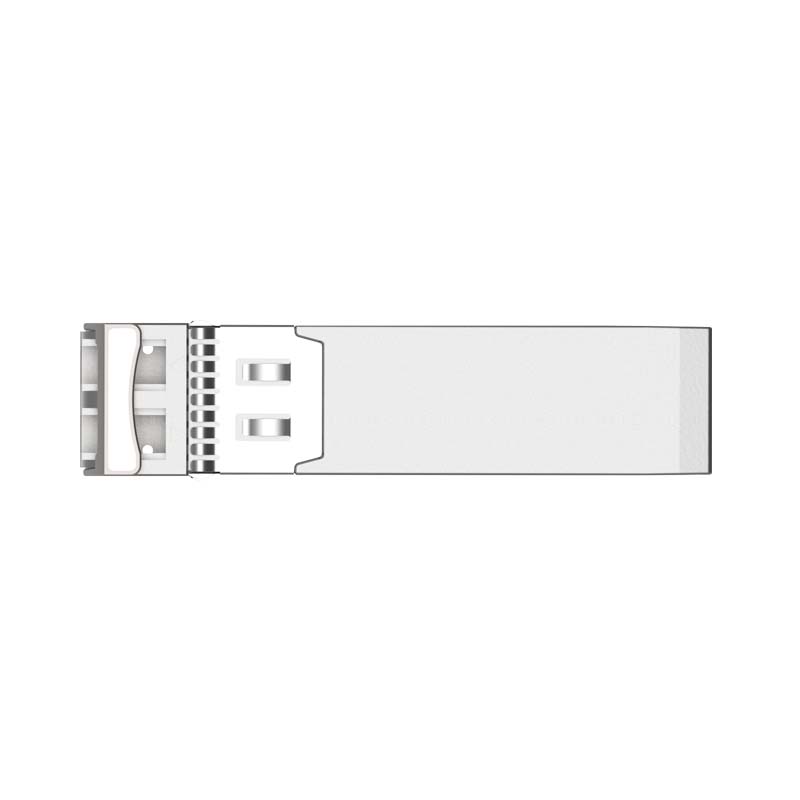

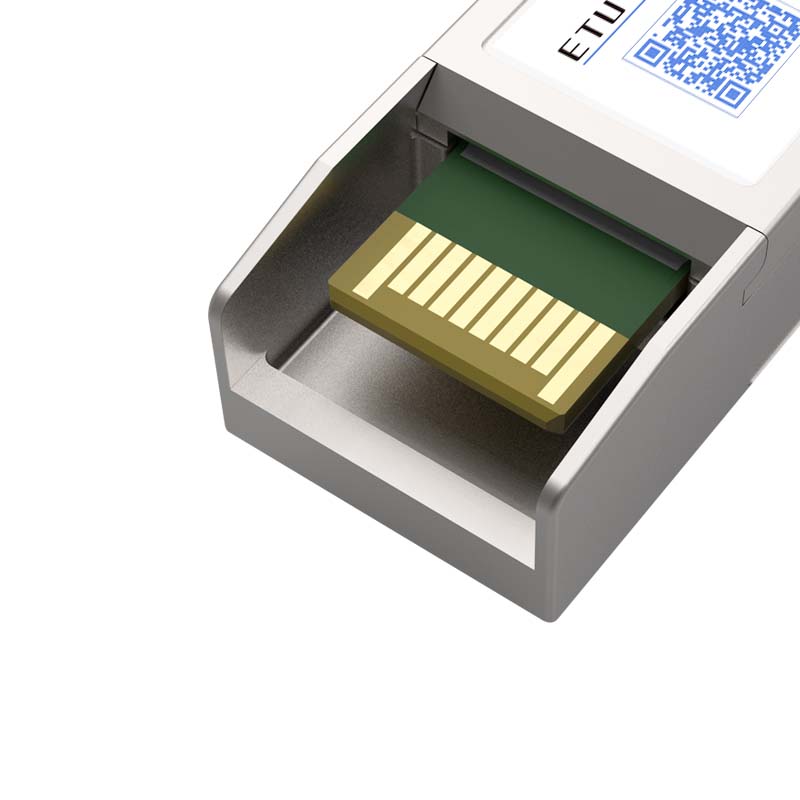

10G SFP+ ZR 1550nm 100KM LC Optical Transceiver

Product Description

The ‌10G SFP+ ZR 1550nm 100KM LC Optical Transceiver‌ is an industry-leading optical module designed for ultra-long-haul 10 Gigabit Ethernet applications. This high-performance transceiver pushes the boundaries of fiber optic transmission, delivering ‌10.3125Gbps‌ data rates over an exceptional ‌100 kilometer‌ reach on single-mode fiber (SMF).

Applications:
✔ Carrier backbone networks
✔ Inter-city data links
✔ Long-haul DWDM systems
✔ Data center interconnects (DCI)
✔ Government and enterprise networks

Key Features

• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• Un-cooled 1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission

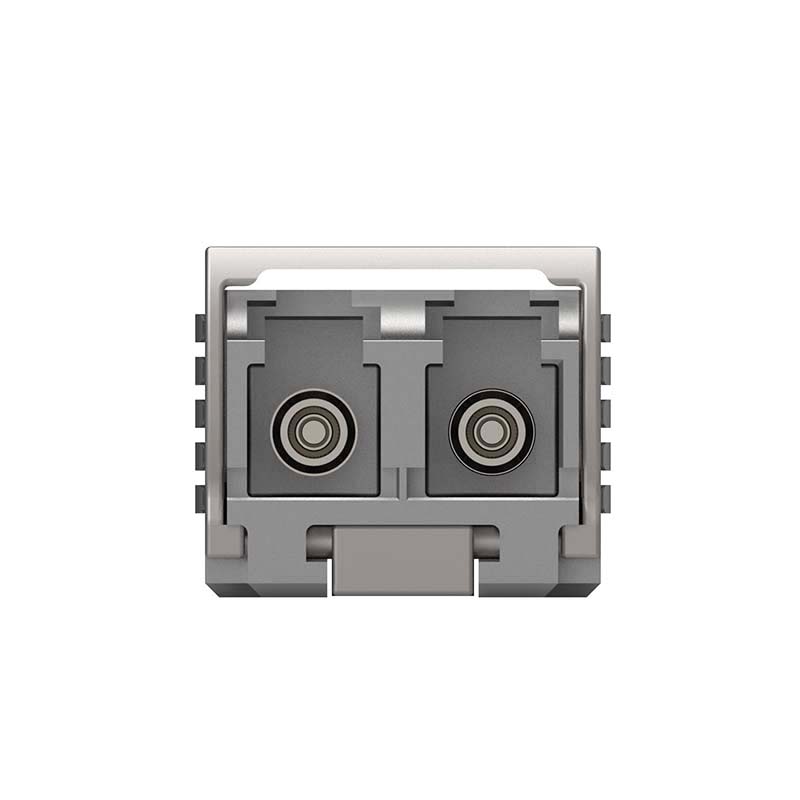

• Compliant with SFP+ MSA and SFF-8472 with duplex LC Receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:Standard: 0 to +70℃


SFP+ LR 1310nm 20KM	SFP+ LR 1550nm 40KM	SFP+ ER 1550nm 80KM	SFP+ ZR 1550nm 100KM	SFP+ ZR 1550nm 120KM
10G	10G	10G	10G	10G
1310nm	1550nm	1550nm	1550nm	1550nm
20KM	40KM	80KM	100KM	120KM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	CCOM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C	COM: 0°C ~70°C EXT: -20°C ~85°C IND: -40°C ~85°C

Q1: Can 10G SFP+ LR modules work with single-mode fibers?‌
A1: Yes, standard 10G-LR modules require OS2 single-mode fiber (1310nm wavelength) with 10km reach.

Q2: Can I use 10G BiDi SFP+ for duplex fiber conversion?‌
A2: Yes, BiDi modules (1270nm/1330nm) enable single-fiber bidirectional transmission on existing duplex fiber plants.

Q3: Why do some 10G SFP+ modules require external clock circuits?‌
A3: High-speed modules (e.g., 10G-LR) use ‌CDR (Clock Data Recovery)‌ chips to reduce jitter, requiring precise clock synchronization circuits on host PCB designs.

Q4: Can I plug a 10G SFP+ module into an SFP port?‌
A4: Physically compatible, but ‌electrically incompatible‌ – SFP ports lack 10G SerDes lanes, causing link failure unless switch supports rate adaptation.

Q5: What is difference between SFP and SFP+?
A5: The main difference between SFP and SFP+ is that the SFP+ is used in Gigabit Ethernet applications while SFP is for 100Bse or 1000Base applications. SFP doesn't support 10G transmission data rate, which means they can't be used in the same network.

Q6: What is SFP+ port used for?
A6: SFP + modules are commonly used for Gigabit Ethernet and 10 Gigabit Ethernet connections and can adapt to various application scenarios, including high-speed network connections and fiber optic links.

Q7: How to choose between SR, LR and ER optical modules?‌

A7: SR (Short Reach) for ≤300m multimode, LR (Long Reach) for 10km single-mode, ER (Extended Reach) for 40km+ single-mode applications.

Q8: What are the advantages of 10G SFP+ BIDI?
A8: Key Benefits:‌
Single-Fiber Solution‌ - Uses WDM to transmit/receive on one fiber (e.g., 1270nm/1330nm pairing)
Cost Savings‌ - 50% less fiber usage, 30-40% lower installation costs
Space Efficiency‌ - Doubles port density without new cabling
Applications: areas with limited fiber resources, 5G fronthaul networks, metropolitan area network expansion, and high-density data center interconnection.

Q9: Do 10G modules support DDM/DOM monitoring?‌
A9: A: Yes, compliant modules follow ‌SFF-8472‌ for real-time monitoring of temperature, TX power, and RX sensitivity.

Q10: What is the maximum transmission distance of ETU-Link optical modules?‌
A10: Our modules support from 100m (SR multimode) up to 120km (ZR single-mode), with specific models optimized for 300m, 10km, 40km, 80km and 120km applications.
