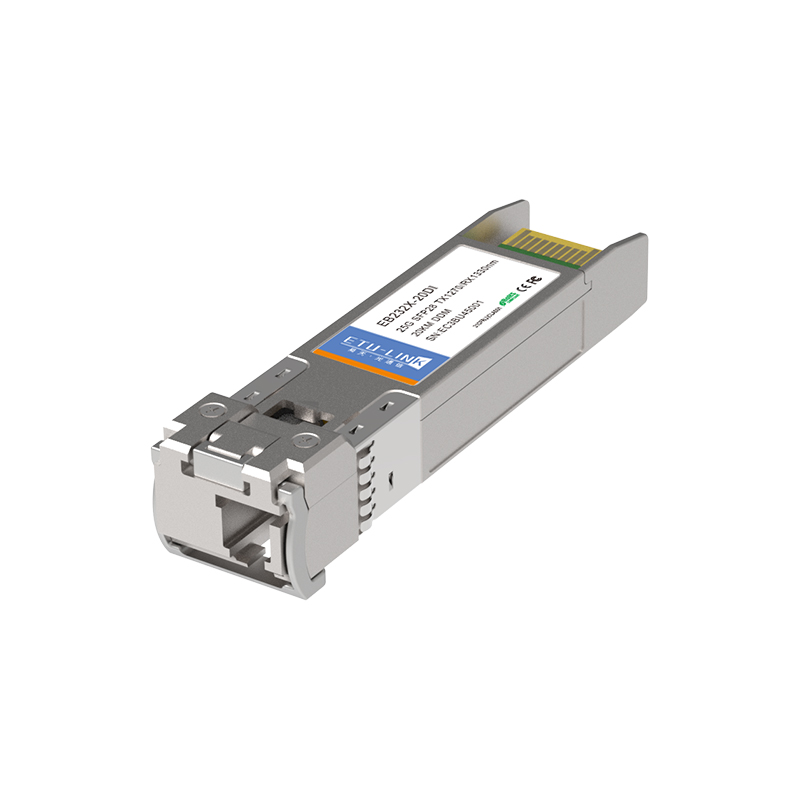

25.78Gbps SFP28 BIDI Transceiver, Single Mode, 20km Reach 1270nm TX / 1330nm RX

25G BiDi SFP28 1270/1330nm 20km LC Optical Transceiver

Data Rate:
25G
Wavelength:
1270/1330nm
Distance:
20KM
Connector:
LC
Fiber Type:
SM
DDM:
Yes
Product Origin:
China
Shipping Port:
Shenzhen
Brand:
ETU-LINK
Goods Stock:
1000

1270nm and 1330nm wavelengths over a single fiber strand to enable full-duplex 25.78 Gbps data transmission.

Lead Time/Contact Us Datasheets

Product Detail

Product Overview: 25G BiDi SFP28 Optical Transceiver Module
This high-performance 25G BiDi (Bidirectional) SFP28 optical transceiver supports 25.78Gbps data transmission over single-mode fiber (SMF) with 20km reach. Utilizing wavelength division multiplexing (WDM) technology, it transmits at 1270nm and receives at 1330nm through a single LC connector, effectively doubling fiber capacity.

Key Features:

Support 25GE and CPRI，data rate up to 25.78125Gbps

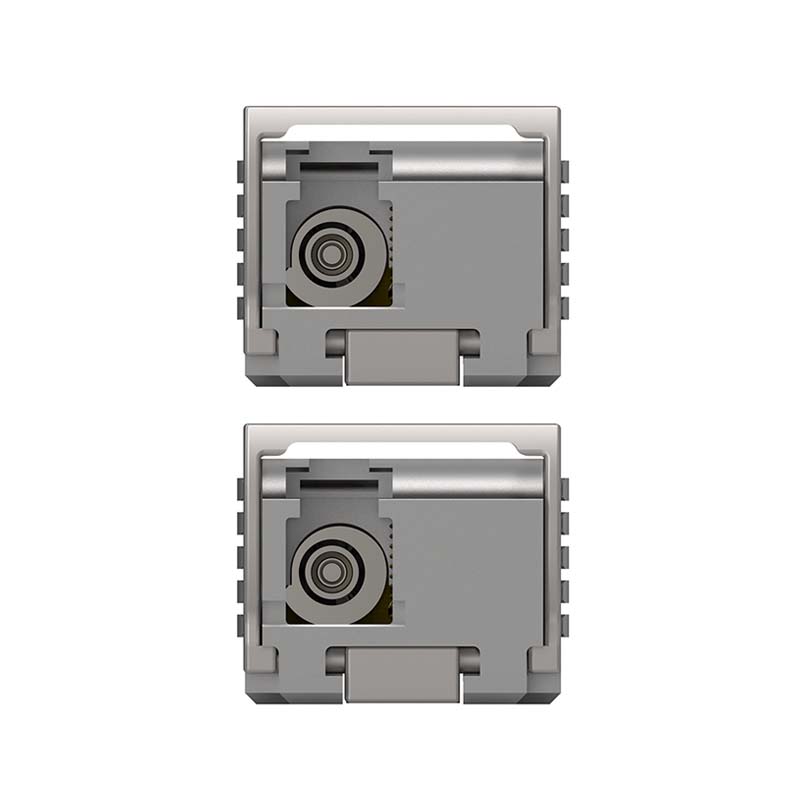

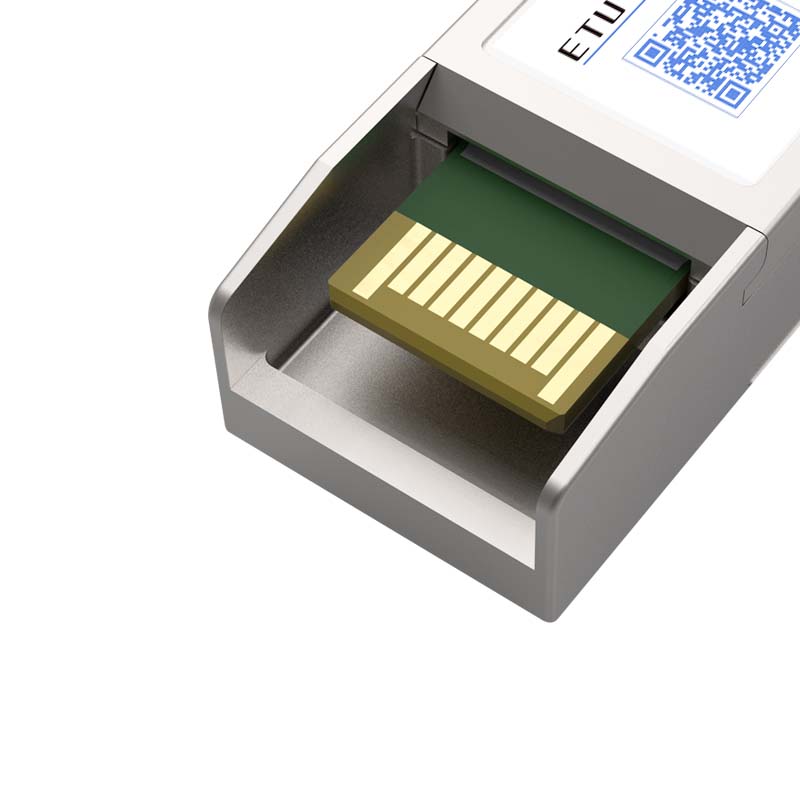

Hot-Pluggable SFP Footprint and Single LC Connector
Up to 20km reach for G.652 SMF

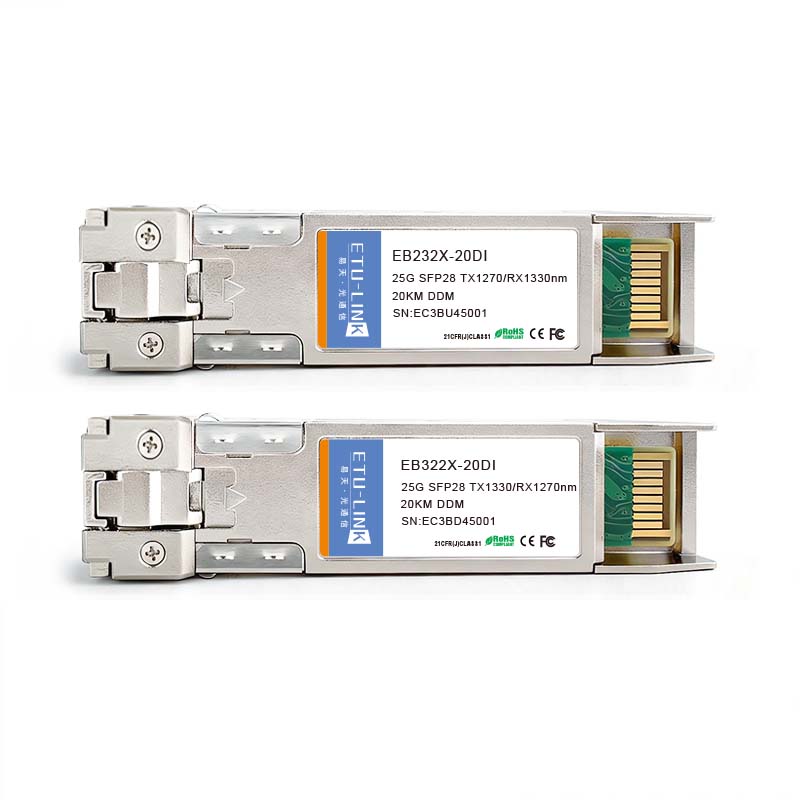

1270nm DFB Transmitter and 1330 PIN receiver for EB232X-20D
1330nm DFB Transmitter and 1270 PIN receiver for EB322X-20D
Temperature Range: 1)Commercial:0°C ~70°C; 2)Industrial: -40°C ~85°C
Low power consumption: 1)Commercial:<1W; 2)Industrial: <1.2W
Compliant with SFP-8431/SFP-8432/SFP-8472/IEEE802.3cc
RoHS 6 compliance
Complies with EU Directive 2015/863/EU


25G BIDI 10KM	25G BIDI 20KM	25G BIDI 40KM	25G BIDI 60KM	25G BIDI 80KM
25G	25G	25G	25G	25G
1270nm/1330nm	1270nm/1330nm	1270nm/1330nm	1295nm/1309nm	1295nm/1309nm
10KM	2KM	40KM	60KM	80KM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -20°C ~85°C	COM: 0°C ~70°C IND: -20°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C

FAQ:

Q1: What is a 25G SFP28 transceiver?
A1: 25G SFP28 transceiver is a compact, hot-pluggable optical module that supports 25Gbps data transmission over fiber or copper cables. It is widely used in data centers, telecom networks, and enterprise networks.

Q2: What are the key differences between SFP28 and SFP+?
A2: SFP28 supports 25Gbps speeds, while SFP+ supports 10Gbps. SFP28 is backward-compatible with SFP+ ports but requires appropriate configuration for optimal performance.

Q3: What distance can a 25G SFP28 SR transceiver cover?
A3: The 25G SFP28 SR (Short Reach) module typically supports up to 100 meters over OM4 multimode fiber (MMF).

Q4: Can 25G SFP28 modules work in 10G switches?
A4: Yes, most 25G SFP28 modules are backward-compatible with 10G SFP+ ports, but they will operate at 10Gbps speeds.

Q5: What are the common types of 25G SFP28 transceivers?
A5: SR (Short Reach) – Up to 100m over MMF
LR (Long Reach) – Up to 10km over SMF
ER (Extended Reach) – Up to 40km over SMF
Copper (DAC/AOC) – Short-distance direct attach solutions

Q6: What are the typical applications of 25G SFP28 transceivers?
A6: Data center spine-leaf architecture
5G fronthaul/midhaul networks
High-performance computing (HPC) clusters
Enterprise network upgrades from 10G to 25G

Q7: What is the wavelength of a 25G SFP28 LR transceiver?‌
A7: The 25G SFP28 LR module typically operates at ‌1310nm‌ wavelength, optimized for single-mode fiber (SMF) transmissions up to 10km.

Q8: How does 25G SFP28 compare to 100G QSFP28 in cost and performance?‌
A8: 25G SFP28 is more cost-effective for short-to-medium distances (≤10km), while 100G QSFP28 suits high-density 100G deployments.

Q9: Do 25G SFP28 modules support DDM/DOM monitoring?‌
A9: Yes, most MSA-compliant modules include ‌Digital Diagnostics Monitoring (DDM/DOM)‌ for real-time performance tracking.

Q10: What’s the future of 25G SFP28 with 50G/100G adoption?‌
A10: 25G remains relevant for cost-sensitive upgrades, especially in ‌5G fronthaul‌ and enterprise edge networks, despite higher-speed alternatives.
