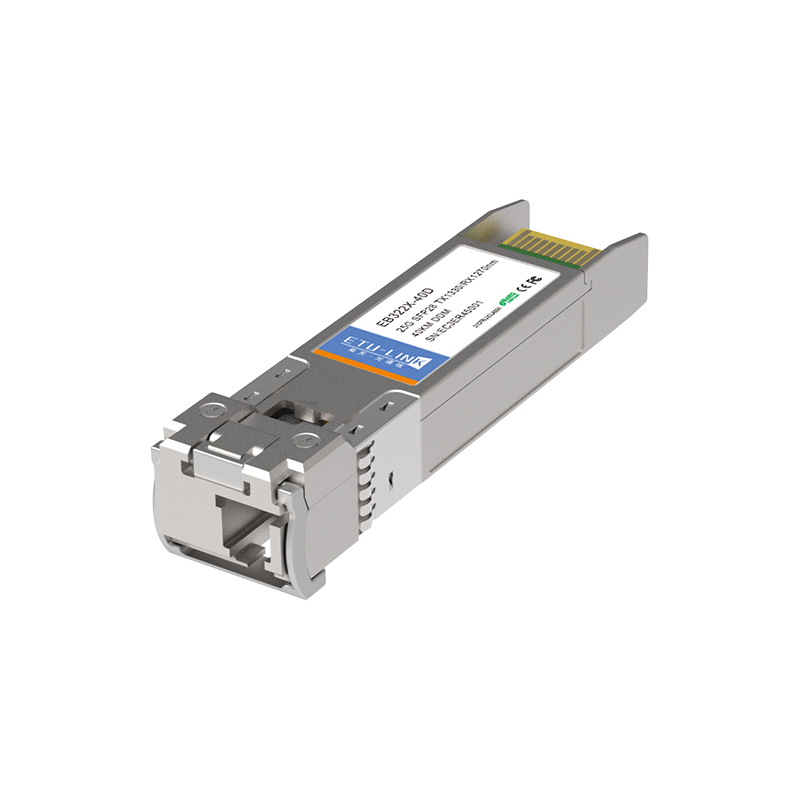

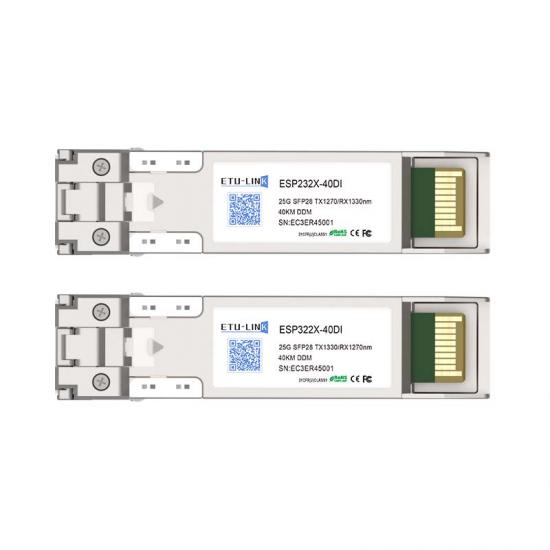

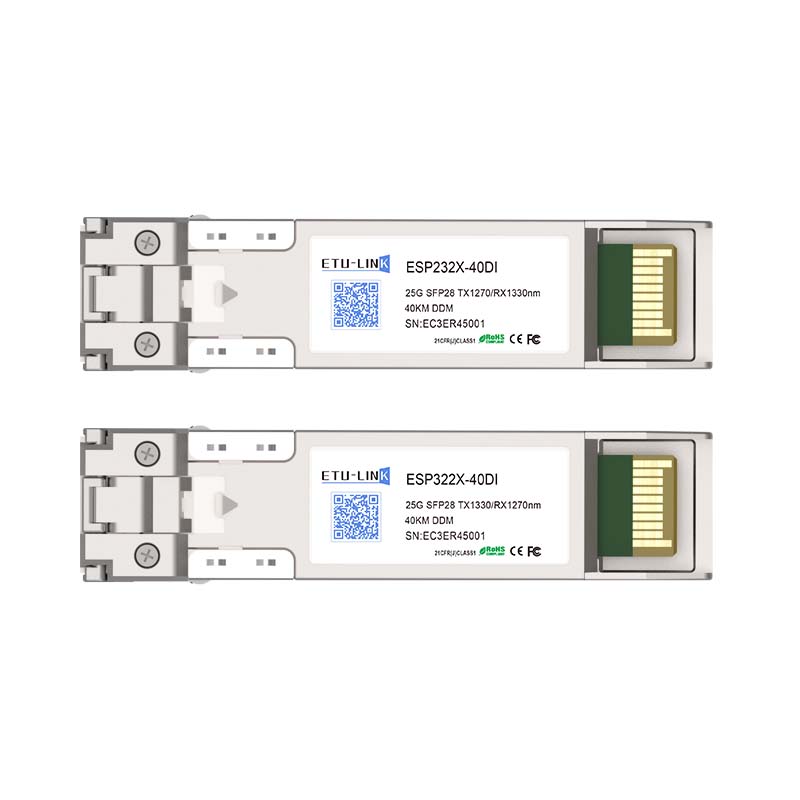

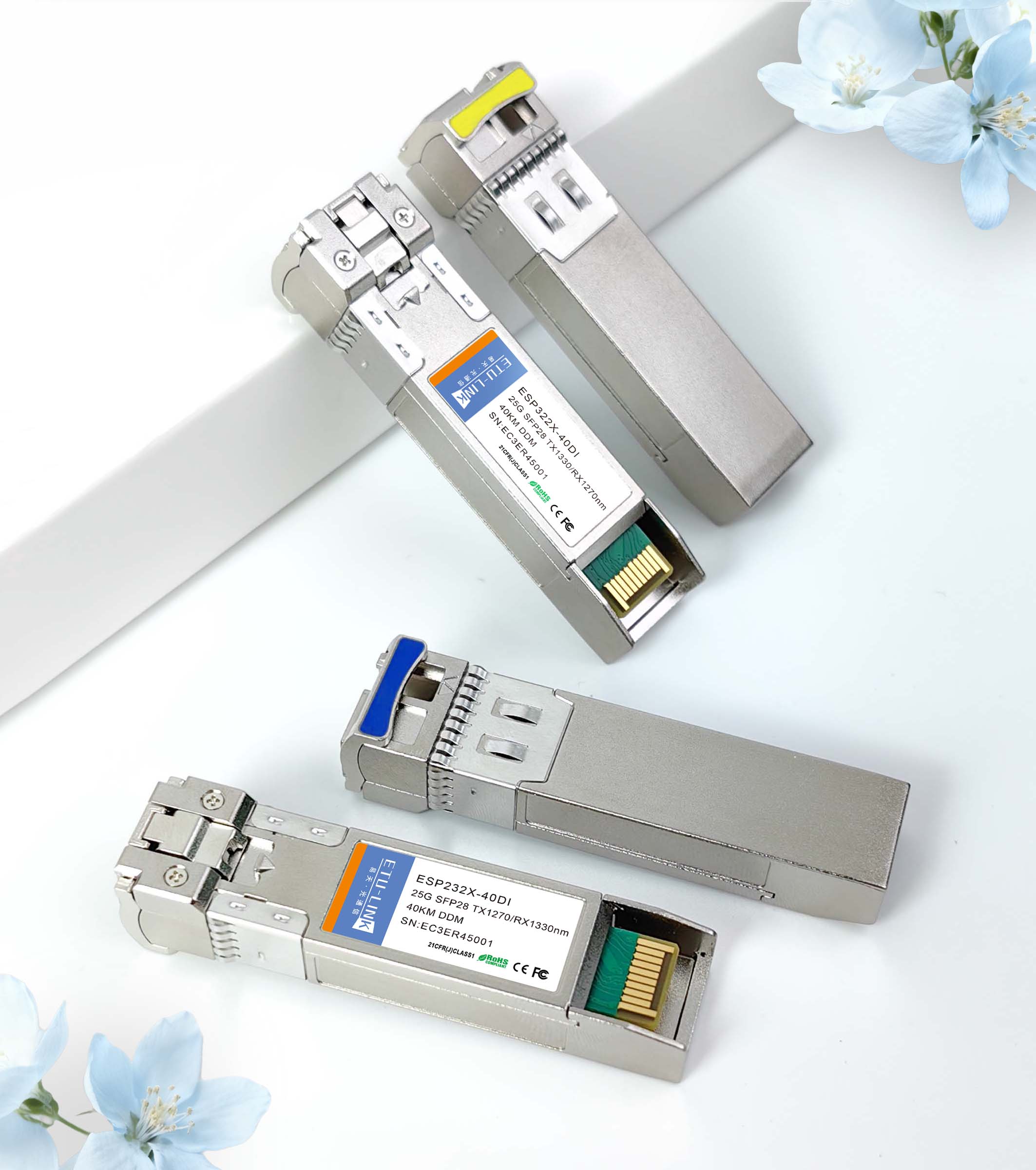

25G BiDi SFP28 TX1330/RX1270nm 40km LC Optical Transceiver

Product Overview:‌ 25G BiDi SFP28 Optical Transceiver
The 25G BiDi (Bidirectional) SFP28 optical transceiver is a high-performance, compact hot-pluggable module designed for 25G Ethernet applications. Operating at 1330nm/1270nm wavelengths (or vice versa), it enables bidirectional communication over a single fiber strand, effectively doubling fiber capacity.
This SFP28 module complies with IEEE 802.3cc, SFF-8472, and RoHS standards, offering reliable performance for high-speed networks while reducing fiber deployment costs through single-strand operation.

Key Features:

• Supports up to 25.78Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1330nm DFB laser and PIN photodiode, Up to 40km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:Standard: 0 to +70°C

25G BIDI 10KM	25G BIDI 20KM	25G BIDI 40KM	25G BIDI 60KM	25G  BIDI 80KM
25G	25G	25G	25G	25G
1270nm/1330nm	1270nm/1330nm	1270nm/1330nm	1295nm/1309nm	1295nm/1309nm
10KM	2KM	40KM	60KM	80KM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -20°C ~85°C	COM: 0°C ~70°C IND: -20°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C IND: -40°C ~85°C

Q1: What is a 25G SFP28 transceiver?
A1: 25G SFP28 transceiver is a compact, hot-pluggable optical module that supports 25Gbps data transmission over fiber or copper cables. It is widely used in data centers, telecom networks, and enterprise networks.

Q2: What are the key differences between SFP28 and SFP+?
A2: SFP28 supports 25Gbps speeds, while SFP+ supports 10Gbps. SFP28 is backward-compatible with SFP+ ports but requires appropriate configuration for optimal performance.

Q3: What distance can a 25G SFP28 SR transceiver cover?
A3: The 25G SFP28 SR (Short Reach) module typically supports up to 100 meters over OM4 multimode fiber (MMF).

Q4: Can 25G SFP28 modules work in 10G switches?
A4: Yes, most 25G SFP28 modules are backward-compatible with 10G SFP+ ports, but they will operate at 10Gbps speeds.

Q5: What are the common types of 25G SFP28 transceivers?
A5: SR (Short Reach) – Up to 100m over MMF
LR (Long Reach) – Up to 10km over SMF
ER (Extended Reach) – Up to 40km over SMF
Copper (DAC/AOC) – Short-distance direct attach solutions

Q6: What are the typical applications of 25G SFP28 transceivers?
A6: Data center spine-leaf architecture
5G fronthaul/midhaul networks
High-performance computing (HPC) clusters
Enterprise network upgrades from 10G to 25G

Q7: What is the wavelength of a 25G SFP28 LR transceiver?‌
A7: The 25G SFP28 LR module typically operates at ‌1310nm‌ wavelength, optimized for single-mode fiber (SMF) transmissions up to 10km.

Q8: How does 25G SFP28 compare to 100G QSFP28 in cost and performance?‌
A8: 25G SFP28 is more cost-effective for short-to-medium distances (≤10km), while 100G QSFP28 suits high-density 100G deployments.

Q9: Do 25G SFP28 modules support DDM/DOM monitoring?‌
A9: Yes, most MSA-compliant modules include ‌Digital Diagnostics Monitoring (DDM/DOM)‌ for real-time performance tracking.

Q10: What’s the future of 25G SFP28 with 50G/100G adoption?‌
A10: 25G remains relevant for cost-sensitive upgrades, especially in ‌5G fronthaul‌ and enterprise edge networks, despite higher-speed alternatives.
