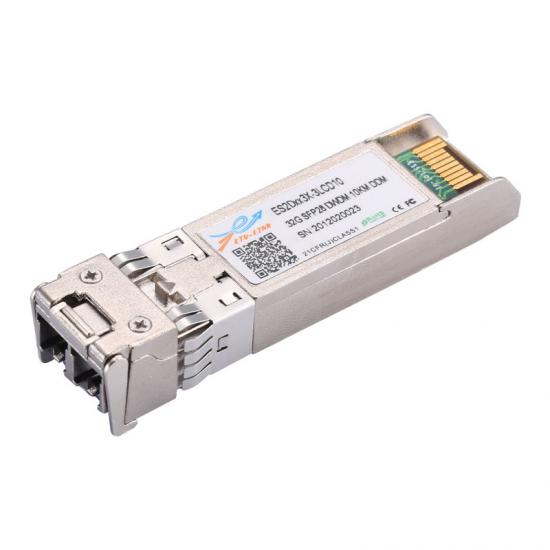

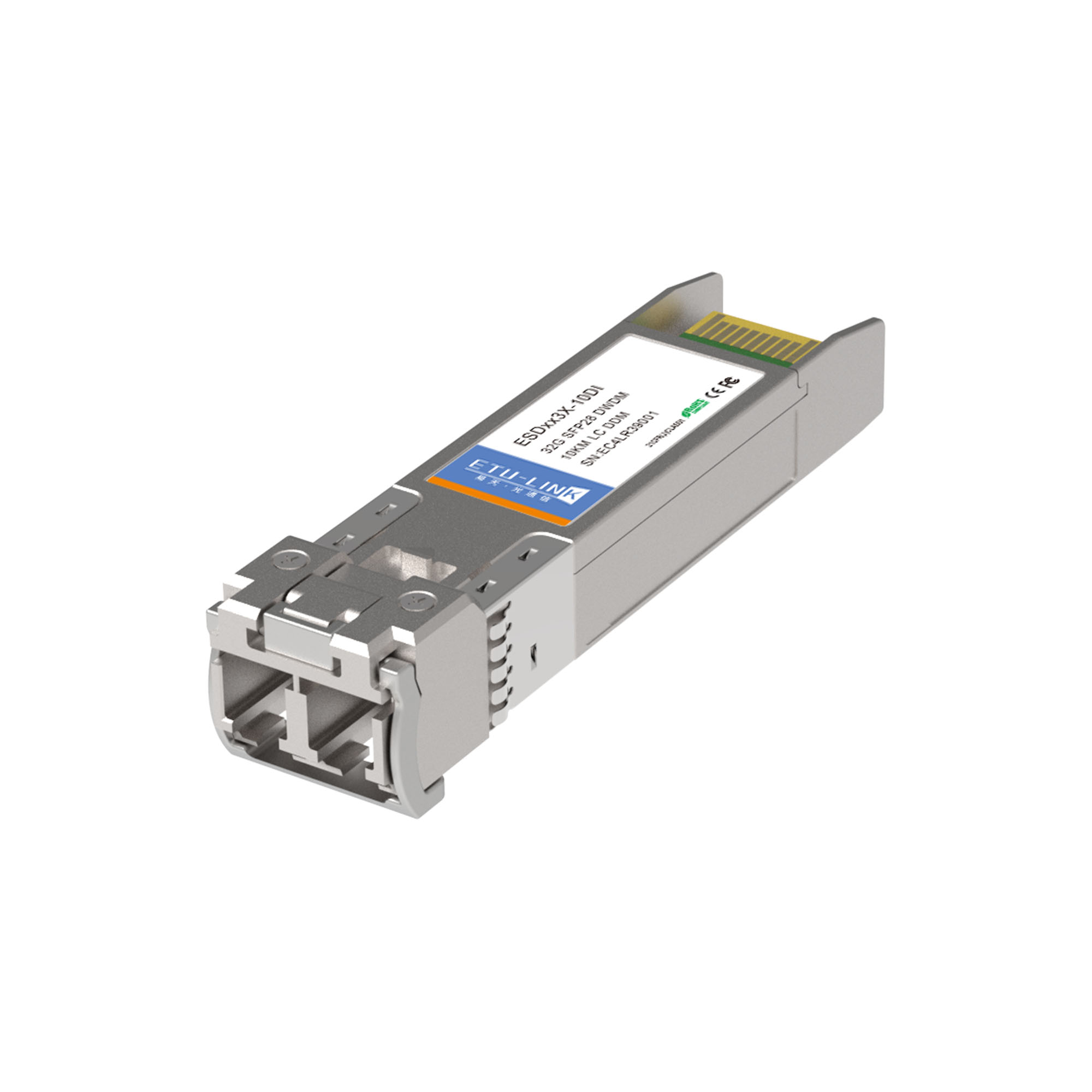

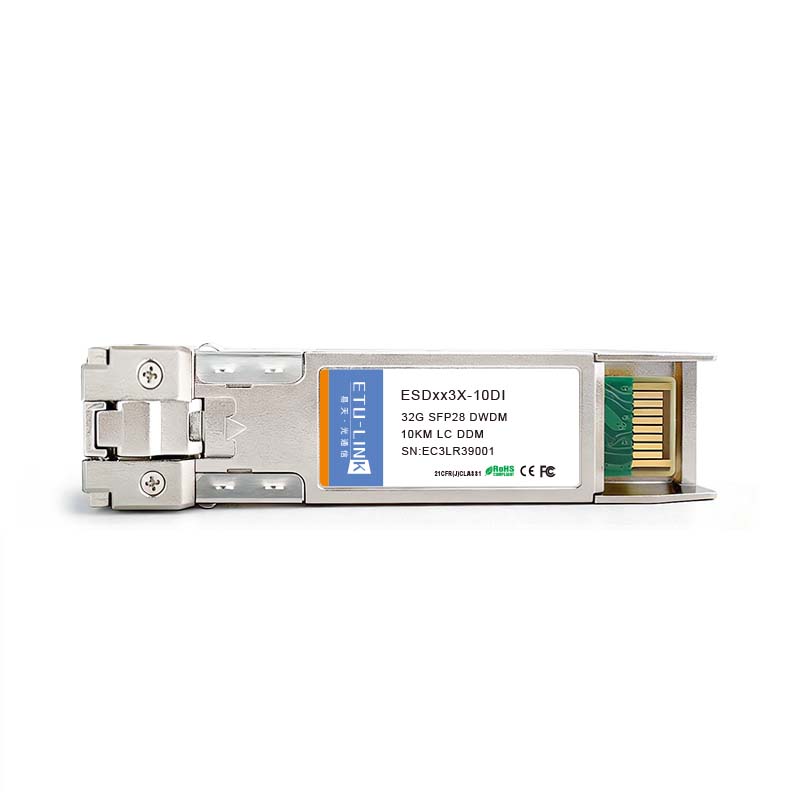

32G SFP28 DWDM 10KM LC Optical Transceiver

Product Model:
ESDxx3X-10D(I)
Data Rate:
32G
Wavelength:
DWDM
Distance:
10KM
Connector:
LC
Fiber Type:
SM
DDM:
Yes
Product Origin:
China
Shipping Port:
Shenzhen
Brand:
ETU-LINK
Goods Stock:
100

Over standard single-mode fiber (SMF), it supports data rates up to 32 Gbps for storage networks , achieving 10-kilometer transmission distances.

Lead Time/Contact Us Datasheets

Product Detail

32G SFP28 DWDM 10KM LC Optical Transceiver is a high-performance, hot-pluggable optical module designed for high-density wavelength division multiplexing applications. Operating on precise ITU-T DWDM wavelengths, it enables the transmission of multiple 32Gbps data streams over a single fiber, significantly increasing bandwidth capacity without additional fiber deployment.

This transceiver supports data rates up to 32Gbps for 32G Fibre Channel applications, with a transmission distance of up to 10 kilometers over standard single-mode fiber.

Featuring a duplex LC connector interface and low power consumption, it is ideal for data center interconnects, metropolitan area networks, and high-capacity storage area networks where spectral efficiency and channel density are critical. The module's excellent frequency stability and industrial temperature range support make it a reliable, scalable solution for modern optical transport systems.

PRODUCT FEATURES

Hot-pluggable SFP28 form factor
Supports 24.33Gb/s &25.78Gb/s aggregate bit rate
Supports 28.05Gb/s aggregate bit rate
Transmitter: cooled 25Gb/s DWDM EML TOSA
Compliant to ITU-T 694.1
Receiver: 25Gb/s APD ROSA
Internal CDR circuits on both receiver and transmitter channels
1.8W maximum power dissipation
Maximum link length of 10Km over SMF
Duplex LC receptacle
Operating case temperature range: -40 to 85°C
Single 3.3V power supply
RoHS 2.0 compliant (2011/65/EU, lead free)
