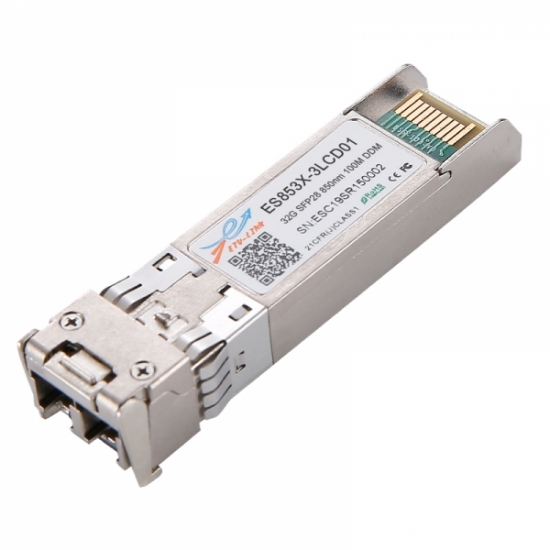

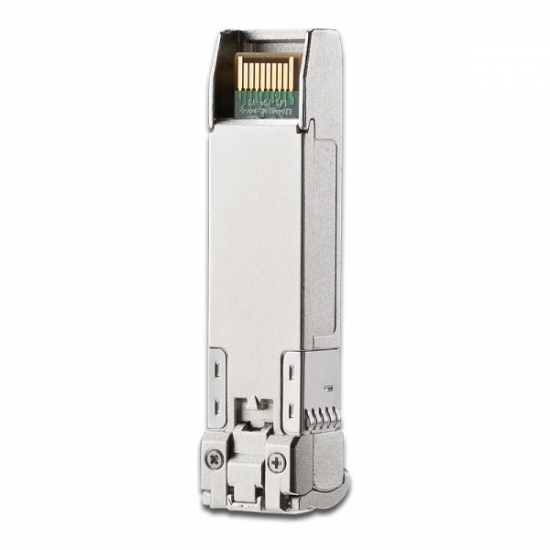

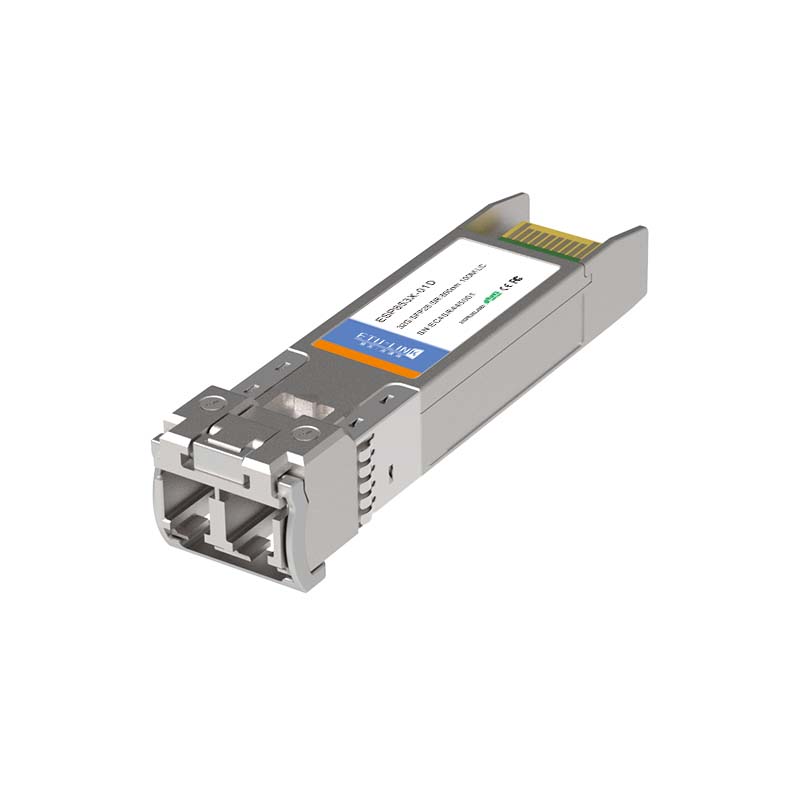

32G SFP28 SR 850nm 100M LC Optical Transceiver

Product Model:
ESP853X-01D(I)
Data Rate:
32G
Wavelength:
850nm
Distance:
100M
Connector:
LC
Fiber Type:
MM
DDM:
YES
Product Origin:
China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

850nm wavelength over laser-optimized OM4 multimode fiber, it supports data rates up to 32 Gbps for storage network, achieving distances of 100 meters on OM4 fiber.

Lead Time/Contact Us Datasheets

Product Detail

32G SFP28 SR optical transceiver is a high-speed, short-reach module designed for data center and high-performance computing networks. It operates at a nominal wavelength of 850nm over laser-optimized OM3/OM4 multi-mode fiber.

Supporting data rates of up to 32Gbps, it is primarily used for 32G Fibre Channel . This hot-pluggable transceiver achieves a maximum transmission distance of up to 100 meters and utilizes a duplex LC connector for reliable connectivity.

Fully compliant with the SFP28 MSA standard, it provides a robust and power-efficient solution for top-of-rack switching, server connectivity, and storage area networks, enabling next-generation network infrastructure with superior performance and reliability.

PRODUCT FEATURES

Supports up to 28.05Gbps bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser and PIN photodiode
100m over M5F MMF (50/125 um OM4)
70m over M5E MMF (50/125um OM3)
20m on MMF (50/125um OM2)
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: 0 to +70°C
