Product Model:
EDQP4X-xData Rate:
40GProduct Origin:
Made in ChinaShipping Port:
ShenZhen
FAQ:
Q1: What is a DAC Cable (Direct Attach Copper Cable)?
A1: A high-speed DAC cable is a cost-effective solution for short-distance data transmission, commonly used in data centers, cloud computing, and enterprise networking to connect switches, servers, and storage devices.
Q2: What are the advantages of using DAC cables over optical transceivers?
A2: Passive DAC cables are more affordable, consume less power, and offer lower latency than active optical cables (AOC) or fiber optics, making them ideal for 10G, 25G, 40G, and 100G Ethernet connections.
Q3: What lengths are available for SFP+ DAC, QSFP+ DAC, and QSFP28 DAC cables?
A3: Standard lengths range from 0.5m to 7m, with popular options like 1m DAC, 3m DAC, and 5m DAC cables for rack-to-rack connectivity.

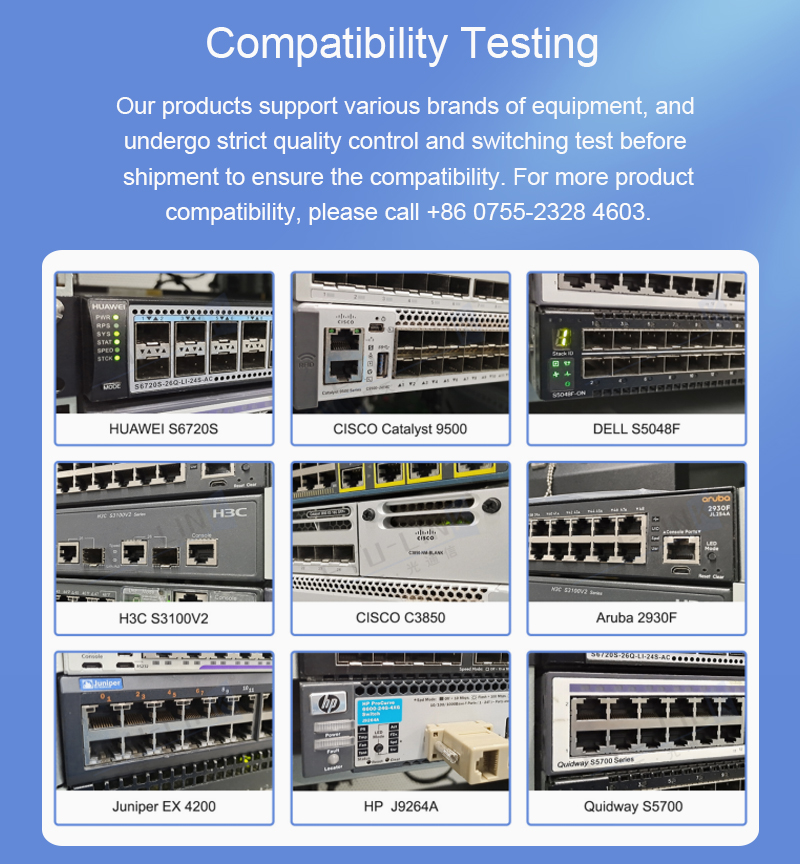

Q4: Are DAC cables compatible with Cisco, HPE, Juniper, Dell, and Arista devices?
A4: Most SFP DAC and QSFP DAC cables are vendor-agnostic, but always verify compatibility with your switch or server model for seamless integration.
Q5: Can high-speed DAC cables support 400G Ethernet?
A5: Yes, QSFP-DD DAC and OSFP DAC cables now support 200G/400G data rates, ideal for hyperscale data centers and HPC (High-Performance Computing).
Q6: Do passive DAC cables require external power?
A6: No, passive copper DAC cables draw power directly from the device, reducing energy costs and heat dissipation in data center environments.
Q7: What is the maximum distance for DAC cable transmission?
A7: Copper DAC cables typically reach up to 7m—beyond this, consider active DAC cables or AOC/fiber optics for longer distances.
Q8: Are DAC breakout cables hot-swappable?
A8: Yes, hot-swappable DAC cables (e.g., QSFP+ to 4x SFP+ DAC) allow flexible deployment without system downtime.
Q9: How to choose the right DAC cable for 10G/40G/100G networks?
A9: Match your switch port type (SFP+, QSFP+, etc.), data rate, and length requirements. For high-density setups, opt for low-profile DAC cables.
Q10: What is the difference between passive DAC and active DAC cables?
A10: Passive DAC cables rely on device power and support shorter distances (up to 7m), while active DAC cables include signal amplification for extended reach (up to 15m) but consume more power.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Breakout cable integrates one QSFP+ connector and four SFP+ connectors, splitting a single 40 Gbps port into four independent 10 Gbps channels, supporting passive and active transmission.
It supports transmission distances of up to 500 meters using PAM4 modulation technology.
Utilizing Coarse Wavelength Division Multiplexing (CWDM4) technology, it multiplexes four 10.3125 Gbps wavelengths (1271/1291/1311/1331nm) into duplex fiber pairs to achieve 41.25 Gbps aggregate bandwidth, supporting reaches up to 2 kilometers.
400G QSFP-DD SR8 MPO Optical Transceiver The 400G QSFP-DD SR8 transceiver is a high-speed optical module designed for 400 Gigabit Ethernet applications over multi-mode fiber (MMF). Applications: 400G Ethernet switches/routers .High-density data center interconnects requiring low-latency, high-bandwidth links. RoHS compliant and engineered for demanding networking scenarios, this transceiver delivers future-proof scalability for next-generation infrastructure. Up to 53.125Gbps data rate per channel by PAM4 modulation Support 400GAUI-8 electrical interface Integrated 850nm VCSEL array and PD array Single MPO16 connector receptacle optical interface compliant DDM function implemented Hot-pluggable QSFP-DD form factor Maximum power consumption 8W Single +3.3V power supply Reach up to 70m on MMF(OM3) Reach up to 100m on MMF(OM4) Compliant with ROHS2.0 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 400G QSFP-DD? A1: It is a high-density, hot-pluggable optical module interface supporting 400Gbps data rates, featuring 8 electrical channels for enhanced bandwidth. Q2: What are the main types of 400G QSFP-DD modules? A2: Common variants include SR8 (short-range), DR4/FR4 (intermediate), LR4/LR8 (long-range), and ER4/ER8 (extended-reach), with transmission distances ranging from 100m to 40km. Q3: How does OSFP differ from QSFP-DD? A3: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules. Q4:What encoding scheme does 400G OSFP use? A4: Data Rate 53.125Gbps (PAM4) per channel(Maximum power consumption 12W), balancing speed and complexity. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects. (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling. Q9: How does OSFP differ from QSFP-DD? A9: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules.
Supporting 40Gbps data rates over distances of up to 100 meters using OM3 fiber.
