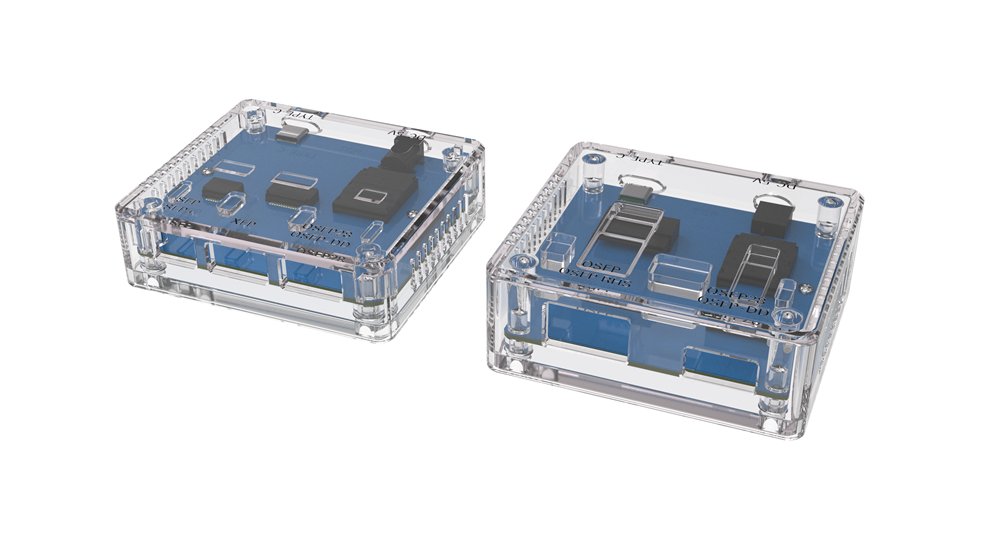

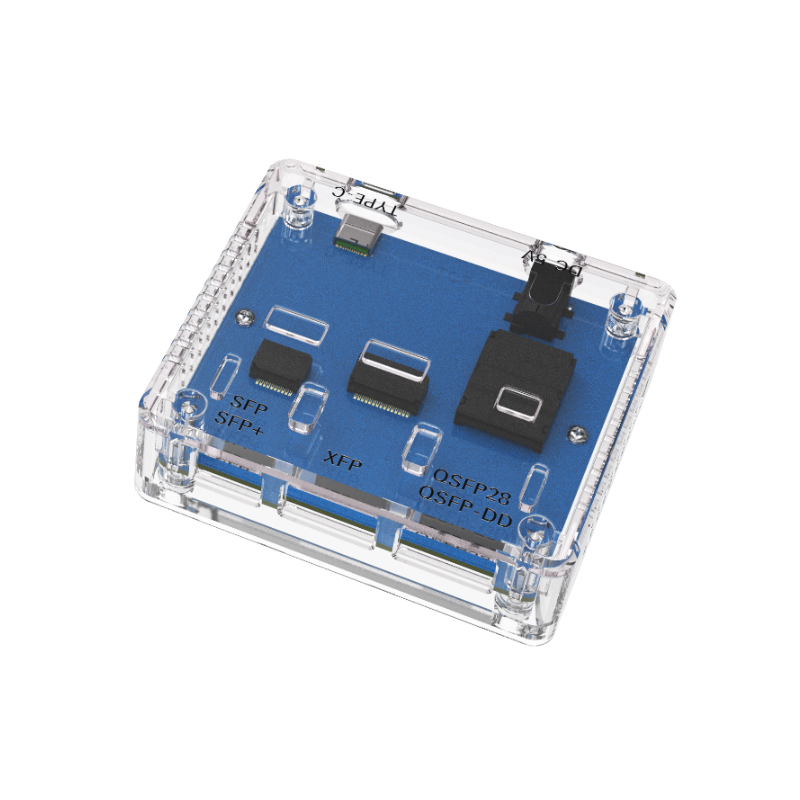

Coding Box Operation Guide SFP Transceiver Programmer

Compliant with 40GBASE-LR4 standards (IEEE 802.3ba),  achieve an aggregate 40Gbps data rate, supporting reaches up to 10 kilometers.

It achieves an aggregate 40Gbps data rate, supporting transmission distances up to 60 kilometers. Compliant with 40GBASE-ER4 Lite specifications.

Enhanced with APD receiver technology and DFB laser, it ensures superior sensitivity and dispersion tolerance for demanding environments.

400G QSFP-DD SR8 MPO Optical Transceiver‌ The ‌400G QSFP-DD SR8‌ transceiver is a high-speed optical module designed for 400 Gigabit Ethernet applications over multi-mode fiber (MMF).  Applications:‌ 400G Ethernet switches/routers‌ .High-density data center interconnects‌ requiring low-latency, high-bandwidth links. RoHS compliant‌ and engineered for demanding networking scenarios, this transceiver delivers future-proof scalability for next-generation infrastructure.  Up to 53.125Gbps data rate per channel by PAM4 modulation  Support 400GAUI-8 electrical interface  Integrated 850nm VCSEL array and PD array  Single MPO16 connector receptacle optical interface compliant  DDM function implemented  Hot-pluggable QSFP-DD form factor  Maximum power consumption 8W  Single +3.3V power supply  Reach up to 70m on MMF(OM3)  Reach up to 100m on MMF(OM4)  Compliant with ROHS2.0 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 400G QSFP-DD? A1: It is a high-density, hot-pluggable optical module interface supporting 400Gbps data rates, featuring 8 electrical channels for enhanced bandwidth. Q2: What are the main types of 400G QSFP-DD modules? A2: Common variants include SR8 (short-range), DR4/FR4 (intermediate), LR4/LR8 (long-range), and ER4/ER8 (extended-reach), with transmission distances ranging from 100m to 40km. Q3: How does OSFP differ from QSFP-DD?‌ A3: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules. Q4:What encoding scheme does 400G OSFP use?‌ A4: Data Rate 53.125Gbps (PAM4) per channel(Maximum power consumption 12W), balancing speed and complexity. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects. (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling. Q9: How does OSFP differ from QSFP-DD?‌ A9: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules.

Supporting data rates up to 25.78 Gbps, this hot-pluggable transceiver achieves distances of up to 10km over single-mode fiber.
