100M10/100/1000BASE-T SFP Copper RJ-45 100m Module

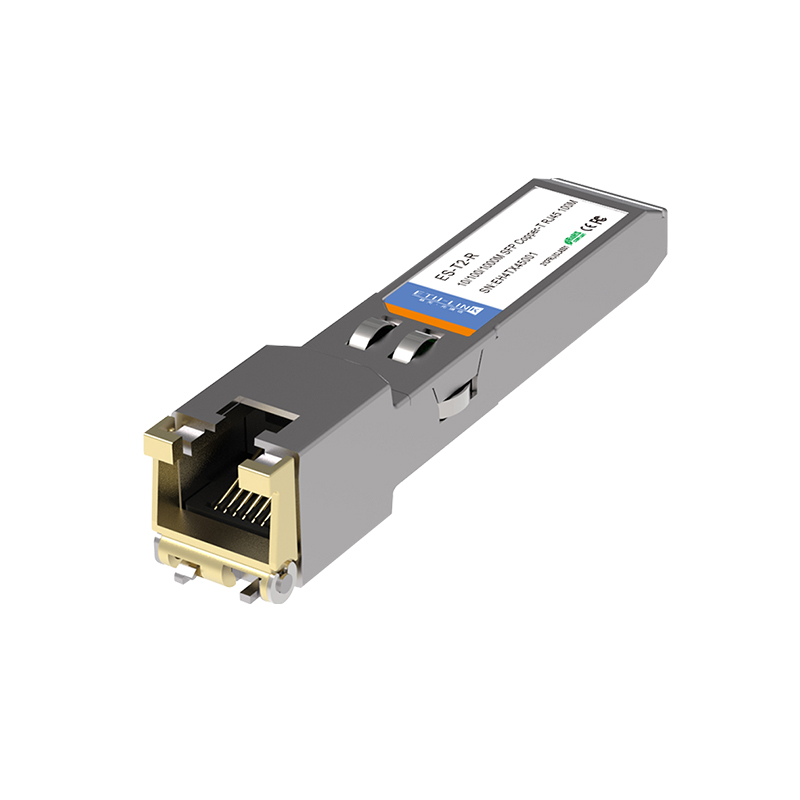

10/100/1000M SFP Copper-T RJ45 Transceiver

Product Model:
ES-T2-R
Data Rate:
10/100/1000M
Distance:
100M
Connector:
RJ45
DDM:
No
Product Origin:
Made in China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

Product Detail

Copper SFP Description

10/100/1000BASE-T Copper SFP Transceiver delivers high-speed Ethernet connectivity for modern network infrastructure. This hot-pluggable Small Form-Factor Pluggable (SFP) module supports 10/100/1000Mbps auto-negotiation over standard CAT5 copper cables, providing exceptional flexibility for short-range deployments.

Compact Design ideal for high-density switches and routers

Ideal for data centers, enterprise networks, and telecom applications, our copper SFP transceiver offers cost-effective 1Gbps connectivity with superior signal integrity. Backed by rigorous quality testing and a comprehensive warranty. Upgrade your network infrastructure today with this high-performance, plug-and-play copper SFP solution.

Product Features

Up to 1.25Gb/s bi-directional data link
Hot-pluggable SFP footprint
TX Disable and RX Los/without Los function
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000Mbps compliant in host systems with SGMII interface
Operating case temperature range of 0°C to +70°C (Commercial), 20°C to +85°C (Extend)


2.5GBASE-T Copper SFP	1000BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10/100BASE-T Copper SFP	10/100/1000BASE-T Copper SFP	10GBase-T Copper SFP+	10GBASE Copper SFP	10GBase-T Copper SFP
ES-T0-R	ES-T1-R	ES-T2-R	ES-T3-R	ES-T4-R	ES-T5-R	ES-T6-R	ES-T7-R
100M	100M	100M	100M	100M	30M	80M	100M
2.5Gbase	1000Mbps	10/100/1000Mbps	10/100Mbps	10/100/1000Mbps	10Gbps	10Gbps	10Gbps
RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
CAT5E	Cat 5	Cat 5	Cat 5	Cat 5	Cat 6a/7	Cat 6a/7	Cat 6a/7
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C IND: -40°C ~85°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What is a Copper RJ45 SFP Transceiver?‌

A1: A Copper-T RJ45 SFP Transceiver is a compact, hot-swappable module that enables 10GBase-T (10Gbps) or 1GBase-T (1Gbps) Ethernet connectivity over copper cables (Cat6a/Cat7) via an RJ45 interface, compliant with SFP+ MSA and IEEE 802.3 standards.

Q2: What are the key advantages of Copper-T RJ45 SFP Transceivers?‌

A2: Cost-efficient‌: Reuses existing copper cabling infrastructure.

Low latency‌: Ideal for data centers and enterprise networks.

Energy-saving‌: Typically consumes <5W, reducing operational costs.

Q3: How does auto-negotiation work in Copper-T RJ45 SFP Transceivers?‌

A3: The module automatically detects and adjusts to the highest supported speed (10G/5G/2.5G/1G/100M) based on the connected switch port and cable quality.

Q4: What is the maximum transmission distance for 10GBase-T?‌

A4: Up to ‌100 meters‌ with Cat6a/Cat7 cables. For longer distances, optical SFP+ modules are required.

Q5: How do I install a Copper-T RJ45 SFP Transceiver?‌

A5: Insert the module into an SFP+ port until it locks.

Connect an RJ45 cable to the module.

Verify link status via switch management software.

Q6: How can I extend the lifespan of my Copper-T RJ45 SFP Transceiver?‌

A6: Avoid bending cables beyond their minimum bend radius.

Clean RJ45 connectors regularly to prevent oxidation.

Store in a dry, dust-free environment when not in use.

Q7: What is the difference between Copper RJ45 SFP Transceivers and optical SFP modules?‌

A7: Copper RJ45‌: Uses Cat6a/Cat7 cables for short-distance (≤100m) 10GBase-T/1GBase-T, with lower power consumption.

Optical SFP‌: Uses fiber for long-distance but requires higher power and costlier infrastructure.

Q8: Can Copper RJ45 SFP Transceivers support 2.5G/5G speeds?‌

A8: Yes, if the host switch supports ‌IEEE 802.3bz‌ (Multi-Gigabit Ethernet), enabling auto-negotiation of 2.5G/5G speeds.
