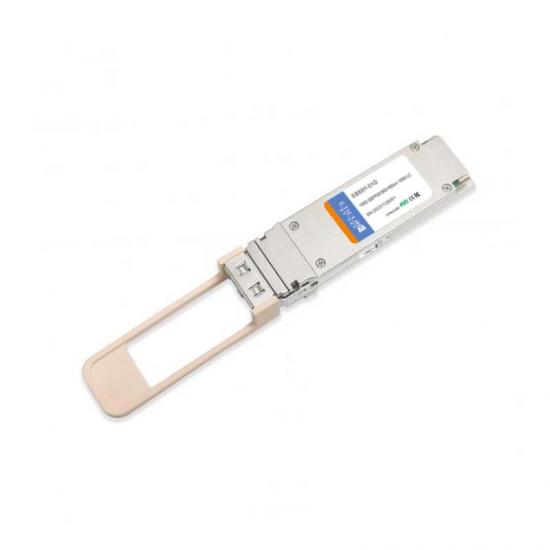

100G QSFP28 ER1 BIDI 40KM LC Optical Transceiver

100G QSFP28 ER1 BIDI 40KM LC Optical Transceiver

  • Product Model:

    EB59(95)Y-40D
  • Data Rate:

    100G
  • Wavelength:

    1304nm/1309nm
  • Distance:

    40KM
  • Connector:

    LC
  • Fiber Type:

    SM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Brand:

    ETU-LINK
  • In Stock:

    Need to check with PMC



  • Product Detail



Product Description

ETU-Link 100G QSFP28 ER1 BIDI optical transceiver is designed for high-performance, long-distance data transmission up to 40 kilometers. This cutting-edge fiber optic module supports 100 Gigabit Ethernet (100GbE) and complies with industry-standard QSFP28 MSA specifications.


Key Features

  •  Hot-pluggable QSFP28 form factor
  •  Support Ethernet CAUI-4
  •  Support OTU4
  •  High Sensitivity PD Receiver
  •  Operation case temperature C/E/I-Temp
  •  Single 3.3V power supply
  •  Aligned with IEEE 802.3bs and 100G Lambda MSA
  •  Simplex LC receptacles
  •  I2C management interface
  •  RoHS-6 compliant
  •  4X28G serial Interface(CEI-28G-VSR)



FAQ:

Q1What are the key applications of 100G QSFP28?‌

A1Our 100G QSFP28 modules are widely used in data centers, high-performance computing (HPC), and telecom networks for high-speed interconnects.


Q2: What types of 100G QSFP28 does ETU-Link offer?‌

A2We provide SR4, LR4, ER4, ZR4, and CWDM4 variants, supporting multi-mode and single-mode fiber connections to 100m-100km.


Q3: Are ETU-Link 100G QSFP28 modules compatible with major brands?‌

A3Yes, our 100G QSFP28 transceivers are fully MSA-compliant and interoperable with Cisco, Juniper, Arista, and other OEM switches.


Q4: Does you provide customization for 100G QSFP28?‌

A4Yes, we offer OEM/ODM services including custom labeling, firmware, and compatibility testing.


Q5: How does 100G QSFP28 BiDi reduce fiber costs?‌

A5BiDi modules enable bidirectional 100G transmission over a single fiber strand, doubling fiber utilization compared to conventional dual-fiber solutions.


Q6: What fiber connectors are used in 100G QSFP28?‌

A6MPO-12 for SR4/PSM4, LC duplex for LR4/CWDM4, and LC simplex for BiDi models.


Q7: What is the warranty period for 100G QSFP28?‌

A7Standard 3-year warranty with lifetime technical support.


ETU-Link 100G QSFP28 solves key points‌

Problem: Fiber congestion? BiDi models halve your fiber count

Problem: Compatibility fears? We guarantee MSA compliance + OEM testing
