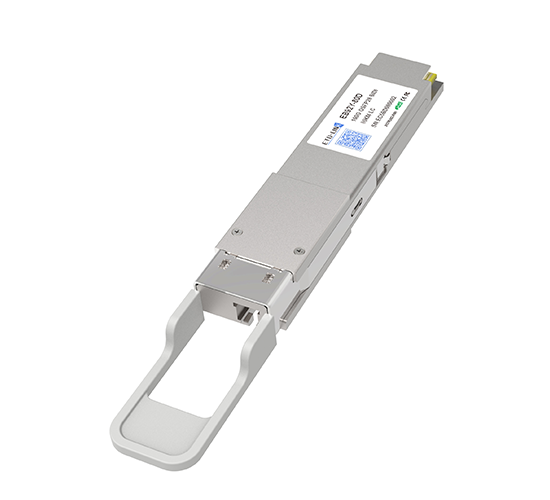

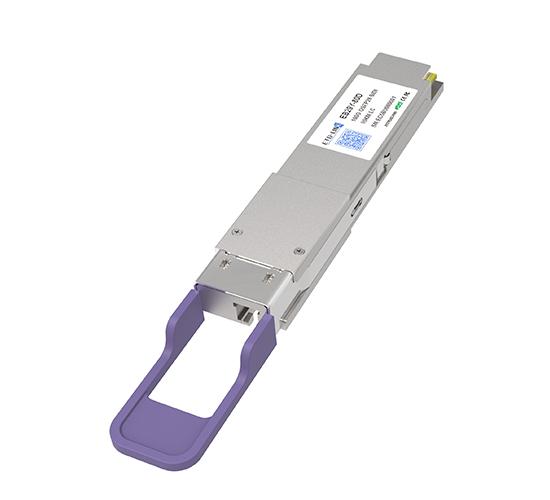

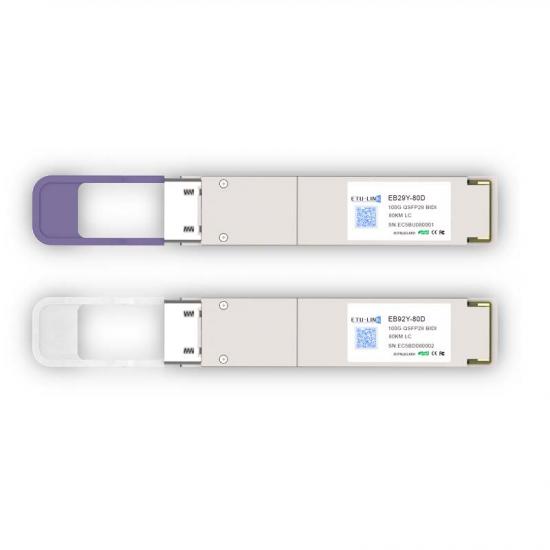

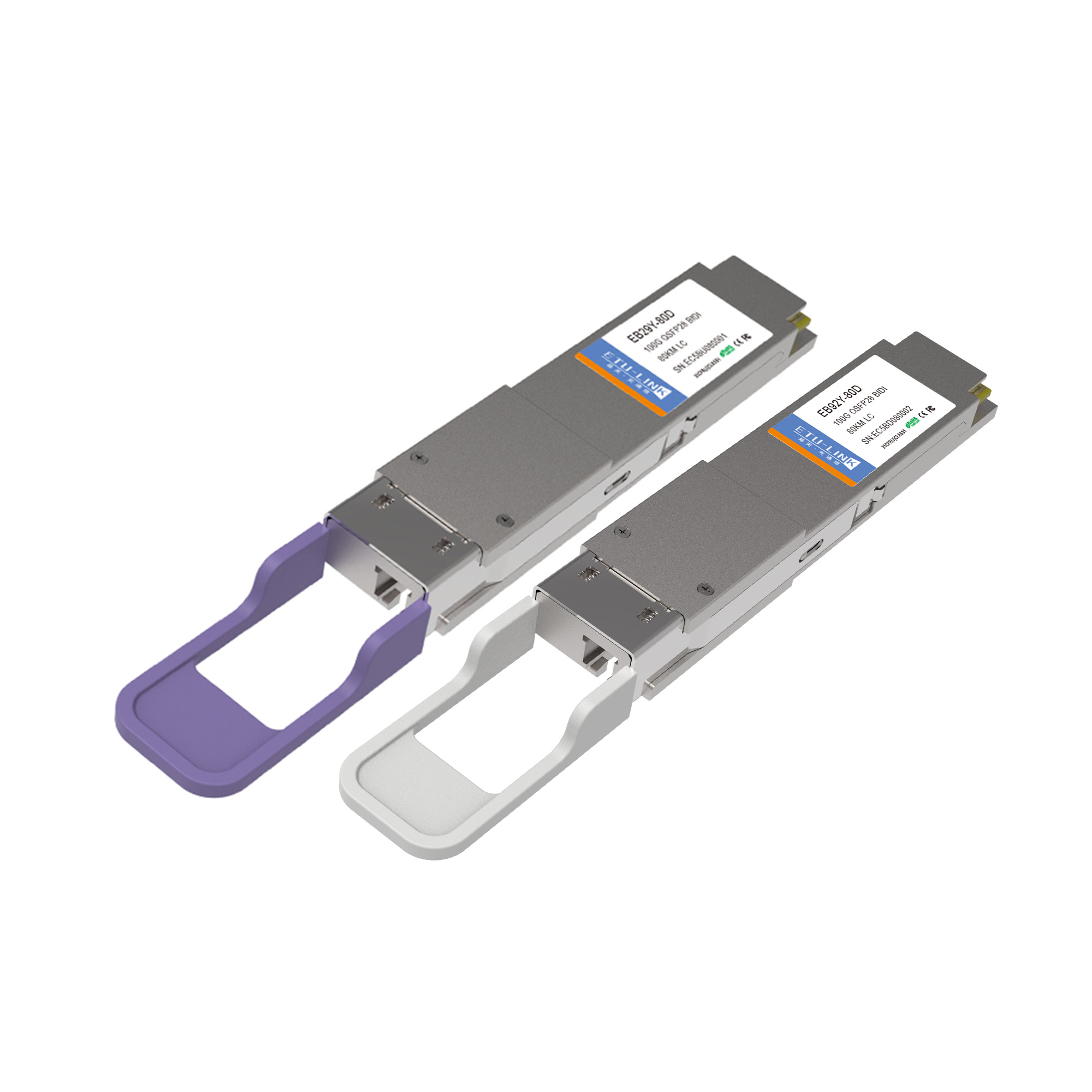

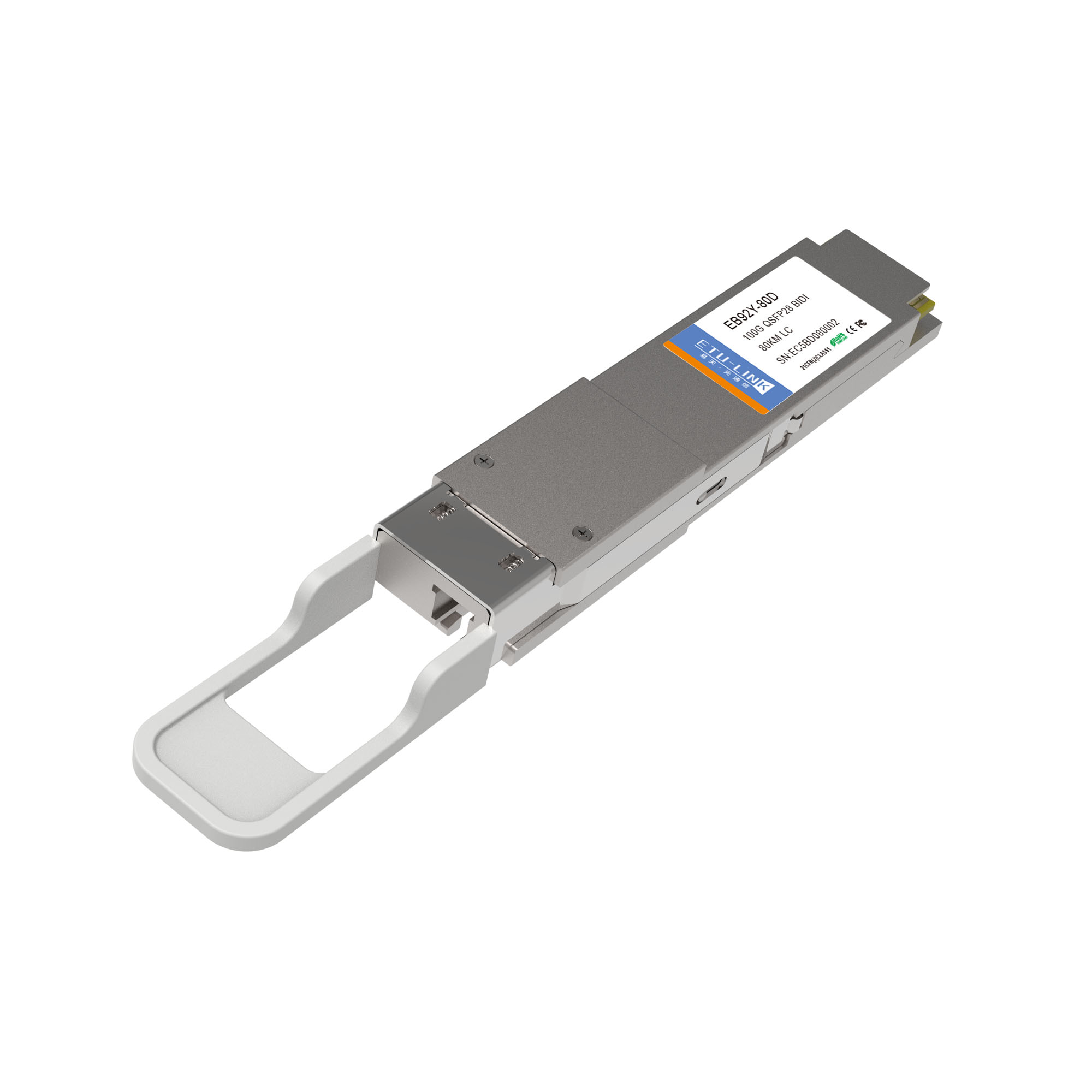

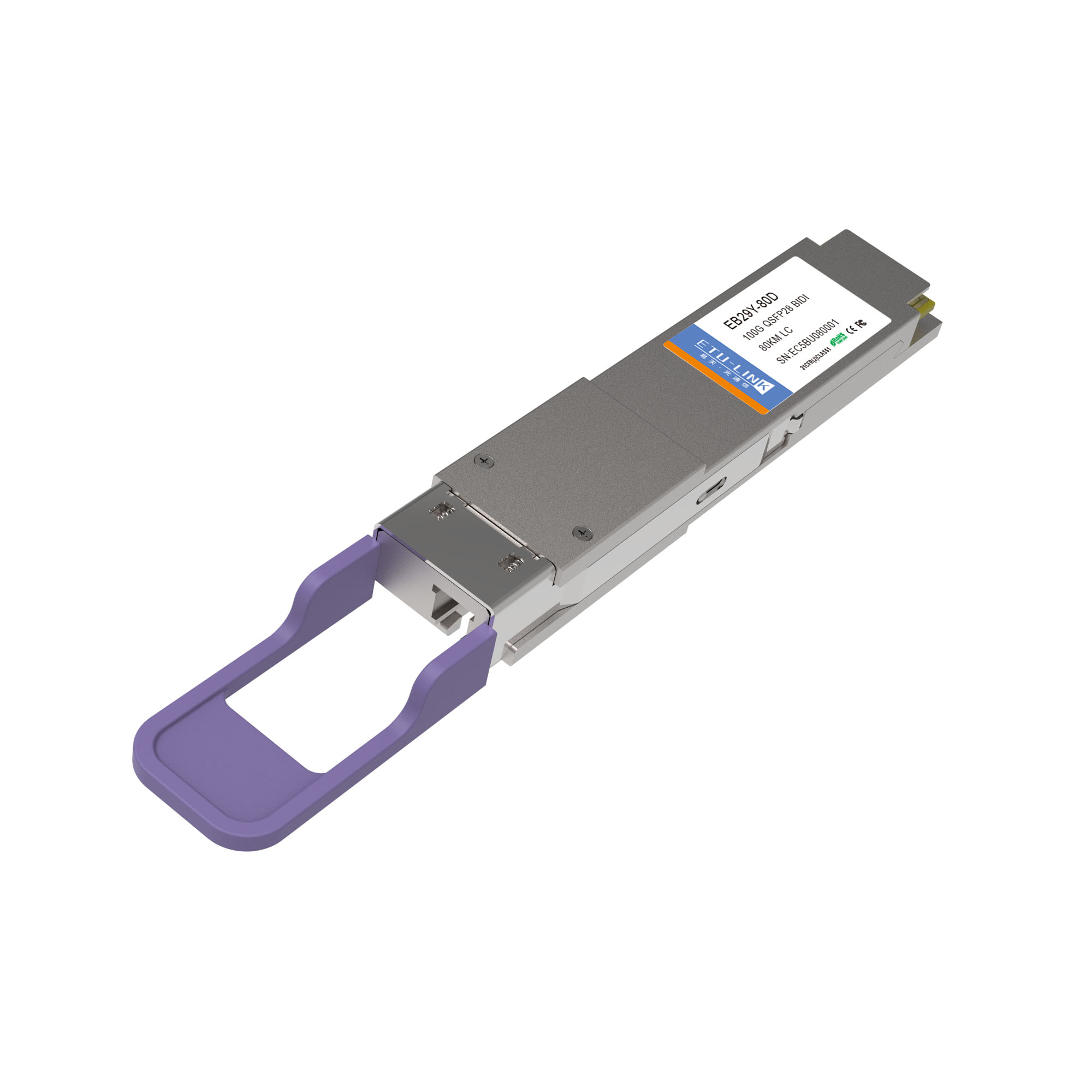

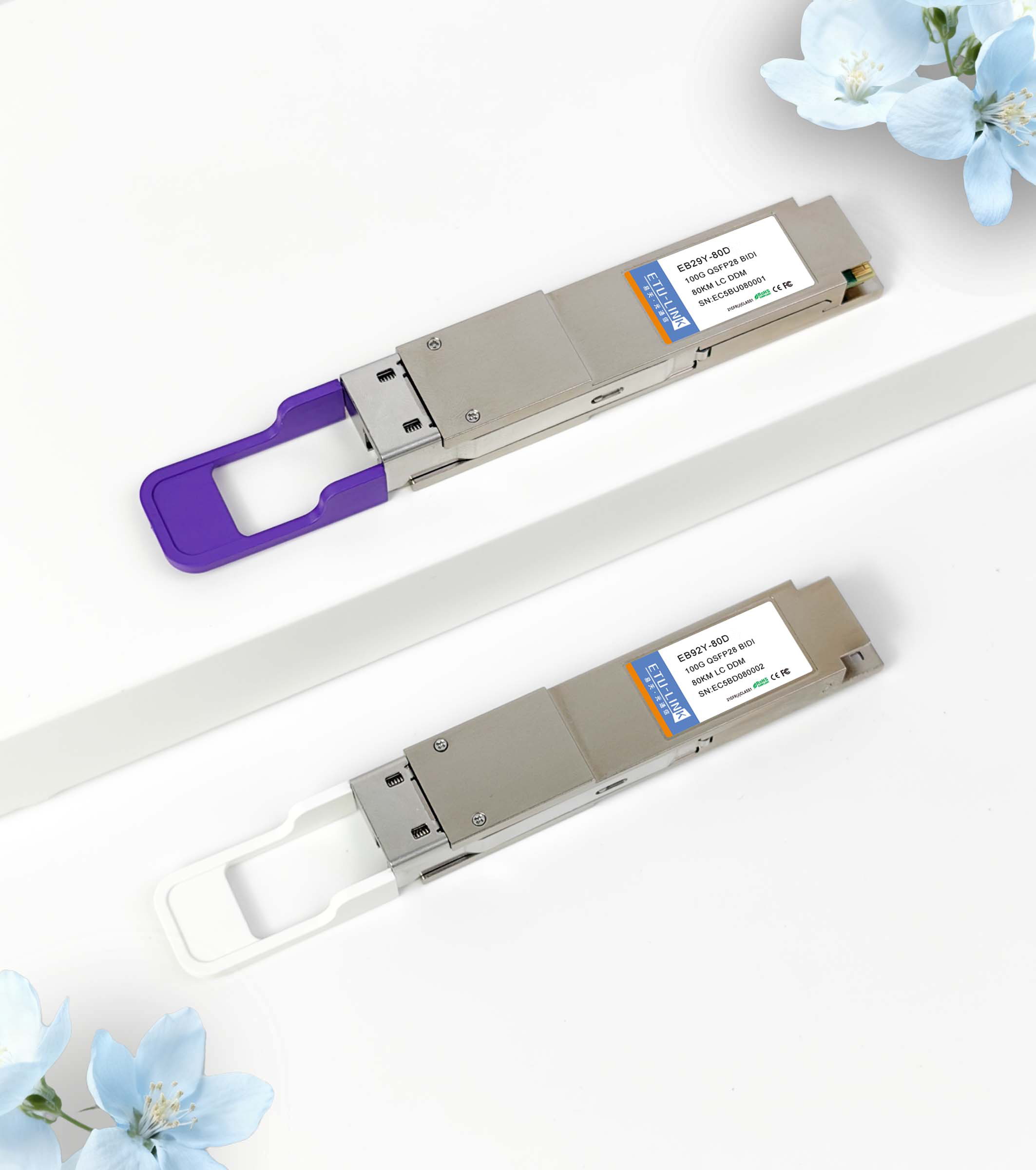

100G QSFP28 ZR4 BIDI 80KM LC Optical Transceiver

Product Description

100G QSFP28 ZR4 BIDI 80KM Optical Transceiver is a high-performance bidirectional optical module designed for 100G Ethernet long-haul applications. This compact QSFP28 form factor solution enables 100Gb/s transmission over single-mode fiber up to 80km using wavelength division multiplexing (WDM) technology. The BIDI (bidirectional) design allows simultaneous transmission and reception on a single fiber strand, effectively doubling fiber capacity. With low power consumption and digital diagnostics monitoring, it's ideal for data center interconnects, metro networks, and 5G transport systems requiring cost-effective, high-density 100G connectivity. The module complies with industry standards including IEEE 802.3ba and QSFP28 MSA specifications.

Key Features

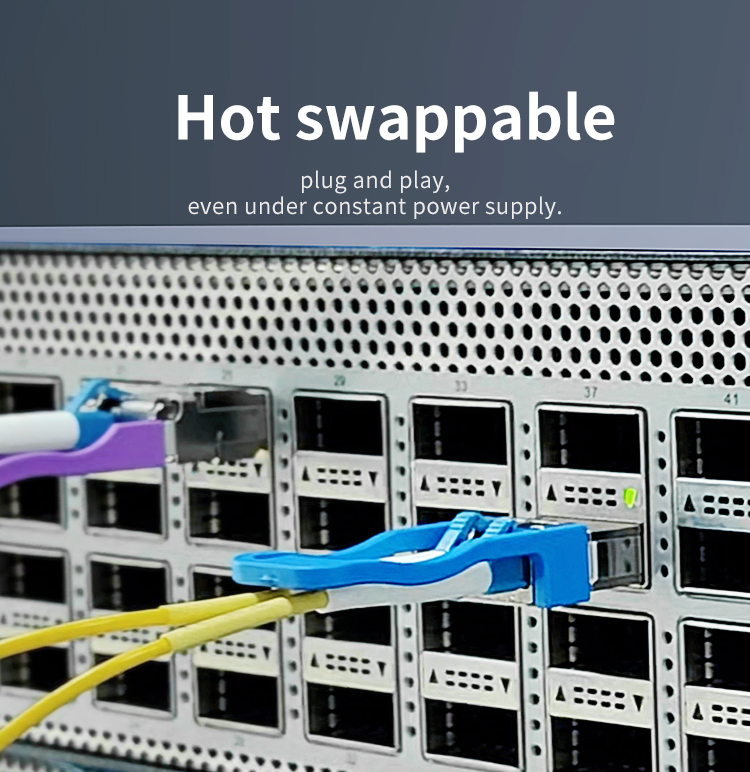

•  Hot-pluggable QSFP28 form factor
•  Lane bit rate 25.78 Gb/s 100GE
•  Up to 80km transmission with KR4-FEC.
•  LAN WDM EML laser and PIN receiver with SOA;
•  Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
•  High speed I/O electrical interface (CAUI-4);

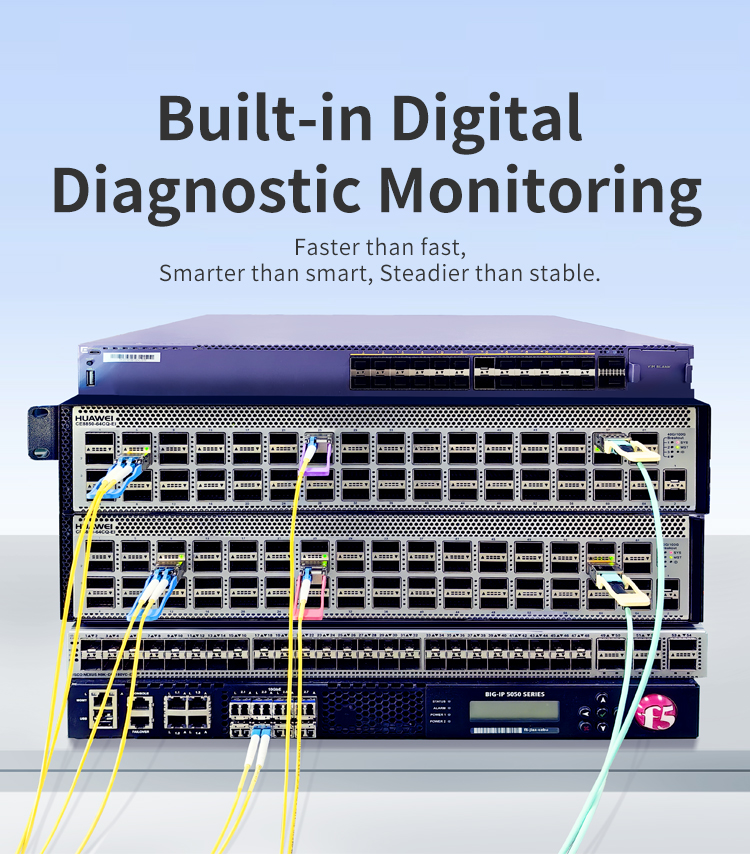

•  I2C interface with integrated Digital Diagnostic monitoring;

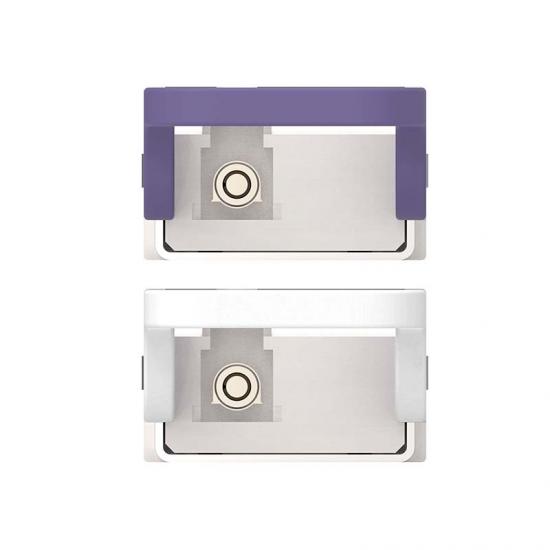

•  QSFP28 MSA package with simplex LC connector;
•  Single +3.3V power supply
•  Power dissipation
•  Commercial：< 5.5W
•  Complies with EU Directive 2015/863/EU

100G BIDI LR1 10KM	100G BIDI LR1 20KM	100G BIDI ER1 30KM	100G BIDI ER1 40KM	100G BIDI ZR4 80KM
100G	100G	100G	100G	100G
1271nm/1331nm	1291nm/1311nm	1305nm/1309nm	1305nm/1309nm	LWDM
10KM	20KM	30KM	40KM	80KM
LC	LC	LC	LC	LC
SM	SM	SM	SM	SM
DDM	DDM	DDM	DDM	DDM
COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C	COM: 0°C ~70°C

FAQ:

Q1: What are the key applications of 100G QSFP28?‌

A1: Our 100G QSFP28 modules are widely used in data centers, high-performance computing (HPC), and telecom networks for high-speed interconnects.

Q2: What types of 100G QSFP28 does ETU-Link offer?‌

A2: We provide SR4, LR4, ER4, ZR4, and CWDM4 variants, supporting multi-mode and single-mode fiber connections to 100m-100km.

Q3: Are ETU-Link 100G QSFP28 modules compatible with major brands?‌

A3: Yes, our 100G QSFP28 transceivers are fully MSA-compliant and interoperable with Cisco, Juniper, Arista, and other OEM switches.

Q4: Does you provide customization for 100G QSFP28?‌

A4: Yes, we offer OEM/ODM services including custom labeling, firmware, and compatibility testing.

Q5: How does 100G QSFP28 BiDi reduce fiber costs?‌

A5: BiDi modules enable bidirectional 100G transmission over a single fiber strand, doubling fiber utilization compared to conventional dual-fiber solutions.

Q6: What fiber connectors are used in 100G QSFP28?‌

A6: MPO-12 for SR4/PSM4, LC duplex for LR4/CWDM4, and LC simplex for BiDi models.

Q7: What is the warranty period for 100G QSFP28?‌

A7: Standard 3-year warranty with lifetime technical support.

ETU-Link 100G QSFP28 solves key points‌

Problem: Fiber congestion? BiDi models halve your fiber count

Problem: Compatibility fears? We guarantee MSA compliance + OEM testing

About ETU-LINK 100G Optical Module

100G QSFP28 portfolio delivers unparalleled flexibility and performance for data centers, telecom, and enterprise infrastructures. Whether deploying 100G Ethernet links over single-mode fiber or optimizing fiber efficiency with innovative technologies, our solutions cater to diverse demands:
