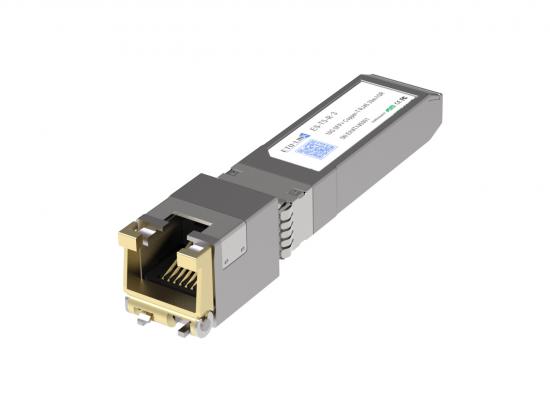

10G SFP+ Copper-T RJ45 Transceiver (Multi-rate)

Product Model:
ES-T5-R-3
Data Rate:
10G
Distance:
30M
Connector:
RJ45
Product Origin:
Made in China
Shipping Port:
ShenZhen
Brand:
ETU-LINK

Product Detail

DESCRIPTIONS

The SFP-10GBASE-T is a module that supports Hot-pluggable SFP+ footprint SFP type 10G-SR SFI interface to 1G/2.5G/5G/10G RJ45 interface. The SFP-10GBASE-T supports TX-DISABLED control signal and provides RX-LOS signal. In 2.5 G / 5 G / 10 G and 1 G applications, the automatic identification and base in 1000 -X module and 10 gr type automatic rearrangement of between modules, and inform the SFP master the current module type, greatly improve the applicability of the module and application performance.
SFP – 10Gbase - T support working mode of special code control module, easy to use more application scenarios, such as passive support USXGMII, SFI rate with RJ45 interface, passive follow SFI interface RJ45 rate, etc.

PRODUCT FEATURES

Supports 10G/5G/2.5G RJ45 interfaces and 10G-R SFI interface adaptation
Supports automatic switching between 1G RJ45 interface and 1000BASE-X SFI interface
Hot-pluggable SFP+ footprint
Fully metallic enclosure for low EMI
Low power dissipation
Support RX_LOS alerts and TX_DISABLE control
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
Supports Links up to 60m using Cat-6A Cable
RoHS Compliant
Operating case temperature: 0℃ to 70℃
