10G SFP+ TO SFP+ Active Optical Cable

Product Description The ‌10G SFP+ Electrical Passive Loopback‌ is a cost-effective testing solution designed for network equipment verification and diagnostic applications. This compact, plug-and-play module creates an internal loopback path for 10 Gigabit Ethernet (10GbE) ports, enabling comprehensive testing of SFP+ interfaces without requiring external fiber connections. This reliable loopback module provides a simple, efficient way to verify 10G SFP+ port functionality and perform bit error rate testing (BERT) in various networking environments. Its durable construction ensures repeated use while maintaining signal integrity. PN: ESX-LB Features  SFP+ MSA Compliant  Hot-pluggable MSA foot print  Custom Memory Maps Capability  Case Temperature range from -20° to 85°C  Compliant with SONET, SDH, GBE, FC  Power Consumption Different Option  Internal Attenuation Different Option Applications  Board and System Level Testing  Test and Measurement  Switch and Router Chamber Testing ---HASS and HALT  100Mb/s to 10.5Gbps Description 10G SFP+ Loopback modules provide an effective way of testing the SFP+ port in the host system by looping back the electrical signal (optics are excluded). The units provide basic serial ID information that attempts to mimic a shortwave Gigabit Ethernet, 1.25G, 2. 125G FC SFP transceiver, 4.25G FC, 8.5G FC and 10Gb/s Ethernet/FC for factory, environment, installation, simulation tests. FAQ: Q1: Can 10G SFP+ LR modules work with single-mode fibers?‌ A1: Yes, standard 10G-LR modules require OS2 single-mode fiber (1310nm wavelength) with 10km reach. Q2: Can I use 10G BiDi SFP+ for duplex fiber conversion?‌ A2: Yes, BiDi modules (1270nm/1330nm) enable single-fiber bidirectional transmission on existing duplex fiber plants. Q3: Why do some 10G SFP+ modules require external clock circuits?‌ A3: High-speed modules (e.g., 10G-LR) use ‌CDR (Clock Data Recovery)‌ chips to reduce jitter, requiring precise clock synchronization circuits on host PCB designs. Q4: Can I plug a 10G SFP+ module into an SFP port?‌ A4: Physically compatible, but ‌electrically incompatible‌ – SFP ports lack 10G SerDes lanes, causing link failure unless switch supports rate adaptation. Q5: What is difference between SFP and SFP+? A5: The main difference between SFP and SFP+ is that the SFP+ is used in Gigabit Ethernet applications while SFP is for 100Bse or 1000Base applications. SFP doesn't support 10G transmission data rate, which means they can't be used in the same network. Q6: What is SFP+ port used for? A6: SFP + modules are commonly used for Gigabit Ethernet and 10 Gigabit Ethernet connections and can adapt to various application scenarios, including high-speed network connections and fiber optic links. Q7: How to choose between SR, LR and ER optical modules?‌ A7: SR (Short Reach) for ≤300m multimode, LR (Long Reach) for 10km single-mode, ER (Extended Reach) for 40km+ single-mode applications. Q8: What are the advantages of 10G SFP+ BIDI? A8: Key Benefits:‌ Single-Fiber Solution‌ - Uses WDM to transmit/receive on one fiber (e.g., 1270nm/1330nm pairing) Cost Savings‌ - 50% less fiber usage, 30-40% lower installation costs Space Efficiency‌ - Doubles port density without new cabling Applications: areas with limited fiber resources, 5G fronthaul networks, metropolitan area network expansion, and high-density data center interconnection. Q9: Do 10G modules support DDM/DOM monitoring?‌ A9: A: Yes, compliant modules follow ‌SFF-8472‌ for real-time monitoring of temperature, TX power, and RX sensitivity. Q10: What is the maximum transmission distance of ETU-Link optical modules?‌ A10: Our modules support from 100m (SR multimode) up to 120km (ZR single-mode), with specific models optimized for 300m, 10km, 40km, 80km and 120km applications.

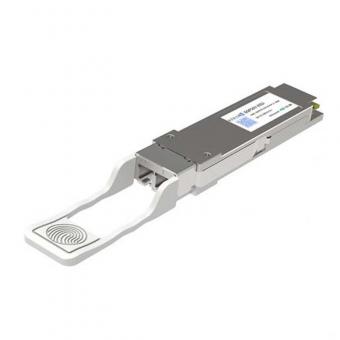

200G QSFP56 SR4 Optical Transceiver The 200G QSFP56 SR4 100m MPO optical transceiver is a high-performance, energy-efficient solution designed for next-generation data center networks.  Featuring a compact QSFP56 form factor and MPO-12 duplex connector, it maximizes port density while consuming under 4W of power.  This transceiver is ideal for AI/ML clusters, hyperscale spine-leaf architectures, and 200G Ethernet uplinks. Its plug-and-play design simplifies deployment, offering a cost-effective migration path from 100G infrastructure.  Compliant with 200G-SR4 optical specifications  4x53.125Gb/s electrical interface (200GAUI-4)  Reach up to 70m on MMF(OM3)  Reach up to 100m on MMF(OM4)  Single +3.3V power supply  Case temperature range: 0 ~ +70℃  Maximum power consumption 4W  Single MPO12 connector  RoHS complaint 200G QSFP56 SR4 100M 400G QSFP-DD SR8 100M 400G QSFP-DD DR4 2KM 400G QSFP-DD LR4 10KM 400G OSFP SR8 100M 200G 400G 400G 400G 400G 100M 100M 2KM 10KM 100M 850nm 850nm 1310nm CWDM 850nm MPO MPO MPO LC MPO MM MM SM SM MM DDM DDM DDM DDM DDM COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C COM: 0°C ~70°C FAQ: Q1: What is 200G QSFP56?‌ A1: 200G QSFP56 is a high-speed optical module with 4x53.125Gb/s electrical interface (200GAUI-4), designed for 200G Ethernet and InfiniBand HDR networks in data centers. Q2: What is 400G QSFP-DD? A2: It is a high-density, hot-pluggable optical module interface supporting 400Gbps data rates, featuring 8 electrical channels for enhanced bandwidth. Q3: What are the main types of 400G QSFP-DD modules? A3: Common variants include SR8 (short-range), DR4/FR4 (intermediate), LR4/LR8 (long-range), and ER4/ER8 (extended-reach), with transmission distances ranging from 100m to 40km. Q4: How does QSFP-DD differ from QSFP28? A4: QSFP-DD doubles channel count (8 vs. 4) and supports 50Gbps PAM4 modulation per lane, achieving 4x higher bandwidth while maintaining similar port density. Q5: What is the maximum transmission distance for 400G QSFP-DD LR4? A5: The LR4 variant supports up to 10km over single-mode fiber (SMF) using 4x106Gbps lanes, ideal for 5G and cloud interconnects. (https://www.etulinktechnology.com/400g-qsfp-dd-lr4-10km-lc-optical-transceiver_p330.html) Q6: What is the electrical interface of QSFP-DD? A6: The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Q7: Does QSFP-DD support digital diagnostics? A7: Yes, it includes DDM (Digital Diagnostic Monitoring) per MSA standards, enabling real-time monitoring of temperature, voltage, and optical power. Q8: What DAC options exist for 400G QSFP-DD? A8: Available configurations include direct QSFP-DD-to-QSFP-DD, or breakout to 2x200G QSFP56/4x100G QSFP56/8x50G SFP56 for flexible scaling. Q9: What is 400G OSFP?‌ A9: The OSFP (Octal Small Form-factor Pluggable) is a 400G optical module standard with 8 electrical channels, designed for high-speed data transmission in data centers and telecom networks. Q10: How does OSFP differ from QSFP-DD?‌ A10: OSFP has a larger form factor and non-compatible electrical interfaces, while QSFP-DD is backward-compatible with QSFP28 modules.
