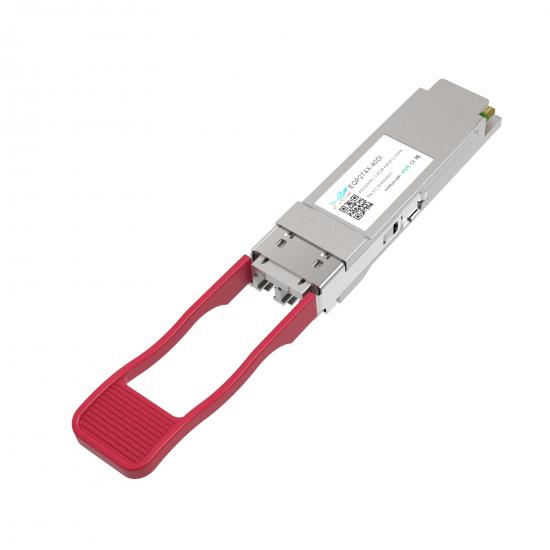

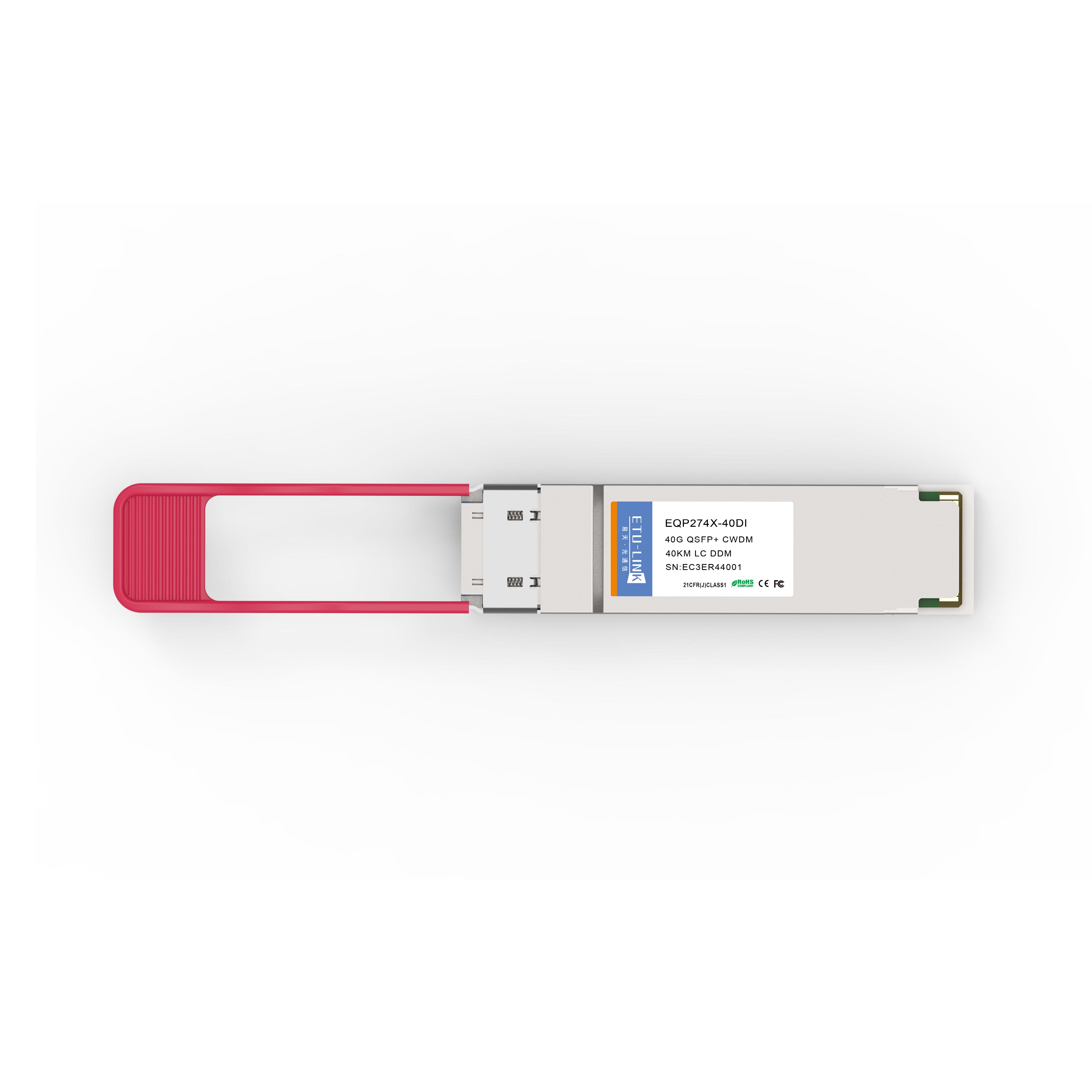

40G QSFP+ ER4 40KM LC Optical Transceiver

40G QSFP+ ER4 40KM LC Optical Transceiver



  • Product Model:

    EQxx4X-3LCD40
  • Data Rate:

    40G
  • Wavelength:

    WDM
  • Distance:

    40km
  • Connector:

    LC
  • Fiber Type:

    SM
  • DDM:

    YES
  • Product Origin:

    China
  • Shipping Port:

    ShenZhen
  • Lead Time:

    Please contact our sales for confirmatio
  • Product Detail

  • Transmission data rate up to 11.2Gbps per channel
  • QSFP+ MSA compliant
  • Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links
  • 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm
  • High Sensitivity APD-TIA with optical DEMUX
  • Up to 40km reach over standard single mode fiber
  • Hot pluggable electrical interface
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply
  • RoHS 6 compliant(lead free)
