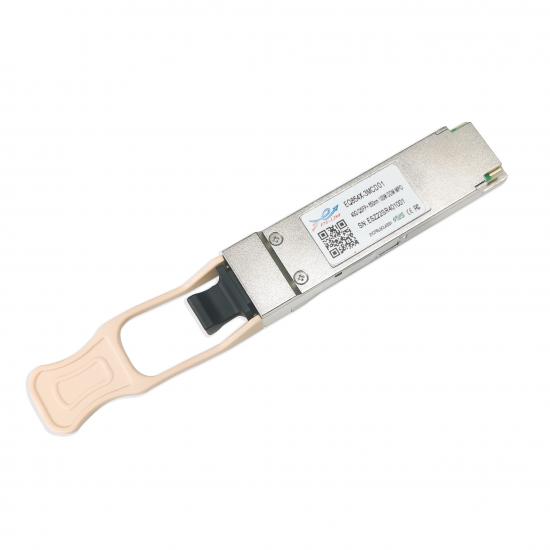

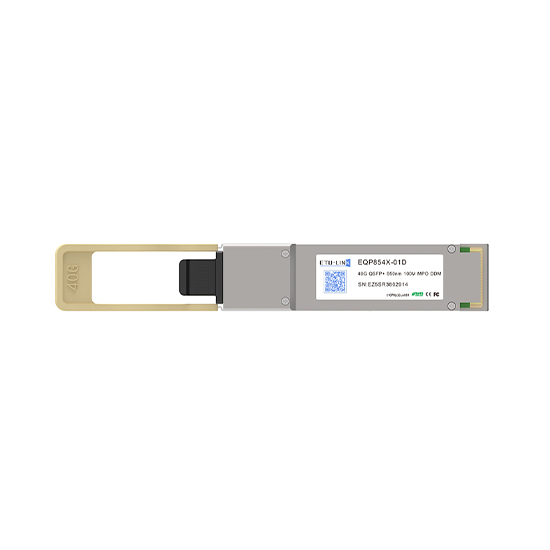

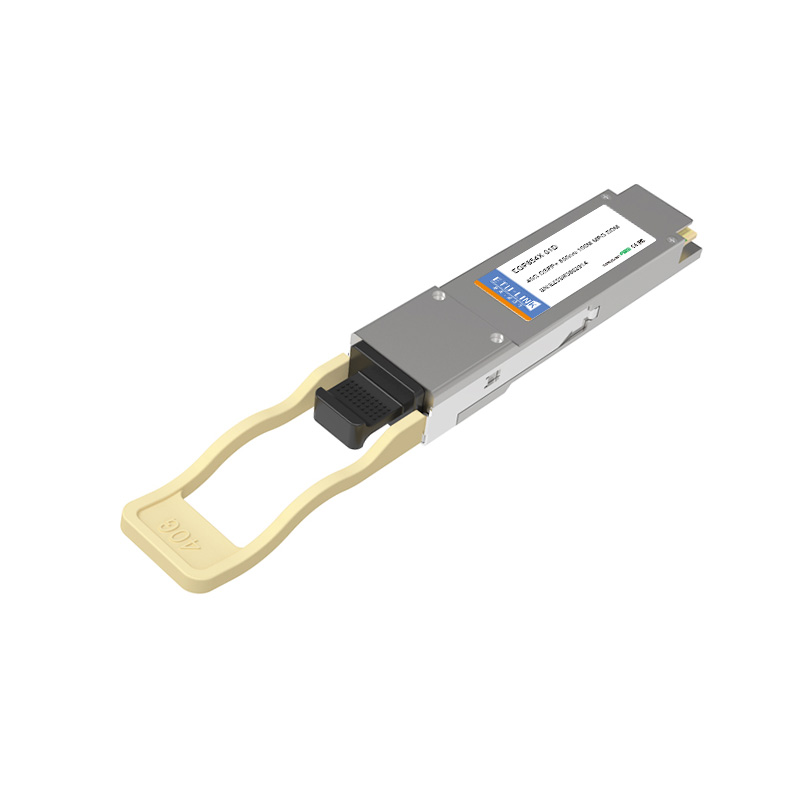

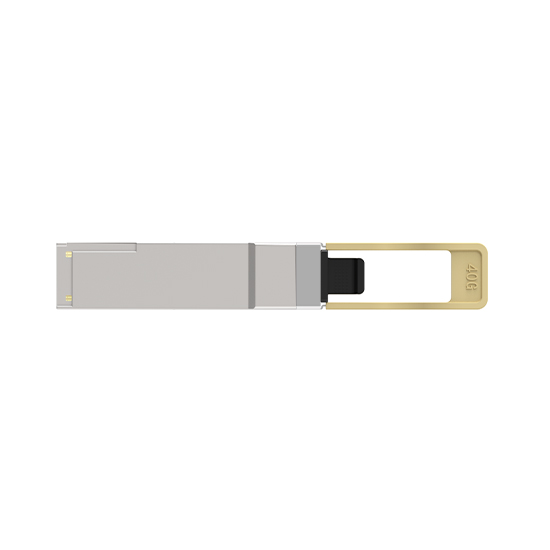

Product Model:
EQP854X-01DData Rate:
40GDistance:
100MConnector:

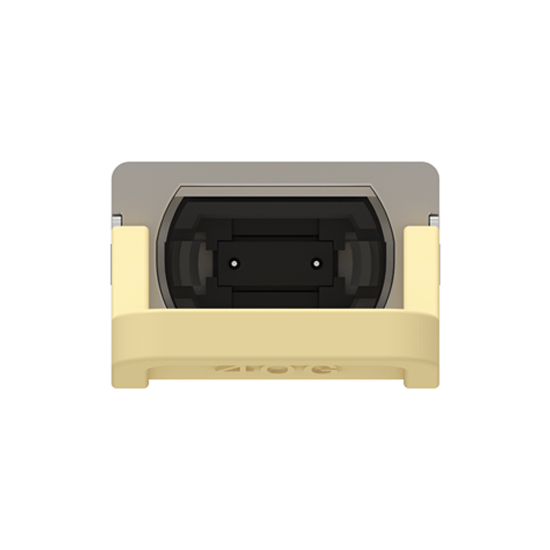

MPOFiber Type:
MMDDM:
YESProduct Origin:
ChinaShipping Port:
ShenZhenBrand:
ETU-LINK
How to choose 40G QSFP+ optical module?
40G QSFP+ optical module refers to the transmission rate of 40G, and the package of this optical module is QSFP+. 40G optical module has four independent full-duplex transceiver channels, each channel of the transceiver rate of 10G, thus forming a 40G transmission rate, ETU LINK Optical Communication (ETU-LINK) will introduce the 40G QSFP + optical module what types are there.
IEEE organization for 40G QSFP + optical module to develop a variety of transmission protocols, common are: 40G BASE-SR4, 40G BASE-LR4, 40G BASE-BiDi, 40G BASE-ER4, etc., the interface type of these optical modules, transmission distance, working wavelength are not the same, the following is the parameter list of 40G optical modules for you reference.
ETU PN |
Data Rate |
Package |
Wavelength (nm) |
Distance |
Connector |
Patch cord |
40G |
QSFP+ |
850 |
150m |
MPO |
OM4 |
|
EQ854X-3MCD04 |
40G |
QSFP+ |
850 |
400m |
MPO |
OM4 |
EQ314X-3MCD2(PSM4) |
40G |
QSFP+ |
1310 |
2km |
MPO |
OS2 |
EQxx4X-3LCD10 |
40G |
QSFP+ |
CWDM |
10km |
Dual LC |
OS2 |
40G |
QSFP+ |
CWDM |
40km |
Dual LC |
OS2 |
As shown in the table above, 40G SR4, 40G ER4? and 40G BIDI are multimode optical modules that require the use of OM3/OM4 fiber optic patch cords for transmission, which are suitable for equipment interconnection within the data center due to the short transmission distance; 40G SR4, 40G eSR4 and 40G PSM4 interface types are MPO interfaces, this type of interface can not only achieve 40G link connection, but also use MPO-LC patch cord to achieve 40G link and 10G link connection; LX4, LR4, ER4 interface type is LC, need to be used with single-mode fiber OS2 patch cord, the transmission distance is more than 2KM, the farthest is 40KM.
Q1: What is a 40G QSFP Optical Module?
A1: A 40G QSFP (Quad Small Form-factor Pluggable) module is a hot-swappable transceiver that supports 40Gbps data transmission. It uses a 4-channel parallel design and is widely deployed in data centers and high-performance computing networks.
Q2: What are the common types of 40G QSFP modules?
A2: QSFP+ SR4 (850nm multimode, 100m)
QSFP+ LR4 (1310nm single-mode, 10km)
QSFP+ ER4 (1310nm single-mode, 40km)
QSFP+ BiDi (Single-Fiber Bidirectional)
Q3: How do I check if a 40G QSFP module is compatible with my device?
A3: Verify three aspects:
Switch vendor compatibility lists
Matching fiber type (MMF/SMF)
Required transmission distance
Q4: How to resolve overheating in 40G QSFP modules?
A4: Solutions:
Ensure adequate device ventilation
Use modules with heat dissipation fins
Avoid sustained 100% bandwidth utilization
Q5: What precautions should I take when installing 40G QSFP modules?
A5: Key operational guidelines:
Clean fiber connectors before insertion to prevent dust from disrupting optical signal transmission.
Ensure adequate ventilation around devices; reserve thermal headroom for high-heat modules.
Configure port aggregation mode on the switch when using breakout applications.
Q6: What's the difference between SFP, QSFP and QSFP-DD modules?
A6: SFP (1-25G), QSFP (40-100G), and QSFP-DD (400G+) differ in form factor and bandwidth capacity. QSFP-DD doubles QSFP28's density with 8-lane electrical interfaces.
Q7: How does ETU-Link ensure compatibility with major brands?
A7: We maintain a multi-vendor test lab with full protocol support (Ethernet/InfiniBand/Fibre Channel) and 100% compatibility verification before shipment
Q8: What temperature ranges do your modules support?
A8: Commercial grade (0°C to +70°C)
Extended grade (-20°C to +85°C)
Industrial grade (-40°C to +85°C) for harsh environments.
Q9: How does ETU-Link achieve 40G QSFP+ interoperability?
A9: Through:
Multi-vendor switch testing
Firmware customization for legacy equipment
MSA-compliant electrical interfaces
Q10: Do 40G QSFP+ modules support DDM/DOM monitoring?
A10: Standard feature including:
Real-time temperature (±1°C accuracy)
Tx/Rx power (µW/dBm display)
Laser bias current
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
