QSFP28: with the same interface size as a QSFP+ module. A QSFP28 interface can use a 100GE QSFP28 optical module or a 40GE QSFP+ optical module.
-

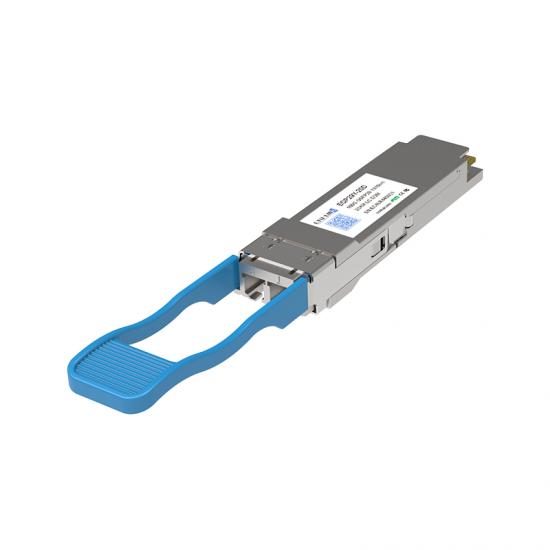

100G QSFP28 SR4 100M MPO Optical Transceiver
A high-density, hot-pluggable optical module designed for short-reach 100 Gigabit Ethernet connections in data centers. Through an MPO/MTP connector for distances up to 100 meters. This transceiver is ideal for high-speed links between switches, routers, and servers within racks or across adjacent rows, offering a cost-effective solution for scalable network architectures.
-

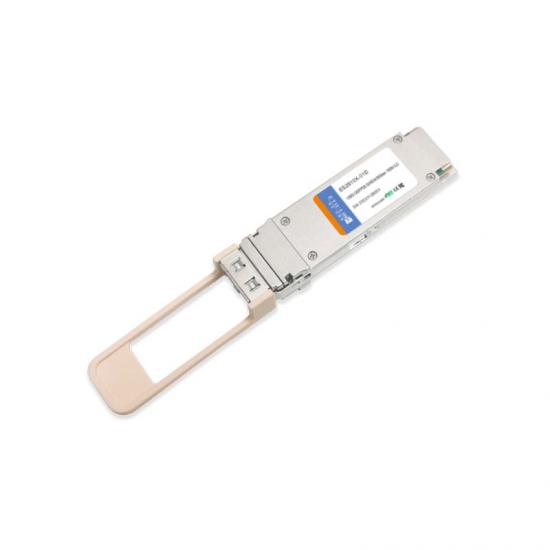

100G QSFP28 SWDM4 100m LC Optical Transceiver
A high-speed optical module that utilizes Shortwave Wavelength Division Multiplexing (SWDM4) technology to transmit 100Gbps data over a single pair of multimode fibers with LC connectors for distances up to 150 meters. By multiplexing four distinct shortwave wavelengths (850-940nm) over the same fiber pair, it provides a cost-effective solution for upgrading existing multimode fiber infrastructure to 100G without requiring cabling changes. This transceiver is ideal for high-density data center interconnects, offering simplified fiber management and backward compatibility with OM3/OM4 multimode cabling systems.
-
100G QSFP28 SR BiDi 100m LC Optical Transceiver
A high-speed optical module that enables 100G Ethernet transmission over a single strand of multimode fiber using Bidirectional (BiDi) technology and standard LC connectors. By employing two different wavelengths (e.g., 850nm/900nm) on the same fiber strand, it achieves 100Gbps full-duplex communication over distances up to 100 meters on OM4 fiber.
-
100G QSFP28 DR1 500m LC Optical Transceiver
A single-lane, hot-pluggable optical module designed for 100G Ethernet applications over single-mode fiber with LC connectors . Operating at a wavelength of 1310nm, it supports transmission distances of up to 500 meters using PAM4 modulation technology. This transceiver complies with the 100GBASE-DR1 standard (IEEE 802.3cd) and is ideal for cost-effective, high-density data center interconnects, leaf-spine architectures, and other short-reach single-mode fiber applications where simplified fiber infrastructure and power efficiency are critical.
-
100G QSFP28 FR1 2km LC Optical Transceiver
A single-wavelength, hot-pluggable optical module designed for 100G Ethernet applications over single-mode fiber with standard LC connectors. Operating at 1311nm wavelength, it supports transmission distances of up to 2 kilometers in compliance with the 100GBASE-FR1 standard (IEEE 802.3cu). This transceiver is particularly suitable for data center interconnects, enterprise networking, and telecommunications access networks, offering a balance of performance and power efficiency while maintaining compatibility with existing LC fiber infrastructure.
-
100G QSFP28 CWDM4 2KM LC Optical Transceiver
Utilizing Coarse Wavelength Division Multiplexing (CWDM4) technology, it multiplexes four 25Gbps wavelengths (1271nm, 1291nm, 1311nm, 1331nm) to achieve an aggregate 100Gbps rate, supporting reaches up to 2 kilometers.
-
100G QSFP28 PSM4 2KM MPO Optical Transceiver
Utilizing Parallel Single-Mode 4-lane (PSM4) technology, across four independent parallel channels (each at 26Gbps) to achieve an aggregate 100Gbps data rate, supporting reaches up to 2 kilometers.
-
100G QSFP28 LR1 O Band DWDM 10km LC Optical Transceiver
Deliver 106.25Gbps data transmission over single-mode fiber with LC connectors. Operating on a specific ITU-grid wavelength and utilizing PAM4 modulation, it achieves a reach of up to 10 kilometers while complying with the 100GBASE-LR1 standard.
-
100G QSFP28 CWDM4 10KM LC Optical Transceiver
Utilizing Coarse Wavelength Division Multiplexing (CWDM4) technology to transmit data over single-mode fiber with standard LC connectors. It employs four 25Gbps wavelengths (1271nm, 1291nm, 1311nm, 1331nm) multiplexed into a single fiber pair, achieving an aggregate 103.125 Gbps data rate with a reach of up to 10 kilometers.
-
-
100G QSFP28 LR4 10KM LC (BOX) Optical Transceiver
Utilizing four 25.78Gbps wavelengths multiplexed into a single fiber pair via LC connectors. It supports transmission distances up to 10 kilometers over single-mode fiber, complying with the 100GBASE-LR4 standard. Enhanced temperature-hardened packaging (Industrial/Extended Temperature Range, -40°C to 85°C), making it suitable for harsh environments in industrial networks, outdoor deployments, or extreme-condition data centers.
-
100G QSFP28 LR1 BIDI 10KM LC Optical Transceiver
Innovative single-fiber bidirectional optical module that enables 100 Gigabit Ethernet transmission over a single strand of single-mode fiber using BIDI (Bidirectional) technology and standard LC connectors. It employs two different wavelengths on the same fiber strand with PAM4 modulation, achieving full-duplex 106.25Gbps data rates over distances up to 10 kilometers.
-
100G QSFP28 LR4 10KM LC Optical Transceiver
Designed for 100 Gigabit Ethernet data transmission over single-mode fiber with LC connectors. It utilizes four 25.7Gbps to achieve an aggregate 103.125 Gbps data rate, supporting reaches up to 10 kilometers.
-
100G QSFP28 LR4 20KM LC (BOX) Optical Transceiver
It achieves 103.125 Gbps aggregate bandwidth over single-mode fiber with LC connectors, supporting transmission distances up to 20 kilometers. Extended temperature range (typically -40°C to +85°C) and enhanced durability for harsh environments.
-
-
