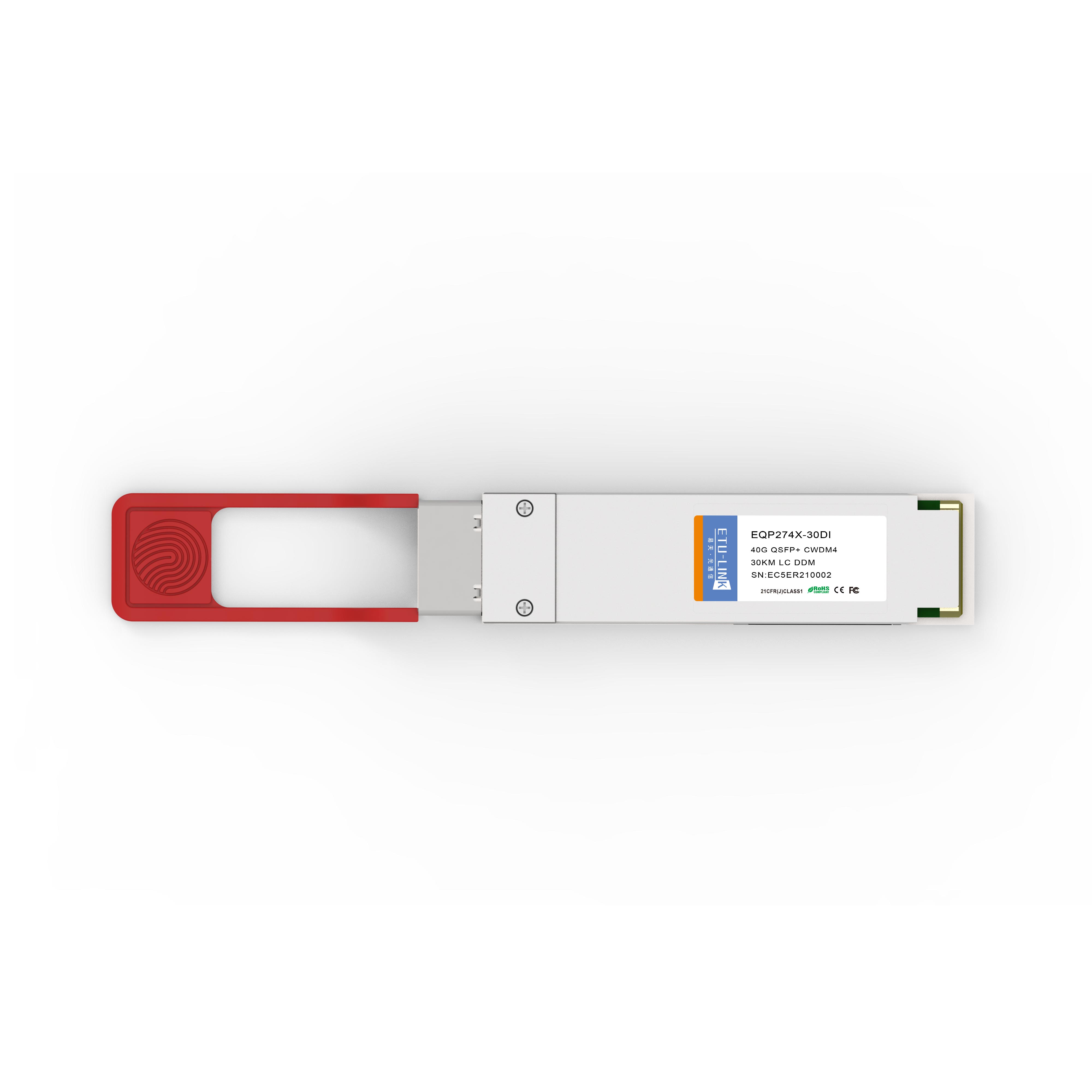

QSFP-40G-ER4 30KM
40Gbps CWDM 30KM QSFP+ Optical Transceiver
  • Item NO.:EQxx4X-3LCD30
  • Data Rate:40G
  • Wave Length:CWDM
  • Distance:30KM
  • Connector:LC
  • First:SM
  • DDM:YES
  • Product Origin:China
  • Shipping Port:ShenZhen
  • Lead Time:Pls contact our sales for confirmation
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

EQxx4X-3LCD30

40Gbps CWDM 30KM QSFP+ Optical Transceiver


Feature

Ø Transmission data rate up to 11.2Gbps per channel

Ø QSFP+ MSA compliant

Ø Compliant to IEEE 802.3ba specification

Ø 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm

Ø Up to 30km reach over standard single mode fiber

Ø Hot pluggable electrical interface

Ø Operating case temperature 0°C to +70°C

Ø 3.3V power supply

Ø Power dissipation <3.5 W

Ø RoHS 6 compliantlead free


 Applications

Ø 40G Ethernet links

Ø Data Center and LAN


Description

This product is a transceiver module designed for 30km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (4ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
