QSFP-40G-ER4

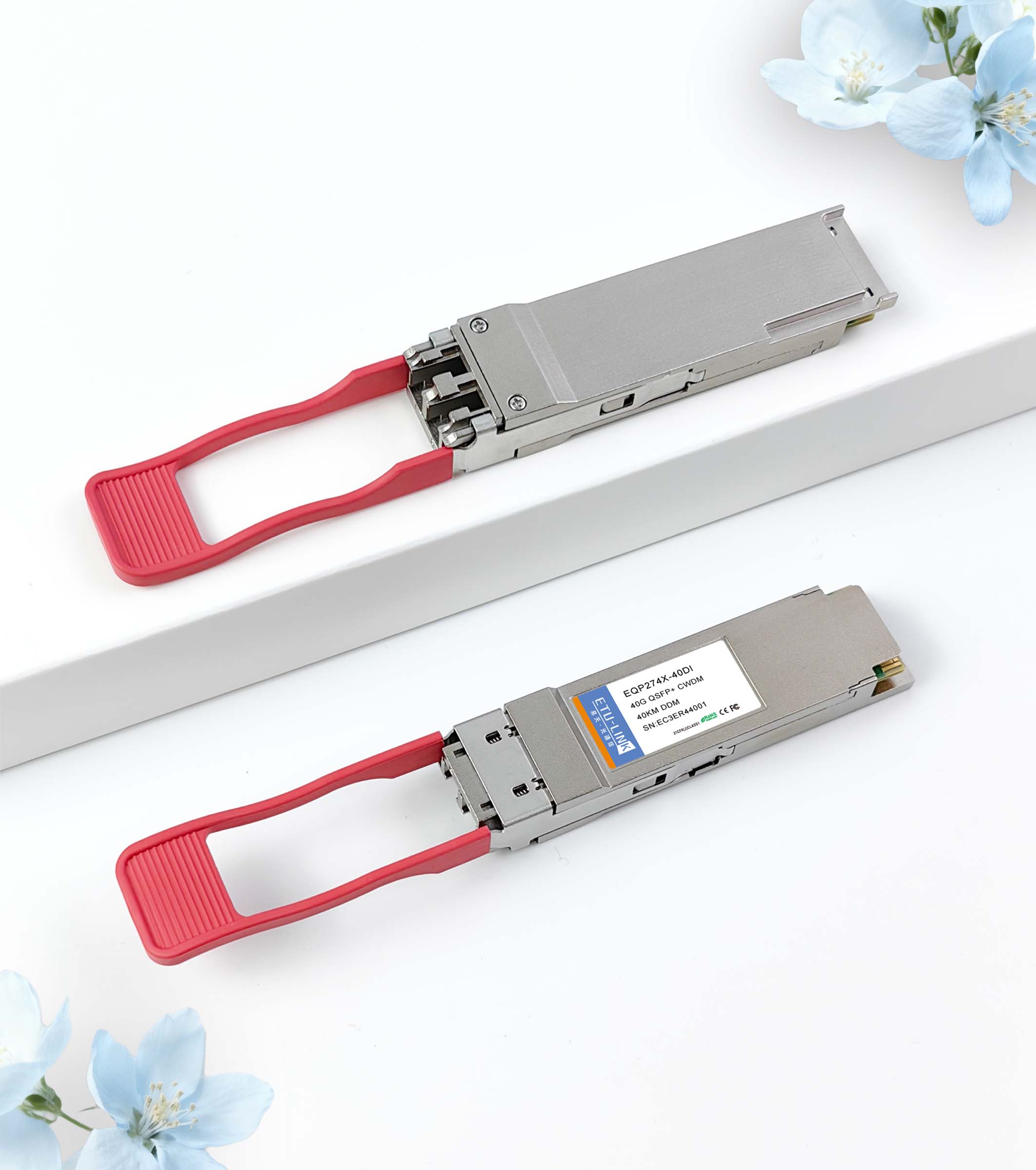

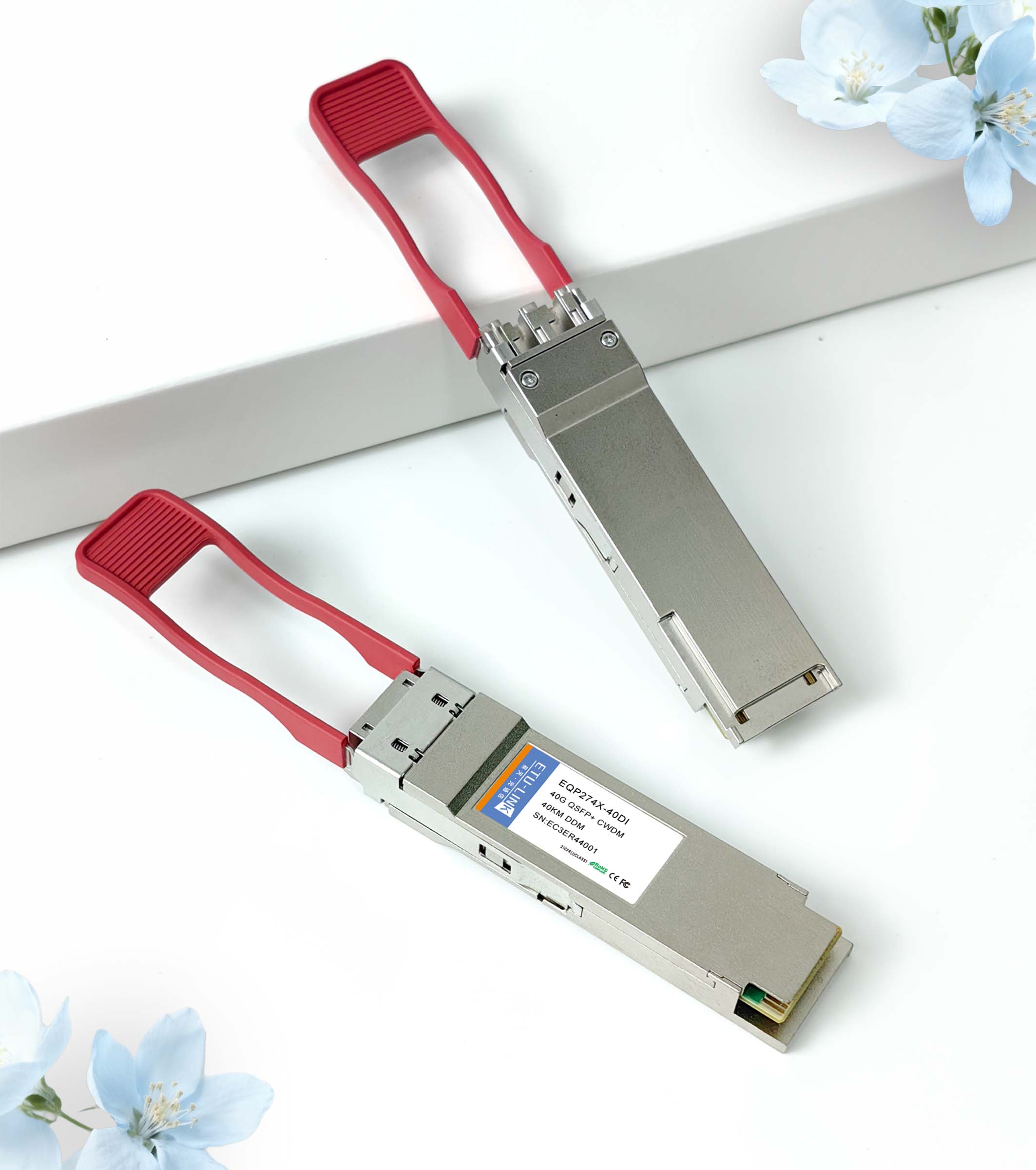

QSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVER
  • Item NO.:EQxx4X-3LCD40
  • Data Rate:40G
  • Wave Length:CWDM
  • Distance:40km
  • Connector:LC
  • First:SM
  • DDM:YES
  • Product Origin: China
  • Shipping Port:ShenZhen
  • Lead Time:Please contact our sales for confirmatio
Data download
If you would like to know more about product information, please click here Adobe Reader
to download the data sheet
Product Details

EQxx4X-3LCD40

40Gbps CWDM 40KM QSFP+ Optical Transceiver

Ø Transmission data rate up to 11.2Gbps per channel

Ø QSFP+ MSA compliant

Ø Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links

Ø 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm

Ø High Sensitivity APD-TIA with optical DEMUX

Ø Up to 40km reach over standard single mode fiber

Ø Hot pluggable electrical interface

Ø Operating case temperature 0°C to +70°C

Ø 3.3V power supply

Ø RoHS 6 compliantlead free


 Applications

Ø 40GBASE-ER4 40G Ethernet links

Ø OTU3,OTU3e1,OTU3e2


Description

This product is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (4ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Related Tags : QSFP-40G-ER4 QSFP-40G-ER4-S Cisco 40G QSFP+ ER4 HUAWEI 40G QSFP+ ER4 40G QSFP+ ER4
