This practical guide covers core strengths, passive‑active DAC distinctions, real‑world wiring topologies, leaf‑spine ToR deployment cases, wiring best‑practices, common pitfalls and product selection guidance for data‑center cabling engineers and system integrators.

Network generic cabling is becoming more and more popular. As a high bandwidth and high security data transmission medium, optical fiber cable is widely used in various large and medium-sized networks. However, due to the high cost of optical fiber cable solutions, in some cases, copper core high-speed cable still plays an important role. For example, 10G SFP+ DAC direct attach cable is the high performance of 10G data center short-distance transmission application Price ratio solution. So next, we will introduce the advantages and wiring applications of this high-speed cable.

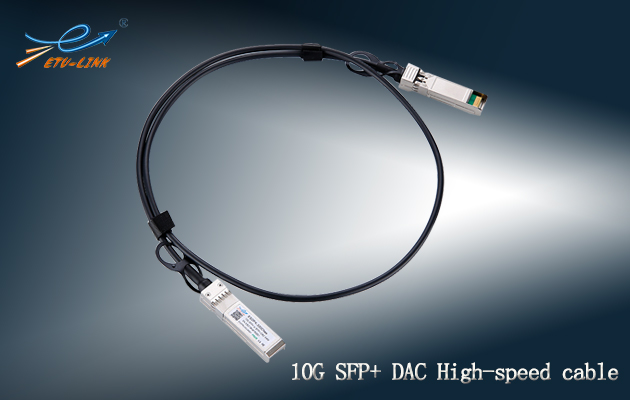

Ⅰ. What Are The Main Advantages Of 10G SFP+ DAC Cable?

Advantages of 10G SFP+ DAC:

10G SFP+ DAC is a copper cable designed with both ends of the SFP+ connector. It is more flexible to use 10G SFP+ DAC for wiring, with a transmission distance of up to 15m, and less difficult to operate in the actual construction process. 10G SFP+ DAC wiring saves connection equipment, does not need to use distribution frame, and servers and network equipment can be directly connected to tor switch, which indirectly saves investment cost.

The 10G SFP+ DAC provided by ETU-Link usually supports a link length of 15m, which has the advantages of low power consumption and low latency. Therefore, it has become an ideal choice for the connection between the server and the switch. The 10G SFP+ AOC supports a link length of 100m, and is a low-cost solution to replace the optical module. Therefore, it is usually used for the connection between the switch and the switch.

Additional key benefits:
1.Plug‑and‑play hot‑swap design, no fiber cleaning, no risk of ferrule dust contamination compared with optical‑module‑plus‑fiber solutions;
2.Reduce CAPEX: Eliminate extra purchase cost of paired SFP+ optical transceivers;
3.Two major variants available: passive DAC (max‑7m) and active DAC (max‑15m), to satisfy different intra‑data‑center wiring distances;
4.Suitable for low‑latency workload such as storage SAN and HPC computing cluster;
Limitation reminder: DAC copper cable cannot be used for cross‑building or outdoor deployment; distance shall not exceed rated specification value.

Ⅱ. Typical Wiring & Connection Solutions Of 10G SFP+ DAC Cable

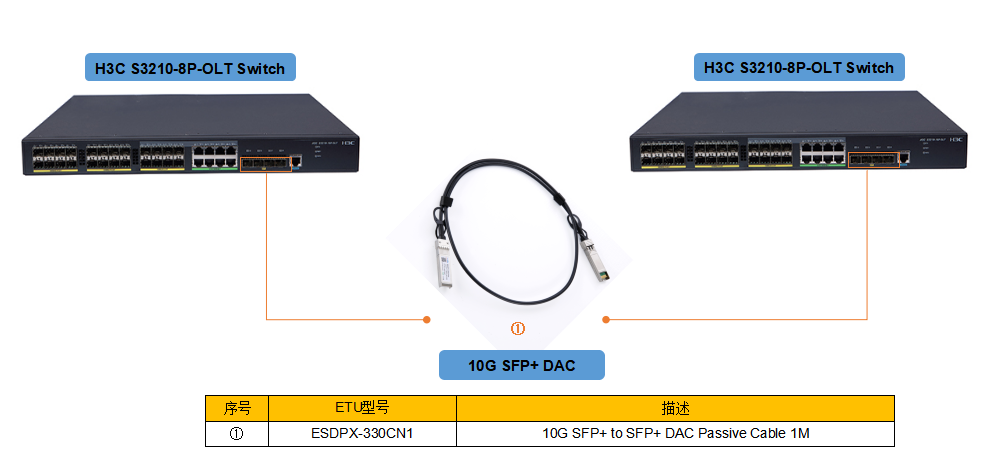

10G SFP+ DAC cable and switch connection solution:

10G SFP+ DAC cable is widely used in the interconnection between 10G Optical fiber network cards, the interconnection between 10G tor switch and server, and the stacking of 10G Ethernet switches.

Three mainstream practical wiring modes:
1. Server NIC to ToR leaf‑switch intra‑rack connection: Most‑common scenario, select passive DAC 1‑3m;
2. 10G Ethernet switch stacking: Short‑range stacking link between access‑layer switches within one cabinet;
3. Same‑row adjacent‑rack interconnection: If wiring path is 7‑15m, choose active DAC copper cable.
Important note: When leaf‑spine architecture requires transmission over 15 meters, replace DAC with SFP+ optical‑module plus OS2 fiber or 10G SFP+ AOC active optical cable.

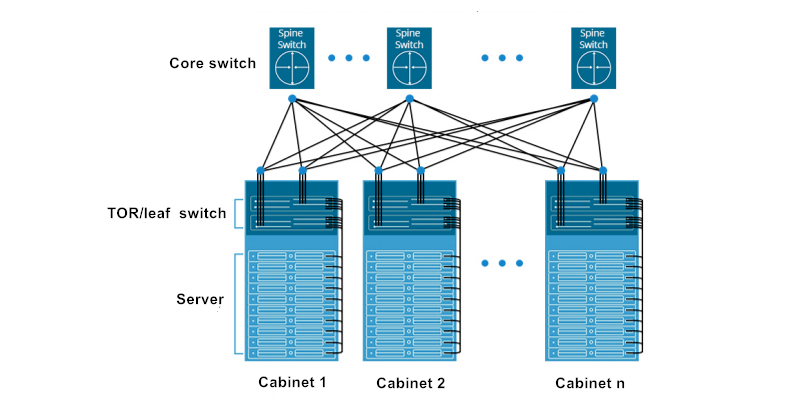

Ⅲ. How Does 10G SFP+ DAC Cooperate With Optical‑Module In TOR‑Switch Leaf‑Spine Topology?

10G SFP+ DAC cable and 10G Optical module, TOR switch wiring solution:

In the current popular backbone topology, TOR switches are leaf switches, which are connected with backbone switches. In a 10G network, 10G server is connected to 10G switch through 10G SFP + DAC and cat6a / cat7 with 10G Optical module. 10G switch is connected to 40G backbone switch as leaf switch.

Ⅳ. ETU‑LINK 10G SFP+ DAC Related Product Portfolio

10G SFP+ DAC is characterized by low loss, high efficiency, energy saving and low cost, which can meet the growing cabling requirements of transmission rate, scalability and reliability. If you want to realize the connection between the server and the switch within 10m, it is recommended to select 10G SFP+ DAC.

ETU‑‑LINK supplies complete 10G SFP+ DAC product series: passive DAC (0.5‑7m), active DAC (1‑15m). All comply SFF‑8431 / SFF‑8432 MSA standard, support custom EEPROM coding for mainstream switches. Matching alternative product: 10G SFP+ AOC active optical cable for scenarios over DAC distance‑limit. Every DAC cable passes full signal‑integrity test before delivery, OEM private‑label and custom‑length service are available for system‑integrator bulk‑orders.

Related Products

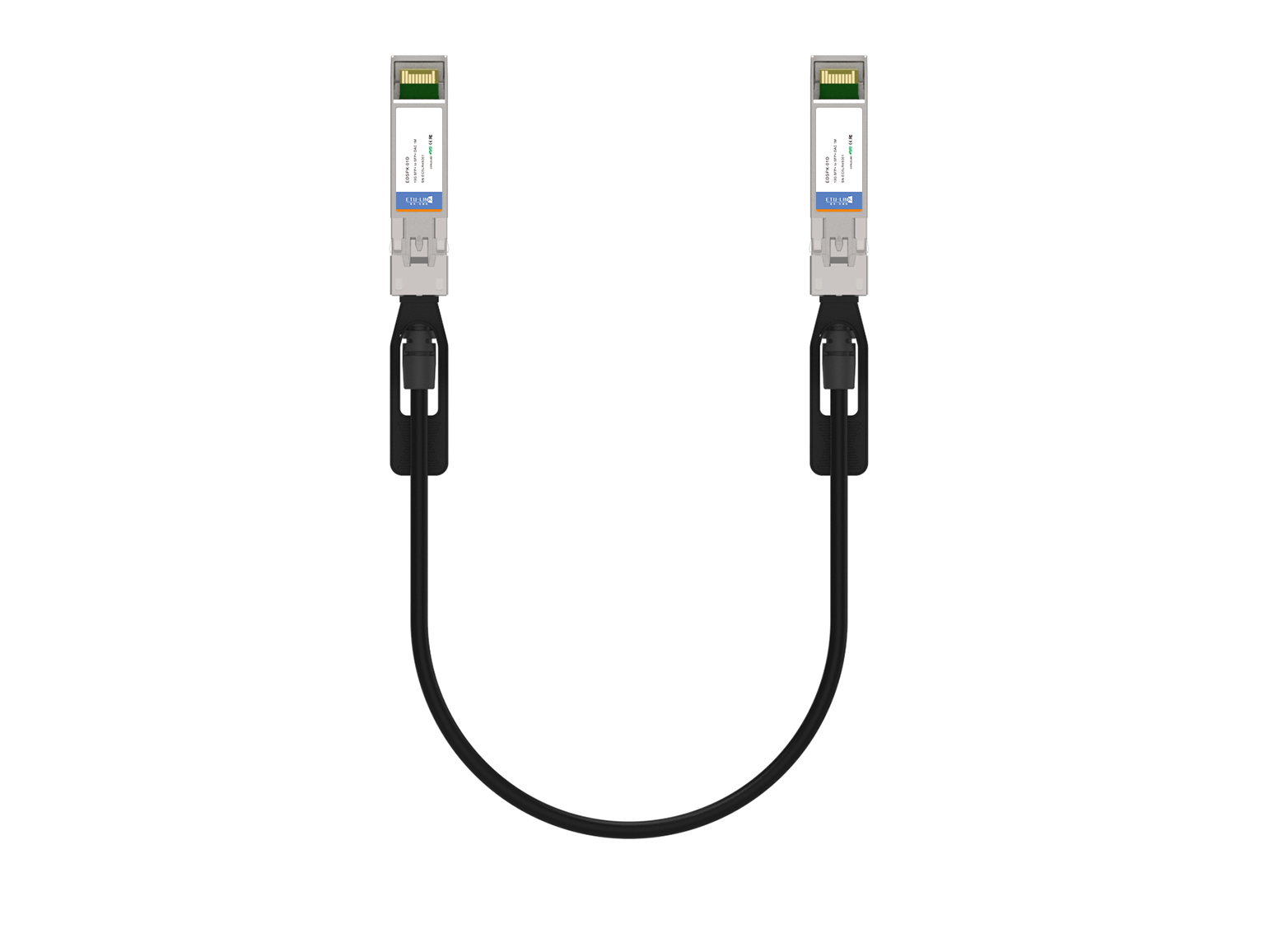

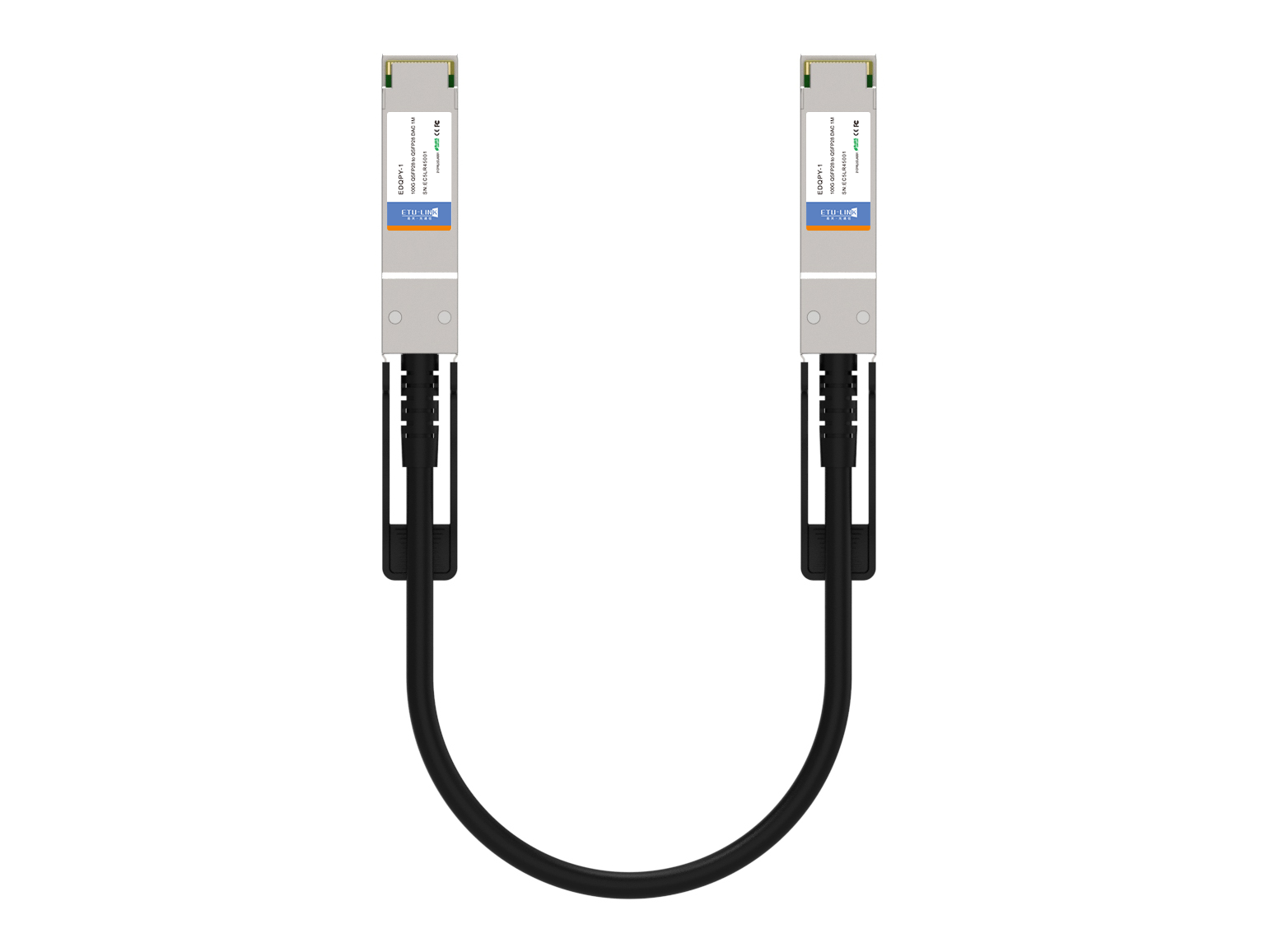

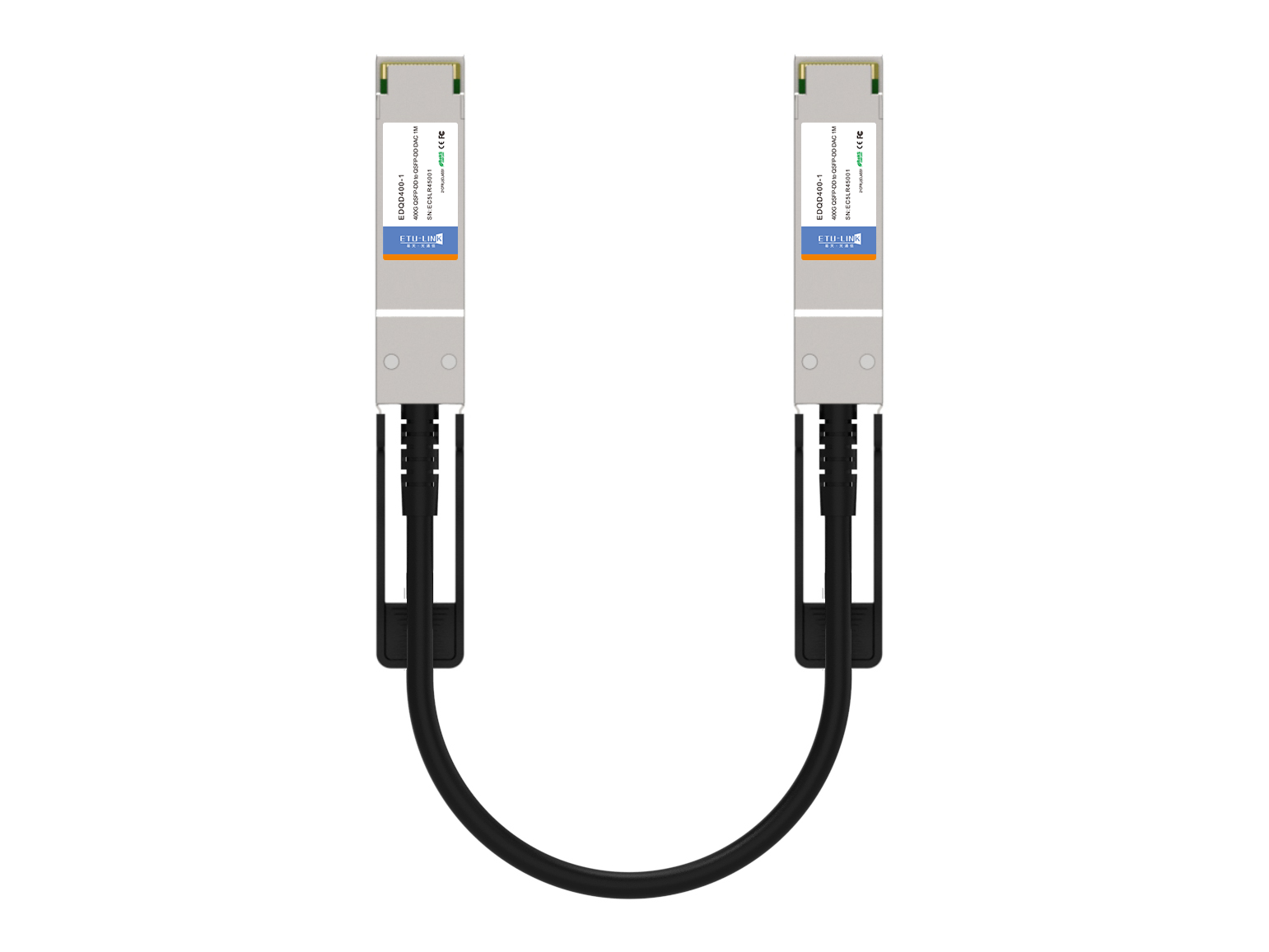

10G SFP+ TO SFP+ DAC	100G QSFP28 TO QSFP28 DAC	200G QSFP56 TO QSFP56 DAC	400G QSFP-DD DAC
