Differences Between Silicon Photonic Modules and Traditional Optical Modules

November 25. 2025

As data center speeds advance towards 800G and even 1.6T, a technology called "silicon photonics" is changing the optical module industry landscape with unprecedented momentum. Many network engineers and procurement specialists ask: What are silicon photonic modules? How do they differ from traditional optical modules? Which one should I choose for 800G/1.6T data center deployment? What are their respective application scenarios? This article analyzes their core differences in technology, materials, integration, cost and performance, and provides practical selection guidance.

1. What Are the Differences in Technical Approach and Materials?

Traditional optical modules employ a "hybrid integration" technology. Their core light-emitting component—the laser—is typically made of III-V compound semiconductor materials such as indium phosphide (InP); modulators, detectors, etc., may use gallium arsenide (GaAs) or lithium niobate (LiNbO3). Functionality is achieved through multi-stage assembly, similar to "assembling a precision clock from scattered parts."

The core technology of silicon optical modules is "optoelectronic co-packaging". It uses mainstream silicon (Si) as the optical substrate and, through advanced semiconductor processes, directly "carves" most of the optical components such as waveguides, modulators, and detectors on the silicon wafer to achieve optical path integration. It is like "micro-carving a complete functional system on a single crystal".

2. What Are the Differences in Integration Level and Size?

Due to limitations in materials and manufacturing processes, traditional optical modules contain numerous internal components and have complex structures. As speeds increase, it becomes increasingly difficult to further reduce their size in order to accommodate more channels (such as 4x100G or 8x100G), and the challenges of power consumption and heat dissipation become more and more severe.

Silicon photonics modules, with their extremely high integration, can integrate multiple optical functions onto a single tiny chip. This allows them to achieve the same or even higher bandwidth while being smaller and denser. This is undoubtedly a huge advantage for data center switches, where space is extremely precious.

3. What Are the Differences in Manufacturing Process, Cost and Scalability?

Traditional optical module manufacturing relies heavily on manual alignment, packaging, and testing, especially for high-speed products where extremely high precision is required, resulting in high costs. This technological approach encounters bottlenecks when scaling to even higher speeds.

The manufacturing process of silicon photonics modules is compatible with mature CMOS integrated circuit processes, meaning it can leverage the existing vast semiconductor supply chain to achieve large-scale, standardized production. Once the technology matures, its cost reduction potential is enormous, and it is easier to evolve to higher speeds and more complex functions, exhibiting excellent scalability.

4. What Are the Differences in Overall Performance and Technical Bottlenecks?

Traditional optical module technology is mature, with stable and reliable performance, and still has irreplaceable advantages in specific application scenarios (such as ultra-long-distance transmission).

Silicon photonics modules offer significant advantages in power consumption and integration. However, their lasers (light sources) currently require external coupling, which remains a technical challenge. Nevertheless, with the development of CPO (co-packaged optics) technology, silicon photonics can package the optical engine and switching chip closer together, further reducing power consumption and latency – exactly what future hyperscale data centers crave.

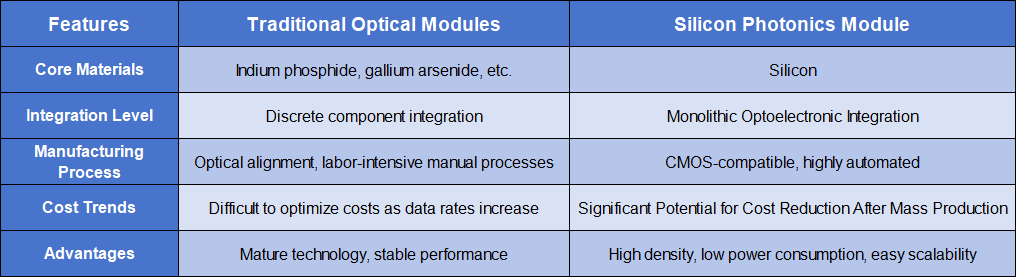

Full Comparison Table: Silicon Photonic Modules VS Traditional Optical Modules

Features	Traditional Optical Modules	Silicon Photonics Module
Core Materials	Indium phosphide, gallium arsenide, etc.	Silicon
Integration Level	Discrete component integration	Monolithic Optoelectronic Integration
Manufacturing Process	Optical alignment, labor-intensive manual processes	CMOS-compatible, highly automated
Cost Trends	Difficult to optimize costs as data rates increase	Significant Potential for Cost Reduction After Mass Production
Advantages	Mature technology, stable performance	High density, low power consumption, easy scalability

ETU-LINK Views and Summary

In conclusion, silicon photonics technology is not intended to completely replace traditional optical modules, but rather to demonstrate stronger vitality and development potential in specific areas (especially high-speed data center short-range interconnects).

As an active participant in the optical communications field, ETU-LINK has always kept pace with technological development trends. We deeply understand that silicon photonics technology is one of the key engines driving the industry towards higher bandwidth and lower costs. We have already deployed and continue to invest in research and development, committed to providing customers with more competitive high-speed optical interconnect solutions.

Users can select modules according to actual needs: Choose traditional optical modules for long-distance transmission, industrial networks and conventional medium/low-speed links; Choose silicon photonic modules for 800G/1.6T high-density data centers and AI computing clusters.

The future is here, ETU-Link Technology Co., Ltd. will embrace the silicon photonics era with you and connect to infinite possibilities!

FAQ: Common Questions About Two Types of Optical Modules

1. Can silicon photonic modules completely replace traditional optical modules?
No. They are complementary technologies. Traditional modules still dominate long-distance transmission and medium/low-speed networks, while silicon photonics leads high-speed short-range interconnection.

2. Which one is cheaper for mass deployment?
At present, traditional modules have lower procurement costs. After large-scale production of silicon photonics, the overall cost will be significantly reduced, especially for 800G and above high-speed products.

3. What is CPO and its connection with silicon photonics?
CPO (Co-Packaged Optics) is a new packaging technology. Silicon photonics is the core chip solution of CPO, which greatly reduces transmission latency and power consumption.

4. Which one has better stability for long-distance transmission?
Traditional optical modules using III-V materials have lower optical loss and more stable performance, so they are more suitable for long-distance links over 20km.

5. What speed ranges are the two modules suitable for respectively?
Traditional modules: 10G~400G (full distance range). Silicon photonic modules: Mainly 800G, 1.6T and higher ultra-high-speed short-range scenarios.
